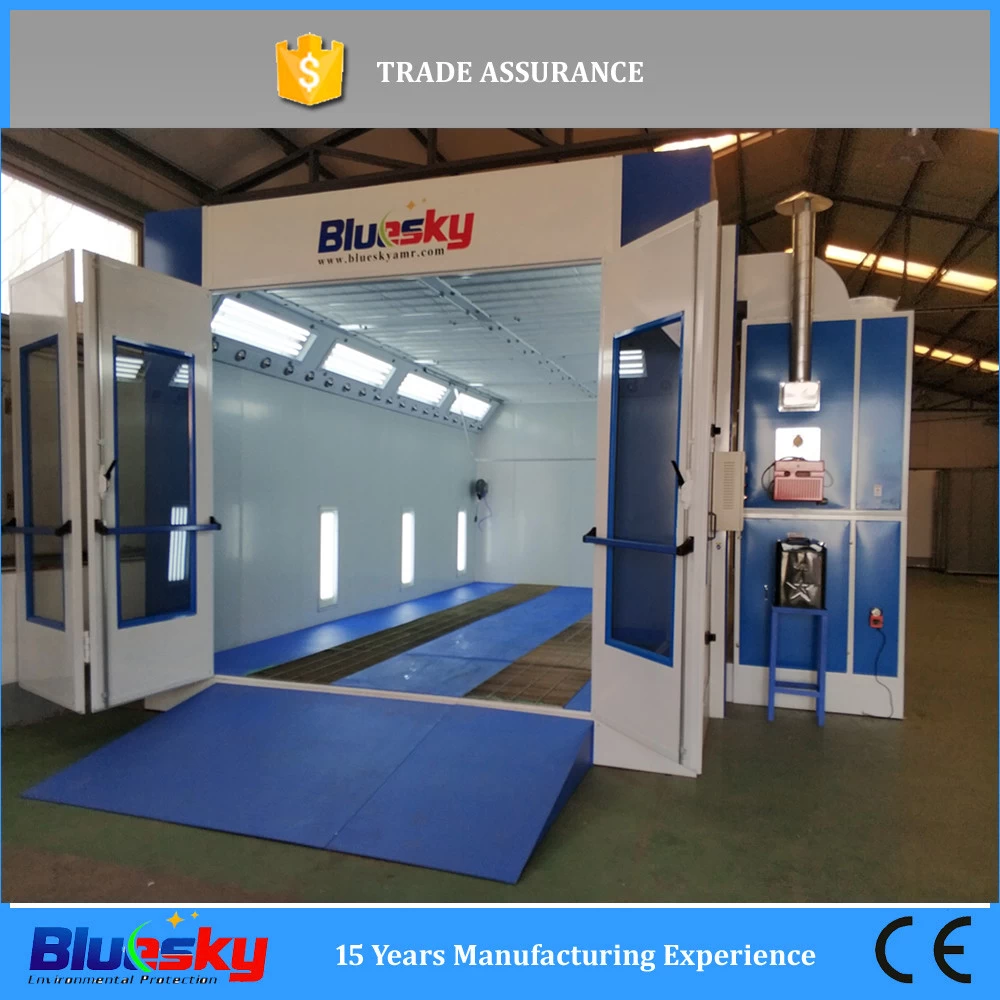

Water Based Paint Spray Booth

Water Based Paint spray booth with diesel burner G20, 6.9m long, air speed 0.3 m/s, 40 pcs nozzles for water paint




Diesel Water Based Paint Spray Booth BSH-SP9200AW

Main technical performance and parameter of Spray booth:


 Dimensions:  Length(mm)  Width(mm)  Height(mm)
 Outer Size  7,000  5,200  3,600
 Internal Size  6,900  3,900  2,750

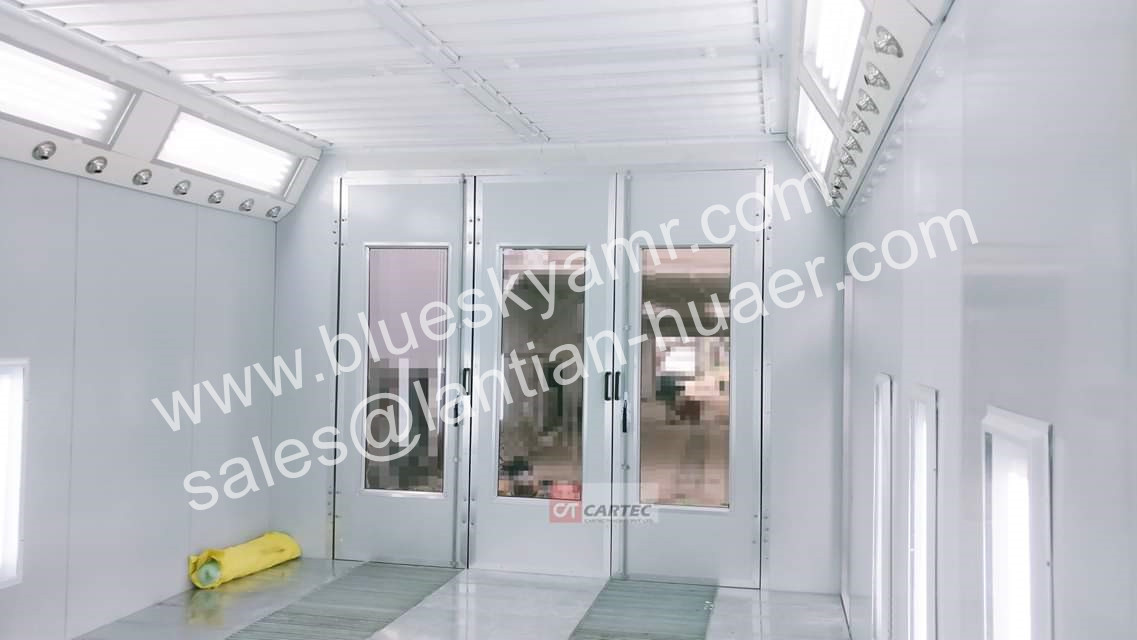

 Entrance Door  Adopt with handle and lock  3,000  2,700
 Operatior’s Door  Adopt with handle and Anti-Explosion  800  2,000


Features:

Total power 14.5 kw;  380V/3ph/50hz;  Noise < 80db

IWallboard

Adopt high quality fireproof insulation EPS panel, thickness: 75mm (Rock wall optional)  Density is 12kg/m3   0.476mm thick colored steel on both side.

IIFoundation System

Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating.

Galvanized and beautiful, durable and better force bearing.

IIIHeating System

Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional);

One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ;

4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃;

One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts.

IVFiltration System

Pre-filters Can Capture Granules Larger than 10μm;

Ceiling filter can Capture Granules Bigger than 4μm.

Floor filter multilayer glass fiber, air cleanliness in room can reach 98%

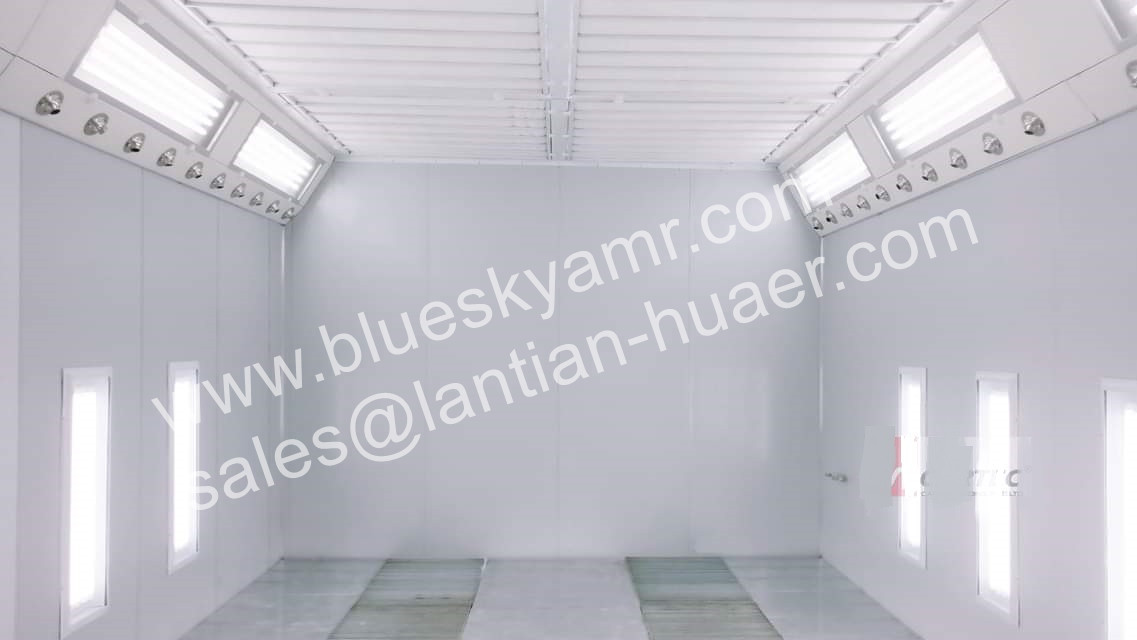

VLight System

Ceiling light, 8 group×4pcs = 32pcs×36w;

Bottom light, 8 group×4pcs = 32pcs×36w;

With light fixture, anti-explosion design.

VIVentilation System

Air -inlet fan 2 sets×4kw, Centrifugal, Air outlet fan 1 set 4kw, Centrifugal. Air flow speed in cabin 0.3m/s.

One set of Painting and baking exchange system

One set of Cabinet for the fans and three pcs air ducts

VIIControl Panel

One unit, including spray switch, baking switch, emergency stop, etc.

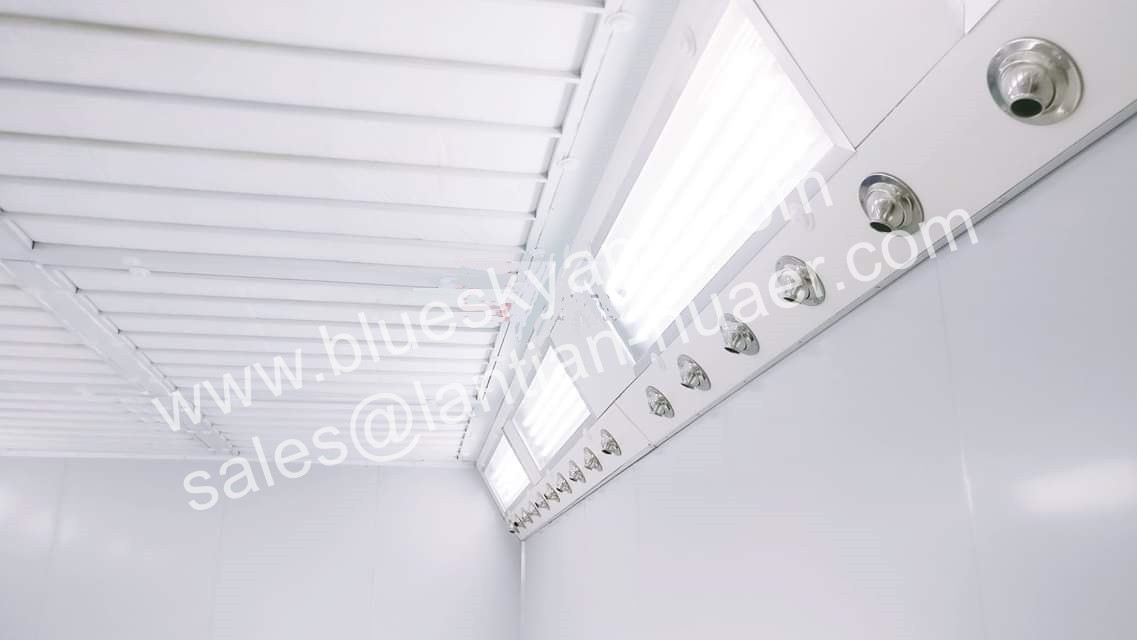

VIII. Water Based System

40 untis nozzles, 2*1.5KW ceiling fans. Necessary air duct for the dry



Spray booth comparison:


Model

BSH-SP9100A

BSH-SP9100B

BSH-SP9200A

BSH-SP9200B

BSH-SP9300A

BSH-SP9300B

BSH-SP9500

Fuel

Electric

Diesel

Diesel

Diesel

Diesel

Diesel

Diesel

Internal size

6.9*3.9*2.65m

6.9*3.9*2.75m

6.9*3.9*2.75m

6.9*3.9*2.75m

8*4*3m

8.6*4.5*3.5m

15*5*4.8m

Entrance door

3*2.6m

3*2.7m

3*2.7m

3*2.7m

3*2.9m

3*3.5m

4*4.8m

Personal door

0.8*2m

0.8*2m

0.8*2m

0.8*2m

0.8*2m

0.8*2m

0.8*2m  (2 units)

Panel

50mm

50mm

75mm

75mm

50mm

75mm

75mm

Air-intake fan

2*1.5kw

2*4KW

2*4KW

1*7.5KW

2*5.5KW

2*5.5KW

4*7.5KW

Exhaust fan

0

0

1*4KW

1*7.5KW

1*5.5KW

1*7.5KW

2*7.5KW

Air speed

0.3m/s

0.25m/s

0.3m/s

0.4m/s

0.35m/s

0.3m/s

0.3m/s

Ceiling Lights

32*36W

32*36W

32*36W

32*36W

40*36W

40*36W

64*36W

Bottom Lights

0

32*36W

32*36W

32*36W

32*36W

32*36W

64*36W

Burner

0

G10*1

G20*1

G20*1

G20*1

RG5S*1

RG5S*2
