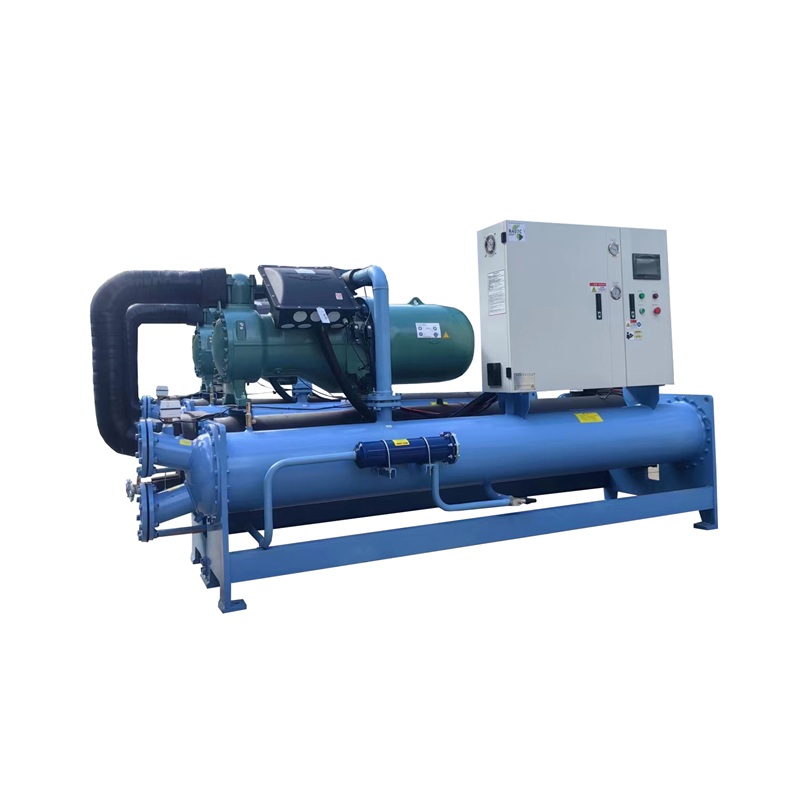

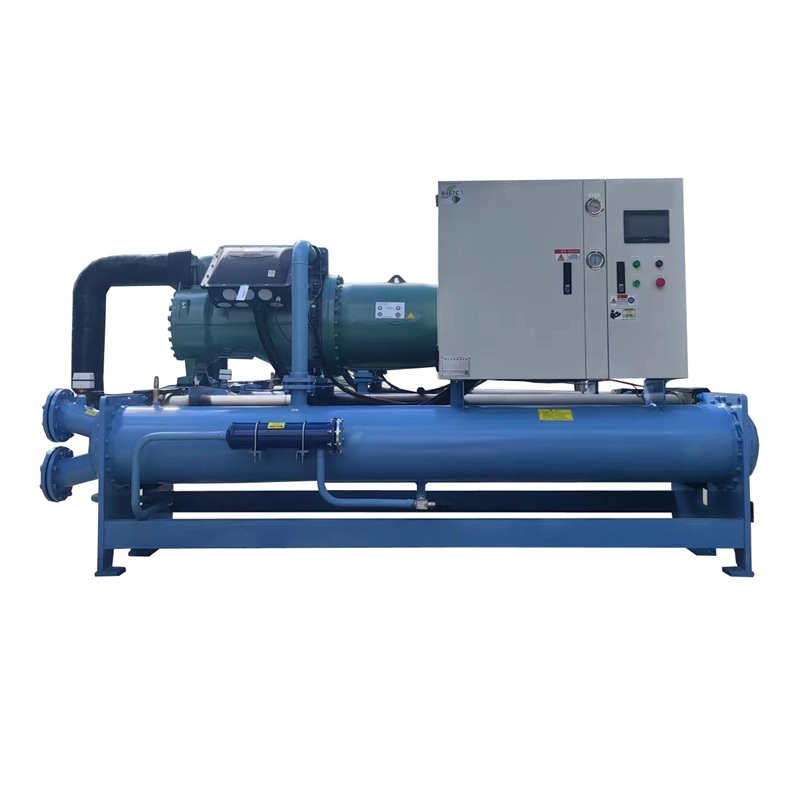

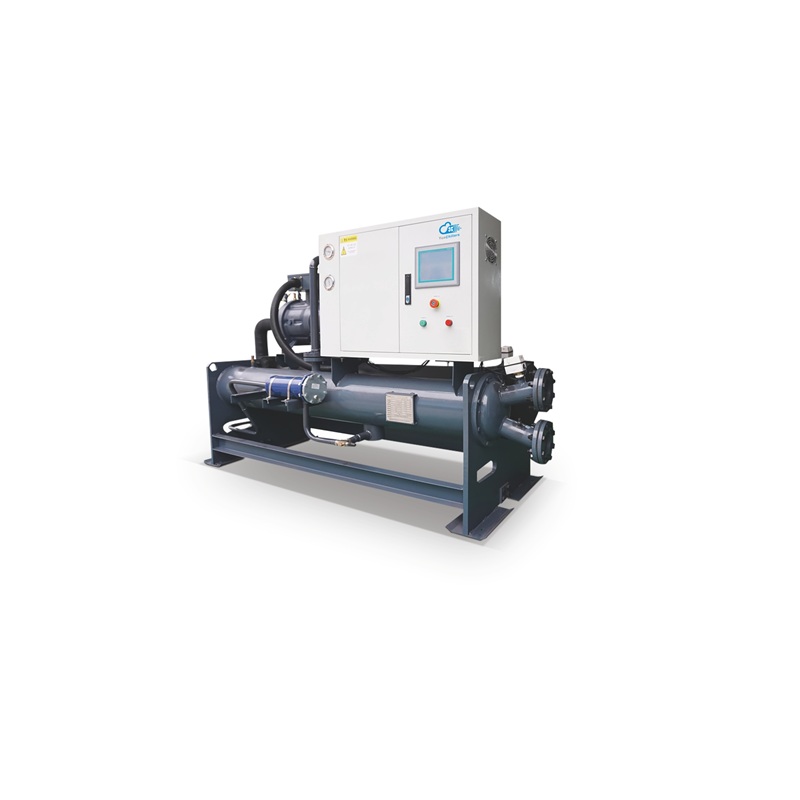

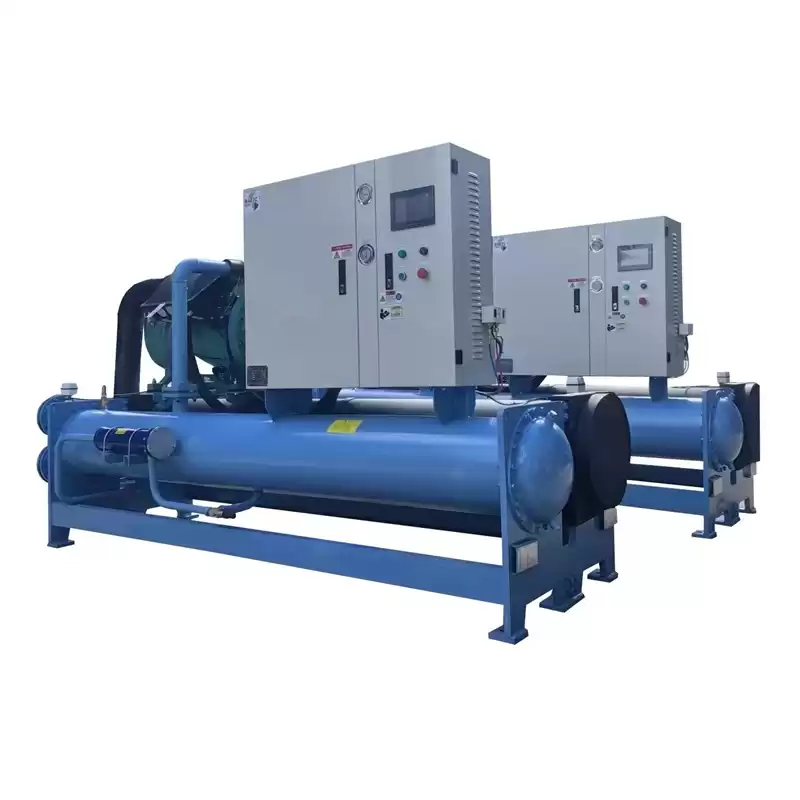

Water Cooled Single Screw Chiller Unit

Industrial water-cooled screw chiller is an efficient refrigeration equipment mainly used for cooling needs in industrial environments.Its core component is a screw compressor,  which dissipates heat by connecting external cooling water and is suitable for large-scale  refrigeration.This device has high cooling capacity,stability,and energy efficiency,and is widely used in fields such as chemical,pharmaceutical,food processing,and electronic   manufacturing.Industrial water-cooled screw chillers,with their advantages of high efficiency,stability,and energy saving,are widely used in multiple industrial fields and are key equipment in industrial cooling systems.

Facebook Twitter Pinterest LinkedIn 分享

High-Efficiency Water-Cooled Single-Screw Chillers

Our industrial-grade water-cooled single-screw chillers are high-efficiency refrigeration solutions engineered to meet the rigorous cooling demands of large-scale industrial environments, delivering superior energy efficiency and operational stability.

  • Series Model: HXSL(standalone)
  • Capacity Range: 100 ~ 1200 kW
  • Temperature range: 5°C ~ 30°C
  • Type: Water cooled screw type
  • Cooling medium: Water
Single-Screw Chiller Reliability

High Efficiency & Reliable Performance

Utilizing branded single-screw compressors, our chillers are designed for peak mechanical reliability and continuous 24/7 operation. The system effectively handles massive thermal loads with fewer moving parts, ensuring low noise levels, minimal vibration, and long-term operational cost savings.

Industrial Cooling Flexibility

System-Enhancing Design Characteristics

Featuring high-efficiency shell-and-tube heat exchangers and advanced electronic or thermal expansion devices, our chillers adapt flexibly to precise process demands from metallurgy to semiconductors. The compact, small-footprint structure optimizes factory floor utilization while maintaining superior thermal capacity.

Intelligent Chiller O&M

Intelligent & Simplified Operation

Equipped with a smart PLC control system, the unit provides real-time monitoring and comprehensive safety protection logic. The user-friendly interface facilitates automated operation, while the robust design allows for simplified maintenance and drastic energy savings across various industrial fields.



Specifications

Model HX-30SL HX-40SL HX-50SL HX-60SL HX-70SL HX-80SL HX-90SL HX-100SL HX-120SL HX-130SL HX-150SL
Cooling capacity kW 96.4 133.2 174.8 187.8 233.3 251.3 296.1 348.3 375.1 407.9 495.3
Kcal/h 82904 114552 150328 161508 200638 216118 254646 299538 322586 350794 425958
Total power kW 23.3 30.8 38.6 42.5 51 55.6 63.1 73.2 79.4 87.5 104.8
Running current A 40.3 53.3 68.1 73.7 87.4 94.8 109.6 127.8 138.4 154.4 179.4
Power supply 3 Phase 380V 50Hz
Temperature control range ℃ 5℃-35℃
Temperature control accuracy ℃ ±2
Refrigerant Type R407C
Filling amount kg 15 20 25 30 35 40 45 50 60 65 75
Way to control Thermal Balance Expansion Valve
Compressor Start up Star-Delta Start
Energy regulation % 0%-25%-50%-75%-100% (0%-33%-66%-100%)
Form Semi-hermetic screw compressor
Power kW 23.3 30.8 38.6 42.5 51 55.6 63.1 73.2 79.4 87.5 104.8
Evaporator Types of Shell and tube
Chilled water flow m³/h 18 24 30 36 42 48 54 60 72 78 90
Pipe diameter PT 2-1/2" PT 3" PT 4" PT 5"
Condenser Types of Shell and tube
Cooling water flow m³/h 22 28 35 42 49 56 63 72 84 92 105
Pipe diameter PT 2-1/2" PT 3" PT 4" PT 5"
Safety protection Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Dimensions Length mm 2200 2400 2500 2700 2800 2800 3000 3200 3400 3600 3600
Width mm 950 950 1000 1000 1100 1200 1250 1250 1250 1300 1400
Height mm 1450 1450 1500 1500 1550 1600 1650 1650 1650 1700 1750
Unit weight KG 1030 1200 1380 1520 1650 1800 1730 1800 1900 1980 2100

Advantages

Large Capacity Industrial Cooling Solution

High Cooling Duty
Energy Efficient Chiller Technology

Ultimate Efficiency
Industrial Chiller Adaptability

High Adaptability
Intelligent Chiller Maintenance

Intelligent O&M
Compact Chiller Design

Compact Footprint
Screw Chiller Redundant Mutual Backup

Built-in Redundancy





Application Areas

Chemical Processing & Reactor Cooling

Chemical Process Control

Delivering reliable and massive cooling capacity to safely manage exothermic reactions in chemical reactors, ensuring stable temperature control and continuous operation in highly demanding chemical environments.

Single-Screw Chiller for Chemical Reactor Cooling
Pharmaceutical Manufacturing

Pharma Process Cooling

Providing ultra-precise and sanitary temperature control essential for pharmaceutical processing, active ingredient extraction, and cleanroom conditioning, ensuring the absolute highest standards of drug safety and quality.

Industrial Chiller for Pharmaceutical Cleanroom Production
Food & Beverage Processing

Food Safety & Preservation

Guaranteeing rapid and consistent cooling for food processing, brewery fermentation, and dairy production lines. Our chillers maintain strict sanitary temperatures to maximize shelf life and product freshness.

Water Cooled Chiller for Food and Beverage Processing
Electronics Manufacturing

Component & Electronics Cooling

Supplying highly stable and efficient thermal management for semiconductor fabrication, PCB assembly, and electronic component testing, minimizing defect rates and protecting sensitive high-tech manufacturing equipment.

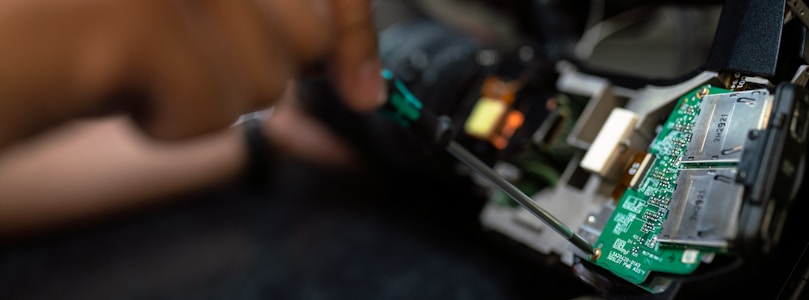

Industrial Cooling System for Electronics Manufacturing
