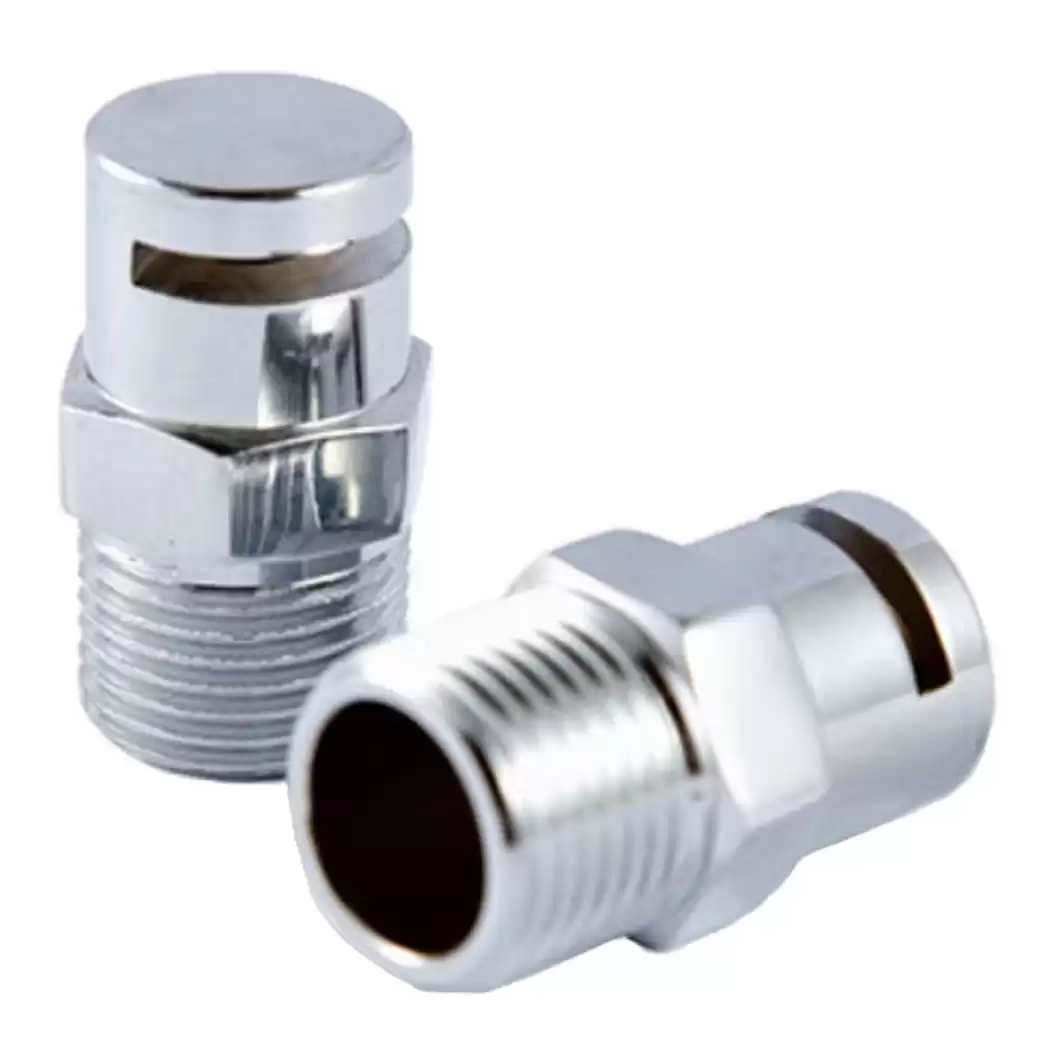

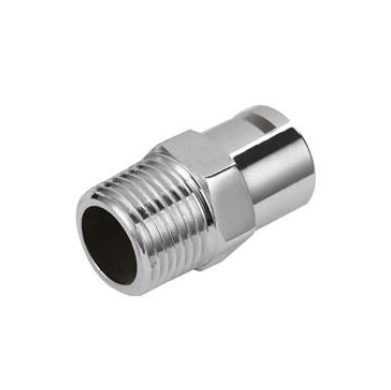

Water Spray Curtain Nozzle

The Curtain Nozzle Water Spray (ZSTMB Series) is a multi-functional device that disperses water into mist to form a water curtain. It combines aesthetic decoration and practical performance, suitable for both landscape decoration and functional scenarios like fire protection, air purification, and cooling.



Product Description

The Curtain Nozzle Water Spray is designed to convert water into a uniform mist, forming a continuous and beautiful water curtain. Its unique structure not only makes it a creative decorative element—ideal for landscape engineering, city squares, large shopping malls, and other public spaces to enhance visual appeal—but also it strong practicality. In functional scenarios, it can be used for fire protection (forming a protective water curtain to isolate fire and smoke), air purification (filtering dust and impurities in the air), and cooling/dehumidification (reducing ambient temperature in hot environments), meeting diverse needs of commercial, public, and industrial sites.

Available in three models (ZSTM B-15, ZSTM B-20, ZSTM B-25) with different connection sizes, the nozzle supports BSP/NPT thread standards, ensuring compatibility with most water supply pipelines. It features a fixed 120° spray angle, which guarantees a wide and uniform water curtain coverage, while the adjustable K factor (ranging from 8~60 LPM) allows it to adapt to different water flow requirements, whether for decorative mist or high-flow fire protection.

Features

  • Dual-Purpose Design: Combines decorative aesthetics (for landscape, public spaces) and practical functions (fire protection, cooling, air purification).
  • Uniform Water Curtain: 120° fixed spray angle ensures wide, even mist distribution, forming a stable water curtain.
  • Multiple specification Options: Three models (ZSTM B-15/20/25) with 1/2"(DN15)、3/4"(DN20)、1"(DN25) connections, adapting to different pipeline systems.
  • Flexible Thread Compatibility: Supports BSP/NPT threads, compatible with global pipeline standards.
  • Adjustable Flow Adaptability: K factor ranges from 8~60 LPM (0.6~42 GPM), matching different water flow demands.
  • Wide Application: Suitable for landscape decoration, fire protection, air purification, cooling/dehumidification, and more.



Product Parameter

Model Number Connection K Factor(LPM) K Factor(GPM) Spray Angle
ZSTM B-15

1/2''

(DN15)BSP/NPT

8-30 0.6-2.1 120°
ZSTM B-20

3/4''

(DN20)BSP/NPT

30-50 2.1-3.5 120°
ZSTM B-25

1''

(DN25)BSP/NPT

50-60 3.5-42 120°



FAQ

Q: What’s the MOQ for your Curtain Nozzle Water Spray?
A: 1000 Pieces.

Q:Can OEM services be provided? For example, putting on our brand Logo?

A:Of course! As a factory, we warmly welcome OEM/ODM cooperation.


Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.


Q:What is the delivery time?

A:The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.


Q:Why choose us?

A:With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
