Application

The water vapor absorption tester measures the water vapor absorption performance of the

material.

Test Principle

A sample is clamped between the opening end of the experimental pot (containing the specified

amount of water) and the watertight seal. The kettle is stored at a specified temperature for a

certain time, and then the change in mass of sample is measured.

Structure

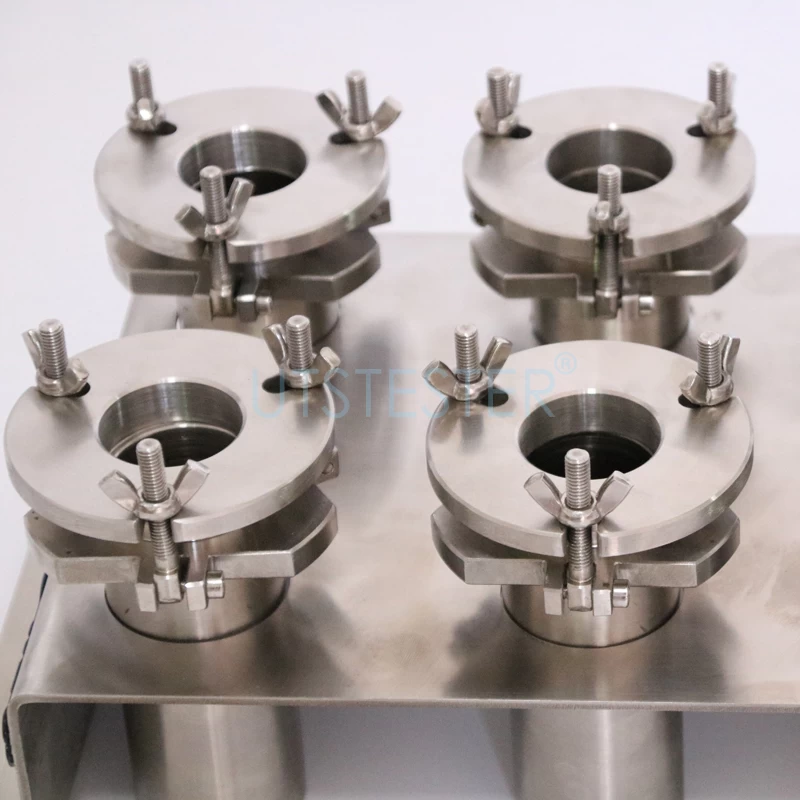

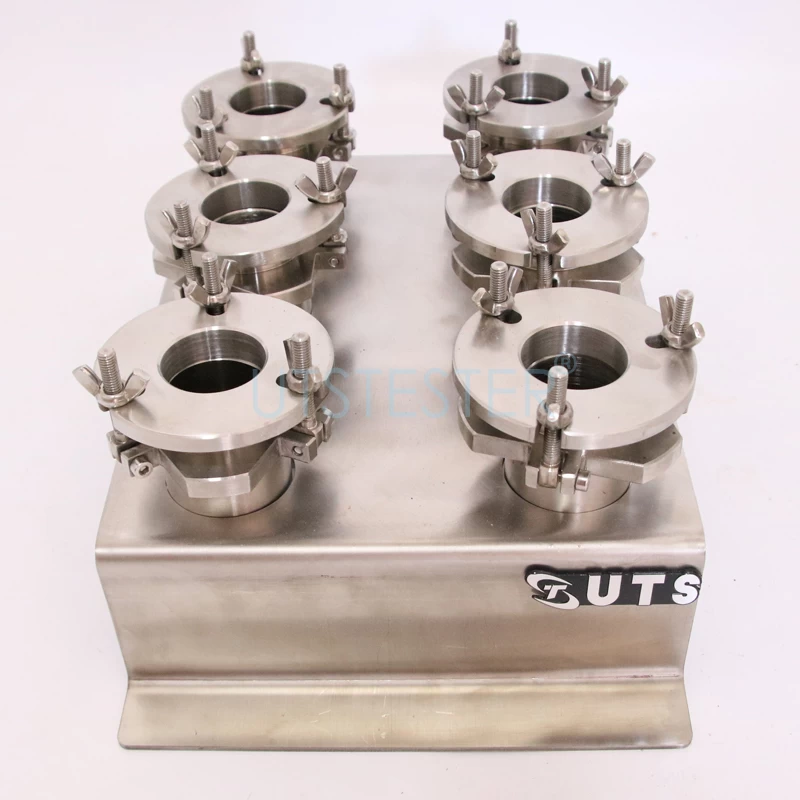

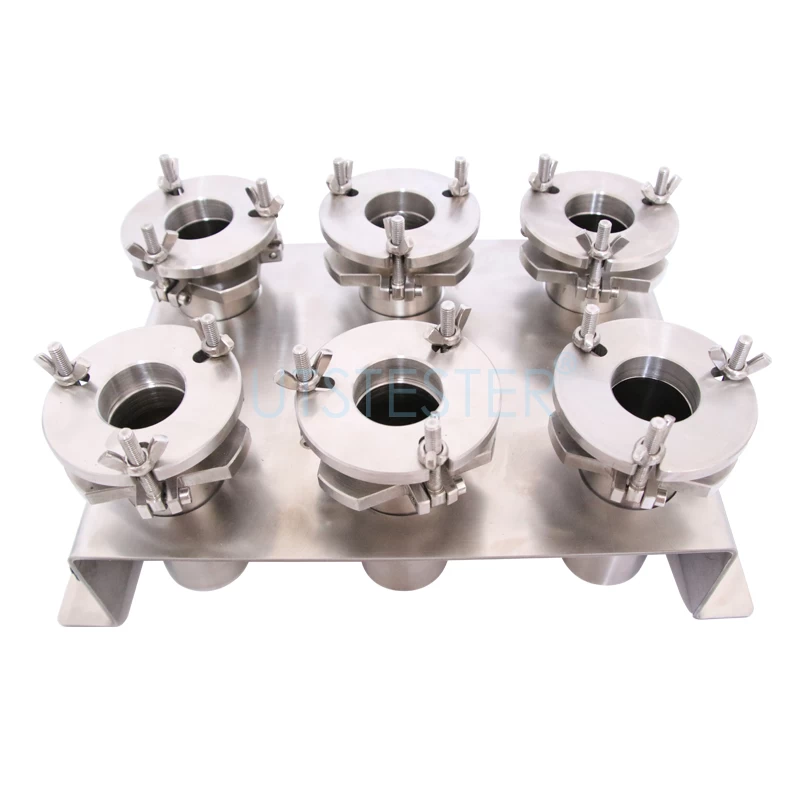

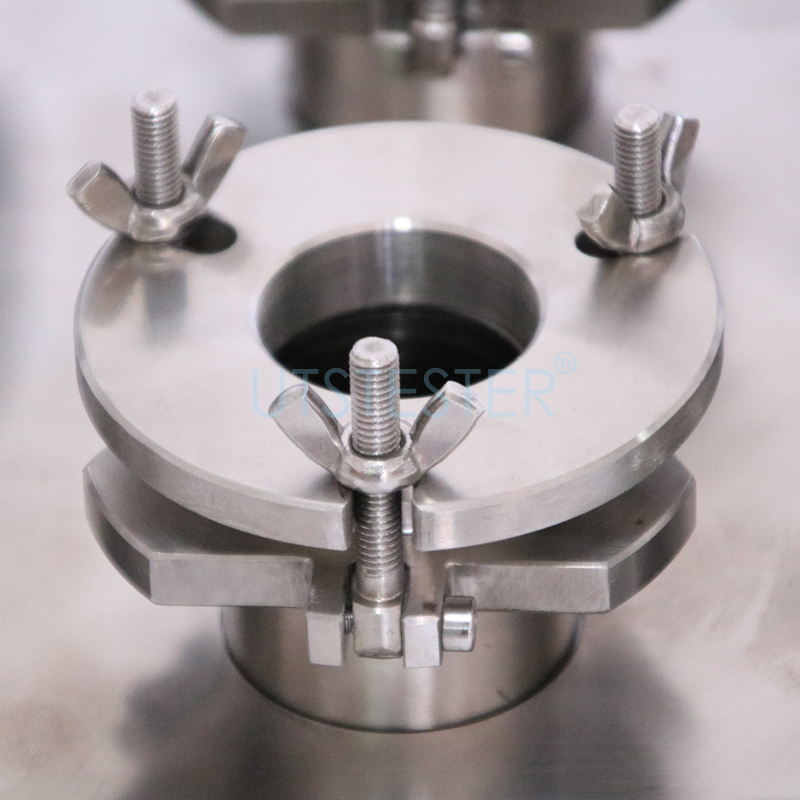

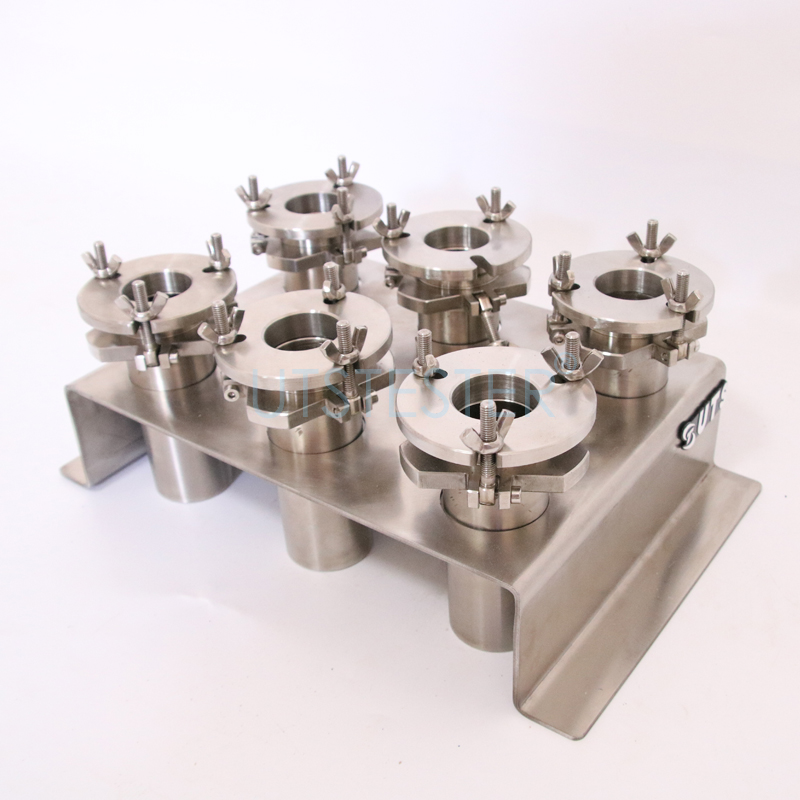

H071 Water Vapour Absorption Tester, consists of six test pots, each with an internal diameter

of 35 mm and a volume of 100 cm cubed, including a movable cover which can be clamped

reliably at the opening end of the test pot. A non-permeable sealing layer is pressed against

the back end of the test pot through the lid.

In addition to the H071 Water Vapour Absorption instrument, a laboratory ruler and stopwatch

must be used to measure the water vapor absorption. (Purchase from UTS company)

Features

Beautiful appearance

Water Vapour Absorption Tester in stainless steel material, durable and beautiful.

Accurate size

Each with an internal diameter of 35 mm and a volume of 100 cm cubed, which comply with standards

Test pot variety

Test pots available with 6 or 8 to meet different demands.

Precision & standard based

ISO 17025 Calibration Certificates are able to convince the cutting accuracy of Water Vapour Absorption Tester.

Standard

ISO 17229; EN 420;EN ISO 20344 ; AS NZS 2201.2; GB T 20991; EN 344-1;SATRA TM178

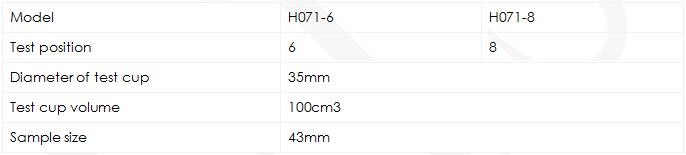

Key Specification

Accessory

Application
