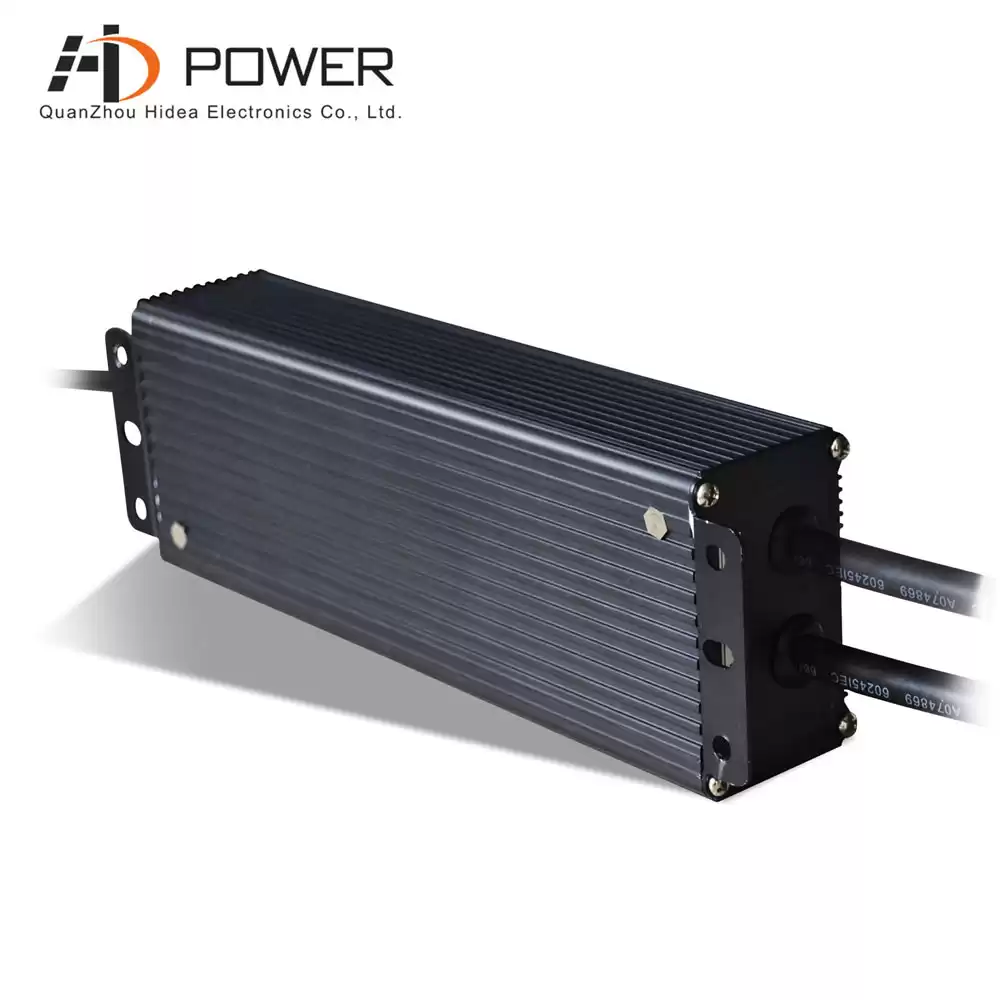

waterproof ip67 24vdc 150W 0 10v dimmable led strip light driver
0 10v dimmable led power supply 150W, built-in active PFC function, aluminum casing, good heat dissipation, free air convection cooling, with 5-year warranty
Specification
|
Model
|
SMT-012-150VDHW
|
SMT-024-150VDHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0~12.5A
|
0~6.25A
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100-305VAC (110, 277VAC)
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.96/110V / PF≧0.96/220V / PF≧0.98/277V
|
|
Full Load Efficiency(Typ.)
|
>91%(110V) / >95%(277V)
|
>90%(120V) / >92%(277V)
|
|
AC Current(Typ.)
|
1.43A(120V) / 0.93A(277V)
|
1.39A(120V) / 0.90A(277V)
|
|
Leakage current
|
﹤0.8mA/120VAC / ﹤0.7mA/220VAC / ﹤0.7mA/277VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦330VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
Class P, Type HL, EN61347-1 EN61347-2-13.IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
255*80*53mm(L*W*H)
|
|
packing
|
440*295*145mm/8pcs/CTN 265*98*55 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110~277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
The 0 10v led driver conforms UL standard and can be attached wuth junction box in both input and output if necessary. A wide 12v 24v constnat voltage lights can be match with that. Coxotech led neon is optional.
Related Products
|

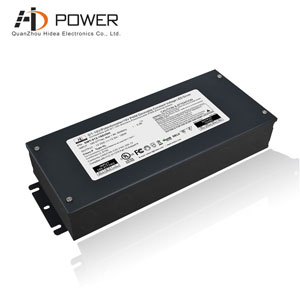

277vac constant voltage LED driver 150W integrated with junction box, dimmable mode is 0 10v dimmable, metal shell design, good heat dissipation, short circuit/overload/overtemperature protection, 7-year warranty
