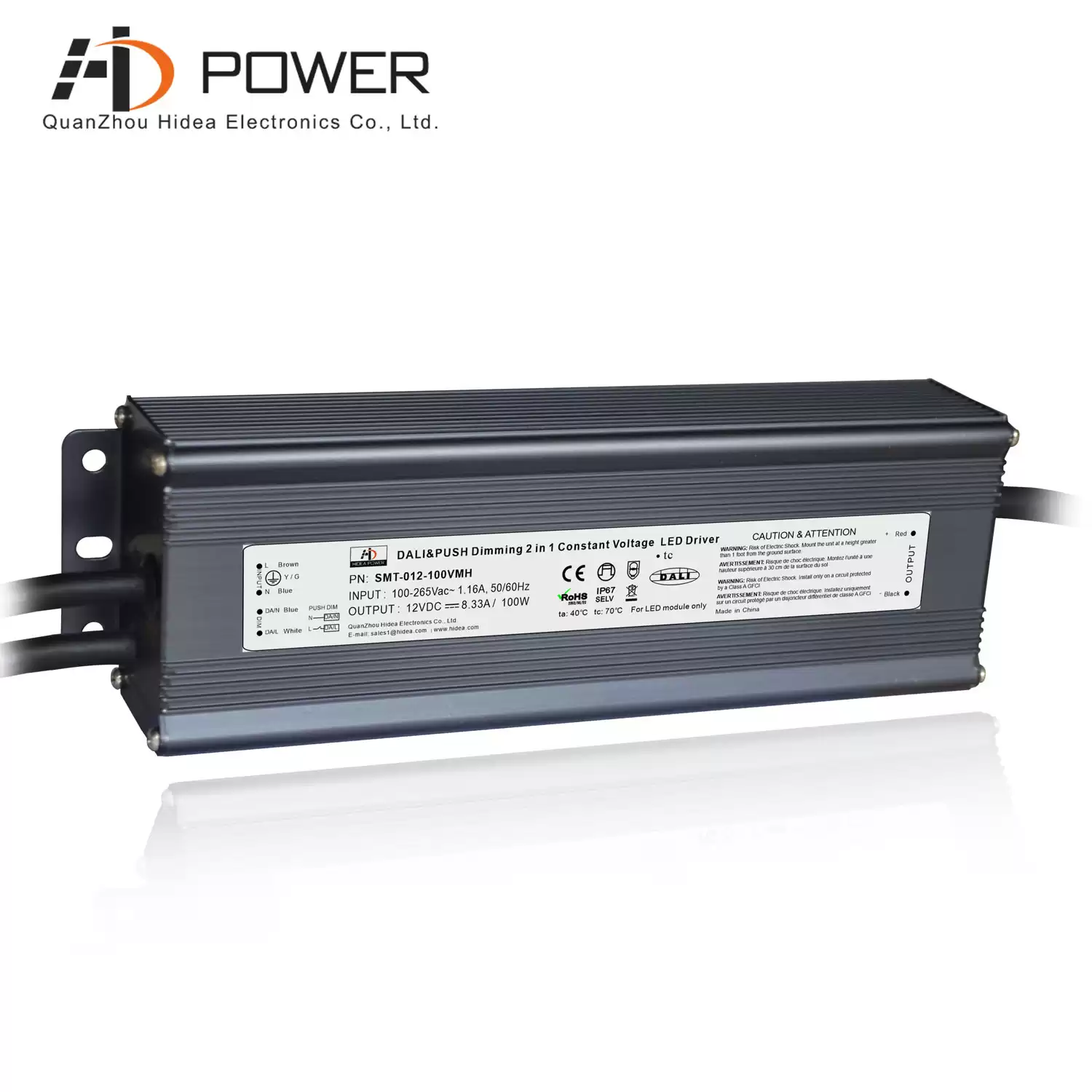

waterproof IP67 constant voltage dali dimmable led driver 24v 100w for led strip
This dali & push dimmable led driver has an input voltage of 100-265vac and a dimming range of 0-100%. It complies with global safety lighting laws and can be used for smart LED lighting project installations. It has a 5-year warranty.
Specification
|
Model
|
SMT-012-100VMH
|
SMT-024-100VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
8.33A
|
4.16A
|
|
Rated power
|
100W
|
|
Load Regulation
|
±0.2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.99 / 120VAC PF≥0.98/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency(Typ.)@ full load
|
87%
|
86%
|
|
AC Current(Max.)
|
1.16A
|
1.17A
|
|
Inrush Current (Typ.)
|
13.2A/120VAC 59A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
Ⅰ
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
1.1Kg
|
|
Dimension
|
210*70*43mm(L*W*H)
|
|
packing
|
340*275*170mm/10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

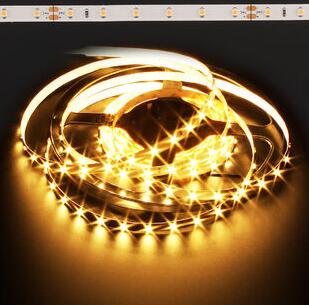

UL certified Solidapollo LED strip light, fully dimmable by dimmable led tape driver, candle light warm white 2400K, strong 3M double sided tape, great for gentle cove lighting, under cabinet lighting and shelf lighting.
Related Products
|

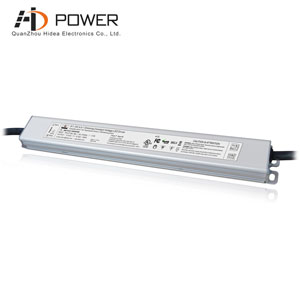

 slim size 100W 0 10V dimmable led driver constant voltage working mode, aluminum shell design, waterproof grade ip67, UL certified, complies with global safety lighting regulations, with 7-year warranty
