Unit No.
|
Shaft Dia
|

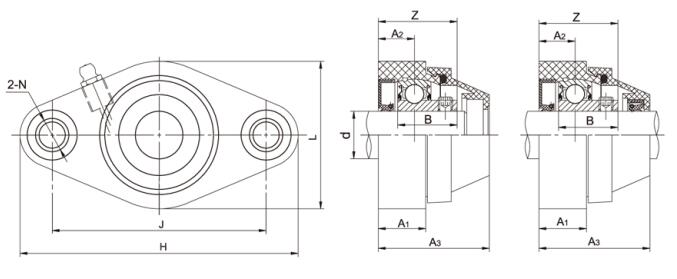

Dimensions(mm)
|
Bolt Size
|
Housing Weight
|
|
d
|
H
|
J
|
A2
|
A1
|
N
|
L
|
B
|
Z
|
A3
|
(mm)
|
(kg)
|
|
(in)
|
(mm)
|
|
WP-SSBFL204
|
|
20
|
117
|
90
|
15.2
|
20
|
11
|
62
|
25
|
33.5
|
46
|
M10
|
0.09
|
|
WP-SSBFL204-12
|
3/4
|
|
117
|
90
|
15.2
|
20
|
11
|
62
|
25
|
33.5
|
46
|
M10
|
0.09
|
|
WP-SSBFL205
|
|
25
|
131
|
99
|
16.8
|
22.5
|
11
|
71
|
27
|
36.3
|
49.5
|
M10
|
0.14
|
|
WP-SSBFL205-14
|
7/8
|
|
131
|
99
|
16.8
|
22.5
|
11
|
71
|
27
|
36.3
|
49.5
|
M10
|
0.14
|
|
WP-SSBFL205-15
|
15/16
|
|
131
|
99
|
16.8
|
22.5
|
11
|
71
|
27
|
36.3
|
49.5
|
M10
|
0.14
|
|
WP-SSBFL205-16
|
1
|
|
131
|
99
|
16.8
|
22.5
|
11
|
71
|
27
|
36.3
|
49.5
|
M10
|
0.14
|
|
WP-SSBFL206
|
|
30
|
149
|
118
|
20
|
26
|
11
|
85
|
30
|
42
|
55
|
M10
|
0.21
|
|
WP-SSBFL206-17
|
1-1/16
|
|
149
|
118
|
20
|
26
|
11
|
85
|
30
|
42
|
55
|
M10
|
0.21
|
|
WP-SSBFL206-18
|
1-1/8
|
|
149
|
118
|
20
|
26
|
11
|
85
|
30
|
42
|
55
|
M10
|
0.21
|
|
WP-SSBFL206-19
|
1-3/16
|
|
149
|
118
|
20
|
26
|
11
|
85
|
30
|
42
|
55
|
M10
|
0.21
|
|
WP-SSBFL206-20
|
1-1/4
|
|
149
|
118
|
20
|
26
|
11
|
85
|
30
|
42
|
55
|
M10
|
0.21
|
|
WP-SSBFL207
|
|
35
|
163
|
130
|
19.5
|
26
|
11
|
93
|
32
|
43
|
59
|
M10
|
0.21
|
|
WP-SSBFL207-20
|
1-1/4
|
|
163
|
130
|
19.5
|
26
|
11
|
93
|
32
|
43
|
59
|
M10
|
0.21
|
|
WP-SSBFL207-21
|
1-5/16
|
|
163
|
130
|
19.5
|
26
|
11
|
93
|
32
|
43
|
59
|
M10
|
0.21
|
|
WP-SSBFL207-22
|
1-3/8
|
|
163
|
130
|
19.5
|
26
|
11
|
93
|
32
|
43
|
59
|
M10
|
0.21
|
|
WP-SSBFL207-23
|
1-7/16
|
|
163
|
130
|
19.5
|
26
|
11
|
93
|
32
|
43
|
59
|
M10
|
0.21
|
|
WP-SSBFL208
|
|
40
|
177
|
144
|
23
|
30
|
11
|
102
|
34
|
48
|
65.5
|
M10
|
0.24
|
|
WP-SSBFL208-24
|
1-1/2
|
|
177
|
144
|
23
|
30
|
11
|
102
|
34
|
48
|
65.5
|
M10
|
0.24
|
|
WP-SSBFL208-25
|
1-9/16
|
|
177
|
144
|
23
|
30
|
11
|
102
|
34
|
48
|
65.5
|
M10
|
0.24
|
Notes: Anti_Bacteria Protection Series ia available by adding prefix "AB" as designation.Ordering example: ABWP-SSBFL204.
