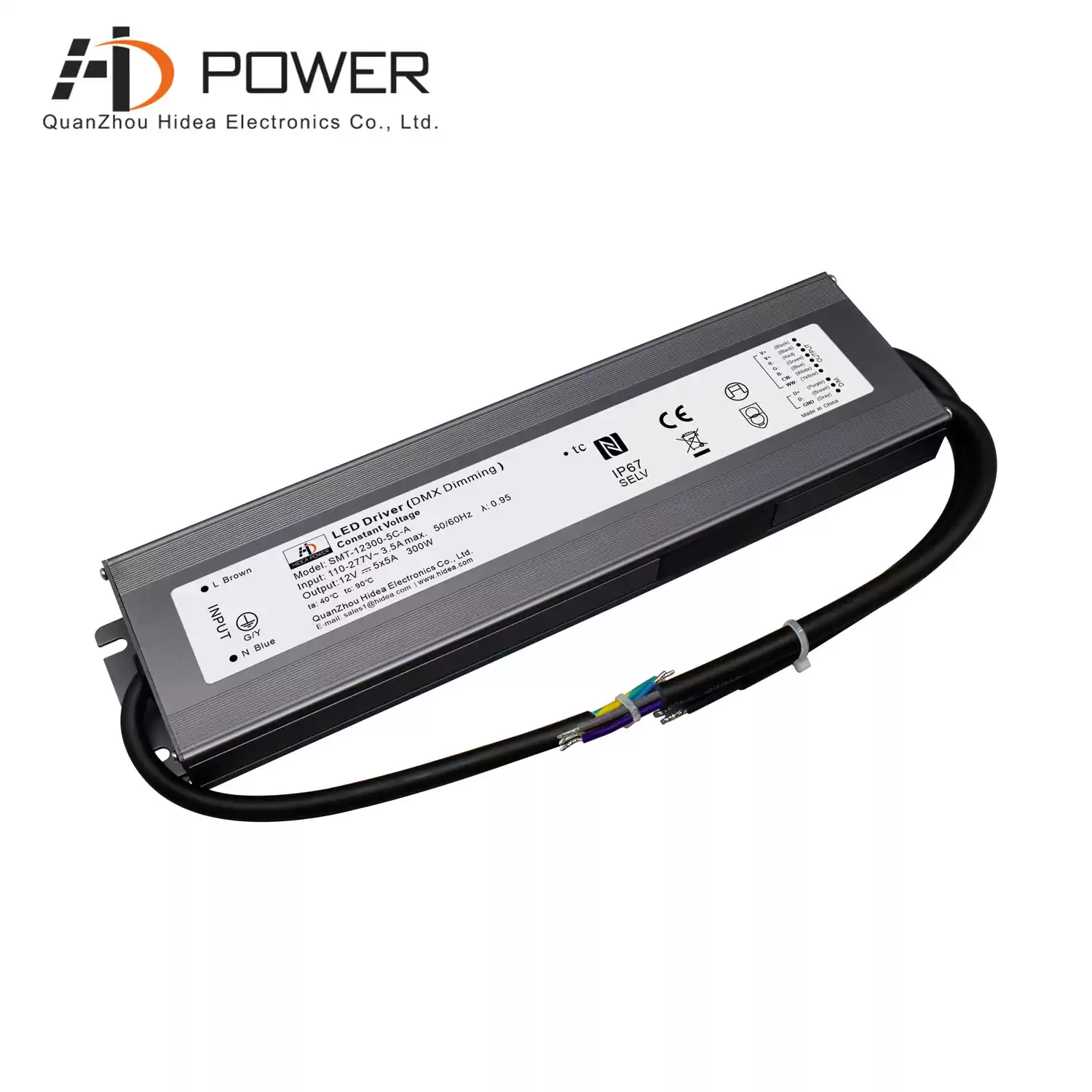

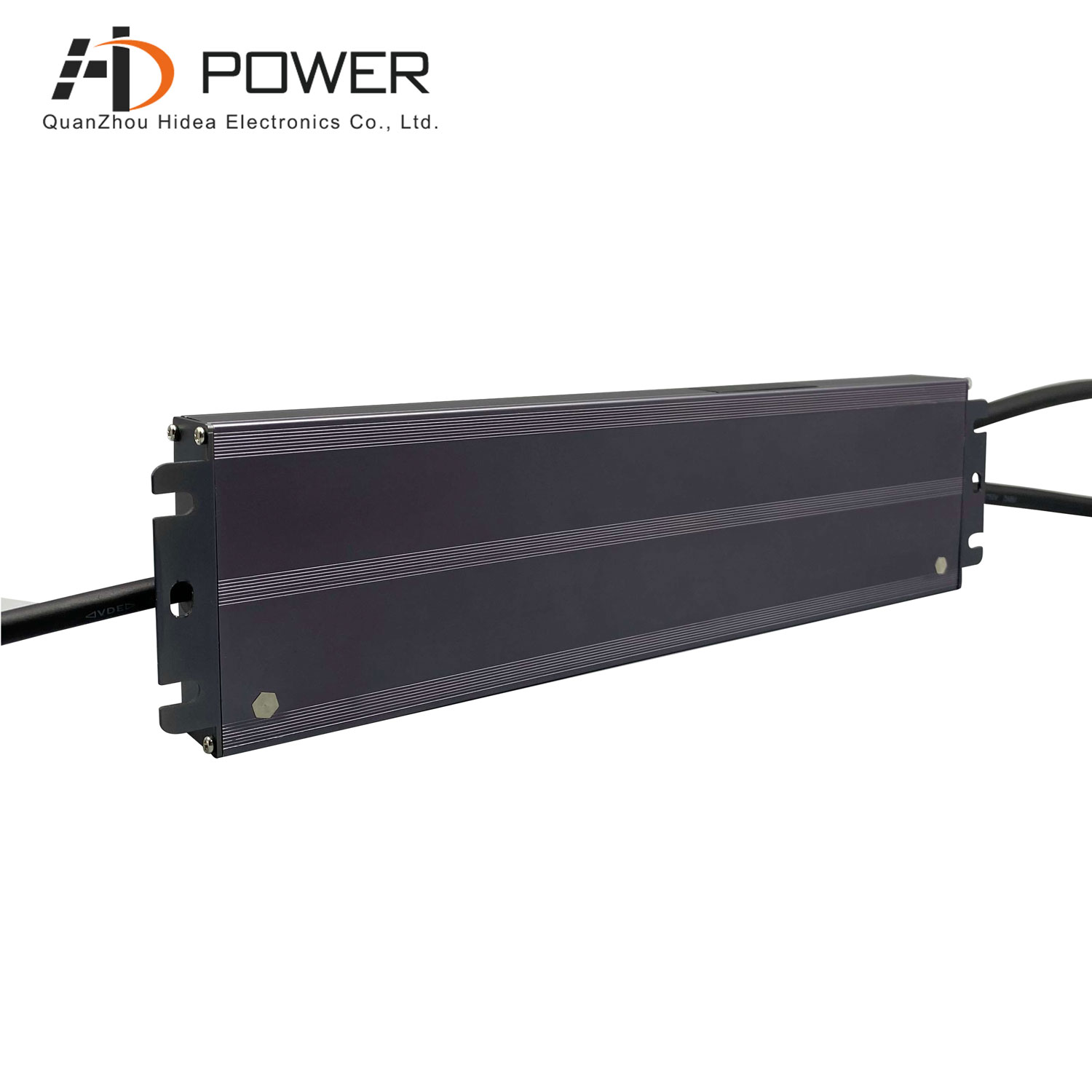

Dmx driver with dimming capability can dim the LED
light output over the full range from 100% to 0%, Our
new RGB dimmable LED drivers are designed to operate
with Mtccanadaledlights RGB strips.
|
|
Specification
|

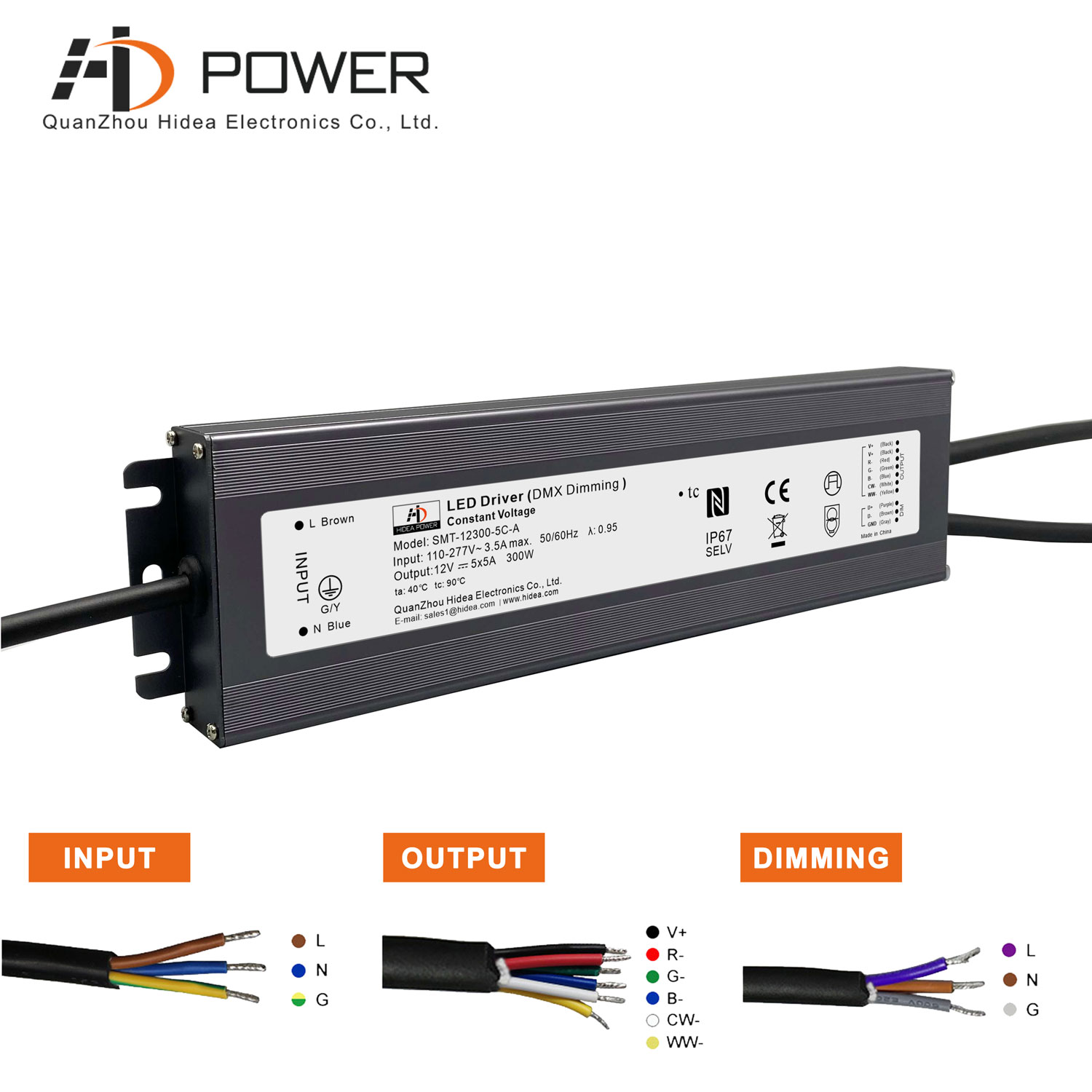

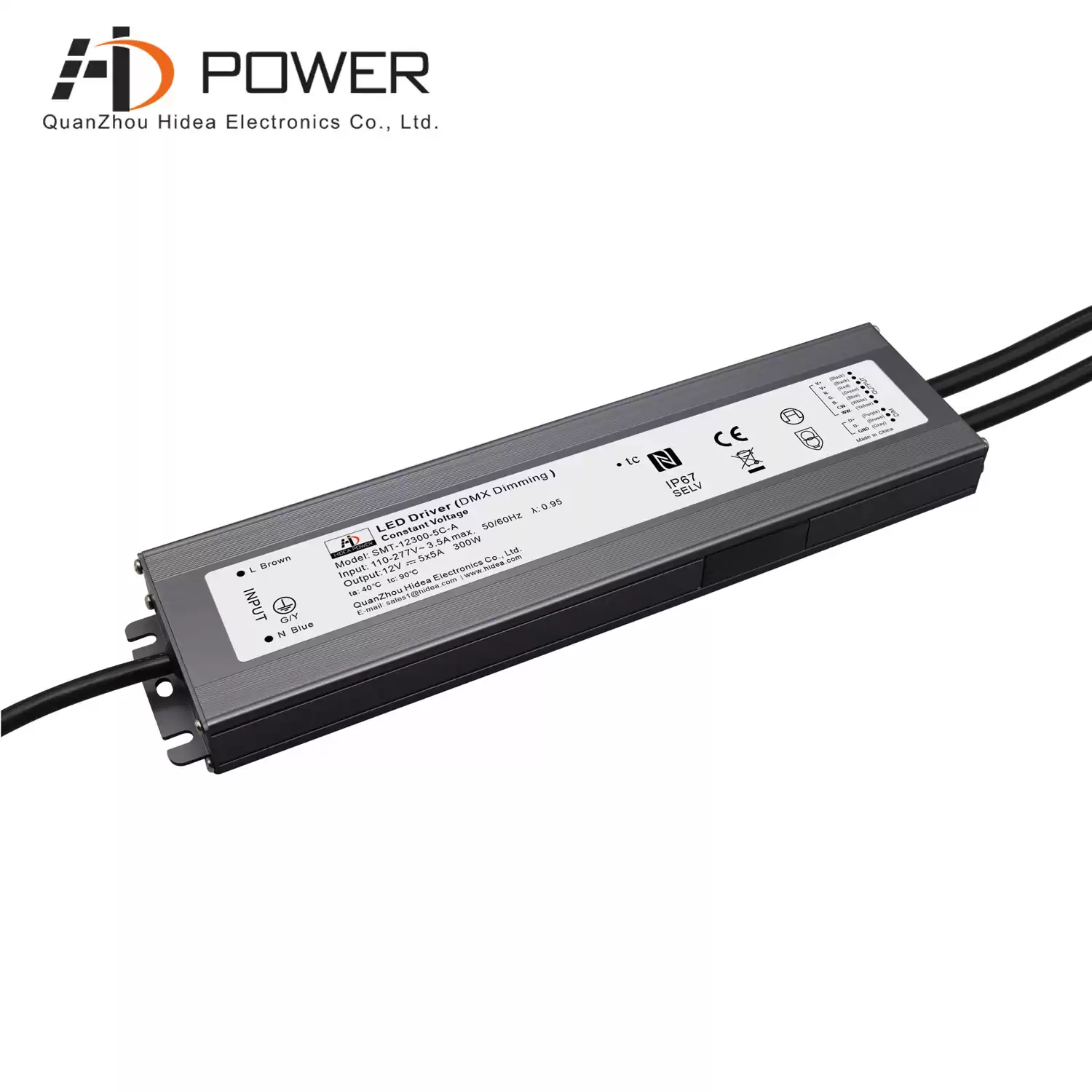

Model
|
SMT-12300-XC-A
|
SMT-24300-XC-A
|
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=25A
|
CH1+CH2+CH3+CH4+CH5=12.5A
|
|
Rated power
|
300W
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PowerFactor(Typ.)@full load
|
PF≥0.98@230VAC
|
|
THD(Typ.)@full load
|
≤10%
|
|
Efficiency(Typ.)@full load
|
91.5%@230VAC
|
93%@230VAC
|
|
AC Current(Max.)
|
3.5A
|
3.5A
|
|
Inrush Current (Typ.)
|
48.5A (Twidth 164us measured at 50% I peak, COLD START, 230VAC)
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP.Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US) (≥60% loading)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11, EN61547
|
|
Others
|
Net Weight
|
1KG
|
|
Dimension
|
277x78x25mm (LxWxH)
|
|
packing
|
10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

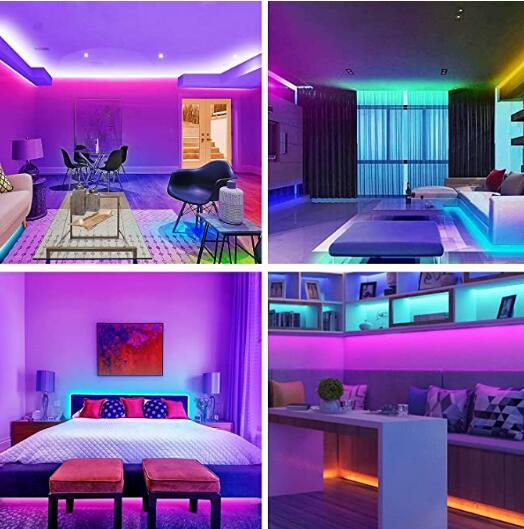

AspectLED's flexible colorful LED strip lights feature super bright side emitting SMD 335 LEDs and are a perfect solution for a wide variety cove lighting, under-cabinet lighting, back-lighting, pathway lighting and decorative lighting together with dmx driver.
Related Products
|

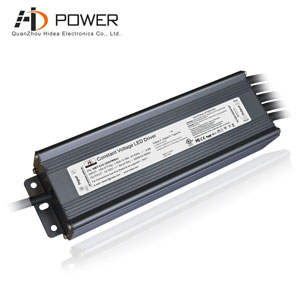

 Class 2 12v 300w led driver with 5x 60W power outputs, suitable for powering a wide range of LED strip and linear lighting products.
