Overview

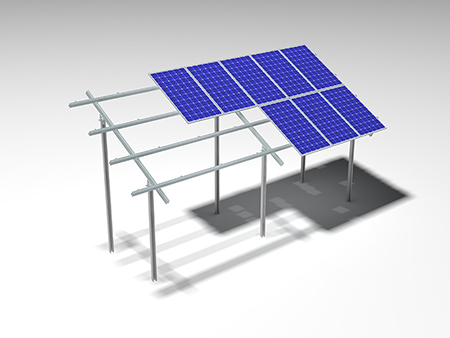

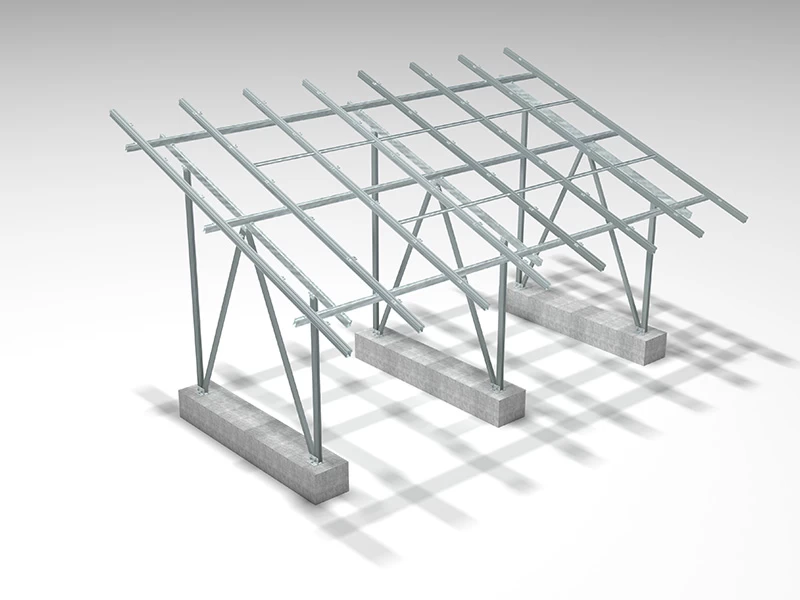

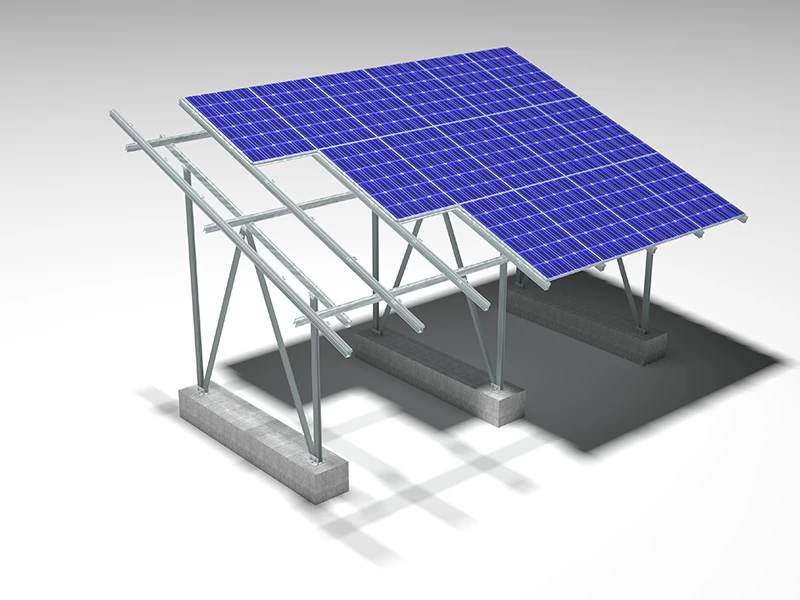

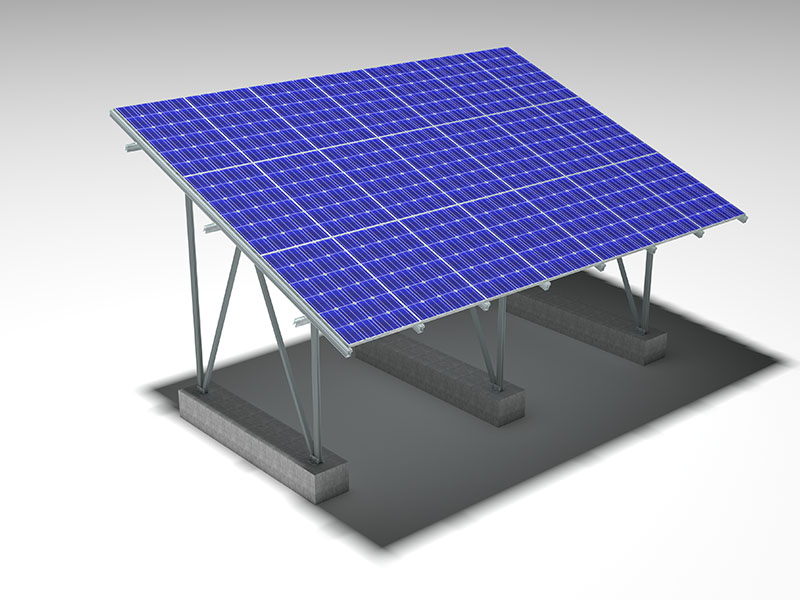

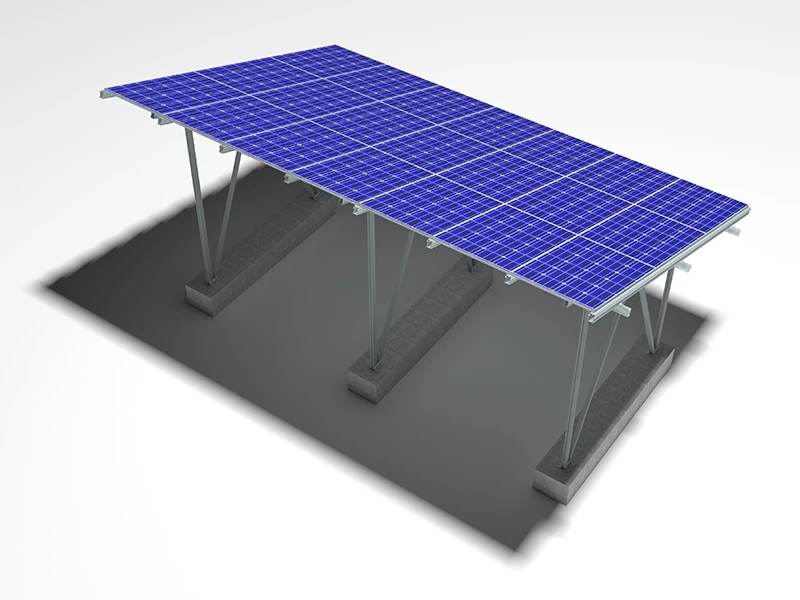

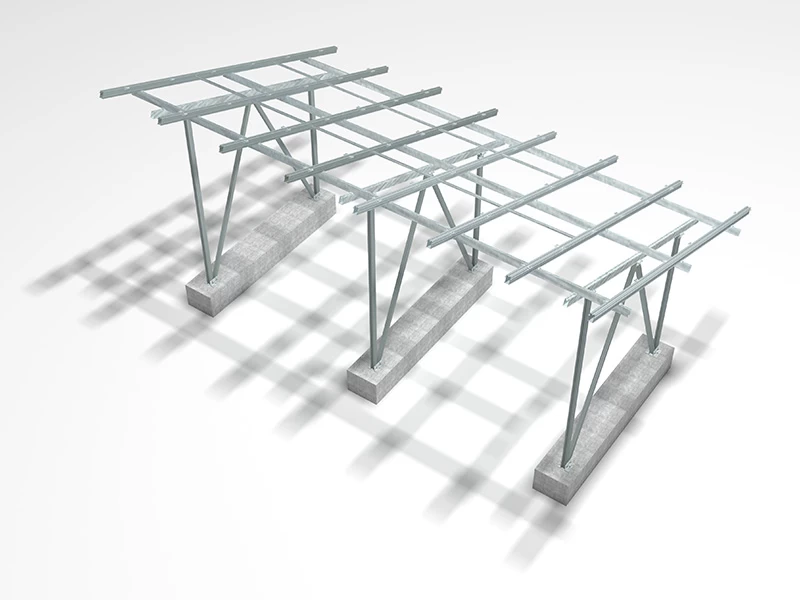

MRac Waterproof Solar PV Mounting System is suitable for installation of
medium and small-scale Solar PV Power plants, highly pre-assembled with
excellent wind and snow resistance. This system is adjustable from both
up-down direction and left-right direction, greatly reduce the installation
precision requirement. Application of the secondary beam and downward
component kits achieve perfect waterproof effect. Professional structure
design ensures the strength of the whole system, and highly improve the
installation efficiency.
|
Technical Parameter
|
|
Installation Site
|
Ground or Flat Rooftop
|
|
Foundation
|
Ground Screw or Concrete Foundation
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 & Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with
east-west, west-south and south-north directions, assuring
flexible on-site installation to achieve best yield for solar
modules
Structure Waterproof
Structure waterproof beam design improves the anti-leaking
and drainage capacity
Downward Module installation
Fixing clamps under the solar module frames with downward
module clamps improve the module installation efficiency,
workers no need to climb onto the panel, effectively save the
installation time.
