Automation equipment switching power supply 5v 6a 12v 10a 150w
Description:
176-264VAC input dual 5V 12V switching power supply, it is designed for one of our customers,at present it is widely used to the LED lighting and general electronics.
Features:
1, dual power supply 5V 12V with wide input voltage range;
2, 150W switching power supply;
3, Dual output power supply 5V 12v with short circuit, overload protection;
4, 5v 12v 150w dual output power supply with high efficiency and low operating temperature;
5, Full load burn in test.
|
Item NO.
|
K08-S150D5+12
|
K08-S150D5+24
|
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+5V
|
+24V
|
|
Output Current
|
6A
|
10A
|
15A
|
3A
|
|
Current Range
|
0.5-10A
|
0.2-10A
|
1-15A
|
0.3-6A
|
|
Ripple
|
50mVp-p
|
100mVp-p
|
50mVp-p
|
200mVp-p
|
|
Output Accuracy
|
±1%
|
±5%
|
±1%
|
±5%
|
|
Line Regulation
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
|
Load Regulation
|
±0.5%
|
±4%
|
±0.5%
|
±4%
|
|
Rated Power
|
150W
|
|
Adjustable output range
|
CH1:4.75~5.5V
|
|
Set up,Rise,Keep up time
|
250ms, 30ms, 20ms/220VAC
|
|
Input
|
Input Voltage range
|
176~264V AC
|
|
Input current
|
1.8A/220V
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
80%
|
82%
|
|
Inrush current
|
COLD START 40A/230V
|
|
Leakage Current
|
<0.5mA/240VAC
|
|
Protection
|
Over load protection
|
105~150%Rated power,automatic recovery
|
|
Over voltage protection
|
------
|
|
Over Temp. protection
|
------
|
|
Others
|
|
------
|
|
Environment
|
Working Temp.,Humidity
|
-10℃~+50℃@100% LOAD,+60℃@60% LOAD；20%-90% RH
|
|
Storage Temp.,Humidity
|
-20℃ - +85℃, 10%-95% RH
|
|
Temp.,Drift
|
±0.03% /℃(0-50℃)
|
|
Vibration
|
10-500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
MEET GB4943
|
|
Pressure
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
MEET GB9254 CLASSA
|
|
Others
|
Dimension
|
199*98*38mm
|
|
Weight
|
0.7Kg
|
|
Note
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connected to the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line Regulation: at rated load conditions, the input voltage changes from low to high measured;
5.Load regulation: the measured output from 20% to 100% load change load measured, other load fixed at 60% load.
|

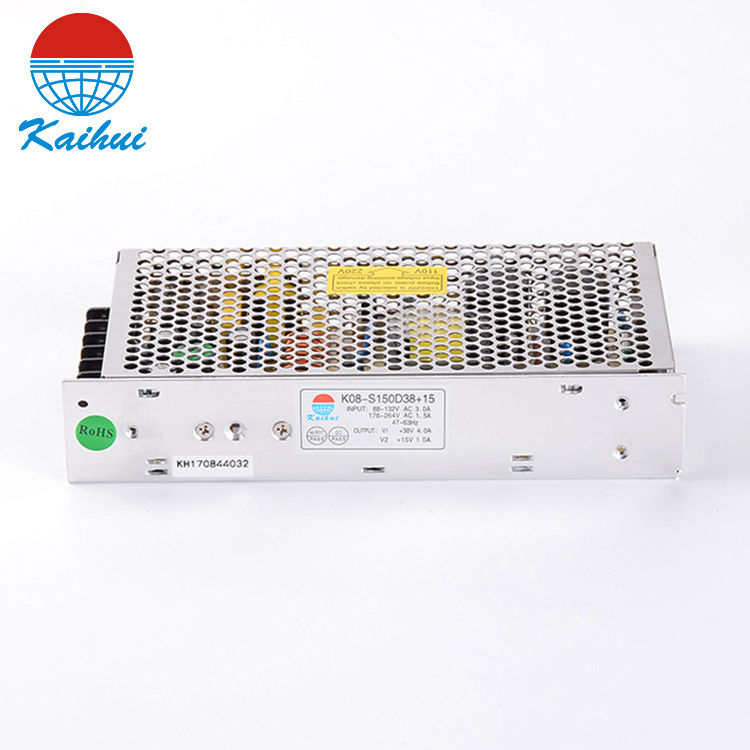

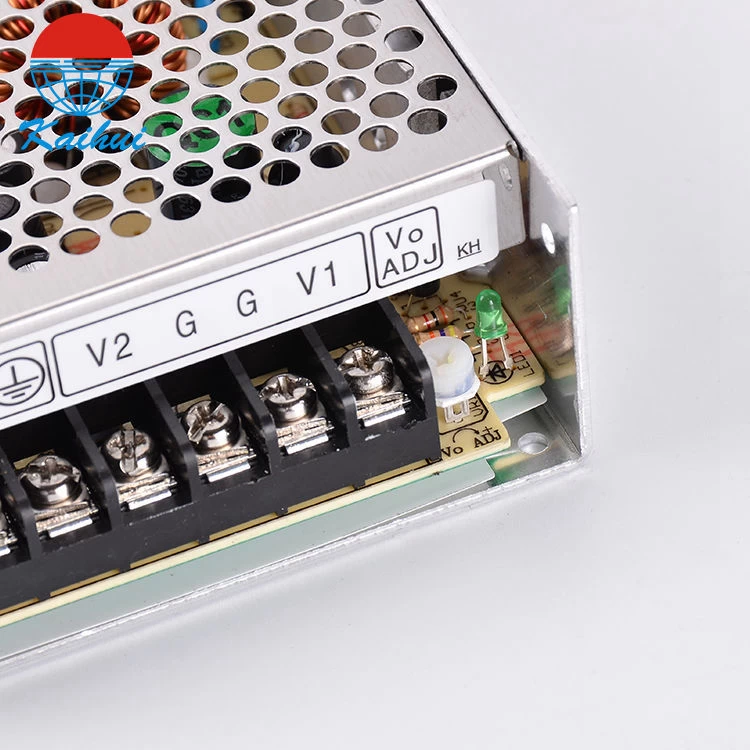

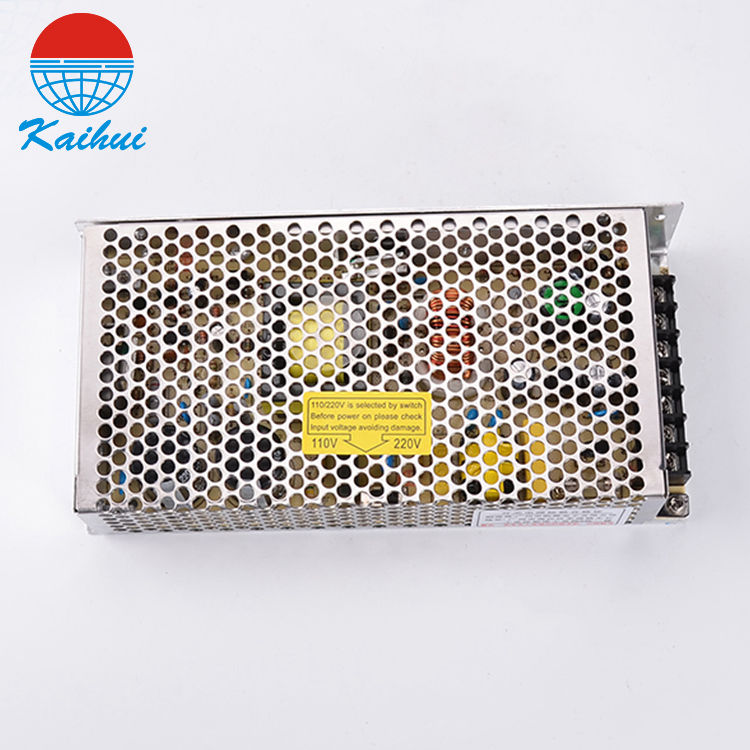

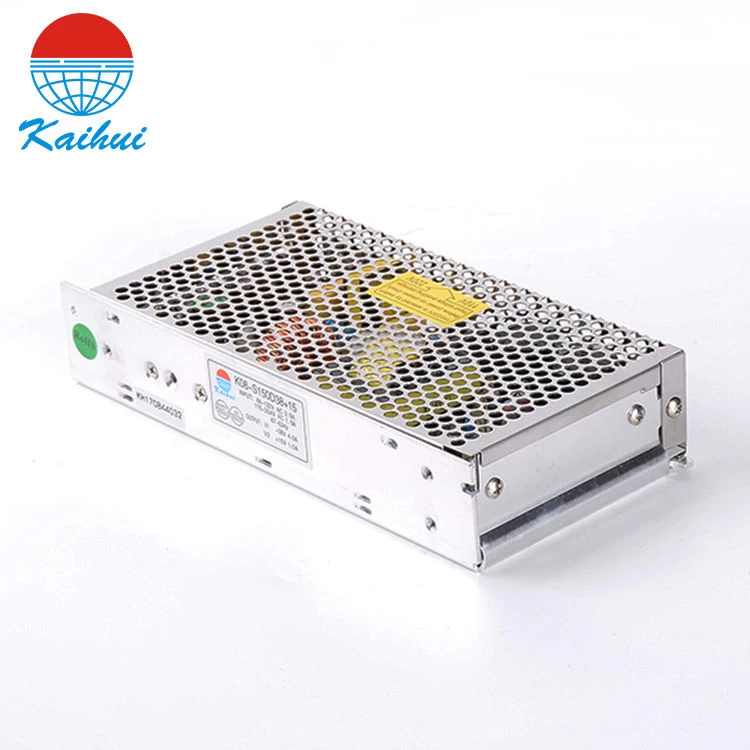

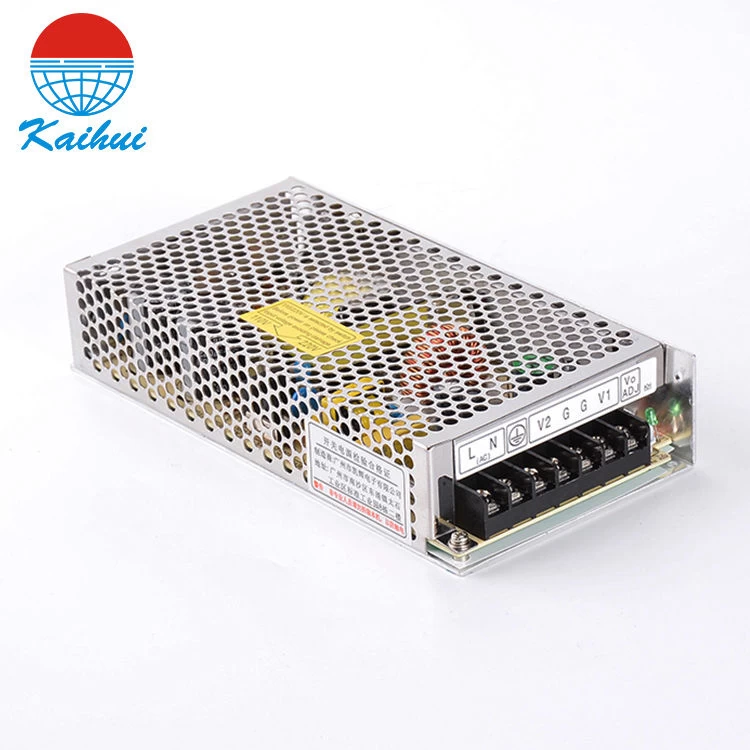

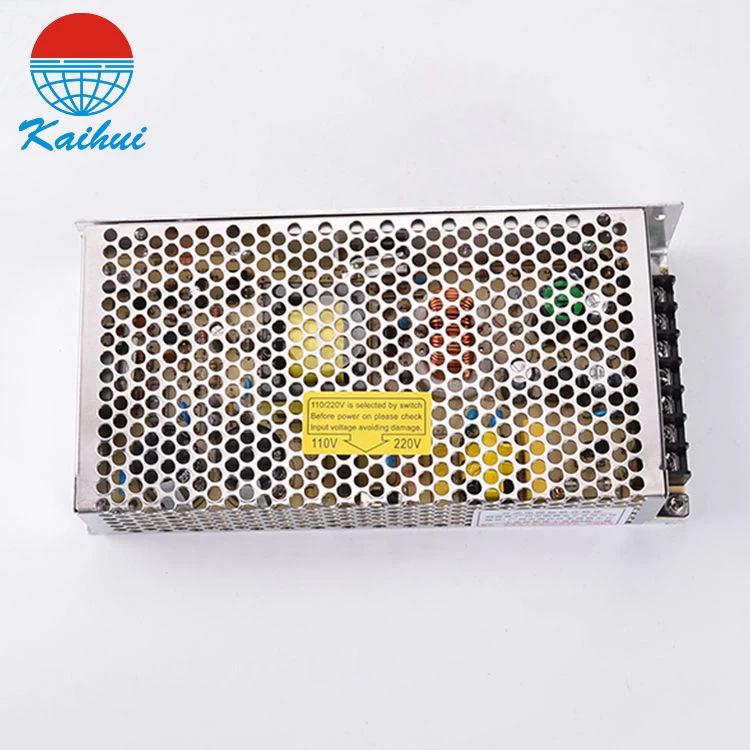

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
