Product Name

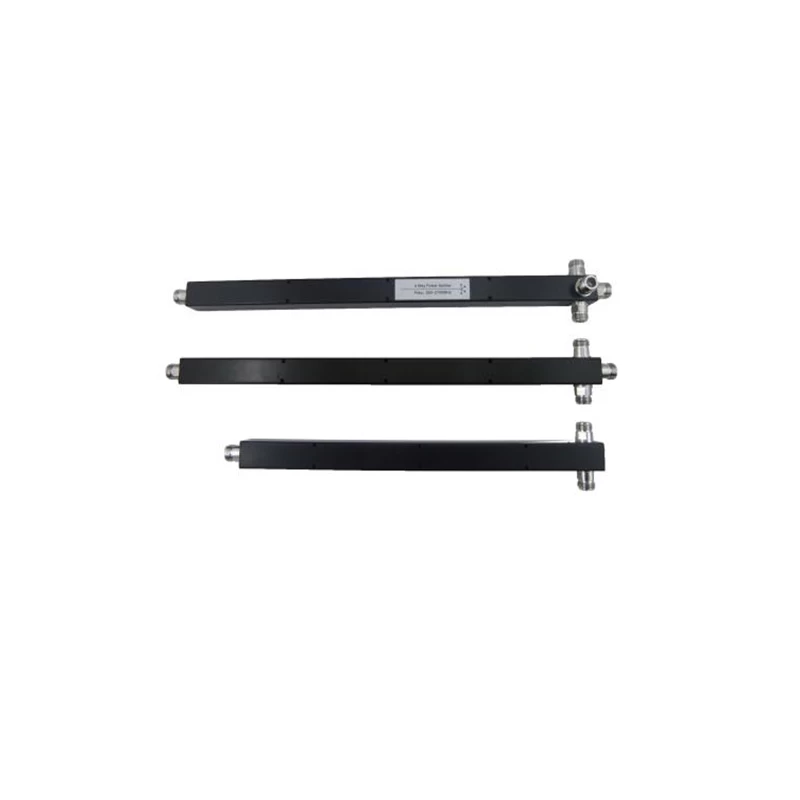

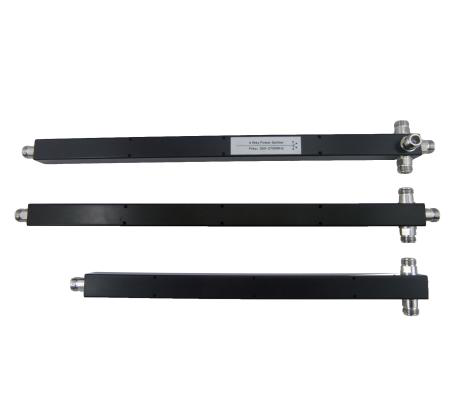

Wideband N Type 2Way/3Way/4Way 380-2700MHz Cavity Power Splitter/Divider with Low PIM-160dBc
380-2700MHz components can instead of 400-470MHz,380-520MHz,UHF using in Walkie Talkie System
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆4310 and DIN Type are also available
◆ Widely used for In-building Solutions and Outdoor application.

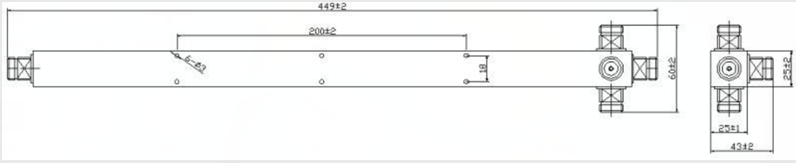

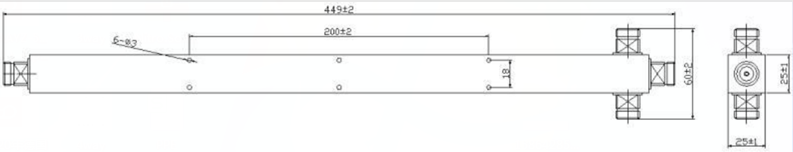

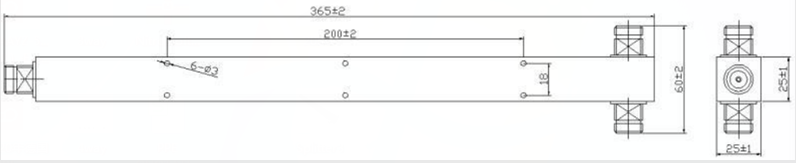

Technical &Mechanical Specifications
|
Model No.
|
MPS-327-02-NF-160
|
MPS-327-03-NF-160
|
MPS-327-04-NF-160
|
|
Freq(MHz)
|
380-2700MHz
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
≤0.4
|
≤0.6
|
≤0.6
|
|
VSWR
|
≤1.30
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Power(W)
|
300 (average)
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor IP65
|
|
Weight(kg)
|
0.65
|
0.70
|
0.75
|
OUR SERVICES
1. Professional skills support for
380-2700MHz N Type 2Way/3Way/4Way RF Cavity Power Splitter/Divider with Low PIM-160dBc
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
