Description:

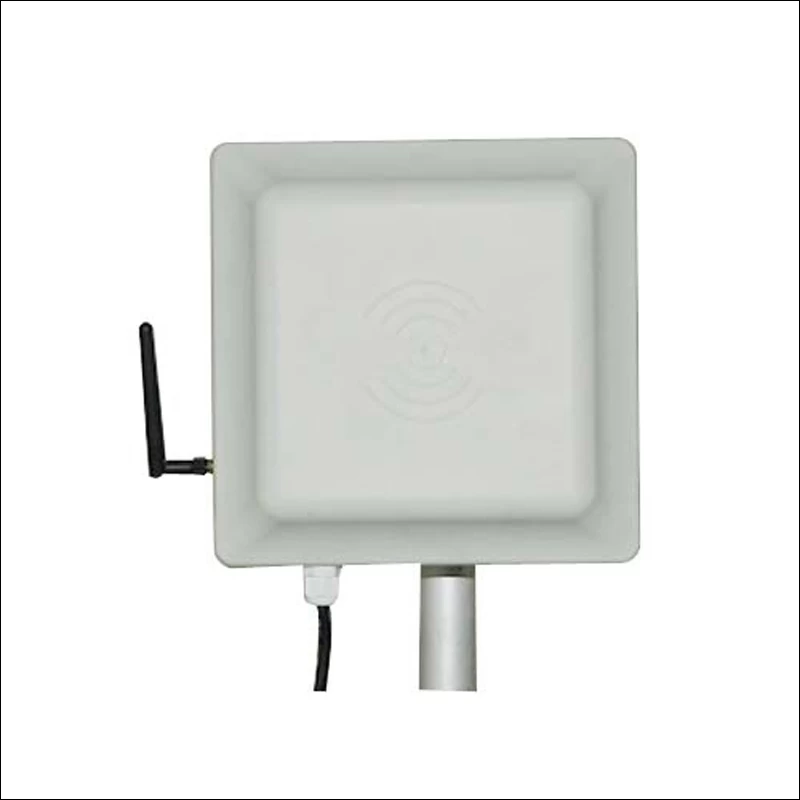

RFID middle range reader JT-8280W
could be applied in various harsh working environment for multiple protocol
compatible and reading fast. Full support the tag of ISO-18000-6C or
ISO-18000-6B. Its stable reading distance is 6m(related to the tag and
environment). JT-8280W is easier to install for its small size and light
weight.
Application:
1.Intelligent traffic such as ETC;
2. Customs border-crossing;
3. Parking lot ;
4. Automatic weighting;
5. Container management,pallet management ;
6. Asset management ;
7. Ticketing& access control;
8. Pharmaceuticals such as medical waste management.
Specification:
|
Item No
|
|
|
JT-8280W
|
RS232,WIFI,Wiegand
|
|
Performance parameters
|
|
|
Working Frequency
|
902~928 MHz or 865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC C1 GEN2)
|
|
Radio frequency power
|
0dBm~30dBm(Adjustable)
|
|
Software & SDK
|
DEMO and C#,VC,VB,Java,DELPHI, etc.,
|
|
Encryption
|
Can be directly encrypted, copy prevention.
|
|
Reading range
|
stable reading range 6M(Depends on tag&environment)
|
|
Industrial lightning protection
|
6000V industrial lightning protection
|
|
Low temperature protection
|
Northeast,Northwest extremely cold region,low
temperature protection
|
|
Frequency modulation way
|
Broad spectrum frequency hopping or fixed frequency
|
|
Input/output port
|
Two-way relay output(customized), one-way trigger input
|
|
Antenna gain
|
8dBi circular polarization
|
|
Working way
|
Buzzer
|
|
Power
|
12V/3A Adaptor
|
|
Physical parameters:
|
|
|
Item size
|
220x220x50mm
|
|
Package size
|
430x320x140mm
|
|
Net weight
|
3KG
|
|
Shell material
|
ABS
|
|
Working temperature
|
-20℃~+65℃
|
|
Storage temperature
|
-45℃~+95℃
|
