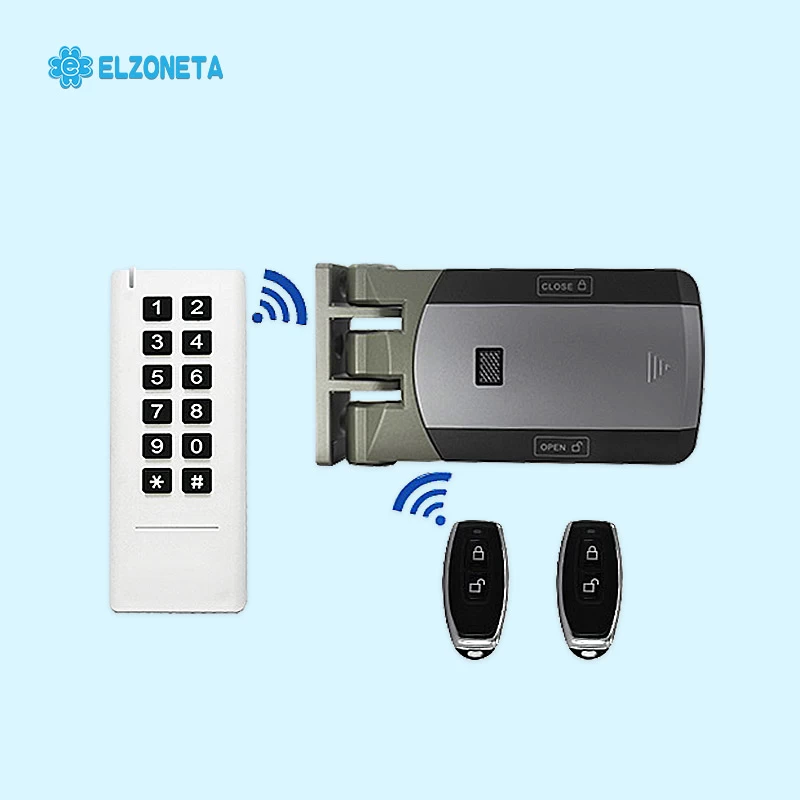

EC-ACS-WD01 Wireless DIY Access Control
Main Features:
1.Touch the wireless lock to open/close
2.500PIN/card users
3.4-8 digits PIN, 125KHz EM Card
4.Operating Temperature: -40℃~60℃（-40℉~140℉）

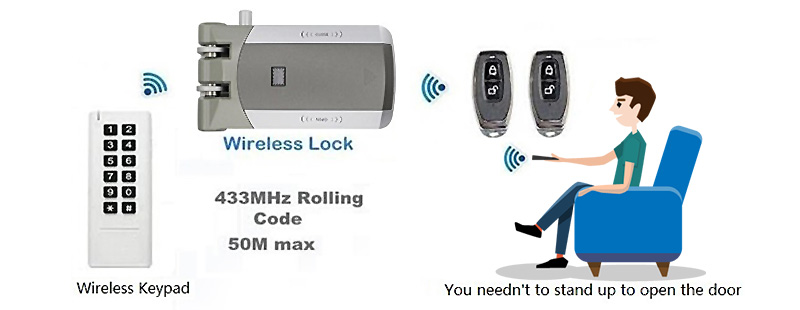

5.433MHz Rolling Code technology
6.Communication distance: 50m Max
Specification:
|
User Capacity
PIN Length
Card Type
|
500
4-8 Digits
125KHz EM Card
|
|
Operating Voltage
Wireless Keypad
Wireless Lock
Remote Transmitter
|
3 units of AAA batteries
2 units of AA batteries
1 unit of 2032 Lithium battery
|
|
Idle Current
|
All items < 10uA
|
|
Working Current
Wireless Keypad
Wireless Lock
Remote Transmitter
|
< 50mA
< 42mA
< 3mA
|
|
Communication Frequency
|
433MHz
|
|
Communication Distance
|
50m Maximum
|
|
Operating Temperature
Wireless Keypad
Wireless Lock
|
-40 oC~+60 oC (-40 oF~+140 oF)
-20 oC~+60 oC (-4 oF~+140 oF)
|
|
Operating Humidity
|
0%~86%RH
|
|
Physical
Wireless Lock
Others
|
Zinc-Alloy + ABS Shell
ABS Shell
|
|
Dimensions
Wireless Keypad
Wireless Lock
Remote Transmitter
|
L135*W54*D19(mm)
L150*W95*D39(mm)
L62*W30*D11.5(mm)
|
|
Unit Weight
Wireless Keypad
Wireless Lock
Remote Transmitter
|
90g
800g
25g/pc
|
