Withdraw the enclosed low-voltage switchgear

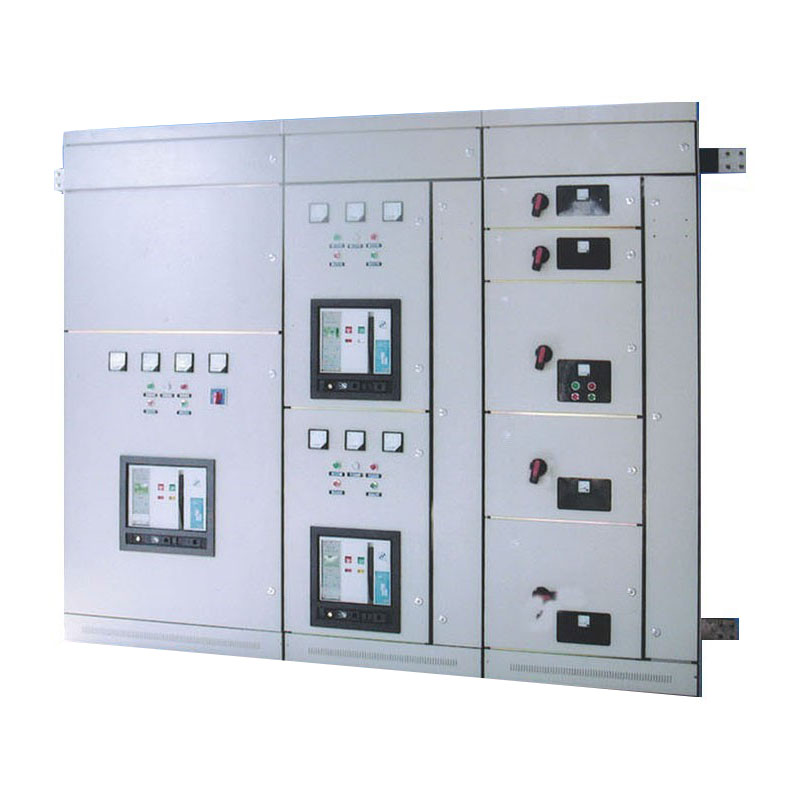

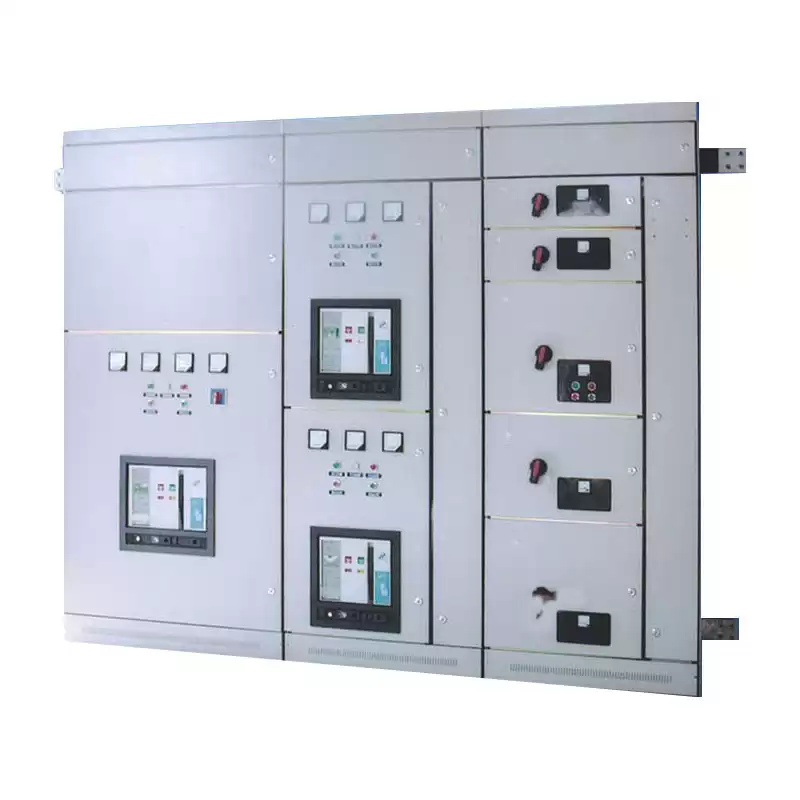

Withdraw the enclosed low-voltage switchgear, suitable for AC 50Hz and 60Hz, rated working voltage 380~680V low-voltage power distribution system as receiving point, feeder, bus tie, lighting, motor control and power compensation, it contains PC and MCC can be designed as a fixed cabinet and drawer cabinet hybrid system to meet different power supply and distribution needs.



Our low-voltage equipment covers GGD, GCK, GCS, GGJ, GDF fixed partition, MNST, 8PT Siemens authorization, XL-21 power cabinet, XL distribution box, XM lighting distribution box, XC metering box, JP low-voltage integrated distribution box , XFW low voltage cable branch box, DXW terminal box.

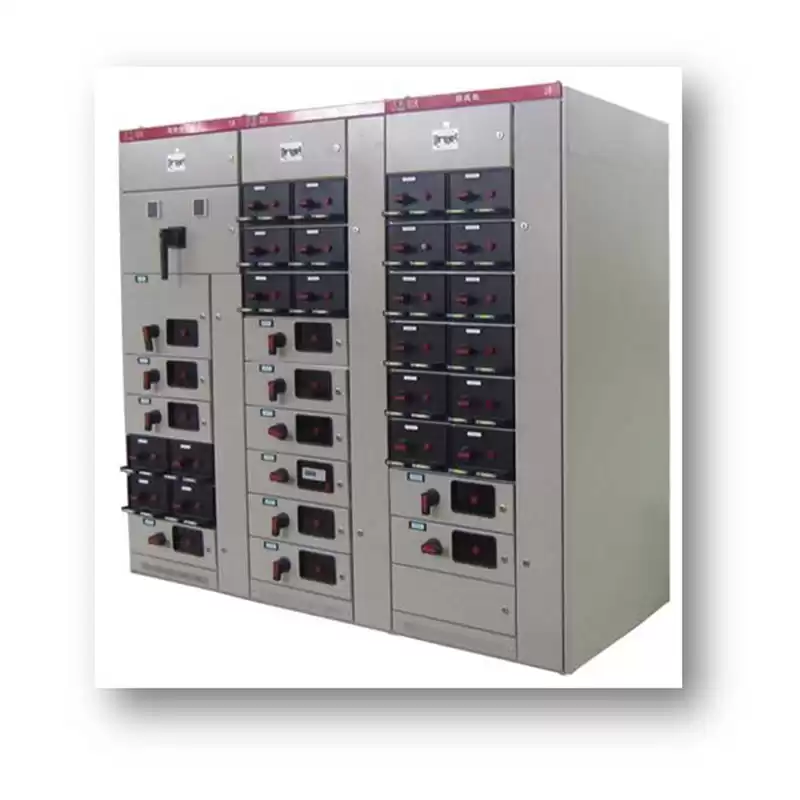

1. GCK Drawer-type enclosed low voltage switchgear: it is a fully assembled combination structure, and the basic skeleton is made of special materials and assembled

2. The frame of the cabinet, the outer size of the parts and the size of the holes, according to the basic modulus, E=20mm change.

3. In the MCC scheme, the cabinet is divided into four areas (rooms): horizontal bus area, vertical bus area, functional unit area, cable room, each areas are isolated from each other to ensure the normal operation of the line and effectively prevent the expansion of the fault.

4. Because all the structures of the frame are fixed with screws, avoid welding deformation and stress, improve the accuracy.

5. Parts have strong universality, good applicability and high standardization

6. The function unit (drawer) is drawn and inserted for lever operation, coupled with the configuration of rolling bearing operation is light and reliable.



Model

Item

Specification

GCK

Standard

IEC 439-1GB72511

IP grade

IP30

Rated operational voltageV

AC 360,600

Frequency(Hz)

50/60

Rated insulation voltageV

660

Operating conditions

Environment

Indoor

Altitude

2000m

Environmental temperature

-5℃~+40℃(The lowest temperature under storage and transportation conditions is -25℃)

relative temperature

90%

Control motor capacitykW

0.45155

Mechanical lifetimes

500

Rated currentA

Horizontal bus

1600200025003150

Vertical bus

630800

Main circuit contact connector

200400630

Auxiliary circuit contact connector

1020

Maximum current of feed circuit

PC cabinet

1600

MCC cabinet

630

Electric circuit

10001600200025003150

Rated short-time withstand currentkA

305080

Rated peak withstand currentkA

63105176

Withstand VoltageV/min

2500



1. Altitude ≤2000m

2. Indoor without fire, explosion risk, severe dust, violent vibration and rain attack

3. The ambient air temperature shall be no higher than +40℃, and the average temperature within 24 hours shall be no higher than +35℃ and no lower than -5℃. The minimum temperature under storage and transportation conditions shall be -30℃

4. The air should be clean, and the relative humidity should not exceed 50% at the highest temperature +40℃, while a higher relative humidity is allowed at a lower temperature, such as 90% at +20℃

5. The pollution level is level 3
