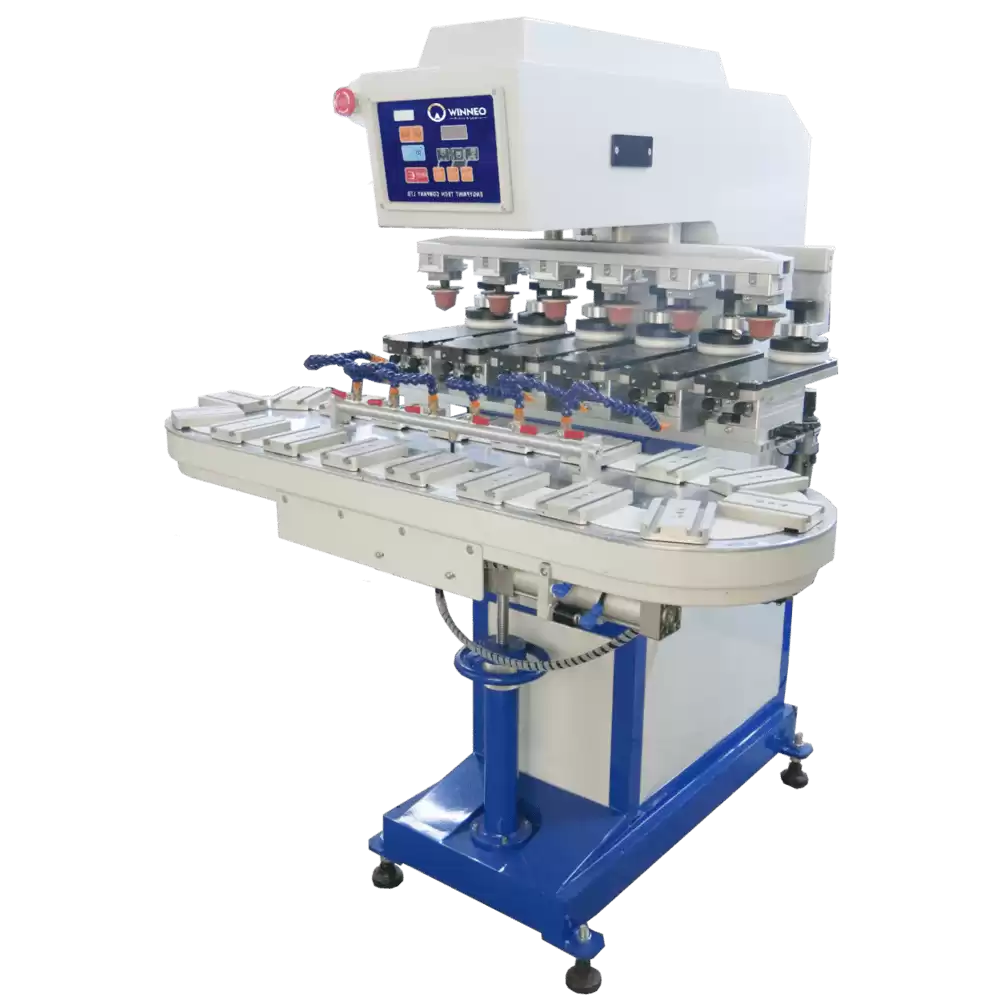

WP-6C160T-Six Color Ink Cup Turntable Pad Printing Machine

Features of this machine:

1. Control method: Microcomputer board buttons control various functions and actions, simple operation

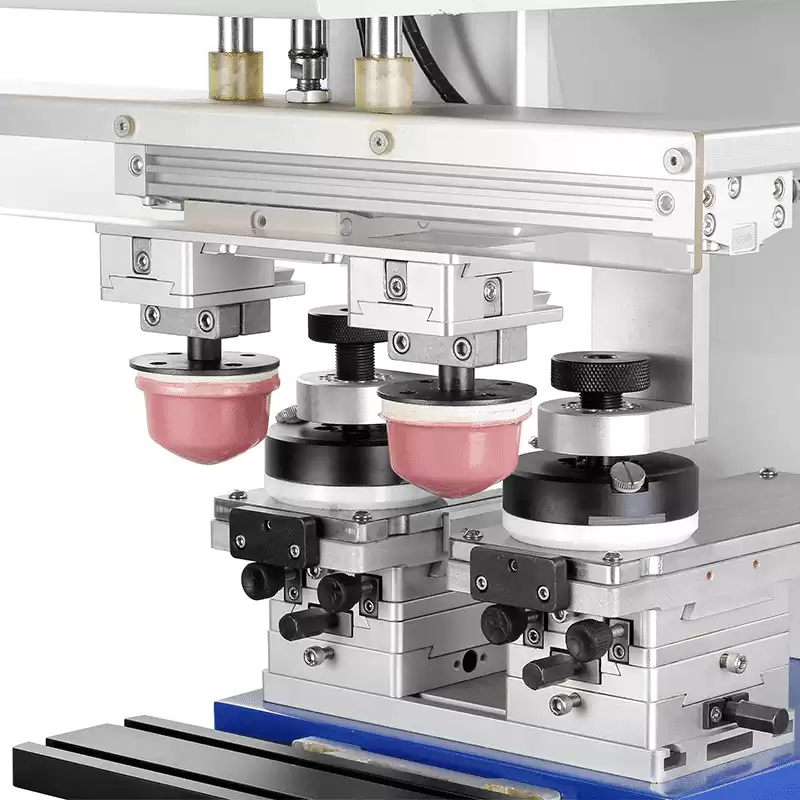

2. Paste head adjustment: Independent rubber head front and back, up and down stroke and speed adjustment.
3. Position adjustment: The ink base and workbench can be multi-functional X, Y, R axis adjustment.
4. Inking method: Optional oil basin or sealed oil cup inking, clean ink scraping, ink saving.

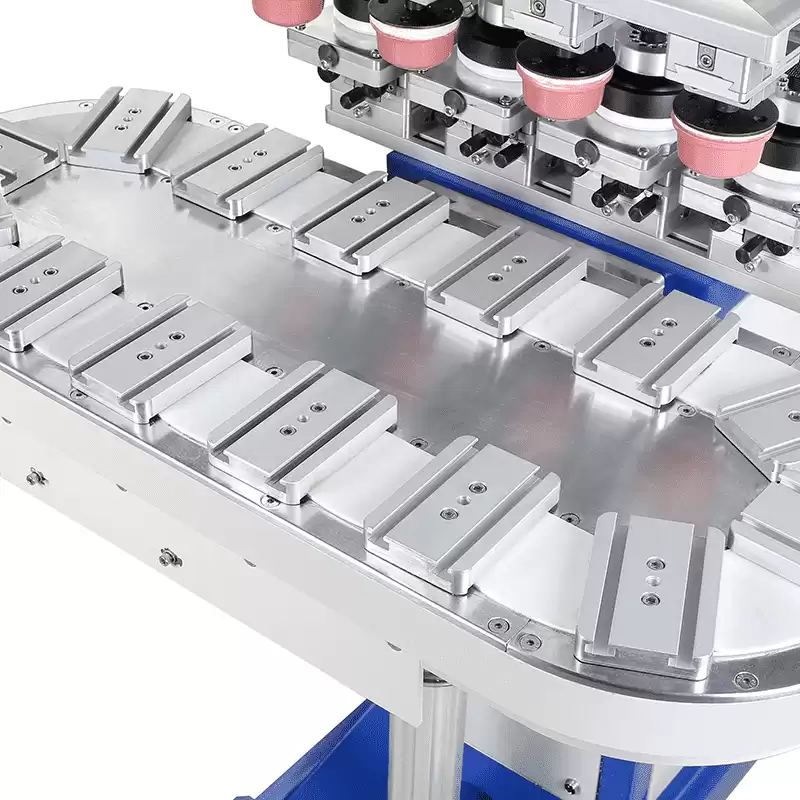

5. Workbench features: Equipped with precise shuttle or conveyor belt workbench, special shock absorbing device.
6. Component guarantee: Adopt precision pneumatic components and solenoid valves.
7. Configuration selection: Standard configuration and imported configuration are optional, safety protection cover.

Facebook Twitter Pinterest LinkedIn 分享




6 color pad printer provides more stations and realizes smooth rotation through pneumatic drive. During the pad printing process, the items to be printed can be placed on different stations in turn, which is convenient for continuous printing operations and other supporting processes, such as loading, unloading, drying, etc., greatly improving the printing production efficiency, and the pneumatic drive can ensure the rotation accuracy and stability.



Technical Parameters



Model
 WP-6C160T
 WP-6C200T
Stroke For Front And Rear Cylinder 160mm 200mm
Printable Colors 4 4
Workbench Turntable Turntable
Weight 188kg 280kg
Machine Dimensions 1050 × 830 × 1450mm 1100 × 1150 × 1500mm
Can Be Equipped With Safety Protective Covers √ √
Can Be Equipped With Hot Air Drying √ √
Can Be Equipped With Cleaning System √ √
Steel Plate Size
 100 × 250mm 100 × 350mm
Maximum Printing Speed
 1000pcs/hr
 900pcs/hr
Standard Ink Cup
 Φ90 mm ink cup
Air Pressure
 5–7 Bar
Power Supply
 110V/220V 60/50Hz 40W





Application



Industrial pad printing machines is suitable for single-color or multi-color printing of patterns in stationery, toys, gifts, electrical appliances, electronics and other products.



DAILY

• Suitable for printing for plastics, metals, glass, and ceramics

• Can print rich and colorful patterns





COSMETIC

• Suitable for printing for consumer goods

• Fast running speed and simple operation



TOYS

• Suitable for multi-station printing for toys

• Improve the printing accuracy and color reproduction







Terms of Service


1. This pad printer machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ



1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
