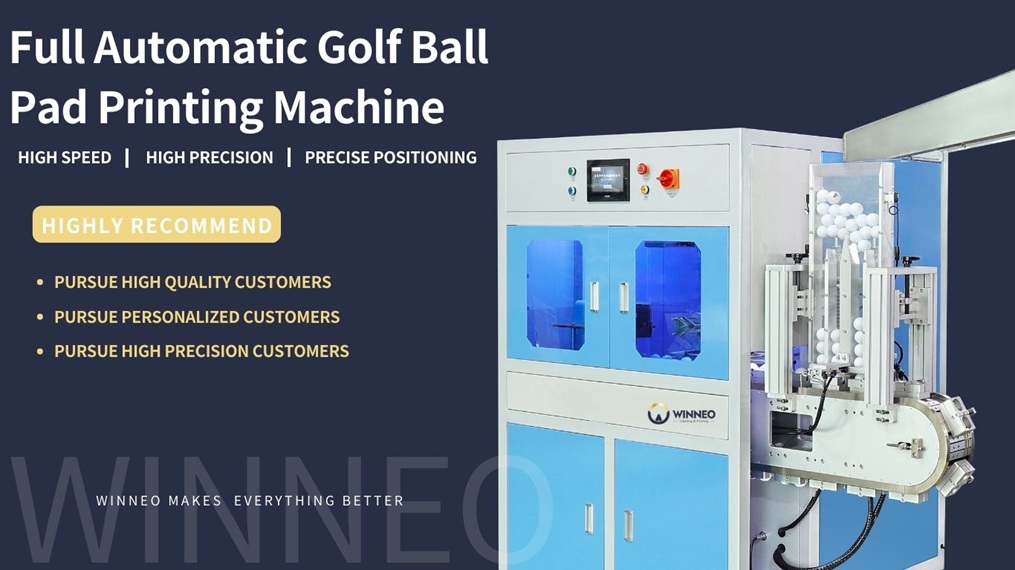

WP-BOLL-4-Full Automatic Golf Ball Pad Printing Machine

Features of this machine:

1. Control system: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage

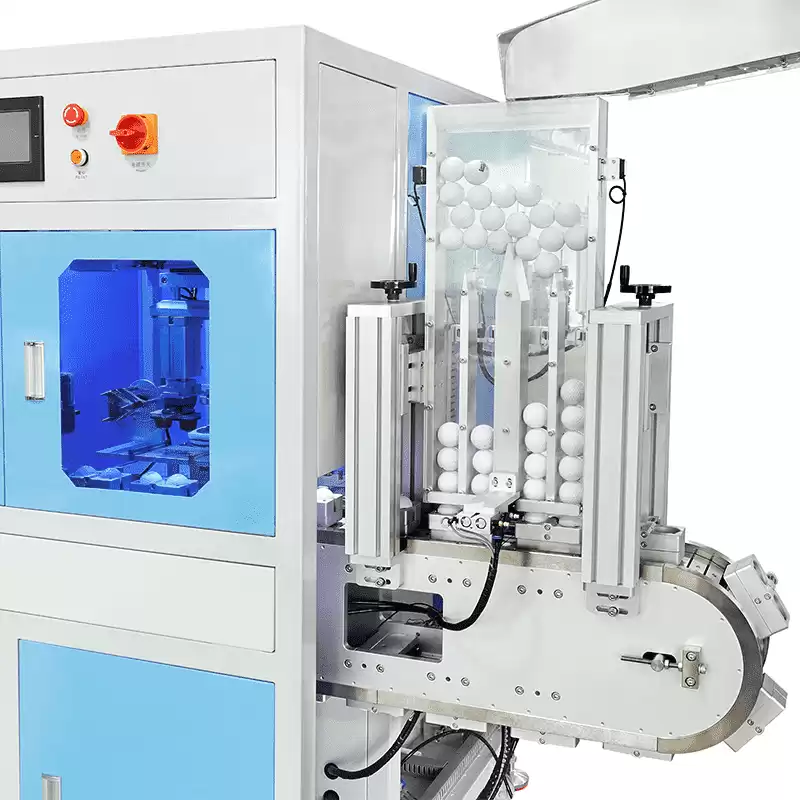

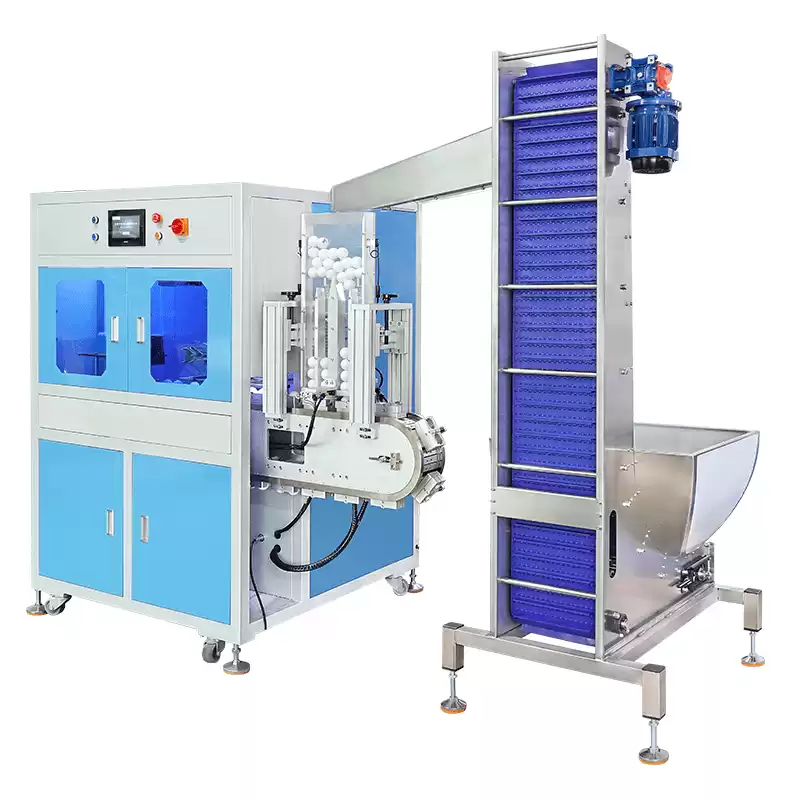

2. Loading and unloading system: Automatic lifting loading and unloading system, fast and accurate, improving automation

3. Conveying workbench: tank belt conveying workbench, precision divider drive, stable operation and precise positioning

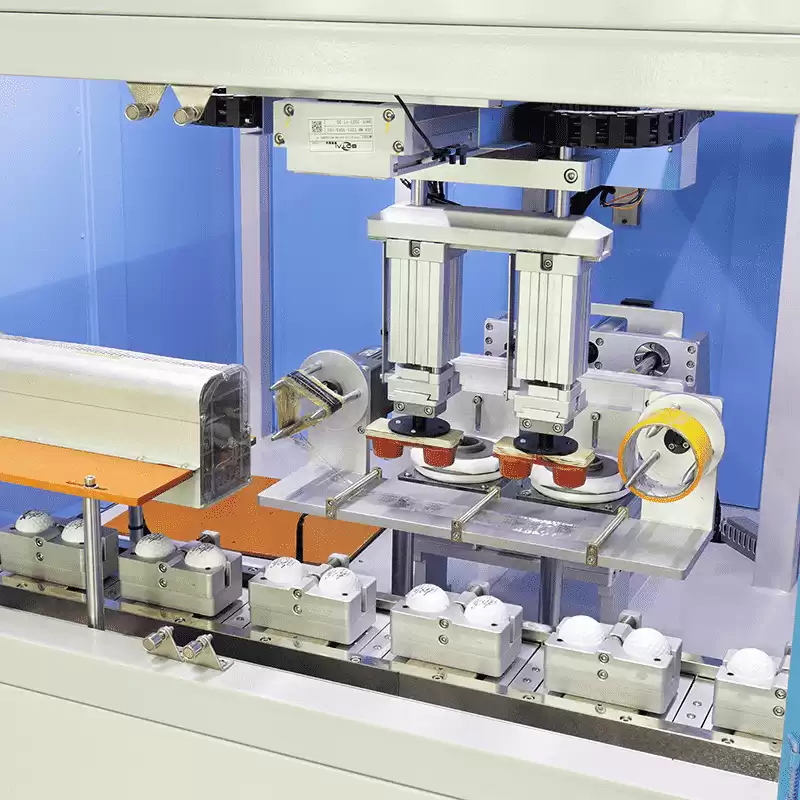

4. Rubber head setting: independent head can adjust the stroke and speed, equipped with automatic glue cleaning device

5. Inking system: sealed oil cup inking system is adopted to save ink, clean and environmentally friendly

6. Drying system: equipped with hot air drying system, instant drying of printed patterns

7. Component guarantee: precision pneumatic components and solenoid valves are used






This golf ball pad printer uses advanced pad printing technology to ensure that the printed pattern on the surface of the golf ball is high precision and high definition.



Technical Parameters




Model HP-CAP-4
Up And Down Itinerary 0~75mm
Front And Back Travel 0~450mm
Steel Plate Size 120x270x10mm
Ink Cup Size φ110X120mm
Printing Speed 1200~1600 Pcs/hr
Weight 580kg
Machine Dimensions 1900X1200X1750mm
Air Pressure
6~8Bar
Power
1.7kW





Application




Ball Pad Printing Machine is widely used in single-color or multi-color printing of round or irregular spherical surfaces such as sports balls and toy balls.



SPORT

• Suitable for different sizes and types of spheres

• With precise control to avoid deviations



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
