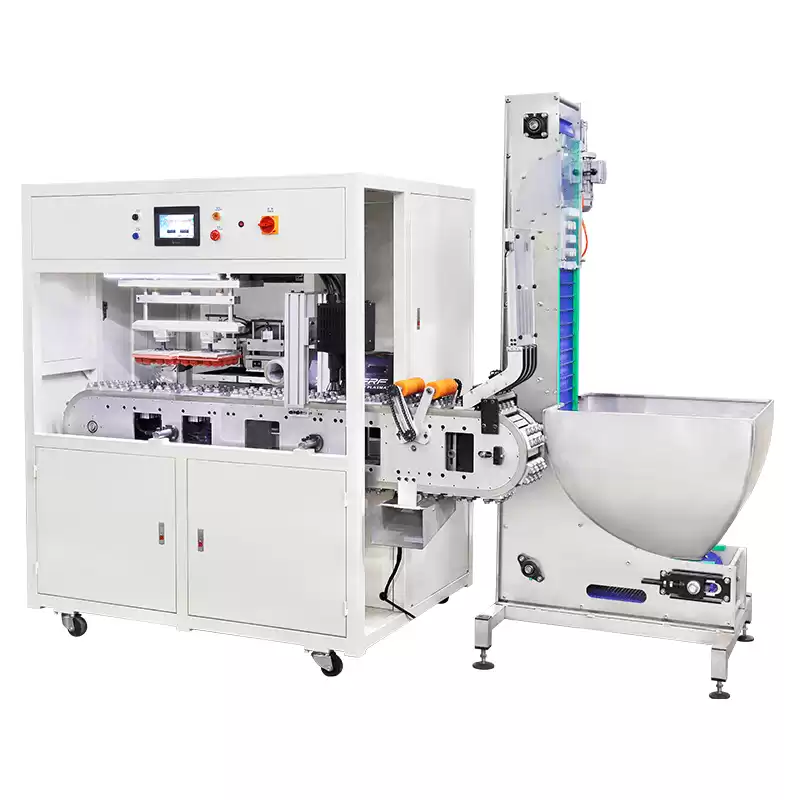

WP-CAP-2-Full Automatic Bottle Caps Pad Printing Machine

Features of this machine:

1. Control mode: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage

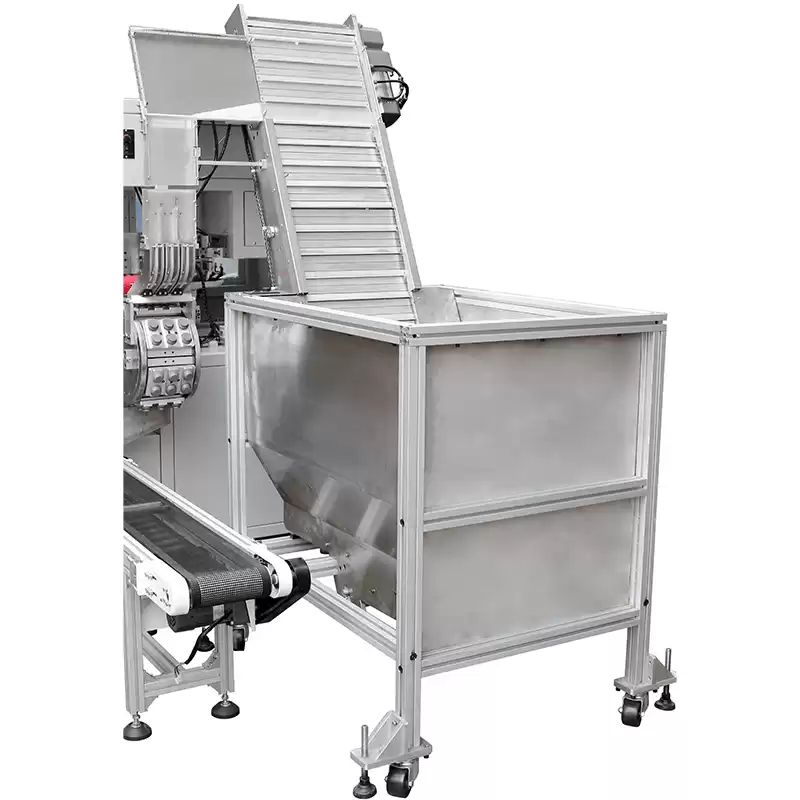

2. Loading and unloading system: automatic lifting loading and unloading system, fast and accurate,  improving automation

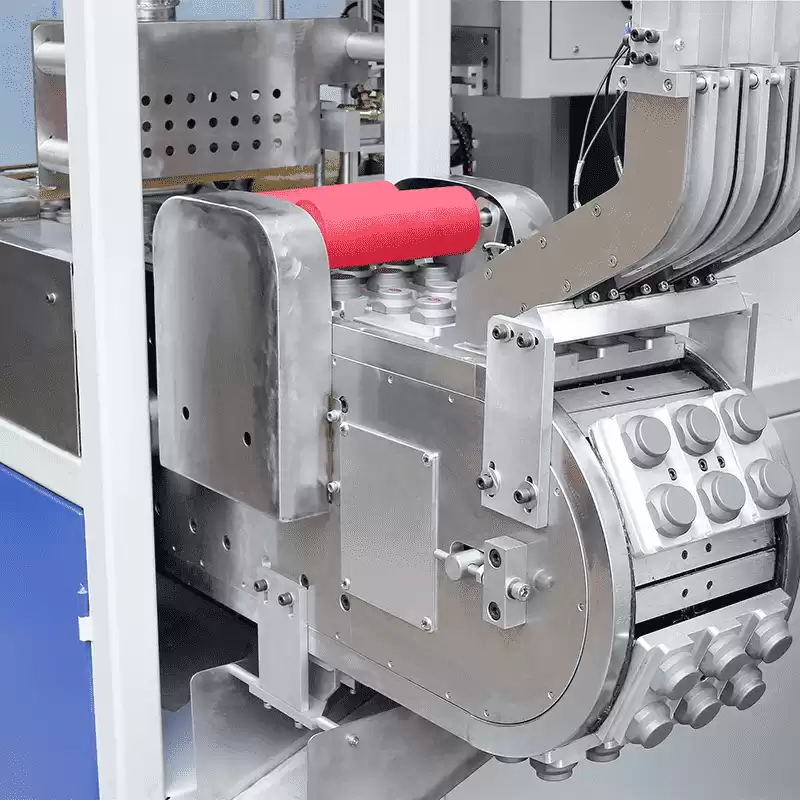

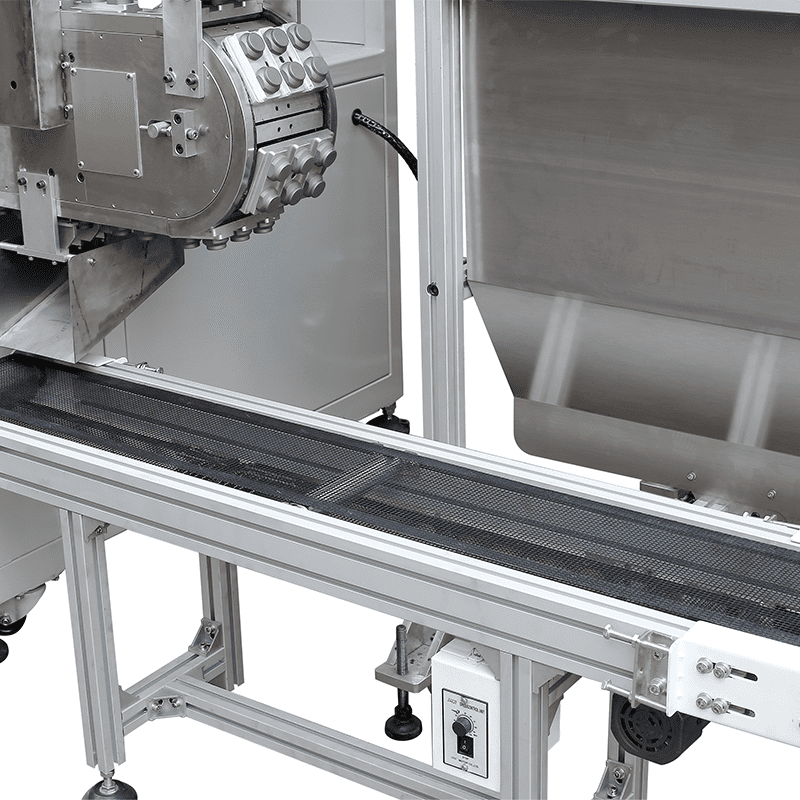

3. Conveying workbench: tank belt conveying workbench, stable operation and precise positioning

4. Capping system: elastic rubber roller capping system, no damage to the surface of the cap

5. Inking and induction: can select sealed oil cup or open ink tray for inking, equipped with automatic glue cleaning device

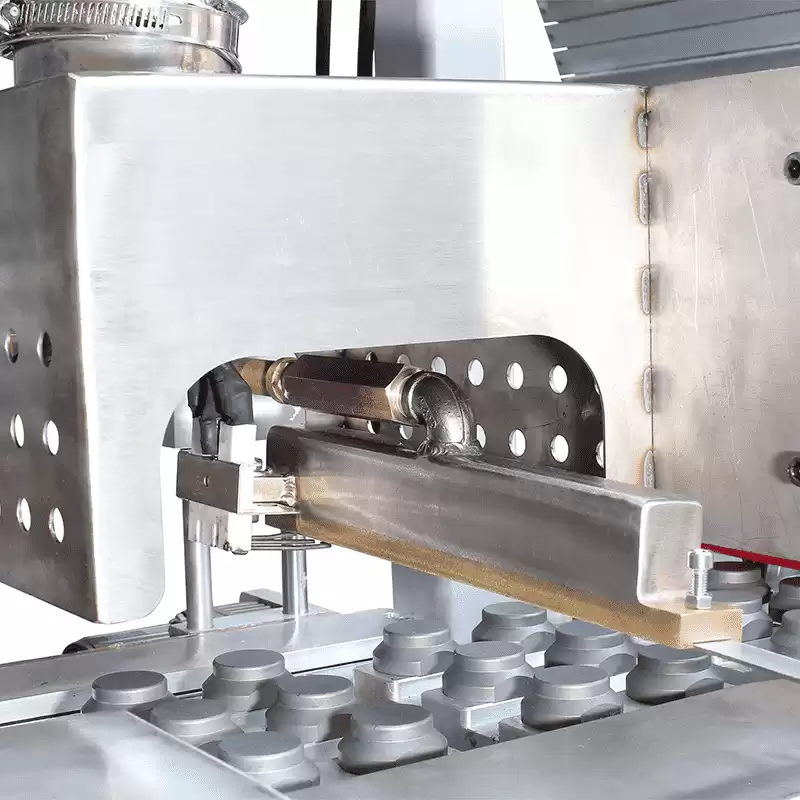

6. Drying and unloading: independent heating system is used to dry the printed pattern

7. Component configuration: original imported precision pneumatic components and solenoid valves are used






WINNEO automatic bottle cap pad printing machine is equipped with lifting and unloading system, plasma or flame treating, auto tape pad cleaning device. Independent heating system drying pattern, sliced discharge synchronous turntable conveyor belt, does not damage the lid.



Technical Parameters




Model HP-CAP-2
Bottle Cap Range 28~38mm
Steel Plate Size 250X100mm
Ink Cup Size 82X90X12mm
Maximum Printing Size
120x80mm
Printing Speed 8000~16000 Pcs/hr
Weight 680kg
Machine Dimensions 3100X1200X2300mm
Air Pressure
5~7 Bar
Power
220V/110V 50/60Hz 4.0kW

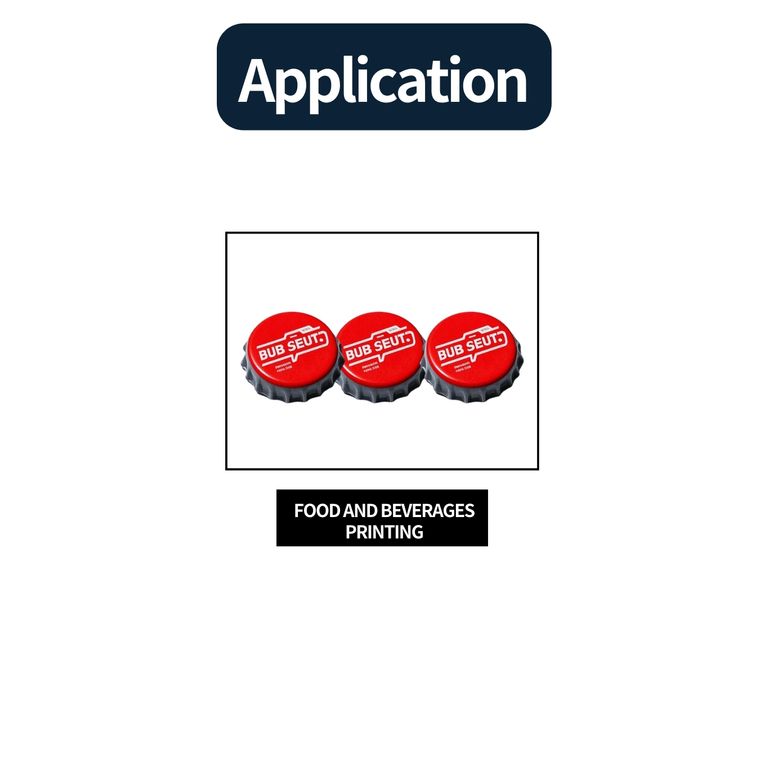

Application




Bottle Caps Pad Printing machine is widely used in one to four-color overprinting or overlapping printing of various beverage bottle caps, mineral water bottle caps, wine bottle caps and cosmetic bottle caps.



FOOD&BEVERAGES

• Suitable for pad printing on Cap

• Easy for operators to debug and manage



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
