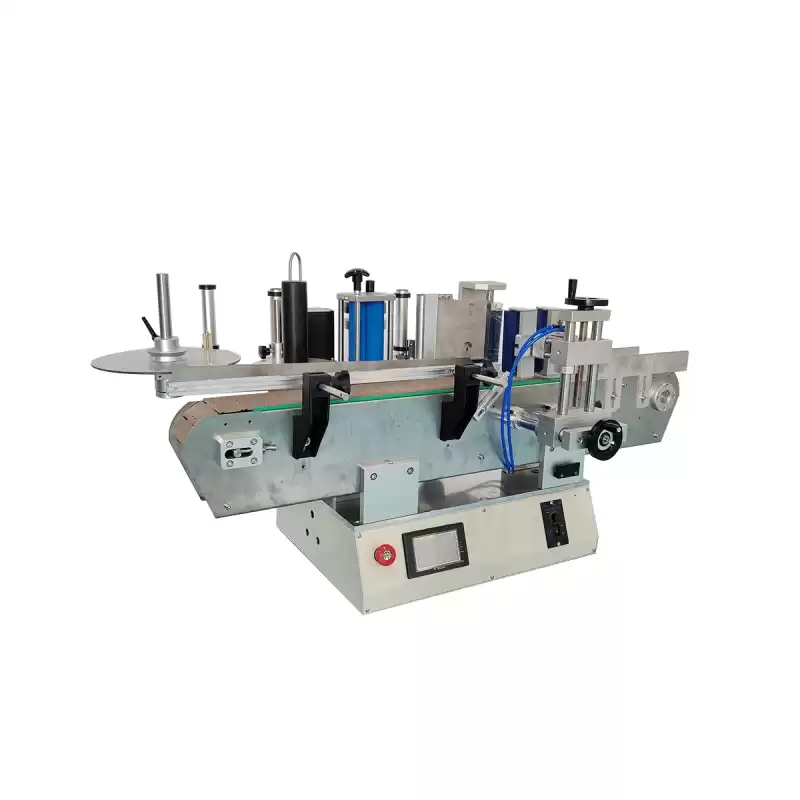

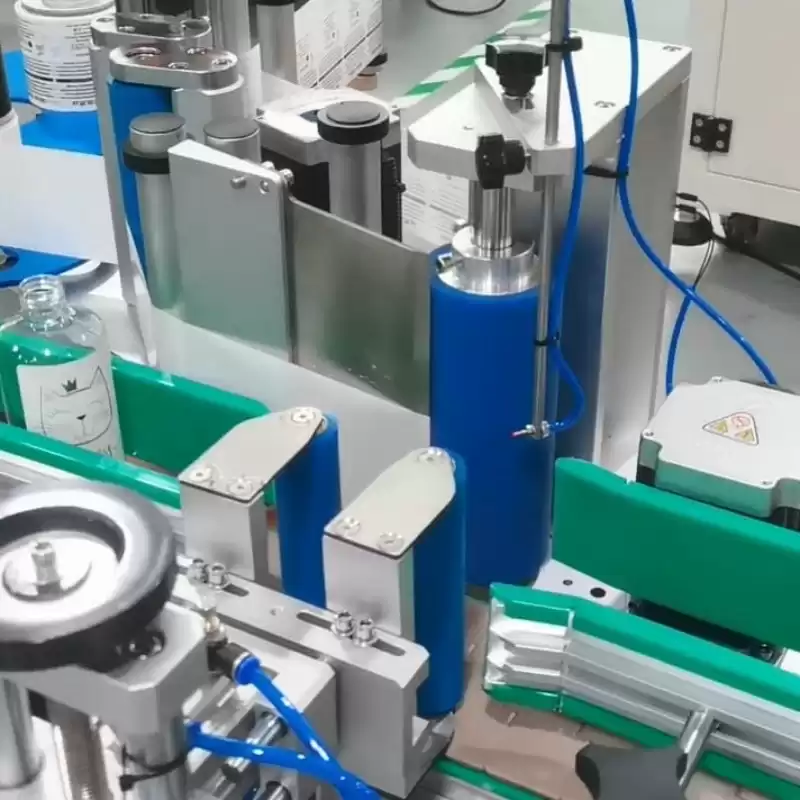

WT-103-Desktop Round Bottle Positioning Labeling Machine

Features of this machine:

1. Powerful functions: The same device can realize single label and double label labeling of round bottles

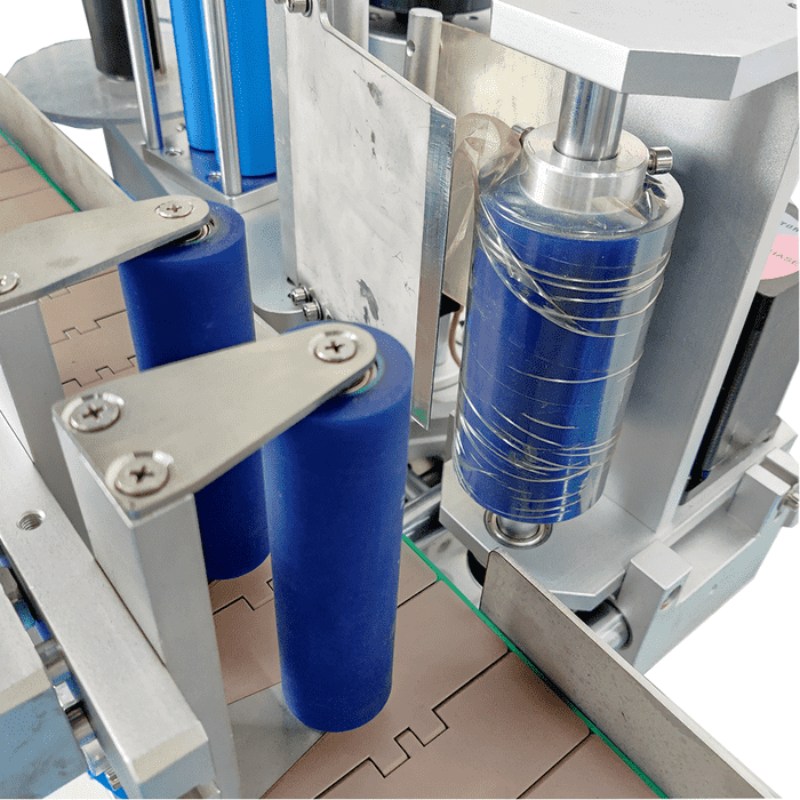

2. High label overlap: upper pressing mechanism prevents the bottle from fluctuating up and down

3. Touch screen control: intuitive parameter modification, and simple switching of various functions;

4. Intelligent control: Automatic photoelectric tracking, with the function of no object without labeling;

5. Sturdy and hygienic: Mainly made of stainless steel and high - grade aluminum alloy, meets GMP production requirements;

6. With automatic shutdown function: production counting function, power saving function;

7. Optional functions:

   ① Coding/inking function

   ② Automatic feeding function (bottle unscrambler)

   ③ Automatic material collection function (considered in combination with the product)

   ④ Add additional labeling device

   ⑤ Unlabeled bottle rejection function (customized according to customer requirements)

Facebook Twitter Pinterest LinkedIn 分享

Round Bottle Label Applicator Equipment

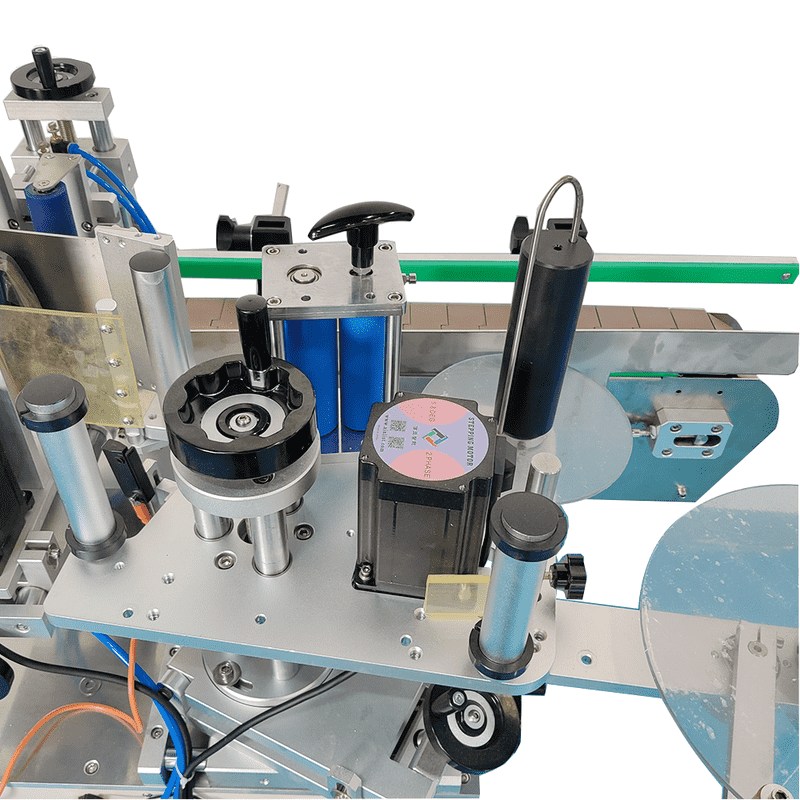

The Desktop round bottle label machine with the optional circumference positioning detection device can be used to label at the specified position on the circumference. The optional ribbon printer and inkjet printer can be used to print the production date and batch number information on the label, realizing the integration of labeling and inkjet.



Technical Parameters



Labeling Accuracy ±1.0mm(excluding product and label errors)
Labeling Speed 15～35 pieces/minute (related to product size)
Applicable Product Diameter φ25mm～φ120mm
Applicable Label Size Length: 20mm～290mm; Width: 20mm～125mm;
Overall Machine Size Approximately 1197mmx1170mmx791mm (LxWxH);
Applicable Power Supply 220V/50HZ;
Overall Machine Weight Approximately 185Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Air Pressure 0.4～0.6Mpa
Power Consumption 750W





Application



Automatic round bottle labeling machine is suitable for labeling the circumference of round bottles. Single or double labels can be applied. The distance between the front and back double labels can be flexibly adjusted. For example, it can be applied to round beverage bottles and round food cans. It is widely used in the cosmetics, food, medicine, disinfectant and other industries.



Multi-Function Bottle Labeling Equipment
DAILY

• Suitable for shampoo and detergent containers

• Provides precise labeling





Double Label Bottle Labeling Machine
MEDICINE

• Suitable for reagent and syrup bottles

• Guarantees clear and consistent labeling



Automatic Bottle Label Positioning Machine
FOOD&BEVERAGES

• Suitable for jam jars and beverage bottles

• Ensures accurate label placement



Terms of Service


1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ



1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
