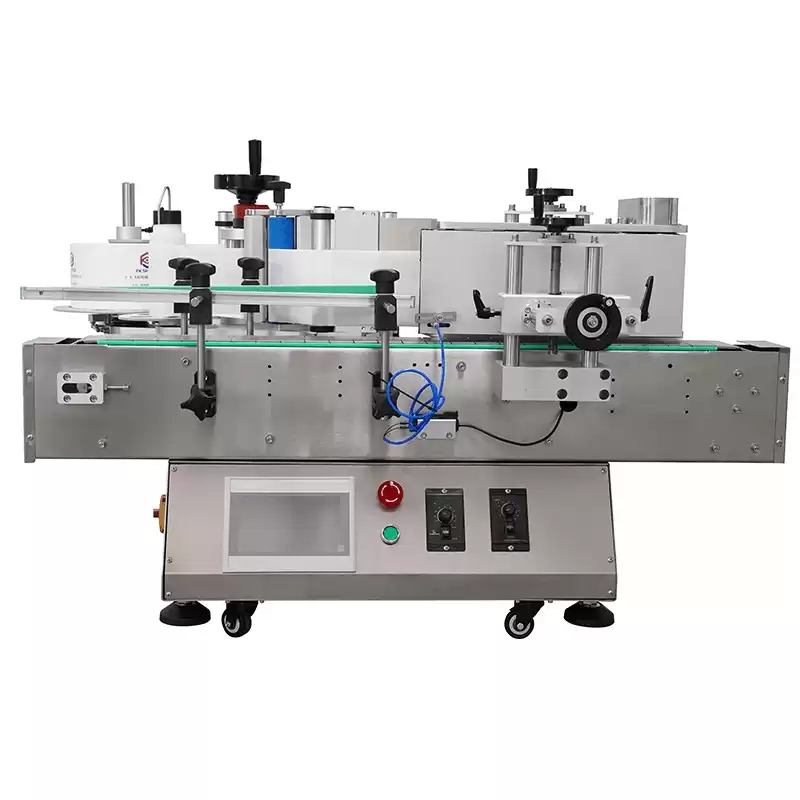

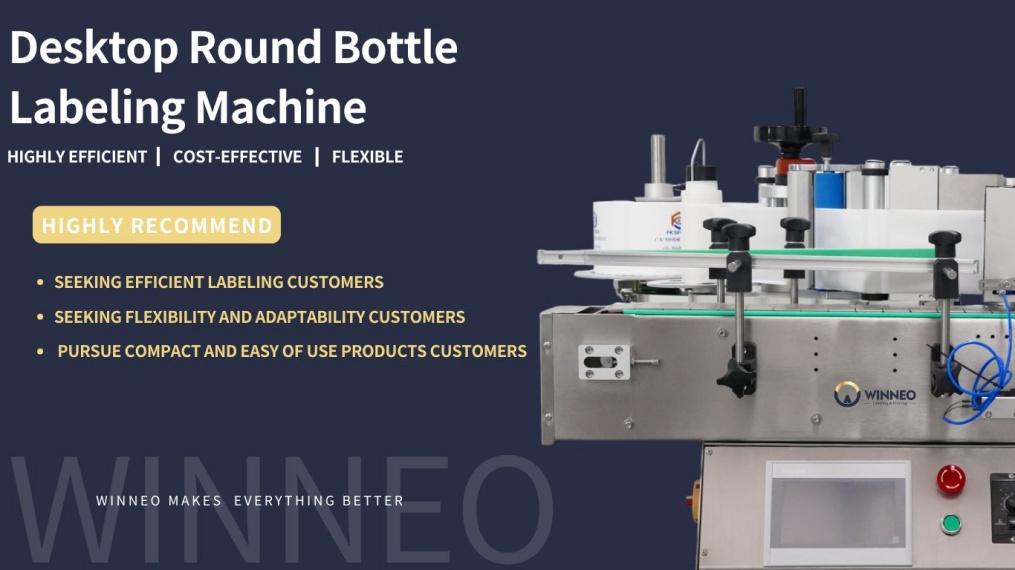

WT-104-Desktop Round Bottle Labeling Machine

Features of this machine:

1. Wide application: full circle labeling or half circle labeling for round bottles

2. High label overlap: with deviation correction mechanism to prevent the label belt from deviating

3. Excellent labeling quality: the elastic pressure labeling belt is used, the labeling is flat and wrinkle-free

4. Flexible application: can be produced by a single machine or placed on the desktop to connect to the production line

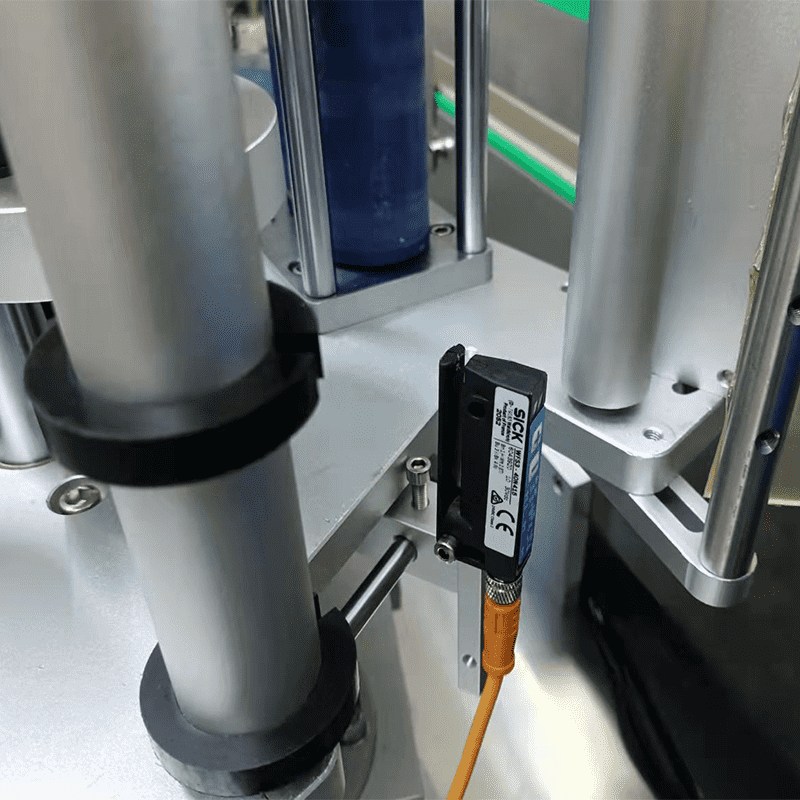

5. Intelligent control: automatic photoelectric tracking, with the function of labeling everything

6. High stability: supports 7×24 hours operation of the equipment

7. Simple adjustment: Any parameter can be adjusted steplessly and can be adjusted at will according to needs

8. Sturdy and durable: Made of stainless steel and high-grade aluminum alloy, it meets GMP production requirements

9. Optional functions:

   ① Thermal coding/inkjet coding function (production date, product batch number, expiration date)

   ② Automatic feeding function (considered in combination with the product)

   ③ Automatic material collection function (considered in combination with the product)

   ④ Add labeling device



Automatic Round Bottle Labeling Machine



The Full Automatic Round Bottle Labeling Machine offers optional features such as an automatic turntable bottle unscrambler, which can be directly connected to the front-end production line to automatically feed bottles into the labeling machine, increasing efficiency. Additionally, the optional ribbon coding labeling machine allows for online printing of production dates and batch numbers, reducing bottle packaging procedures and further improving production efficiency.



Technical Parameters




Labeling Accuracy ±1mm (excluding product and label errors)
Labeling Speed 30~80 pieces/minute (related to product size)
Applicable Product Diameter φ25mm~φ100mm
Applicable Label Size Length: 20mm~314mm; Width: 15mm~125mm
Overall Machine Size Approximately 1197mmx1170mmx791mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 190Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Power Consumption 630W





Application




Desktop Round Bottle Labeling Machine is suitable for labeling round bottles in the pharmaceutical, food, daily chemical, and other industries. It can efficiently label both large and semi-circular bottles.



Pharmaceutical Bottle Labeling Machine
DAILY

• Suitable for shampoo and detergent containers

• Provides precise labeling for household products





Pharmaceutical Bottle Labeling Machine
MEDICINE

• Suitable for reagent and syrup bottles

• Guarantees consistent labeling for medical containers



Desktop Round Bottle Labeling Manufacturer
FOOD&BEVERAGES

• Suitable for jam jars, beverage bottles

• Ensures precise label placement



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
