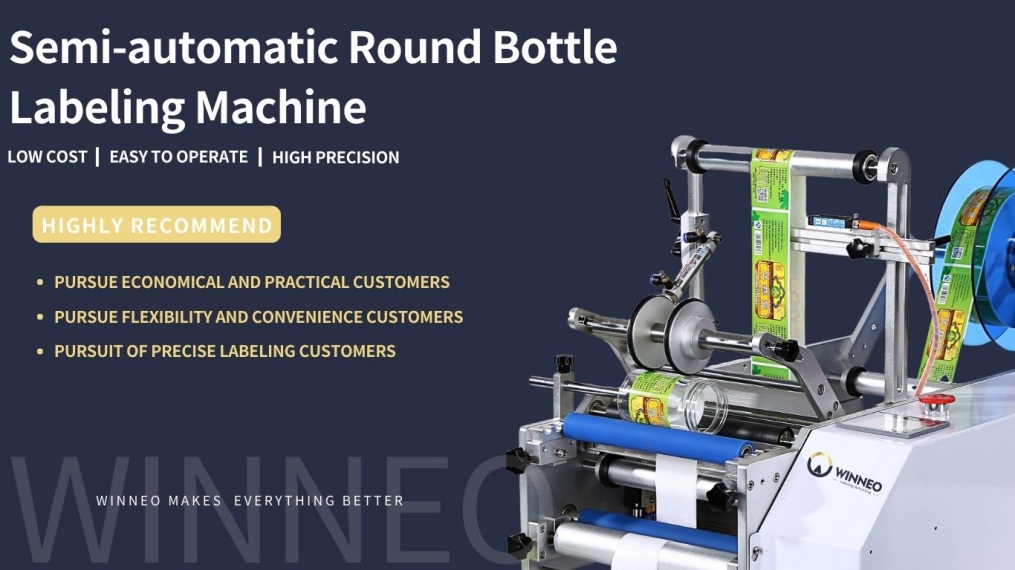

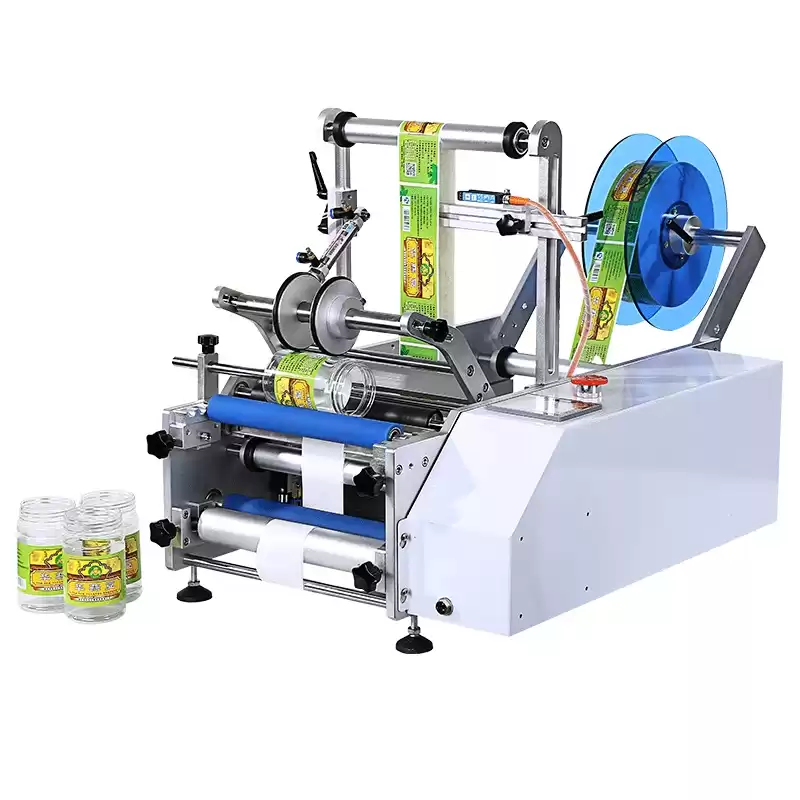

WT-201-Semi-automatic Round Bottle Labeling Machine

Features of this machine:

1. High degree of automation: The start switch is completed by Panasonic brand induction optical fiber.

2. Intelligent operation: touch screen control; the bottle type only needs to be adjusted once, and it can be put into production.

3. Compatible with conical bottle labeling: with taper adjustment knob, simple adjustment can meet the taper bottle labeling;

4. Good labeling quality: the label head and tail have high overlap, no wrinkles, no bubbles, and improve the quality assurance;

5. High stability: using Panasonic panasonic PLC + German sick photoelectric sensor, support 7×24h continuous work.





High-precision Bottle Labeling Machine



The PLC control Round Bottle Labeling Machine can realize full/half-circle labeling, front and back labeling of the circle, and the spacing between the front and back labels can be adjusted arbitrarily.



Technical Parameters




Labeling Accuracy ±0.5mm (excluding product and label errors)
Labeling Speed 15~35 pieces/minute (related to product size and manual placement speed)
Applicable Product Diameter φ15mm~φ100mm (customizable according to actual product size)
Applicable Label Size Length: 20mm~380mm; Width: 20mm~250mm
Overall Machine Size Approximately 936mmx534mmx518mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 55Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Power Consumption 120W





Application




Semi-automatic Round Bottle Labeling Machine is suitable for labeling cylindrical objects of various specifications and small taper round bottles, such as xylitol, cosmetic round bottles, wine bottles, etc.



Pharmaceutical Bottle Labeling Machine
DAILY

• Suitable for shampoo and detergent bottles

• Provides accurate labeling for household products





Pharmaceutical Bottle Labeling Machine
MEDICINE

• Suitable for labeling reagent and syrup bottles

• Ensures consistent labeling for medical containers



Desktop Round Bottle Labeling Manufacturer
FOOD&BEVERAGES

• Suitable for labeling jam jars and beverage bottles

• Ensures proper label placement for food and beverages



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
