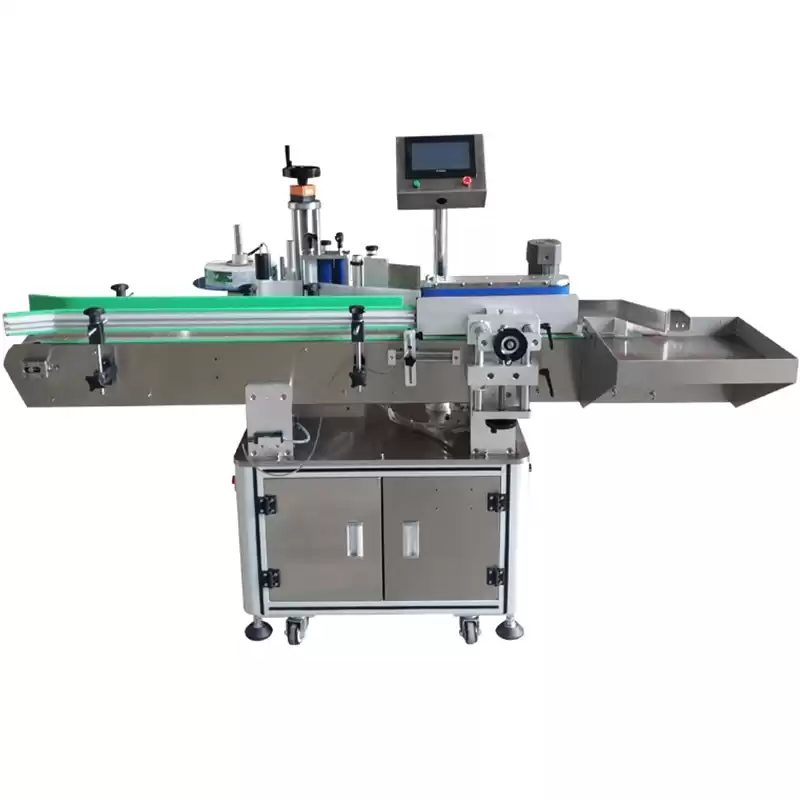

WT-202-Full Automatic Round Bottle Labeling Machine

Features of this machine:

1. Wide range of applications: The round bottles of different sizes can be easily changed and adjusted

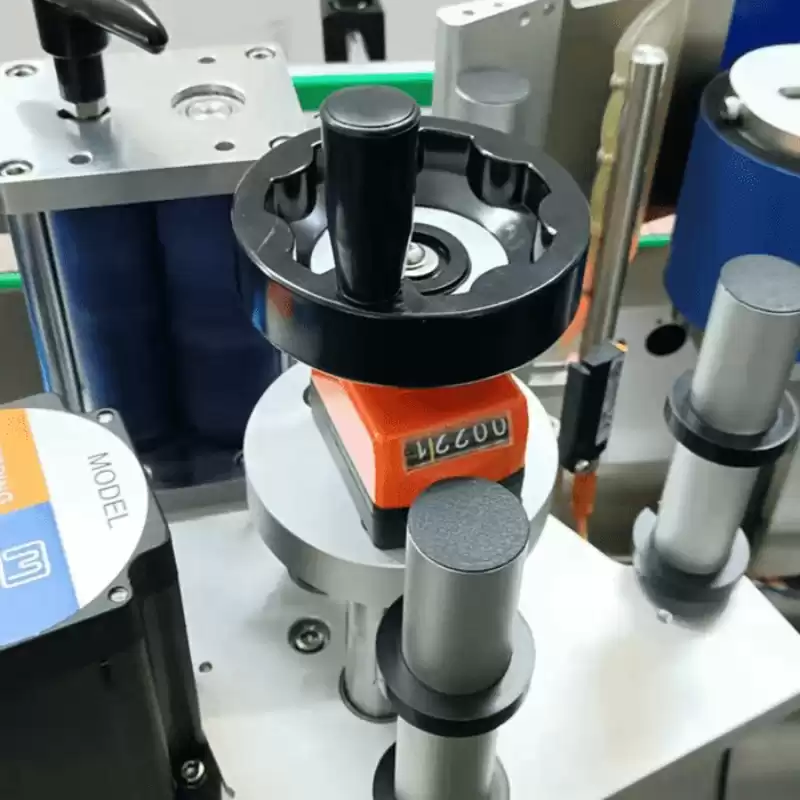

2. High label overlap: can be adjusted in eight degrees of freedom in the three directions of x/y/z and the inclination

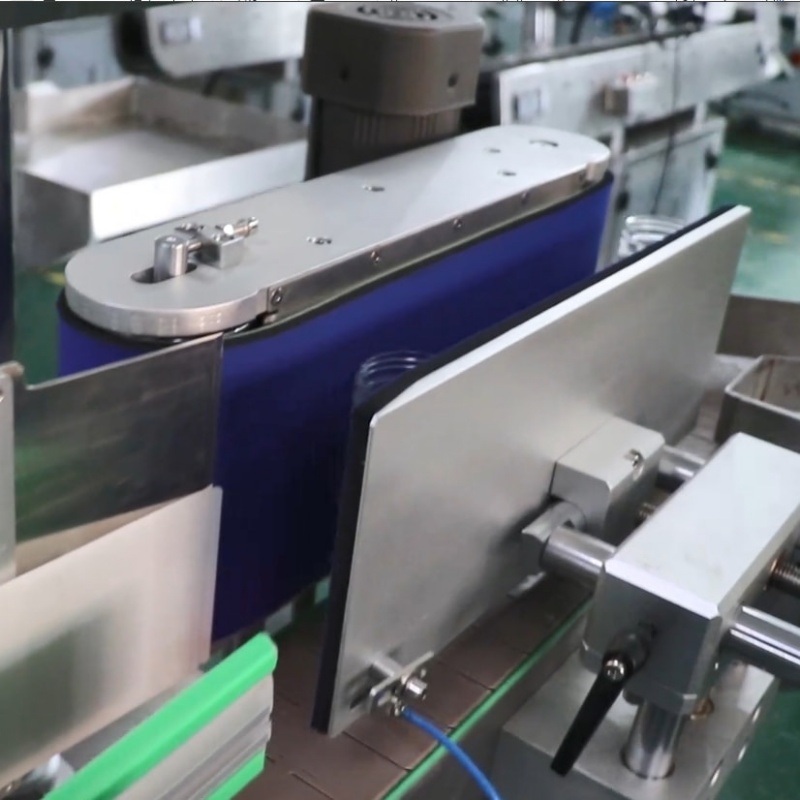

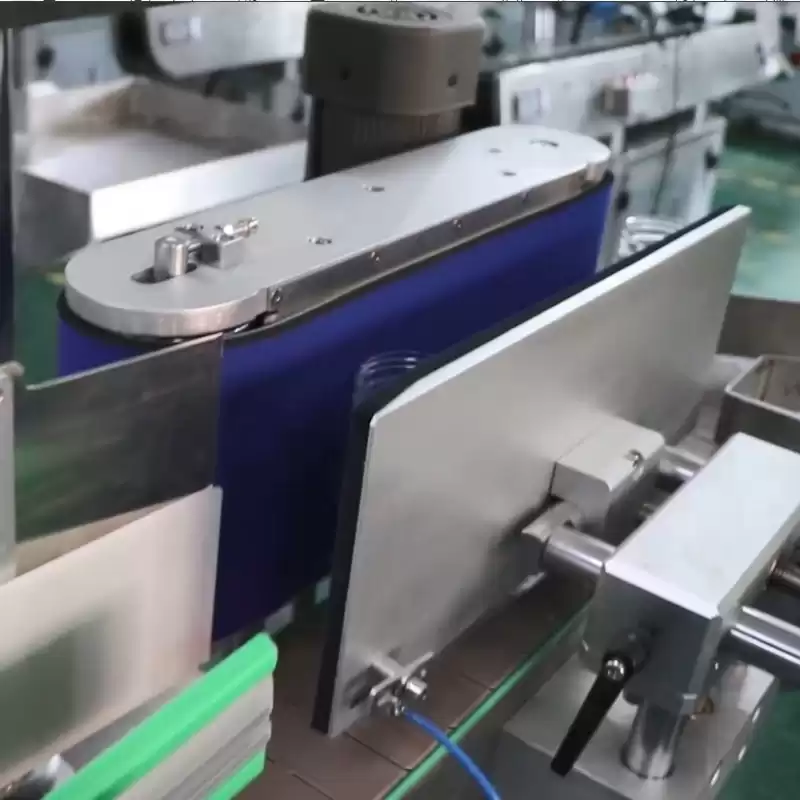

3. Excellent labeling quality: It adopts elastic labeling belt, and the labeling is flat and wrinkle-free

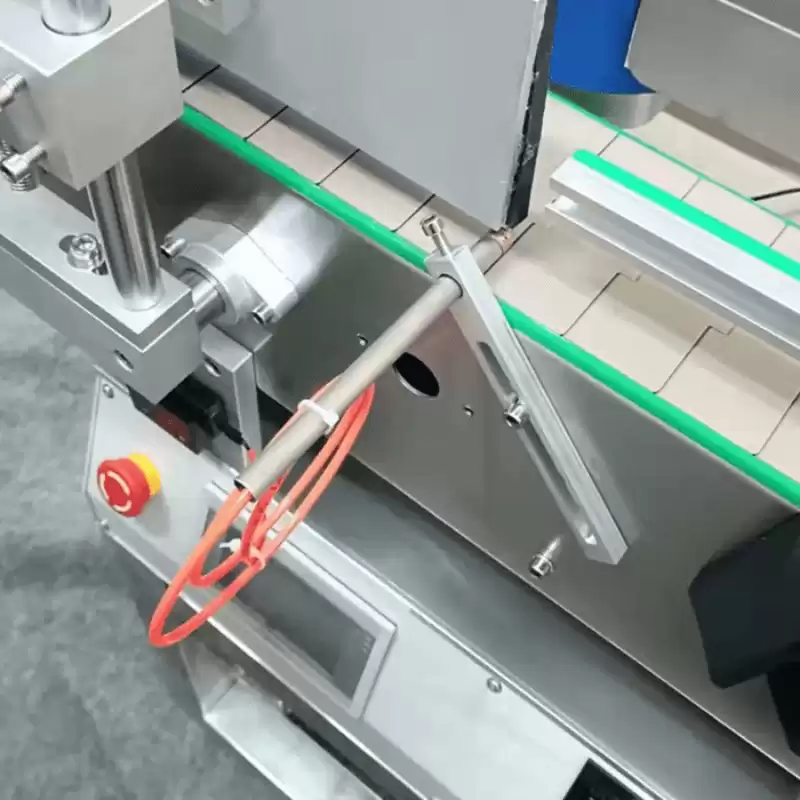

4. Flexible application: with automatic bottle separation function, can be produced by a single machine or line production

5. Intelligent control: Automatic photoelectric tracking, with the function of labeling everything

6. High stability: support 7×24 hours operation of the equipment

7. Simple adjustment: The labeling speed, conveying speed and bottle separation speed can be adjusted steplessly



Full Circle Round Bottle Labeling Machine



The Automatic Label Applicator for Round Containers can be equipped with an automatic turntable bottle unscrambler, which can be directly connected to the front-end production line to automatically feed bottles into the labeling machine to increase efficiency. It can also be equipped with a ribbon coding labeling machine, which can print the production date and batch number online, reduce the bottle packaging process, and improve production efficiency.



Technical Parameters




Labeling Accuracy ±1mm (excluding product and label errors)
Labeling Speed 30~80 pieces/minute (related to product size)
Applicable Product Diameter φ25mm~φ100mm
Applicable Label Size Length: 20mm~314mm; Width: 15mm~150mm
Overall Machine Size Approximately 1931mmx1190mmx1338mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 350Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Power Consumption 630W





Application




Full Automatic Round Bottle Labeling Machine is suitable for labeling round bottles in the pharmaceutical, food, daily chemical and other industries. It can label large and semi-circular bottles.



Automatic Round Bottle Labeling Machine
DAILY

• Suitable for body wash and detergent bottles

• Ensures accurate labels for consistent branding





Full Automatic Round Can Labeling Machine
MEDICINE

• Suitable for syrup and pill bottles

• Guarantees accurate labeling with minimal errors



Automatic Labeling Machine for Round Cosmetic Bottles
FOOD&BEVERAGES

• Suitable for beverage and sauce bottles

• Ensures perfect label alignment and secure adhesion



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
