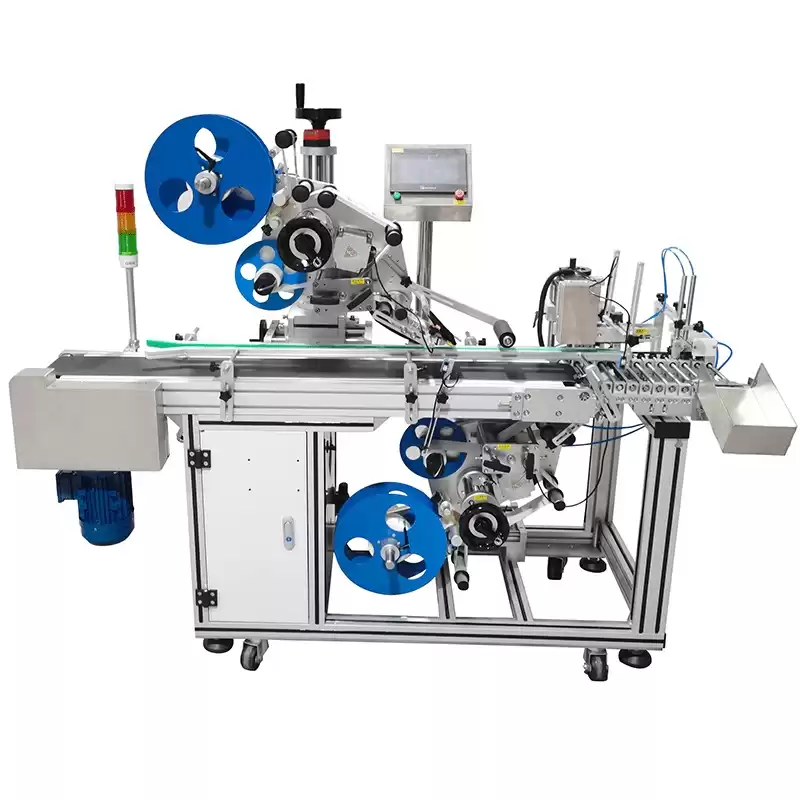

WT-304-Full Atomatic Flat Top and Bottom Labeling Machine

Features of this machine:

1. High degree of automation: automatically load, label and collect materials. The whole process is unmanned production.

2. Wide range of applications: it can meet the flat labeling and self-adhesive film of products with a width of 30mm to 300mm

3. High stability: supports 7×24 hours of equipment operation;

4. Flexible application: it can be produced by a single machine or connected to an assembly line

5. Intelligent control: automatic photoelectric tracking and automatic label detection functions

6. Touch screen operation: multi-language annotations and fault prompt functions, simple and fast adjustment of parameters

7. Powerful functions: it has production counting function, power saving function, production number setting prompt function



Automatic Top and Bottom Sides Labeling Machine



The Automatic Top and Bottom Sticker Labeling Machine can be applied to labeling on uneven surfaces by replacing the labeling mechanism. It is widely used in flat labeling of small and medium-sized products and flat objects with a small specification range.



Technical Parameters




Labeling Accuracy ±1mm (excluding product and label errors)
Labeling Speed 40~120 pieces/minute (related to product size)
Applicable Product Size Length: 40mm~400mm; Width: 40mm~250mm; Height: 0.2mm~150mm
Applicable Label Size Length: 6mm~340mm; Width (Liners Width): 15mm~130mm
Overall Machine Size Approximately 1600mmx780mmx1400mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 180Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Power Consumption 700W





Application




Automatic Flat Top and Bottom Labeler is suitable for labeling or self-adhesive films on the flat surfaces of various items, such as memory sticks (USB), plugs, plastic sheets, parts, etc.



Double Side Flat Surface Labeling Machine
FOOD&BEVERAGES

• Suitable for labeling snack packaging boxes

• Ensures precise and wrinkle-free label application





Top And Bottom Labeling Machine
DAILY

• Suitable for labeling household product packaging boxes

• Offers reliable adhesion for durable labeling



Automatic Flat Top and Bottom Labeler
MEDICINE

• Suitable for labeling medical supply packaging boxes

• Ensures high-quality, compliant labeling for safety



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
