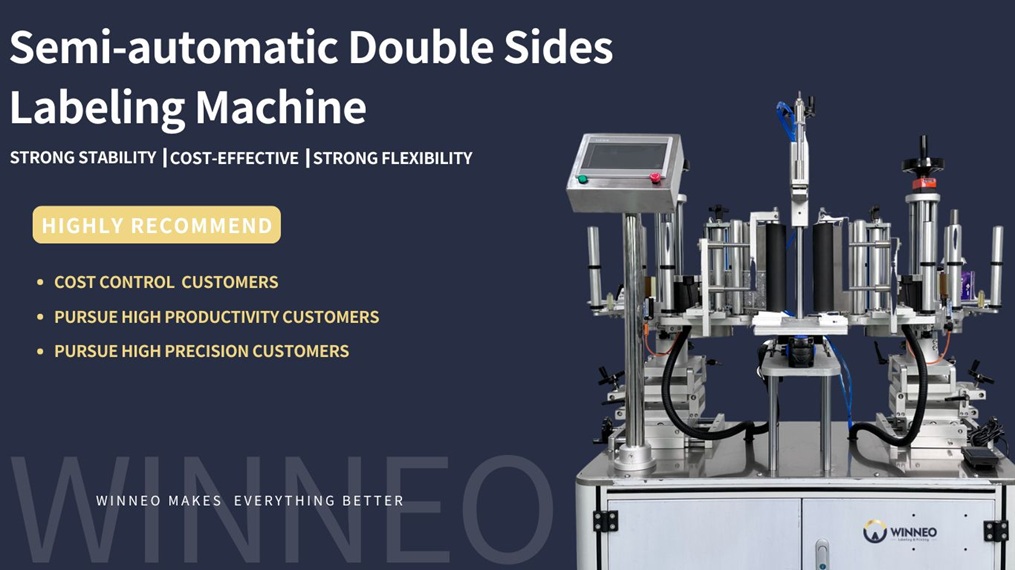

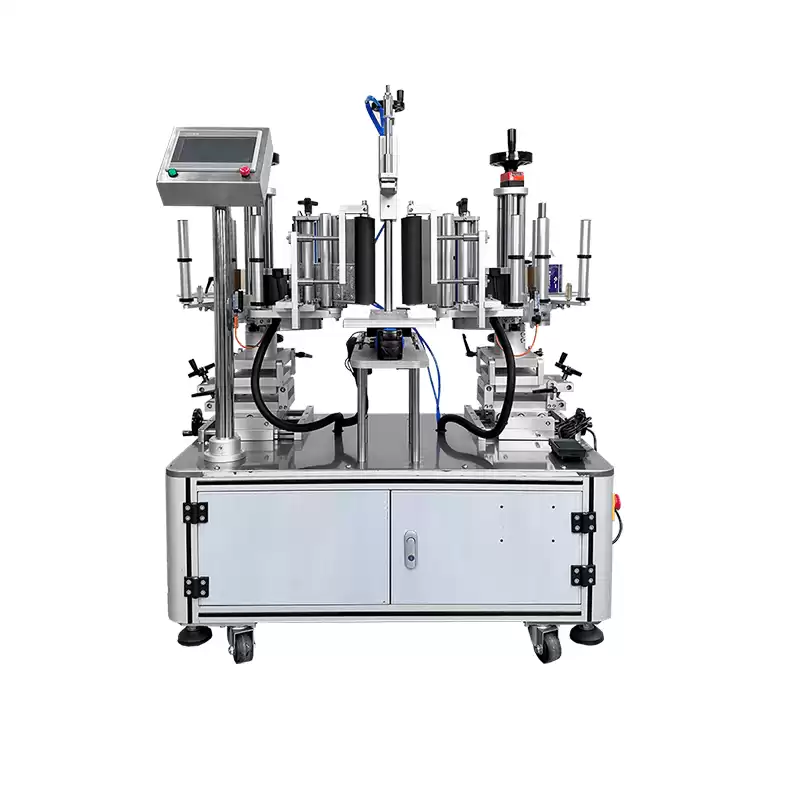

Semi-automatic labeling machines, also known as semi-automatic units, are electronically controlled systems that are suitable for labeling a wide range of products and packaging with different types of self-adhesive labels. They are the best solution for labeling small production quantities and batch numbers.
Technical Parameters
| Labeling Accuracy |
±0.5mm (excluding product and label errors) |
| Labeling Speed |
15~30 pieces/minute (related to product size) |
| Applicable Product Diameter |
Length: 20mm~200mm; Width: 20mm~150mm;
Height: 40mm~120mm |
| Applicable Label Size |
Length: 15mm~110mm; Width: 15mm~110mm |
| Overall Machine Size |
Approximately 1300mm x 1200mm x 1400mm (LxWxH) |
| Applicable Power Supply |
220V/50HZ |
| Overall Machine Weight |
Approximately 185Kg |
| Applicable Label Inner Diameter |
φ76mm |
| Applicable Label Outer Diameter |
φ300mm |
| Power |
990W |
Application
Labeling Flat Bottle Labeling Machine is mainly suitable for all kinds of flat bottles of the non-drying label, can accurate positioning. Plus code printer, can be directly to code label. Edge welt.
Food & BEVERAGES
• Suitable for side of various product
• Improved the appearance quality of packaging
DAILY
• Suitable for labeling for small essential oils
• Labeling small production quantities and batch numbers
MEDICINE
• Suitable for labeling of small vials, syringes and cartridges
• Meet the high flexibility labeling requirements
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
