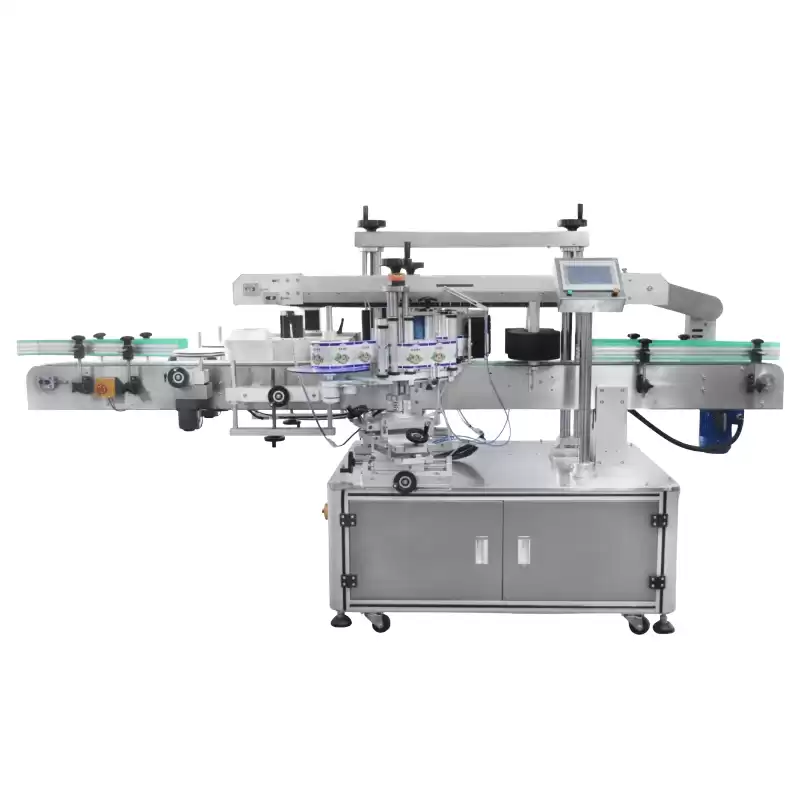

WT-310 Full Automatic Double Sides Labeling Machine

Features of this machine:

  • 1. It is suitable for single-sided and double-sided labeling of flat bottles, round bottles and square bottles.
  • 2. Such as shampoo flat bottles, lubricating oil flat bottles, hand sanitizer round bottles, etc.
  • 3. Labeling head can be modified: Widely used in daily chemicals, cosmetics, petrochemicals, medicine, etc.





Double Side Sticker Labelling Machine is suitable for single-side and double-side labeling of flat bottles and square bottles, and double labeling on both sides improves production efficiency. With no label automatic correction and label automatic detection function, avoid waste label and missing label.



Technical Parameters




Applicable Label Length (mm)

20mm~200mm

Applicable Label Width (Liners Width/mm) 20mm~160mm
Applicable Product Size
(Length x Width x Height/Thickness)
40~65 pcs/min
Width (Conveying Width Direction) 30mm~90mm
Height 60mm~280mm
Applicable Label Roll Outer Diameter (mm) φ280mm
Applicable Label Roll Inner Diameter (mm) φ76mm
Labeling Accuracy (mm) ±1.0mm
Out Labeling Speed (m/min) Stepper: 5~19m/min; Servo: 5~40m/min
Labeling Speed (pcs/min) Stepper: 30~160pcs/min
Servo: 40~180pcs/min
Conveying Speed (m/min) 16m/min
Weight (kg) Approximately 330kg
Applicable Label Roll Inner Diameter (mm) φ76mm
Frequency (HZ) 50HZ
Voltage (V) 220V
Power (W) 1100W (Tractive Stepper)
1600W (Tractive Servo)
Equipment Outer Dimensions (mm)
(Length x Width x Height)Conveying Speed (m/min)
3000mm x 1450mm x 1600mm
Power (W) 2070W





Application




Double Side Labeling Machine applies both the front and back labels of the bottle simultaneously, and is compatible with bottles of different shapes. The machine can be adjusted according to the shape of the bottle to adapt.



FOOD&BEVERAGES

• Suitable for food and Liquor bottle

• 100% User Friendly, Virtually Maintenance Free





DAILY

• Suitable for glass, plastic, paper, cardboard, metal and most other materials

• Double labeling on both sides improves production efficiency

MEDICINE

• Suitable for rectangular and oval containers for Pharma Labels

• Can be adjusted according to the shape of the bottle to adapt







Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
