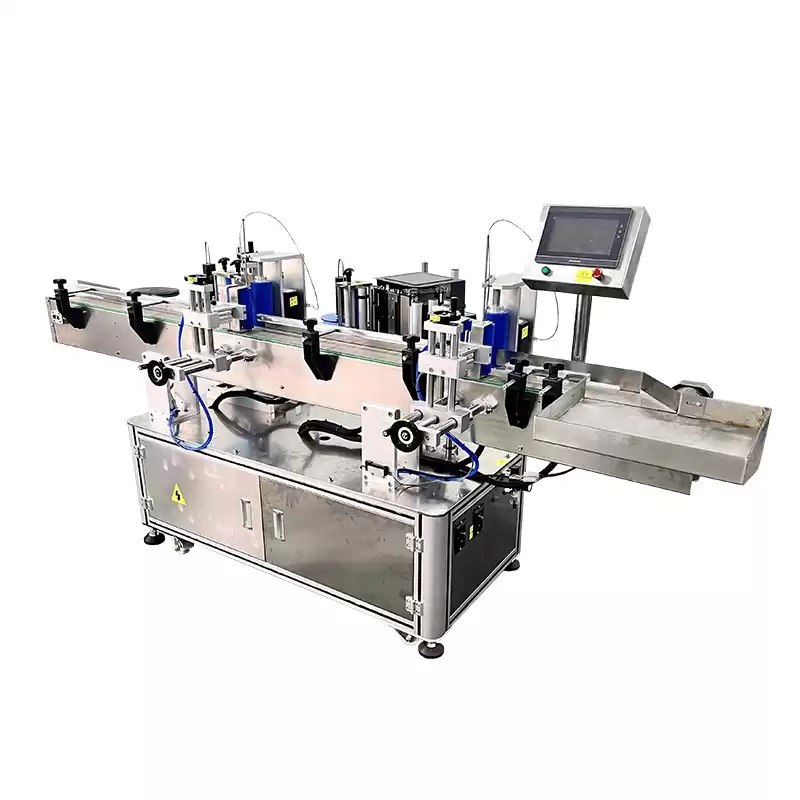

WT-404-Full Automatic Round Bottle Labeler with Printer

Features of this machine:

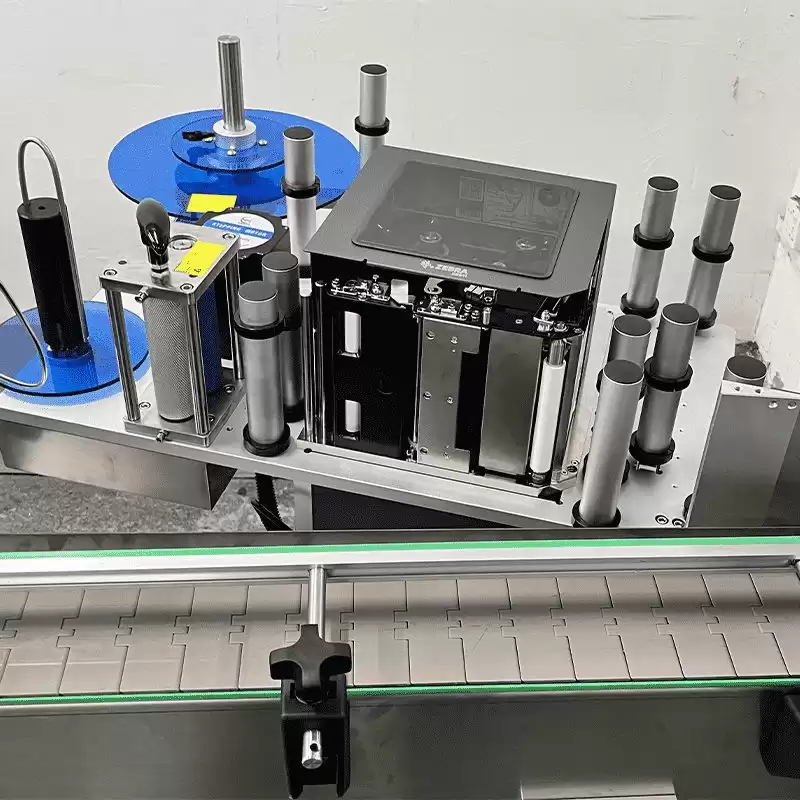

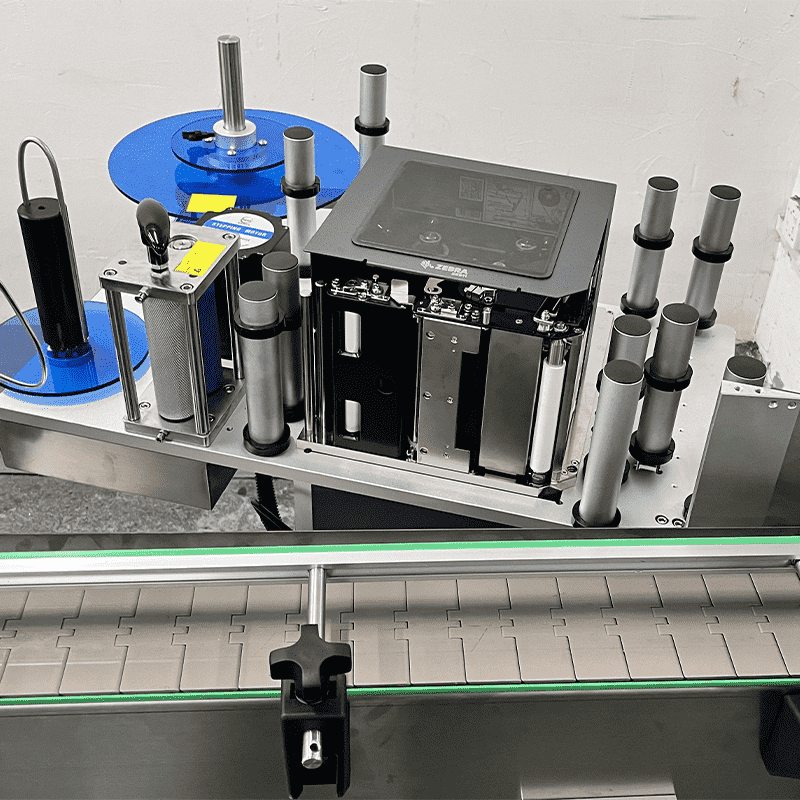

1.Real-time printing: Zebra printer, supports real-time printing of variable data (batch, date, QR code).

2.High-precision round bottle labeling: ±1.0mm high-precision positioning, adaptive to 25-120mm diameter bottles.

3.Intelligent deviation correction: Photoelectric tracking makes the first and last labels seamlessly connected.

4.Production adaptation: Support multi-specification label rolls, compatible with food, daily chemical and other production lines

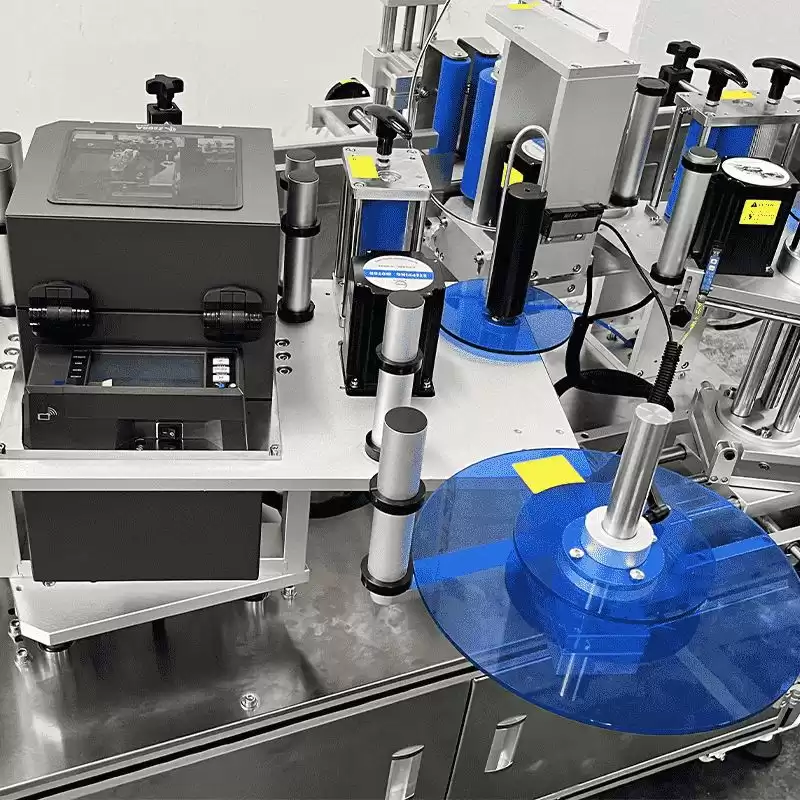

The vertical round bottle self-adhesive labeling machine automates the labeling process, ensuring fast, precise, and uniform label application for a professional finish. With optional integration of a color belt printer or inkjet printer, it can simultaneously print batch numbers, production dates, and other details, streamlining the packaging process and boosting production efficiency. Ideal for high-volume operations, this machine combines reliability and performance to meet modern production needs.



Technical Parameters




Labeling Accuracy ±1.0mm (excluding product and label errors)
Labeling Speed 25~60 pieces/minute (related to product size)
Applicable Product Diameter φ25mm~φ120mm
Applicable Label Size Length: 20mm~290mm; Width: 20mm~150mm
Overall Machine Size Approximately 1950mmx1200mmx1530mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight

Approximately 200kg

Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage (V) 220V
Air Pressure 0.4~0.6Mpa
Power 865W
Printer Brand TSC, Zebra
Printer Resolution 300DPI or 600DPI
Printer Width 100mm or 135mm or customized





Application




Round Bottle Labeling Machine is designed to handle a variety of materials, including glass, plastic, and ceramic, and supports the application of self-adhesive labels, films, electronic supervisory codes, barcodes, and QR codes. It is suitable for labeling round containers in industries such as pharmaceuticals, electronics, and food, offering the flexibility to apply labels in full-round or half-round configurations to meet diverse production needs.



Food & BEVERAGES

• Suitable for labeling glass beverage bottles

• Ensures high-speed, precise labeling for mass production





MEDICINE

• Suitable for labeling plastic medicine bottles

• Meets strict hygiene and precision labeling standards

ELECTRONIC

• Suitable for labeling ceramic motor start capacitors

• Provides accurate labeling for industrial components







Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
