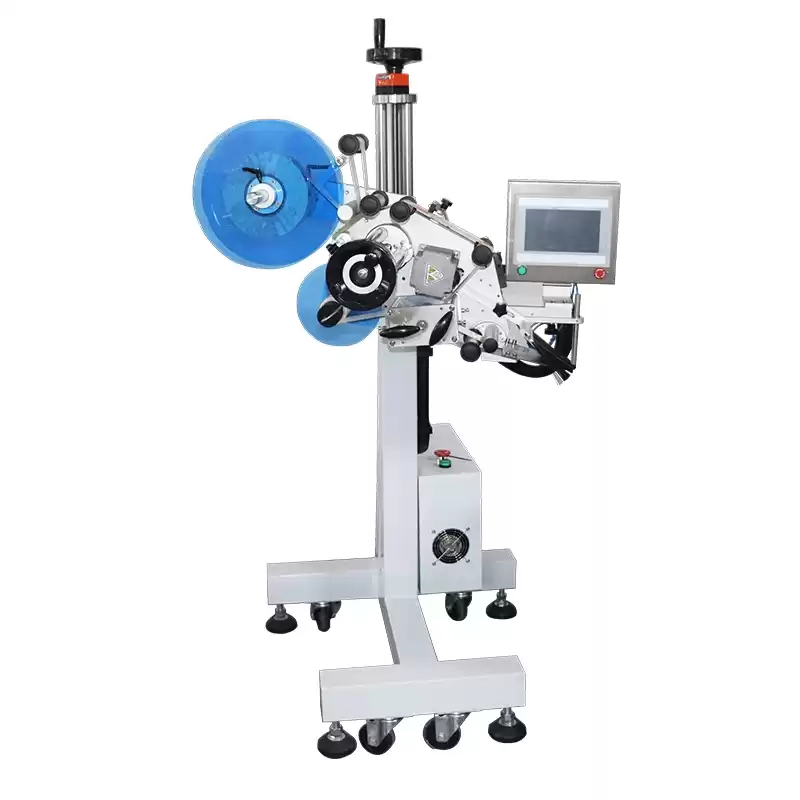

The automatic line labeling head seamlessly integrates with production assembly lines, enabling precise labeling on both flat and curved surfaces of flowing products. It supports online, unmanned labeling operations, significantly improving efficiency. When paired with a coding conveyor belt, it can accurately label moving objects. With high-precision labeling capabilities, it enhances product quality and boosts market competitiveness.
Technical Parameters
| Applicable Label Length (mm) |
10mm-250mm |
| Applicable Label Width (Liners Width/mm) |
10mm-120mm |
| Applicable Product Size (Length x Width x Height/Thickness) |
No specific requirements(depends on the conveyor parameters) |
| Applicable Label Roll Outer Diameter (mm) |
φ240mm |
| Applicable Label Roll Inner Diameter (mm) |
φ76mm |
| Labeling Accuracy (mm) |
±1mm |
| Labeling Speed (pcs/min) |
Stepper: 30-160pcs/min Servo: 40-180pcs/min
|
| Weight (kg) |
Approximately 70kg |
| Frequency (HZ) |
50HZ |
| Voltage (V) |
220V |
| Power (W) |
330W |
| Equipment Outer Dimensions (mm) (Length x Width x Height) |
1100mm x 700mm x 1450mm |
Application
Plane Labeling Machine is suitable for labeling products such as: Medicine boxes and reagent bottles in the pharmaceutical industry, Chocolate boxes and snack packaging in the food industry, Tissue boxes and detergent packaging in the daily commodity industry, Flat cosmetic boxes and skincare product packaging in the beauty industry, Electronic product boxes and accessory packaging in the electronics industry, etc.
DAILY
• Suitable for plane labeling on daily packaging boxes
• Enhances the visual appeal of household products
Food & BEVERAGES
• Suitable for plane labeling on chocolate boxes
• Ensures efficient labeling for high-volume production
MEDICINE
• Suitable for plane labeling on medicine boxes
• Delivers precise labeling for medical compliance
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
