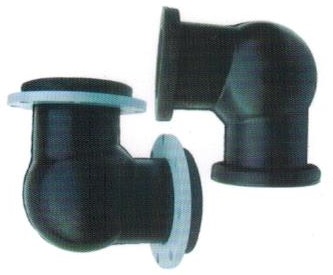

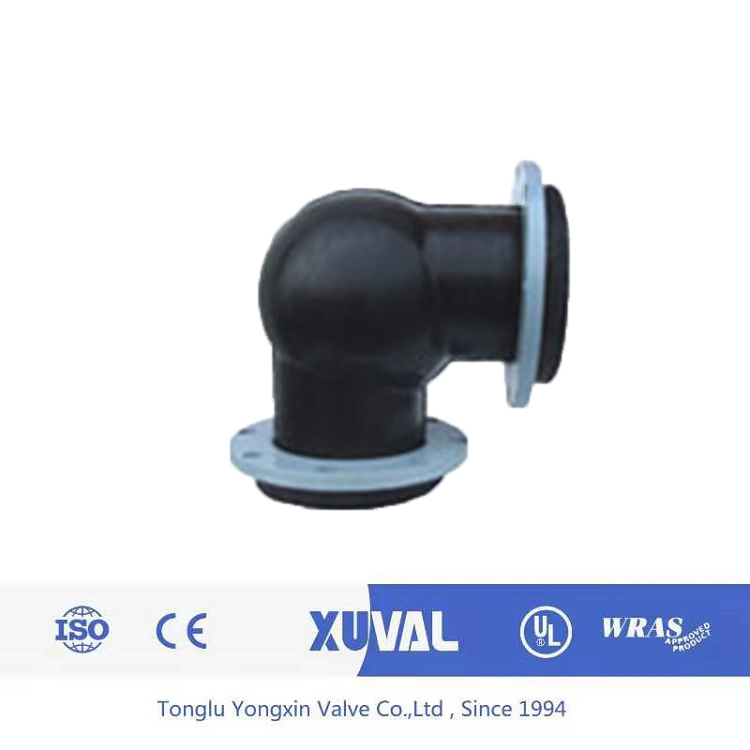

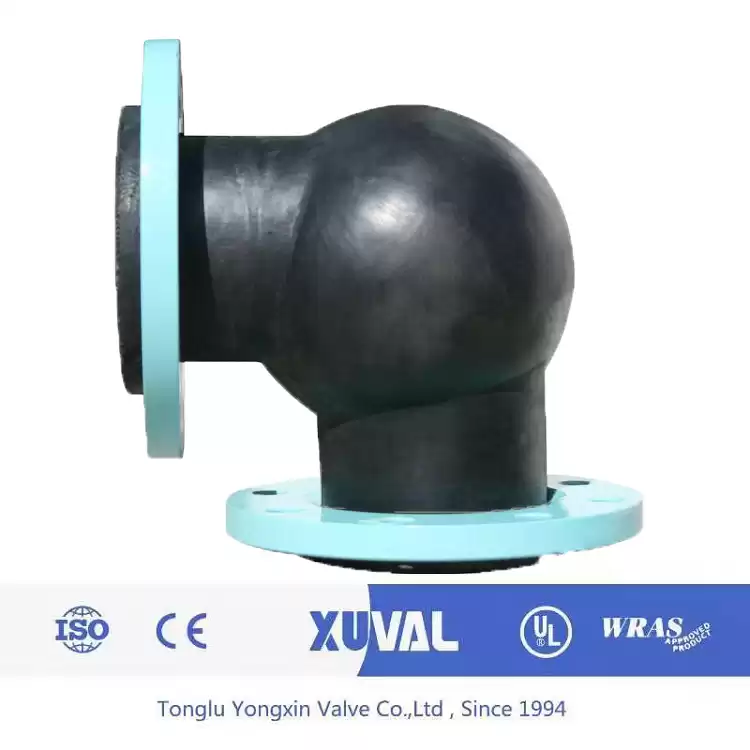

WTX Flexible Rubber Joint
Techniacal parameters:
Item
|
WTX-1
|
WTX-2
|
WTX-3
|
|
Model
|
|
Mpa(kgf/cm²） Working pressure
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
Mpa(kgf/cm²） Explosion pressure
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|
Kpa(mm/Hg) Vacuum
|
53.3(400)
|
86.7(650)
|
100(750)
|
|
℃ Applicable Temperature
|
-15℃~115℃（-30℃~250℃ under special conditions)
|
Applicable Temperature
|
Air,compressed air,water,sea water,oil,acid,alkali,and so on
|
Main data:

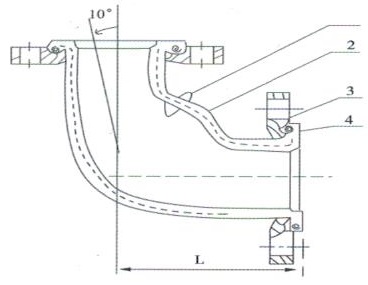

Nominal Diameter
|
L
(mm)
|
Allowable displacement in all directions
|
mm
|
inch
|
X
|
X'
|
Y
|
Y'
|
Z
|
Z'
|
|
50
|
2
|
140
|
20
|
16
|
20
|
16
|
16
|
16
|
|
65
|
2.5
|
140
|
20
|
16
|
20
|
16
|
16
|
16
|
|
80
|
3
|
150
|
20
|
16
|
20
|
16
|
16
|
16
|
|
100
|
4
|
160
|
20
|
16
|
20
|
16
|
16
|
16
|
|
125
|
5
|
180
|
20
|
16
|
20
|
16
|
16
|
16
|
|
150
|
6
|
200
|
20
|
16
|
20
|
16
|
16
|
16
|
|
200
|
8
|
230
|
20
|
16
|
20
|
16
|
16
|
16
|
|
250
|
10
|
280
|
20
|
16
|
20
|
16
|
16
|
16
|
|
300
|
12
|
305
|
20
|
16
|
20
|
16
|
16
|
16
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
