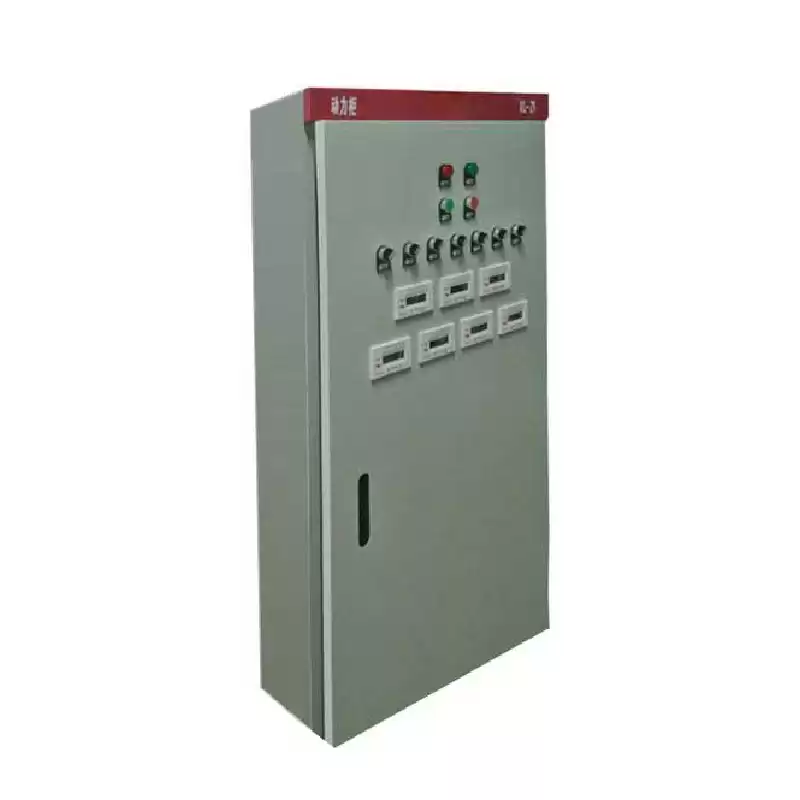

XL series low voltage distribution box

XL series low voltage distribution box is suitable for power station, substation, industrial and mining enterprises, highway tunnel and other power users. In the power supply system with ac 50/60 Hz, rated working voltage 380V, rated working current up to 630A and breaking capacity up to 15kA, to provide power conversion, distribution and control for power distribution equipment such as power, lighting and blower. Can provide overload, short circuit and leakage protection.





Indoor box structure (protection grade IP30) distribution box frame is made of cold-rolled steel plate bent and welded. After spraying process treatment, anti - corrosion performance is good. The internal beams and plates are galvanized and passivated by aluminum-zinc coated plates or cold-rolled steel plates. The inside edge of the door with single side foamed glue, which can prevent the door from directly colliding with the box body, and also improve the protection grade of the door.


Outdoor box structure (protection grade IP65) Distribution box frame is made of stainless steel plate bent and welded. After outdoor spraying process treatment, with good corrosion resistance. The internal beams and plates are galvanized and passivated by aluminum-zinc coated plates or cold-rolled steel plates. The inside edge of the door with single side foamed glue, which can prevent the door from directly colliding with the box body, and also improve the protection grade of the door. If there are secondary components on the panel, the structure of the double door is adopted. The outer door is a glass door. The secondary components are installed on the inner door, the operating state of the device can be observed without opening the outer door.




NO. Item Unit Data
1 Rated operational voltage(V) AC 380(400)
2 Rated insulation voltage(V) 660(690)
3 Rated frequency(Hz) Hz  50(60)
4 Horizontal bus rated current(A) ≤630
5 Main bus rated short-time withstand current kA/1s  15
6 Bus rated peak withstand current kA  30
7 Bus Three-phase four-wire system \ A、B、C、PEN
Three-phase five-wire system \ A、B、C、PE、N
8 IP grade use in indoor \ IP30
use in outdoor \ IP65



Distribution box should be installed in a clean, dry and well-ventilated environment.

1. Surrounding air temperature: the highest temperature is 40℃, and the average value measured within 24 hours does not exceed 35℃, and the lowest temperature is -5℃.

2. Relative humidity of the surrounding air: when the maximum temperature is +40℃, it shall not exceed 50%; when the temperature is lower, it is allowed to have a large relative humidity. The influence of condensation may occasionally occur due to the change of temperature should be considered.

3. Altitude:  ≤ 2000m.

4. Conditions of transportation, storage and placement: temperature range from -25℃ to +55℃, up to +70℃ in a short time (not exceeding 24 hours).The inclination of the equipment during installation shall not exceed 3º.

5. The installation site shall be free from fire, explosion, serious pollution, chemical corrosion and violent vibration.

6. The working conditions of instruments, measuring instruments, protective relays, etc. shall be in accordance with the requirements of the component supplier.

Note: if the actual conditions of use cannot be met, it shall negotiate with the manufacturer.
