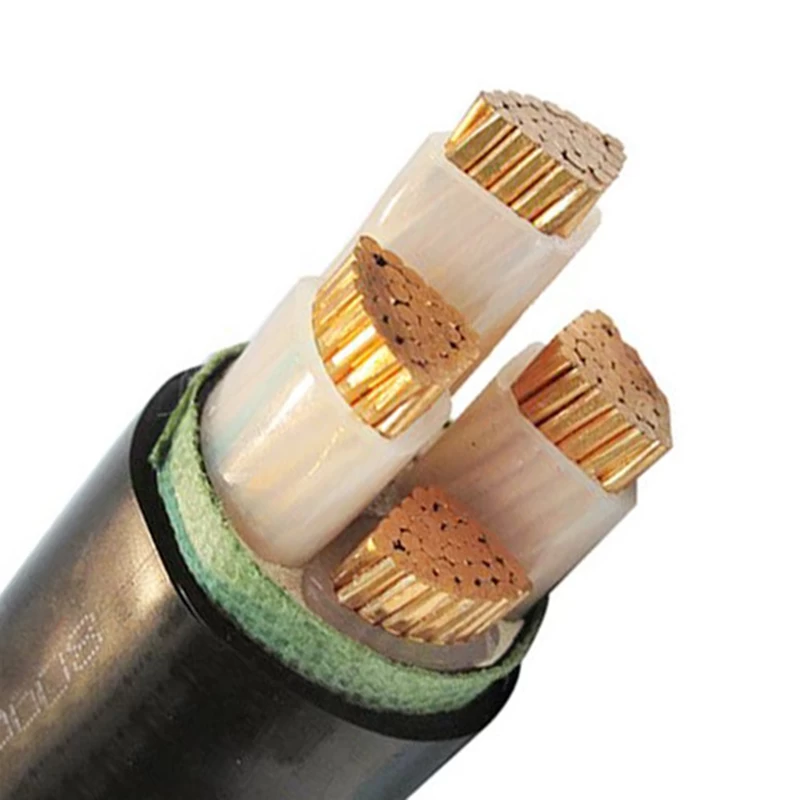

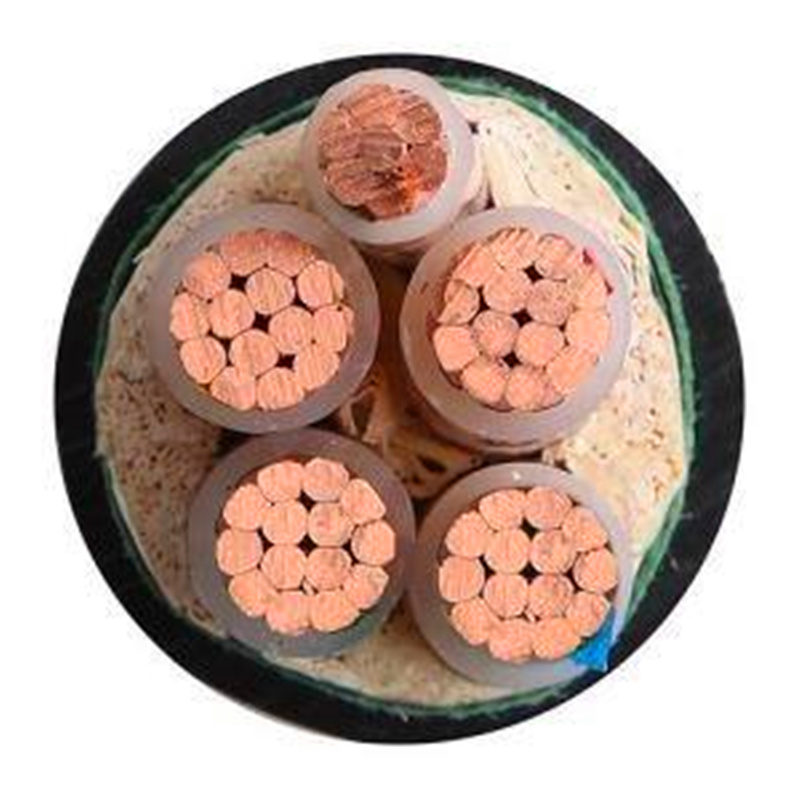

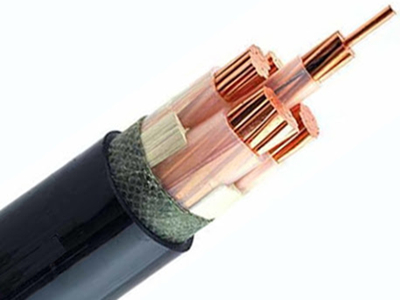

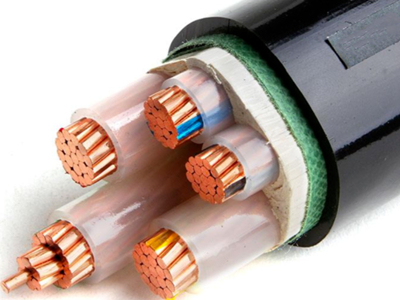

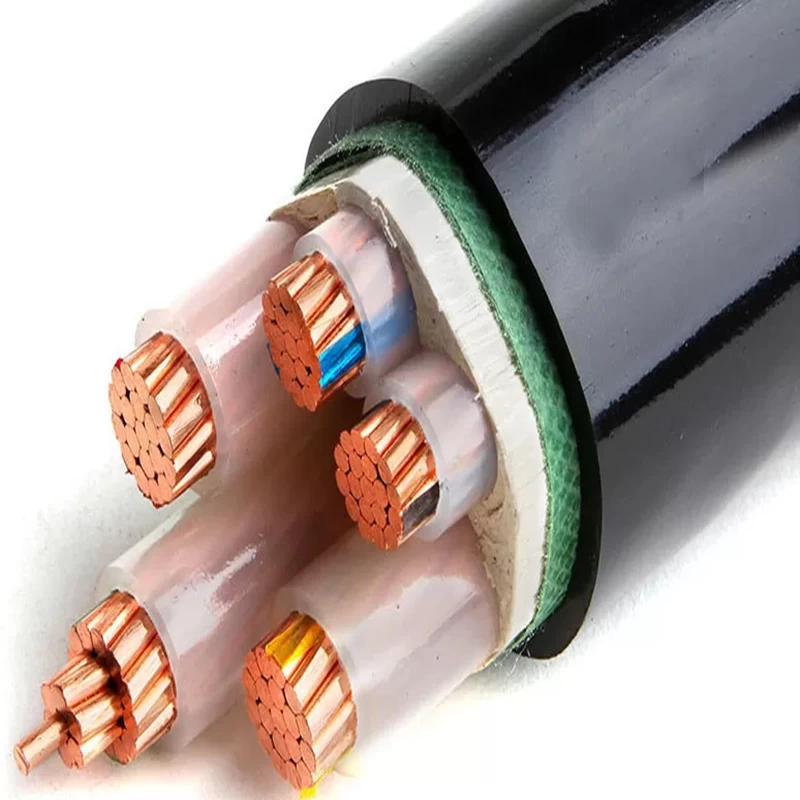

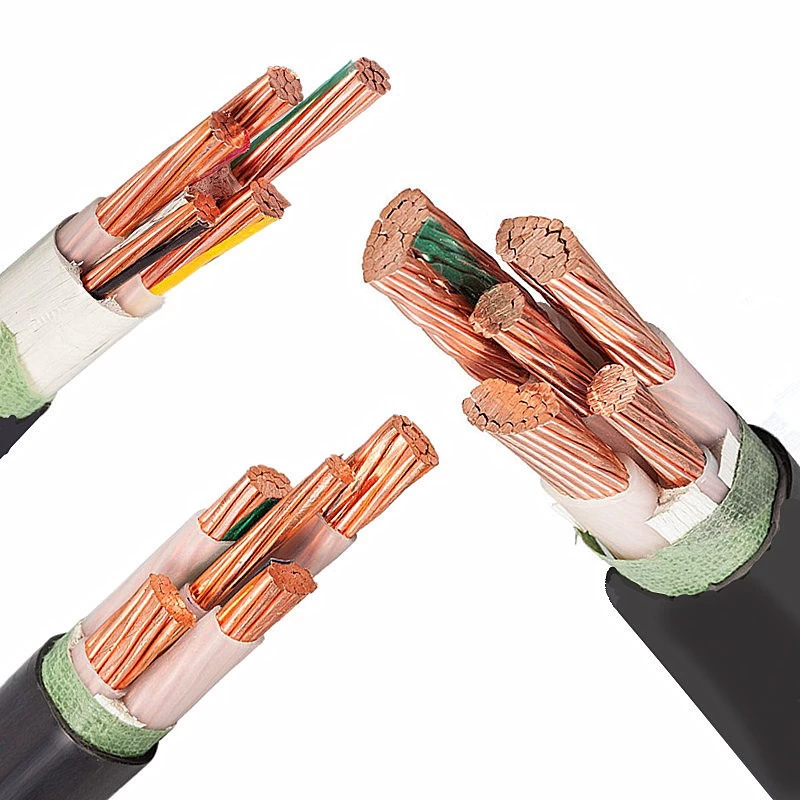

XLPE Insulated PVC Sheathed YJV Power Cables
MAIN KEYWORDS
U-1000 R2V, R02V, BS 7889,
6181X, 6182X, 6183X, 6184X, 6185X, YJV power cable, CV power cable,
CU/XLPE/PVC, CU/XLPE/PVC/PVC cable.
APPLICATION CHARACTERISTICS
XLPE insulated PVC sheathed YJV power cable, copper conductor, XLPE insulation, PVC inner sheath, PVC out sheath, U0/U: 0.6/1kV. Suitable for installation in areas with reduced risk of mechanical
damage; on tray, in free air or clipped direct. Suitable also for conduit and
wiring installations when mechanical protection is required.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material
XLPE (cross-linked polyethylene).
---Insulation Color
1C: brown, blue, red, yellow, green, black, or others.
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: the insulated color is nature and close to transparent, then it with a colored tape.
---Filler Material
Fiberglass tape.
---Cabling Material
Non-woven fabrics
---Inner Sheath Material
PVC (Polyvinyl chloride).
---Armored Material
Unarmored.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Color
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS 7889.
---Products Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe has
a few of different.
---For the YJV power cable, according
to the practice, the common specification is 50～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
40
Single Core Medium Voltage Power Cables
MAIN KEYWORDS
Single core medium voltage power cable, N2XSY power cable, BS 6622 XLPE-PVC power cable,
BS 7835 XLPE-LSZH power cable, 8.7/10kV 8.7/15kV 26/35kV and other MV power cable with voltage rate.
APPLICATION CHARACTERISTICS
Single core medium voltage power cable, copper
wire or aluminum wire conductor, semi-conductive screened tape, XLPE insulated,
semi-conductive screened tape, PVC inner sheath, copper tape screened, PVC
inner sheath, steel tape or steel wire armored (armored material is optioned), PVC
out sheath, U0/U: 3.6/6kV～26/35kV. Medium
voltage power cable is applied to the transmission and distribution lines with rated
voltage from 3.6/6kV to 26/35kV, to be laid directly in ground, outdoors,
indoors and in cable ducts.
Notice: For the single core power cable, their metallic
armored material should be used non-magnetic steel tape or steel wire.
PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed compacted stranded copper wire.
---Conductor Identification
Colored tape under the screen
---Insulation Material
XLPE (cross-linked
polyethylene).
---Screen Material
Semi-conducting
layer with a copper tape screen covering each core
---Bedding Material
PVC (Polyvinyl
chloride)
---Armored Material (option)
Galvanized steel
tape, or galvanized steel wire.
---Out Sheath Material
PVC (Polyvinyl
chloride)
---Sheath Color
Black, or
others.
---Core Number
Single core,
1C.
---Voltage Rate (U0/U)
3.6/6kV～26/35kV
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
20 x Out
Diameter
---Production Standard
GB/T 12706, IEC
60502, BS 6622, BS 7835, VDE 0276.
---Products Delivery
Within 15-20 working days as soon as we received the deposit.
PRODUCTS SPECIFICATION
8.7/10kV, 8.7/15kV (un-armored material)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x25
|
Copper
wire
|
1C
7/2.14
|
4.5
|
1.6
|
22.0
|
696
|
0.727
|
165
|
160
|
|
1x35
|
Copper
wire
|
1C
7/2.52
|
4.5
|
1.6
|
23.0
|
819
|
0.524
|
205
|
190
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
4.5
|
1.7
|
24.5
|
970
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
4.5
|
1.8
|
26.2
|
1191
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
4.5
|
1.8
|
27.9
|
1493
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
4.5
|
1.9
|
29.5
|
1760
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
4.5
|
1.9
|
31.1
|
2085
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
4.5
|
2.0
|
32.8
|
2391
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
4.5
|
2.1
|
35.3
|
2973
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
4.5
|
2.2
|
37.7
|
3657
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
4.5
|
2.3
|
40.9
|
4571
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
4.5
|
2.4
|
44.4
|
5692
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
4.5
|
2.5
|
48.0
|
6945
|
0.0283
|
1160
|
940
|
8.7/10kV 8.7/15kV
YJV22 (Steel Tape Armored)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x25
|
Copper
wire
|
1C
7/2.14
|
4.5
|
1.8
|
25.6
|
919
|
0.727
|
165
|
160
|
|
1x35
|
Copper
wire
|
1C
7/2.52
|
4.5
|
1.8
|
26.6
|
1055
|
0.524
|
205
|
190
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
4.5
|
1.8
|
27.9
|
1219
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
4.5
|
1.9
|
30.8
|
1458
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
4.5
|
2.0
|
32.7
|
1780
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
4.5
|
2.0
|
34.1
|
2312
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
4.5
|
2.1
|
35.9
|
2670
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
4.5
|
2.2
|
37.6
|
3007
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
4.5
|
2.2
|
39.9
|
3621
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
4.5
|
2.3
|
42.5
|
4330
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
4.5
|
2.4
|
45.7
|
5281
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
4.5
|
2.5
|
49.4
|
6442
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
4.5
|
2.7
|
53.4
|
7766
|
0.0283
|
1160
|
940
|
8.7/10kV 8.7/15kV
YJV32 (Steel Wire Armored)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x25
|
Copper
wire
|
1C
7/2.14
|
4.5
|
1.9
|
29.0
|
1846
|
0.727
|
165
|
160
|
|
1x35
|
Copper
wire
|
1C
7/2.52
|
4.5
|
1.9
|
30.0
|
2026
|
0.524
|
205
|
190
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
4.5
|
2.0
|
31.5
|
2237
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
4.5
|
2.0
|
33.0
|
2520
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
4.5
|
2.1
|
34.9
|
2911
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
4.5
|
2.2
|
37.5
|
3690
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
4.5
|
2.2
|
39.1
|
4005
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
4.5
|
2.3
|
40.8
|
4402
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
4.5
|
2.3
|
43.1
|
5104
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
4.5
|
2.4
|
45.7
|
5908
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
4.5
|
2.5
|
48.9
|
6982
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
4.5
|
2.6
|
52.6
|
8287
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
4.5
|
2.8
|
56.6
|
9789
|
0.0283
|
1160
|
940
|
26/35kV YJV
(unarmored material)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
10.5
|
2.2
|
38.7
|
1727
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
10.5
|
2.2
|
40.2
|
1980
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
10.5
|
2.3
|
42.1
|
2335
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
10.5
|
2.4
|
43.7
|
2650
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
10.5
|
2.4
|
45.3
|
3016
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
10.5
|
2.5
|
47.0
|
3377
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
10.5
|
2.5
|
49.3
|
3996
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
10.5
|
2.6
|
51.7
|
4733
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
10.5
|
2.7
|
54.9
|
5723
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
10.5
|
2.8
|
59.8
|
7068
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
10.5
|
3.0
|
63.6
|
8418
|
0.0283
|
1160
|
940
|
26/35kV YJV22 (Steel Tape Armored)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
10.5
|
2.4
|
43.7
|
2600
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
10.5
|
2.4
|
45.2
|
2890
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
10.5
|
2.5
|
47.1
|
3270
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
10.5
|
2.5
|
48.7
|
3600
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
10.5
|
2.6
|
50.5
|
4020
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
10.5
|
2.6
|
52.0
|
4410
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
10.5
|
2.7
|
54.7
|
5110
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
10.5
|
2.8
|
57.1
|
5900
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
10.5
|
2.9
|
60.5
|
6340
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
10.5
|
3.0
|
65.6
|
8380
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
10.5
|
3.1
|
69.2
|
9790
|
0.0283
|
1160
|
940
|
26/35kV YJV32 (Steel Wire Armored)
|
Cross
Section
Area
(mm2)
|
Conductor
Material
|
Conductor
Structure
(pcs/mm)
|
XLPE
Insulated
Thickness
(mm)
|
PVC
Sheathed
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at 20℃
(Ω/km)
|
Refer
Current
Rating
in air
(A)
|
Refer
Current
Rating
in ground
(A)
|
|
1x50
|
Copper
wire
|
1C
19/1.78
|
10.5
|
2.5
|
46.9
|
4030
|
0.387
|
245
|
225
|
|
1x70
|
Copper
wire
|
1C
19/2.14
|
10.5
|
2.5
|
48.4
|
4380
|
0.268
|
305
|
275
|
|
1x95
|
Copper
wire
|
1C
19/2.52
|
10.5
|
2.6
|
50.3
|
4830
|
0.193
|
370
|
330
|
|
1x120
|
Copper
wire
|
1C
37/2.04
|
10.5
|
2.6
|
51.9
|
5250
|
0.153
|
430
|
375
|
|
1x150
|
Copper
wire
|
1C
37/2.25
|
10.5
|
2.7
|
53.7
|
5730
|
0.124
|
490
|
425
|
|
1x185
|
Copper
wire
|
1C
37/2.52
|
10.5
|
2.7
|
55.2
|
6160
|
0.0991
|
560
|
480
|
|
1x240
|
Copper
wire
|
1C
48/2.52
|
10.5
|
2.8
|
57.9
|
6940
|
0.0754
|
665
|
555
|
|
1x300
|
Copper
wire
|
1C
61/2.52
|
10.5
|
2.9
|
60.3
|
7810
|
0.0601
|
765
|
630
|
|
1x400
|
Copper
wire
|
1C
61/2.85
|
10.5
|
3.0
|
63.7
|
8990
|
0.0470
|
890
|
725
|
|
1x500
|
Copper
wire
|
1C
100/2.52
|
10.5
|
3.1
|
68.8
|
10500
|
0.0366
|
1030
|
825
|
|
1x630
|
Copper
wire
|
1C
126/2.52
|
10.5
|
3.3
|
72.6
|
12080
|
0.0283
|
1160
|
940
|
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has
a few of different.
---Fore the single core medium voltage power cable, according
to the practice, the common specification is 95～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
