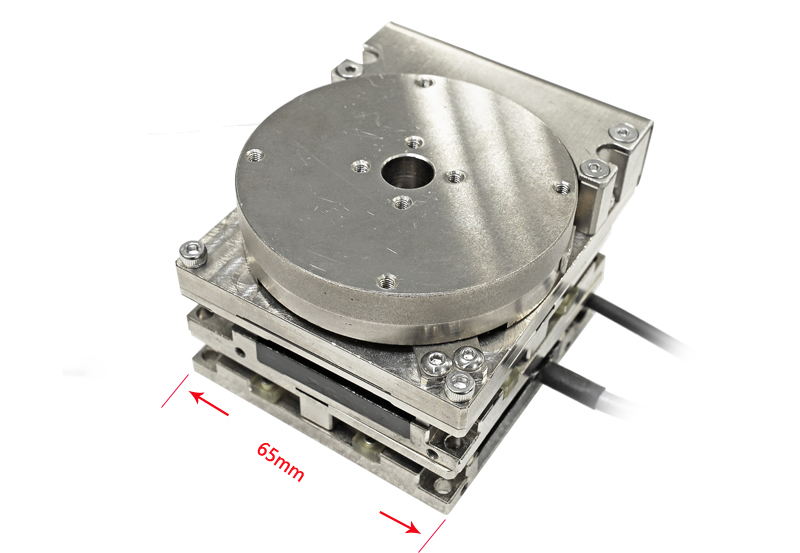

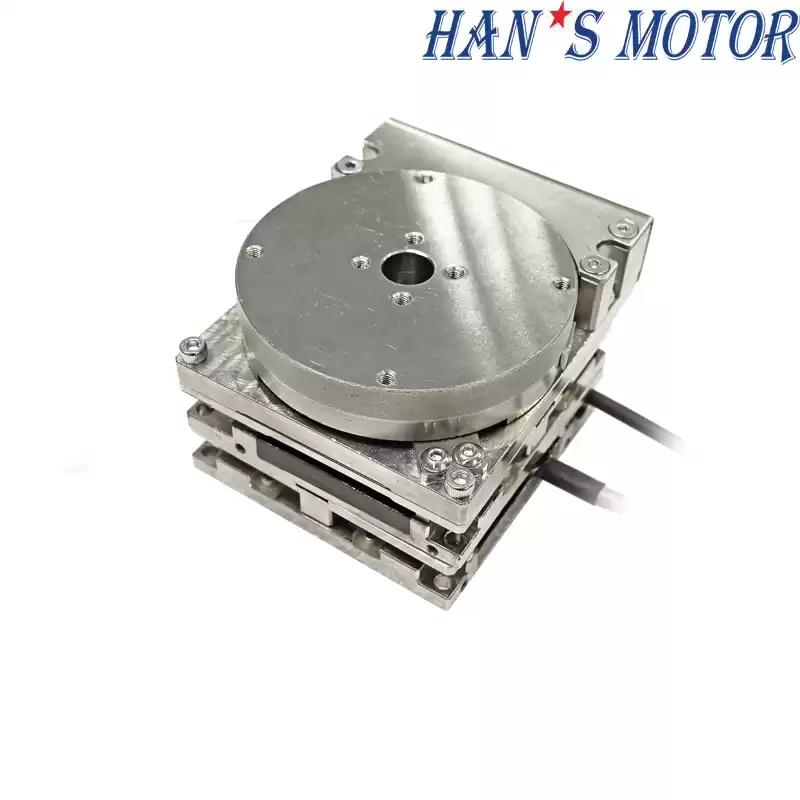

Product name：XYθ three aixs mininature high precision motion system micro linear motor tage
Characteristic:
Industry manufacturers choose linear stgae for the following
reasons:
1, high speed, high acceleration and deceleration, high precision, greatly
improve production efficiency and production quality;
2, the moving parts mainly adopt direct drive system, with high
speed and high precision;
3. the stage adopts complex multi-axis synchronous control with
strong mechanical coupling;
4, product reliability and stability, long time trouble-free
operation;
Stage Specifications
|
Model：
|
LMA65-10-10-T-XXX-A
|
G01
|
Grating feedback, resolution: 0.1μm
|
G05
|
Grating feedback, resolution: 0.5μm
|
X aixs (lower aixs）specifications
|
|
Units
|
Value
|
Continuous Force (Tmax）
|
N
|
3.5
|
Peak Force
|
N
|
24.5
|
Continuous Current (Tmax）
|
Arms
|
0.6
|
Peak Current (1S)
|
Arms
|
4.2
|
Max. Load
|
kg
|
2.4
|
Effective Stroke
|
mm
|
10
|
Resolution
|
μm
|
0.1
|
Max.Speed（1）
|
mm/s
|
270
|
Repeat accuracy
|
μm
|
±0.5
|
Y aixs (upper aixs）specifications
|
Continuous Force (Tmax）
|
N
|
3.5
|
Peak Force
|
N
|
24.5
|
Continuous Current (Tmax）
|
Arms
|
0.6
|
Peak Current (1S)
|
Arms
|
4.2
|
Max. Load
|
kg
|
2.4
|
Effective Stroke
|
mm
|
10
|
Resolution
|
μm
|
0.1
|
Max.Speed（1）
|
mm/s
|
270
|
Repeat accuracy
|
μm
|
±0.5
|
T aixs (rotation aixs）specifications
|
Continuous Force (25℃，±5%）
|
Nm
|
0.062
|
Peak Force
|
Nm
|
0.46
|
Continuous Current (Tmax）
|
Arms
|
0.6
|
Peak Current (1S)
|
Arms
|
4.5
|
Max. Load
|
kg
|
/
|
Max.Speed
|
Rpm
|
120
|
Repeat accuracy
|
arc sec
|
±2
|
|
Stage weight
|
kg
|
1
|
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH
|

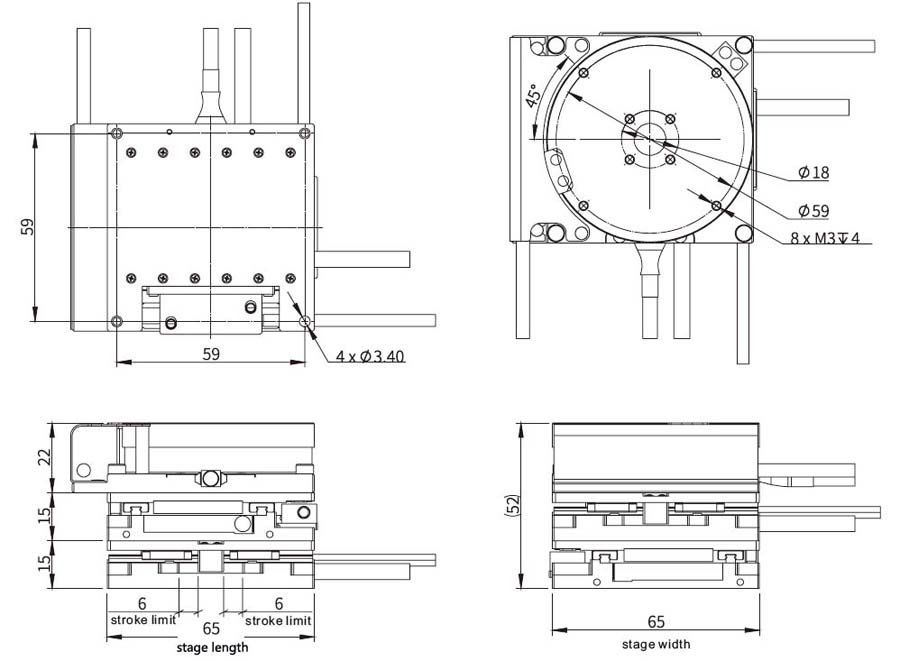

Installation dimensions
