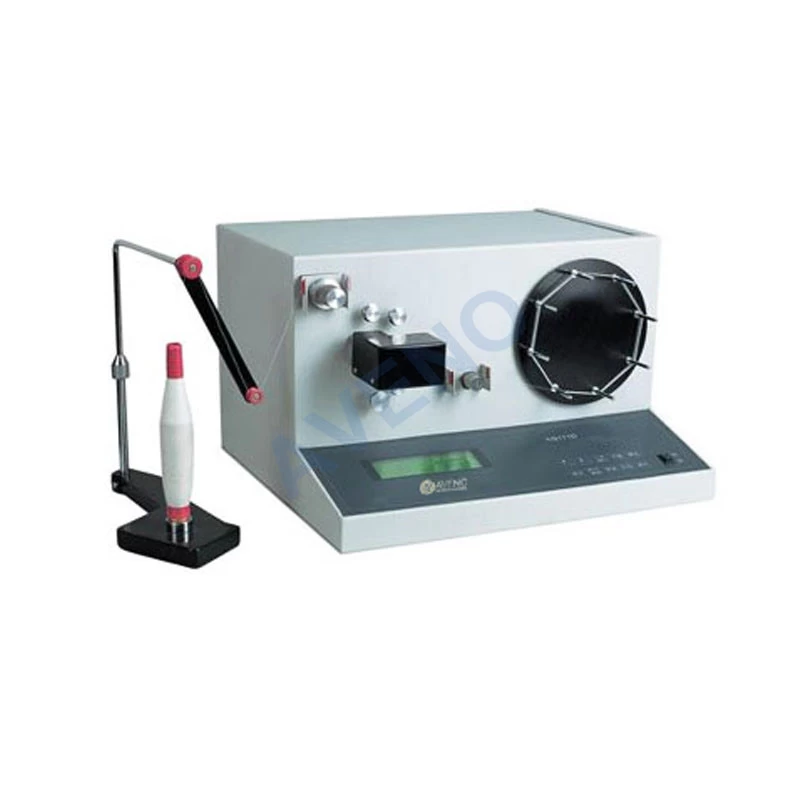

AY14-Yarn Hairiness Tester
Application Of Yarn Hairiness Tester
Yarn Hairiness Tester is a special electronic instrument for measuring the length, quantity and distribution of different kinds of tube yarn and pulp hairiness.
Key Specification Of Yarn Hairiness Tester
|
Model
|
AY14 Yarn Hairiness Tester
|
|
Detected hairiness
length
|
Test the hairiness number of 1, 2, 3,
4, 5, 6, 7, 8 mm hairiness length at the same time
|
|
Hairiness length
setting accuracy
|
≤0.1mm
|
|
Hairiness resolution
|
≤0.5mm
|
|
Test speed
|
30m/min±5%
|
|
Yarn test fragment
length
|
1~99m, can be set
|
|
Data output method
|
LCD screen display and EPSON LQ series
printer print record
|
|
Statistics
|
1. Average
hairiness index,
2. The
overall uneven rate,
3. Mean
square deviation,
4. Yarn
tube unevenness,
5. Histogram.
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimensions
|
500*450*310mm(L*W*H)
|
