YX18-728 corrugated panel machine

Easy to operate and running stable.

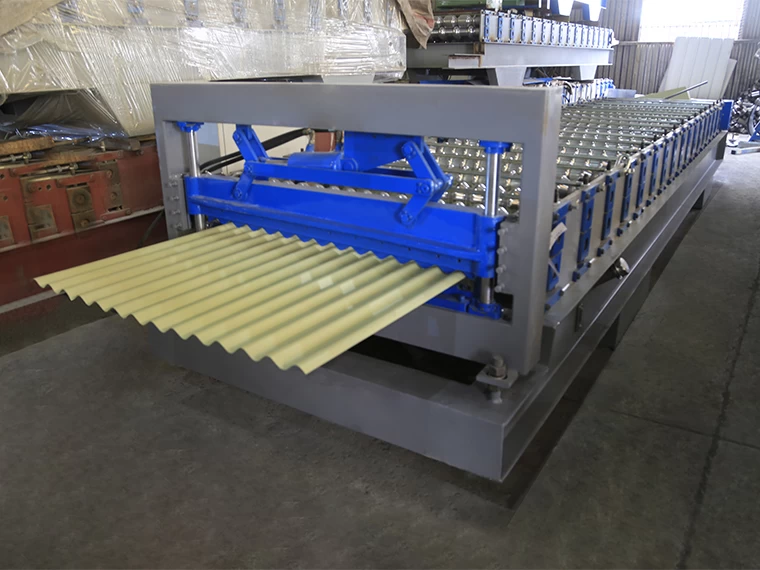

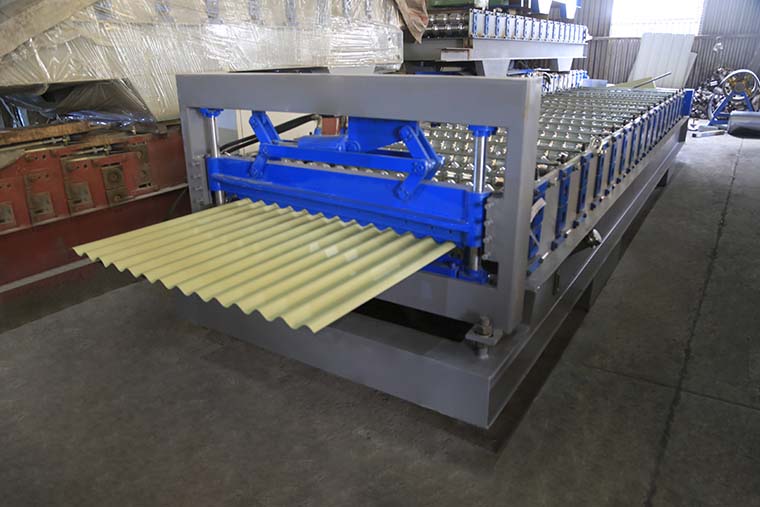

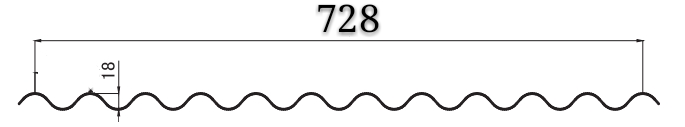

 YX18-728 Corrugated Panel Roll Forming Machine



corrugated panel machine



1.Main features of YX18-728 Corrugated panel roll forming machine



    The advantages of YX18-728 Corrugated roof panel forming machine are as follows:

    1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.

    2.Easy operation, low maintenance cost



2.Detailed Images of YX18-728 Corrugated panel forming machine



    Machine Parts

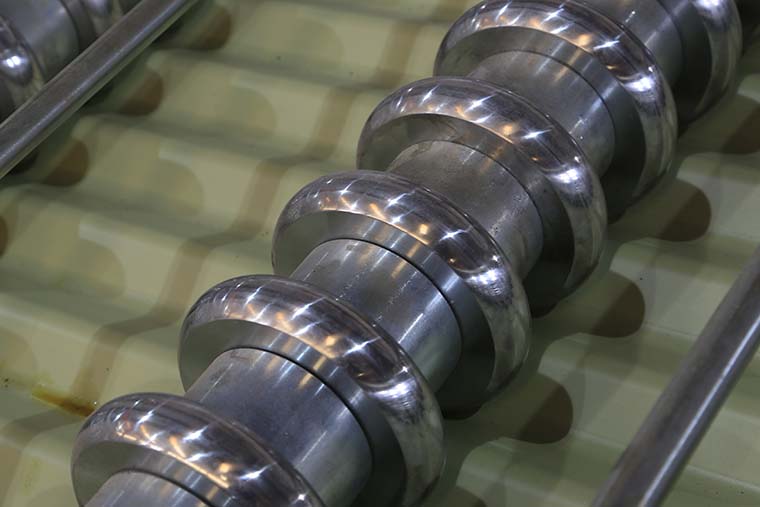

        1)   YX18-728 Corrugated roof panel forming machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        With feeding material guide,Body framemade from 300# H type steel by welding

 corrugated panel machine

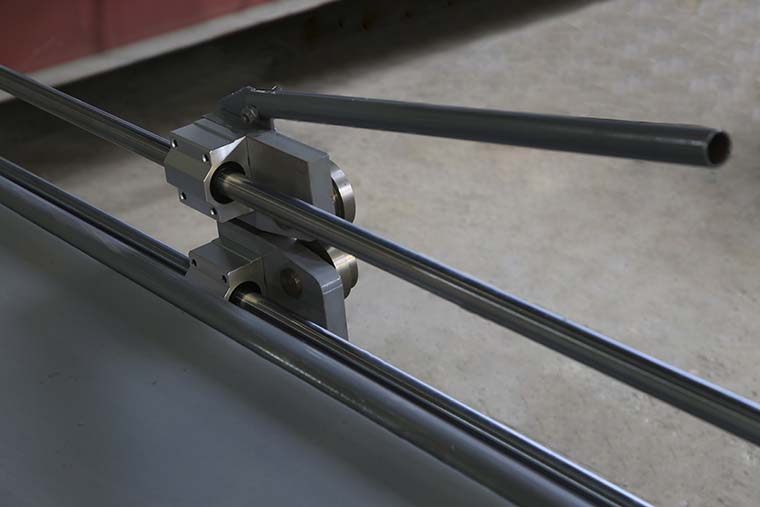

        2) YX18-728 Corrugated roof panel machine pre-cutter

        Avoid wasting material,easy to operate.



corrugated panel machine

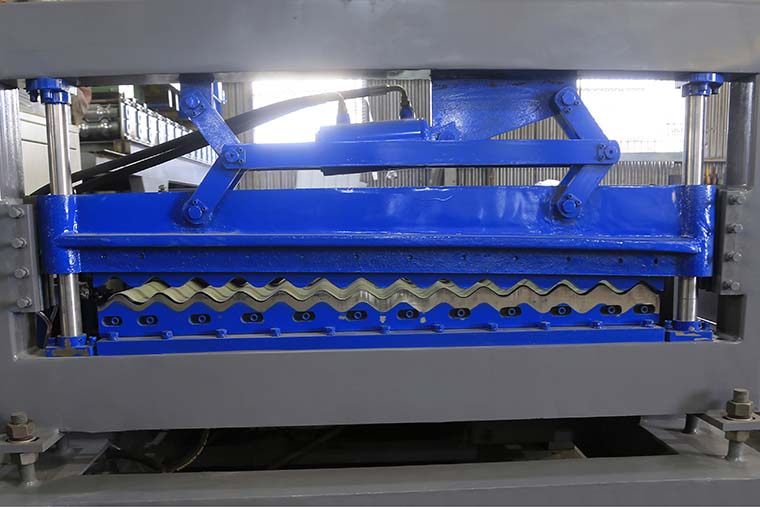

       3) YX18-728 Corrugated roof panel machine post cutter

        Cutter frame made from high quality 20mm steel plate by welding

        Post cut, stop to cutting, use the same hydraulic motor drive

        Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa

        Cutting tool material: Cr12, Heat treatment



corrugated panel machine



        4) YX18-728 Corrugated roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1000mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton





        With 6  tons hydraulic decoiler for option



       5) YX18-728 Corrugated roof panel machine exit rack

        Un-powered,three units



Other detailes of YX18-728 Corrugated roof panel roll forming machine



Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English



After-sale service of YX18-728 Corrugated machine



1. The warranty of purlin roll forming machine  YX18-728 Corrugated roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
