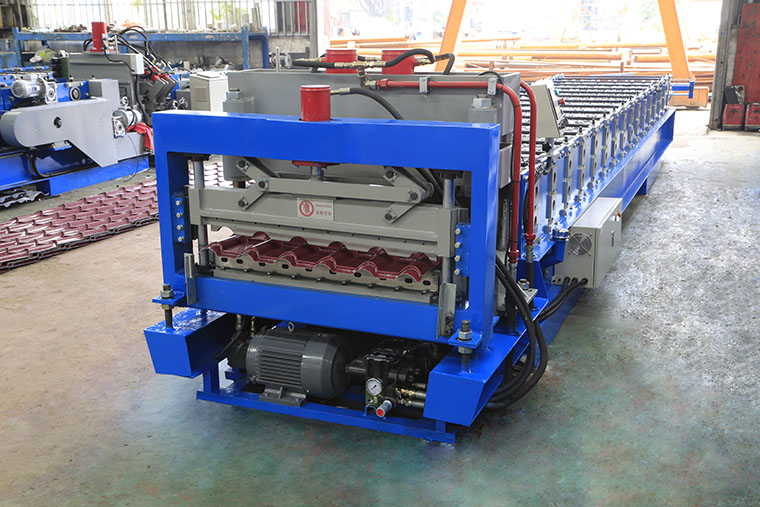

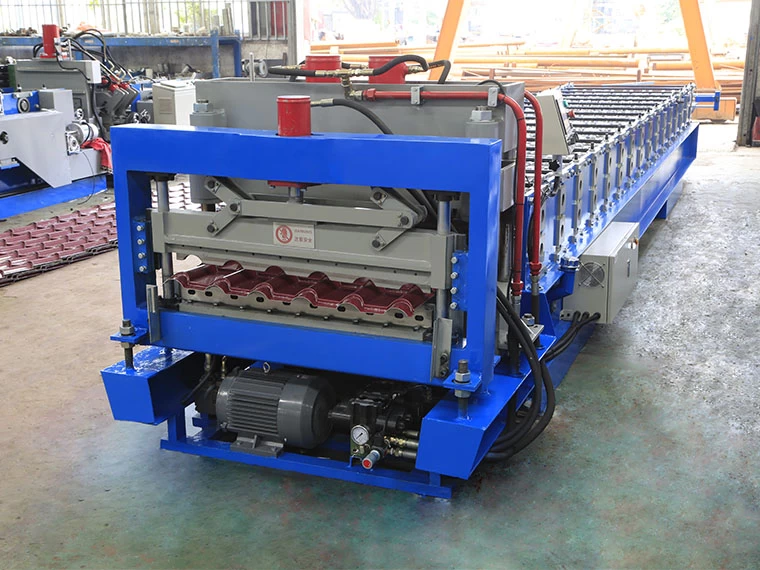

YX25-162-810 Glazed Tile Roll Forming Machine

Beautiful, classical appearance and grace taste.





      YX25-810 Glazed Tile Roll Forming Machine





Glazed Tile Roll Forming Machine




1.Main features of Glazed Tile roll forming machine




    The advantages of Glazed Tile machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material , no waste.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of YX25-810 Glazed Tile forming machine




    Machine Parts

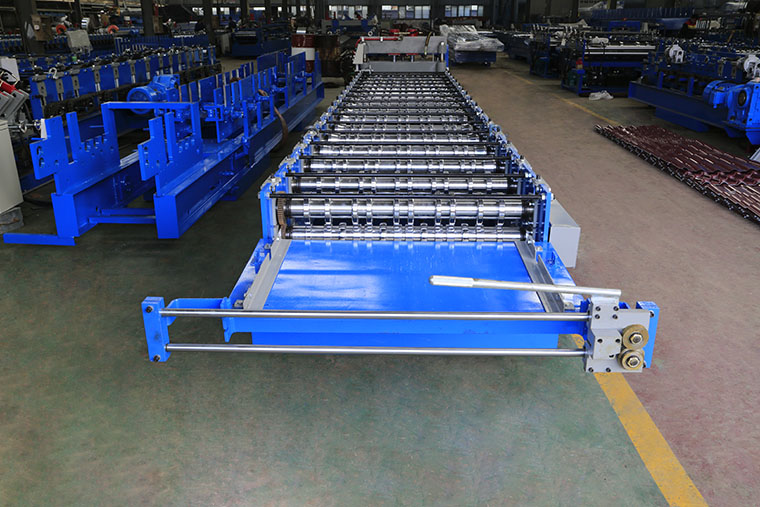

1)    YX25-810 Glazed Tile machine pre-cutter

        Brand: BMS    Original: China

        With feeding material guide.



 Glazed Tile Roll Forming Machine

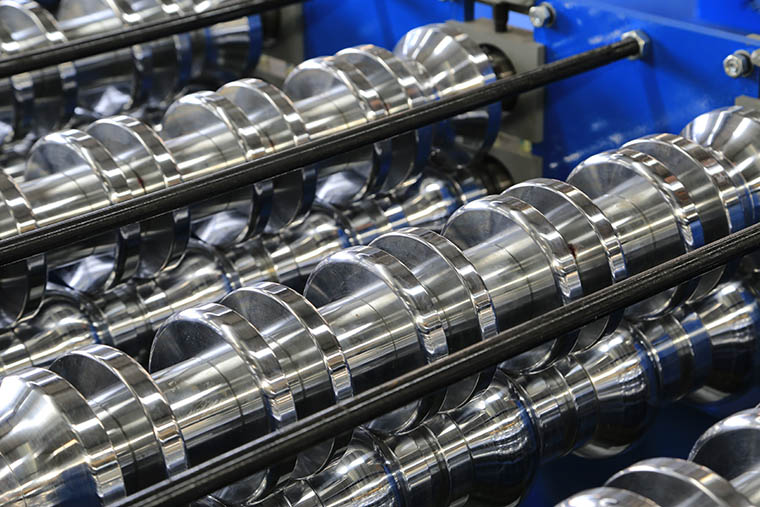

2)    YX25-810 Glazed Tile machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body framemade from 350# H type steel by welding



Glazed Tile Roll Forming Machine

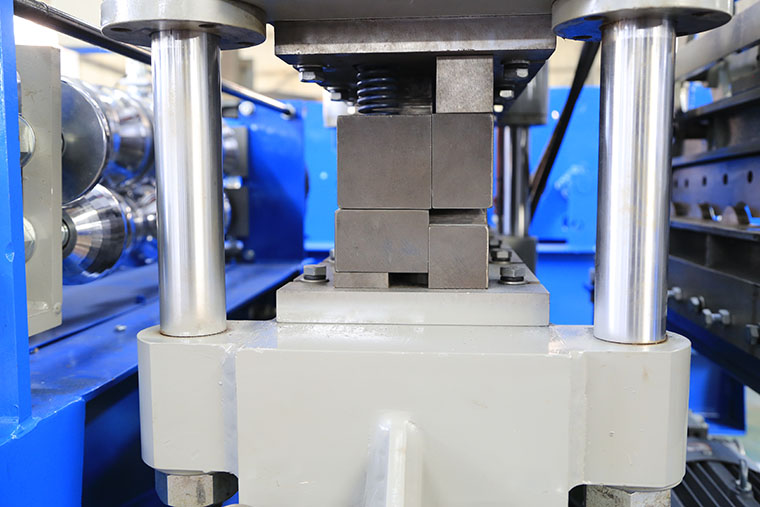

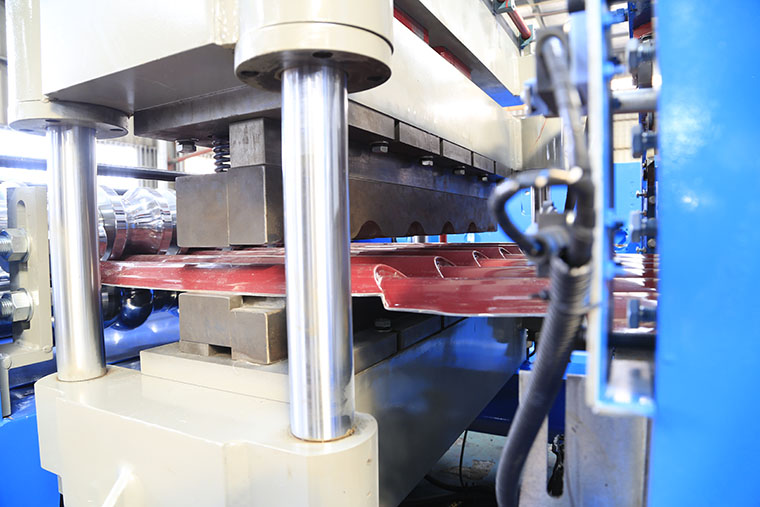

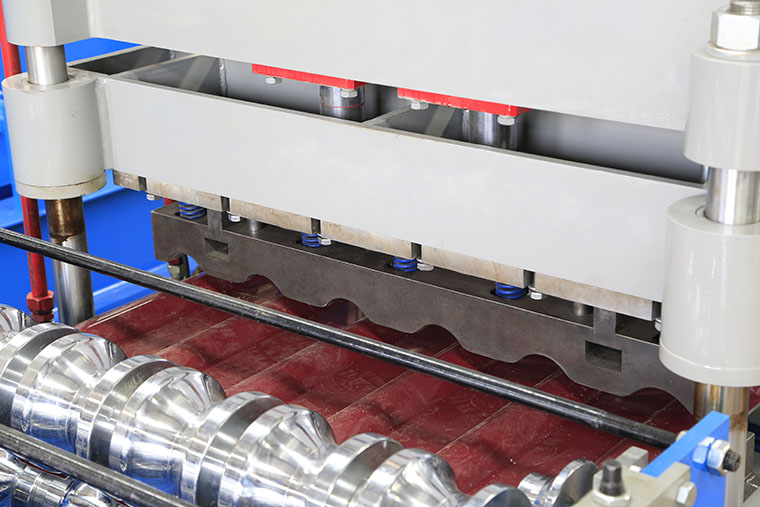

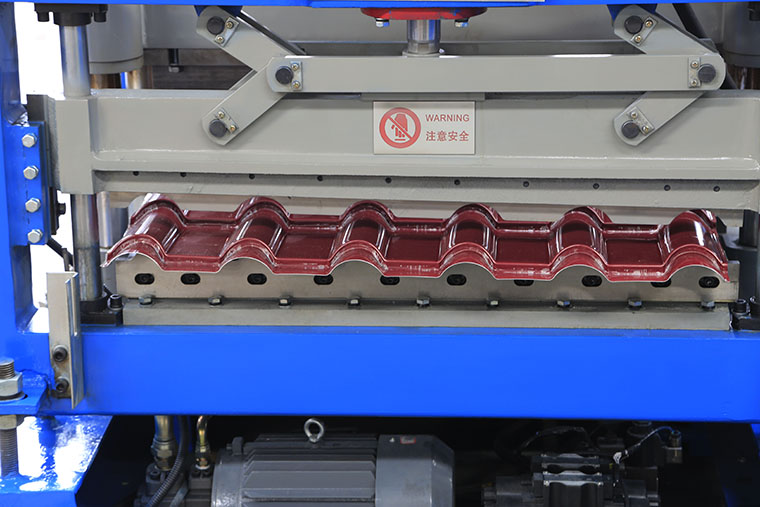

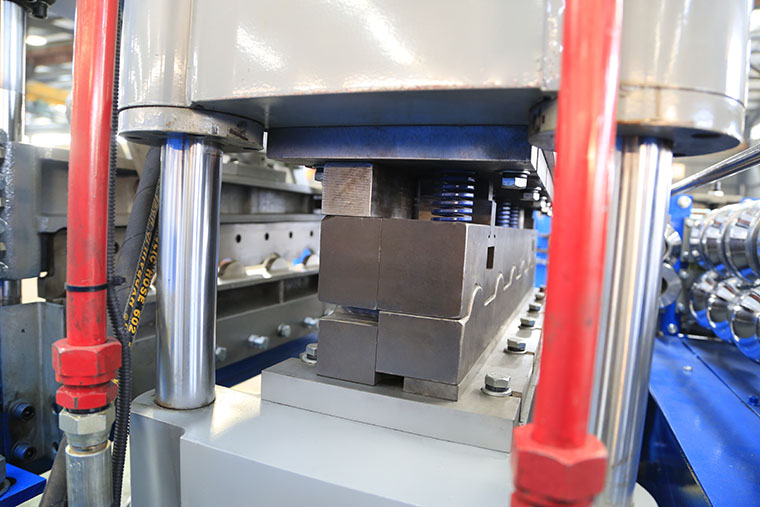

        3)  YX25-810 Glazed Tile machine punching mould



Glazed Tile Roll Forming Machine



Glazed Tile Roll Forming Machine



Glazed Tile Roll Forming Machine

Glazed Tile Roll Forming Machine


Glazed Tile Roll Forming Machine

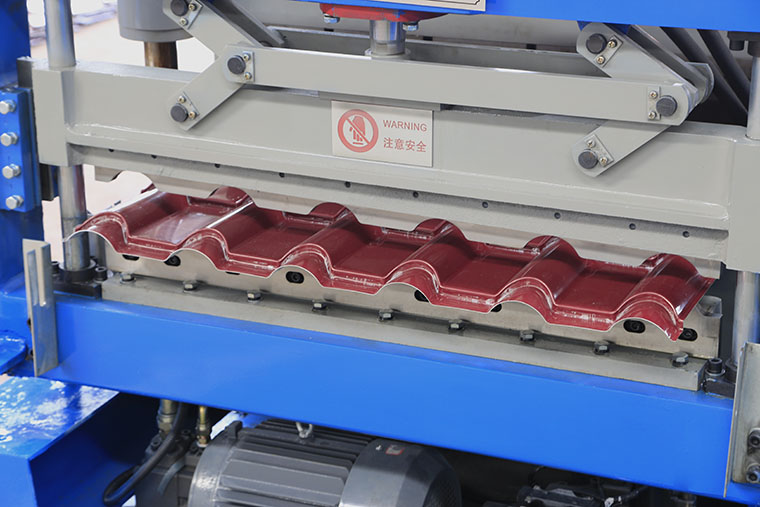

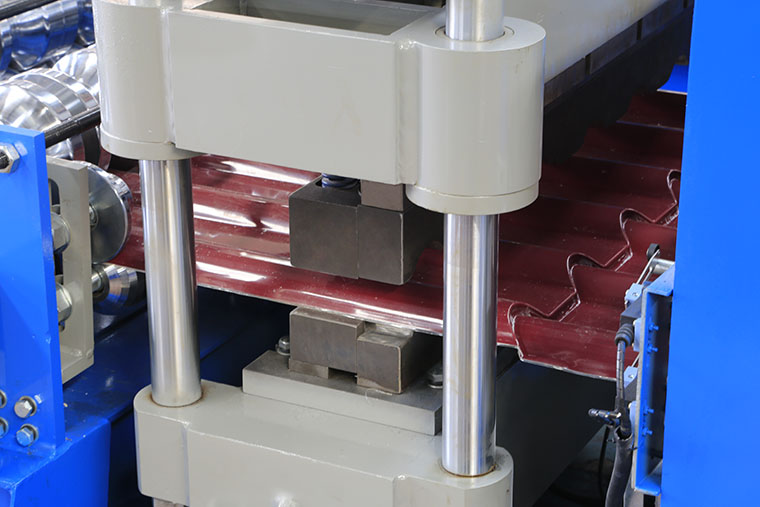

        4)    YX25-810 Glazed Tile machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Glazed Tile Roll Forming Machine


Glazed Tile Roll Forming Machine

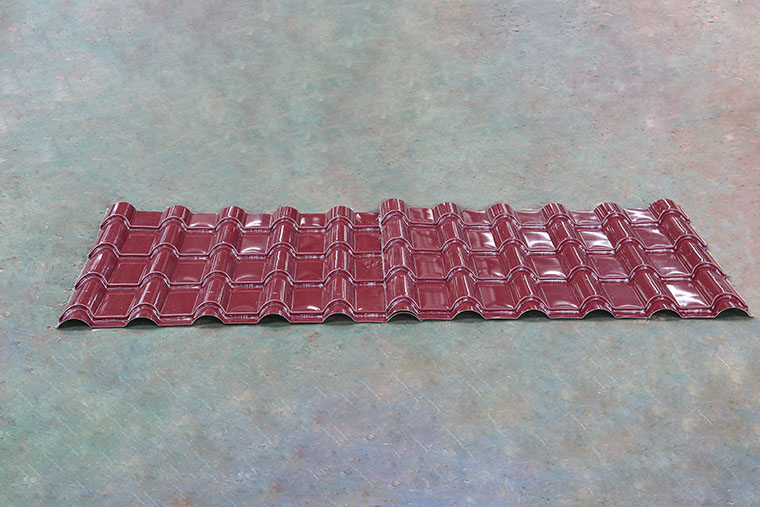

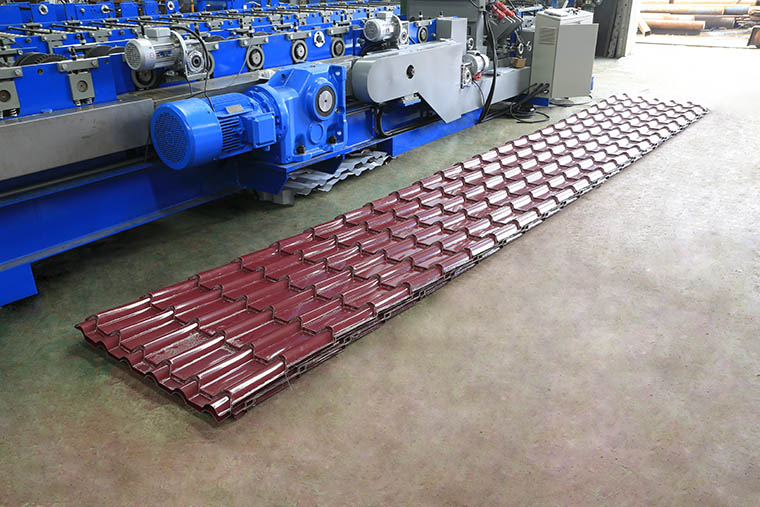

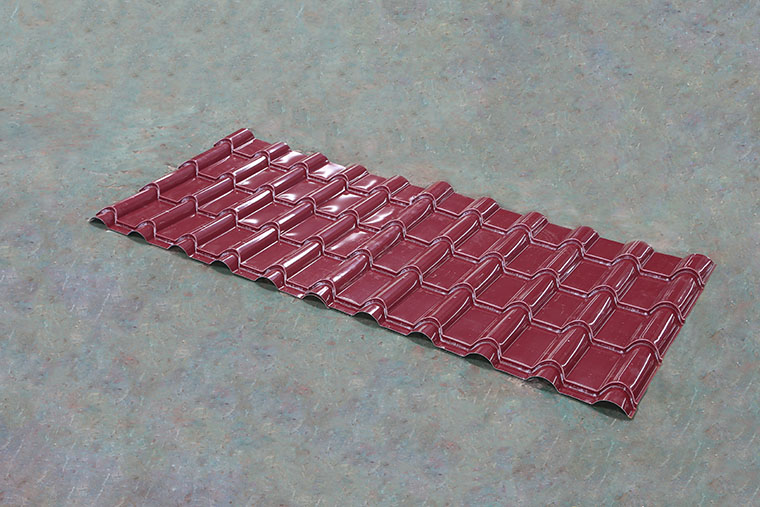

        5)  YX25-810 Glazed Tile machine product show


Glazed Tile Roll Forming Machine



Glazed Tile Roll Forming Machine


Glazed Tile Roll Forming Machine


        5)    YX25-810 Glazed Tile machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





        With 6 tons hydraulic decoiler for option

Glazed Tile Roll Forming Machine

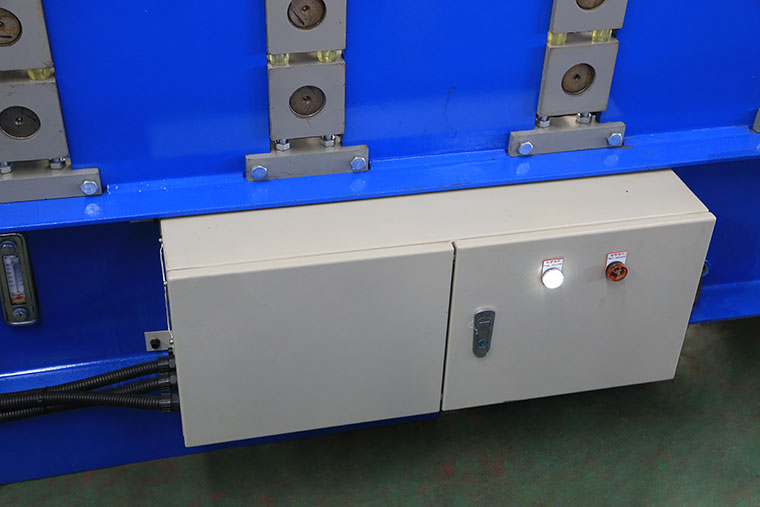

6)    YX25-810 Glazed Tile machine control cabinet



Glazed Tile Roll Forming Machine





Other detailes of YX25-810 Glazed Tile roll forming machine



Suitable for material with thickness 0.5-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 14 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.5-8m/min


 Glazed Tile Roll Forming Machine


PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Glazed Tile roll forming machine



1. The warranty of purlin Glazed Tile roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
