YX50-1005 Floor Deck Roll Formiing Machine

Low cost, light weight but high strength, Short building period, and re-cycle use

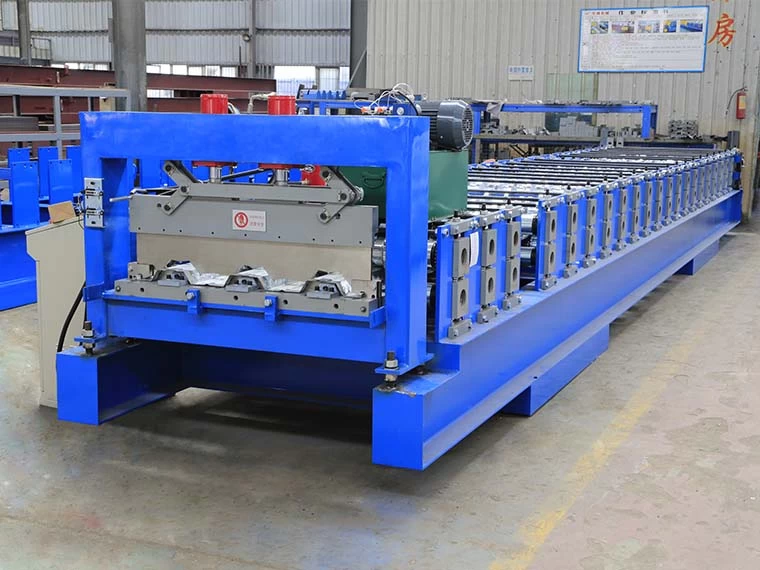

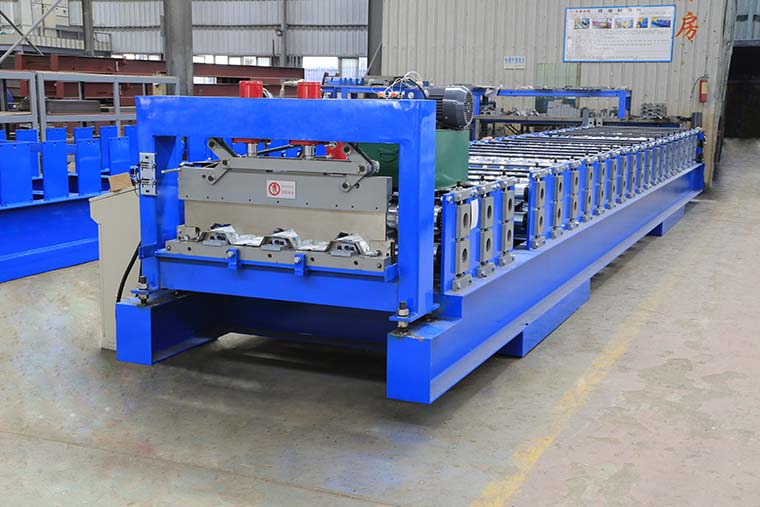

       YX50-1005 Floor Decking Roll Forming Machine





Floor Decking Roll Forming Machine




1.Main features of floor decking roll forming machine




    The advantages of floor decking machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material , no waste.

    3.Easy operation, low maintenance cost




2.Detailed Images of YX50-1005 floor decking forming machine




    Machine Parts

        1) YX50-1005 floor decking machine logo punching device

        Brand: BMS    Original: China



      Floor Decking Roll Forming Machine

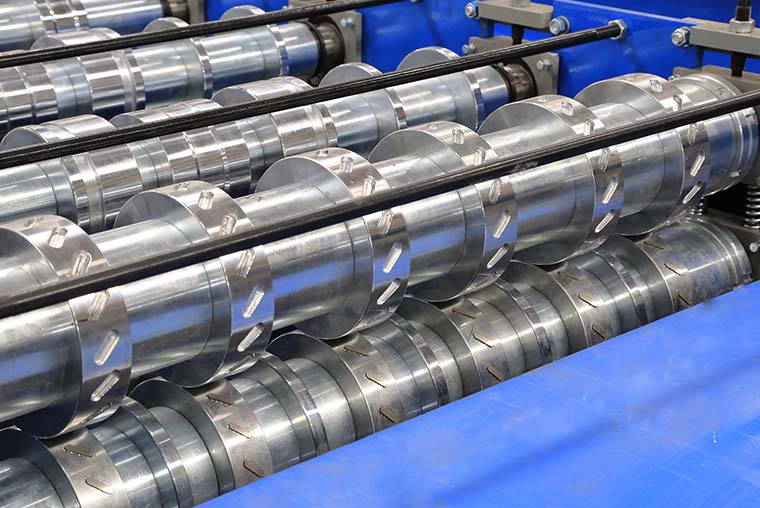

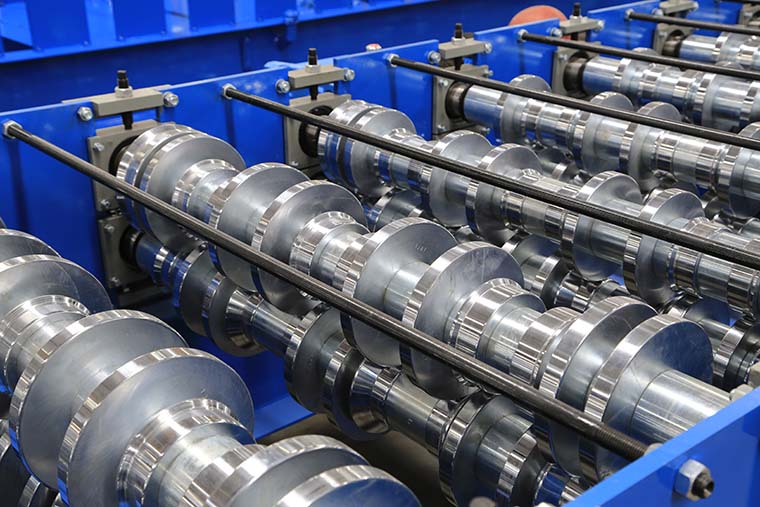

        2) YX50-1005 floor decking machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body framemade from 400# H type steel by welding



Floor Decking Roll Forming Machine

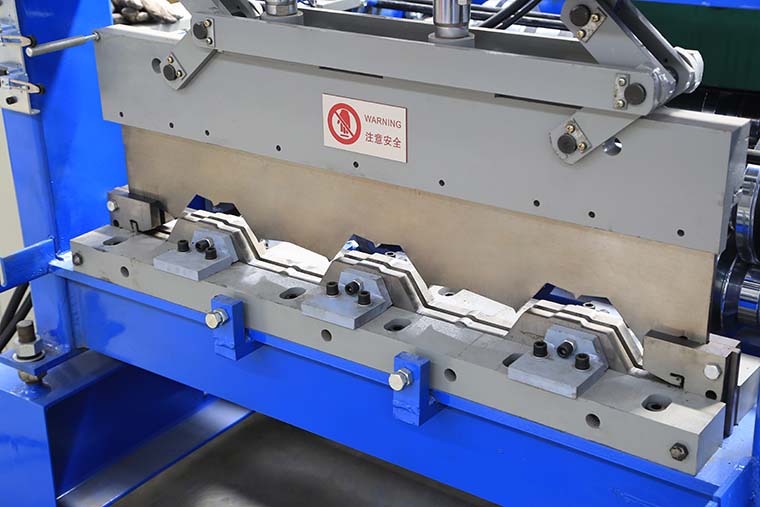

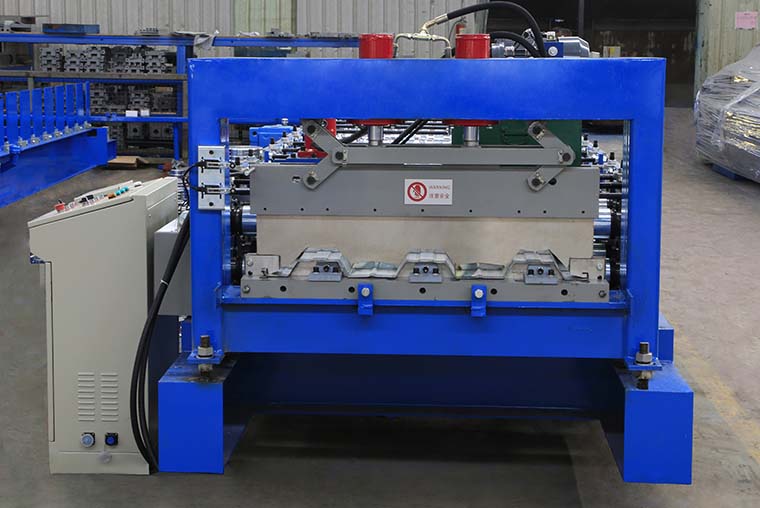

       3) YX50-1005 floor decking machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

        hydraulic motor:18.5KW, Hydraulic pressure range: 0-16Mpa


Floor Decking Roll Forming Machine



Floor Decking Roll Forming Machine

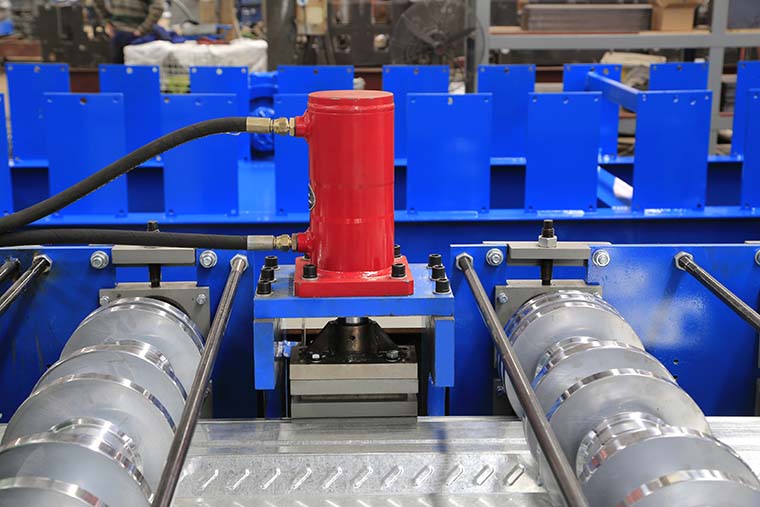

        4) YX50-1005 floor decking machine embossing



Floor Decking Roll Forming Machine

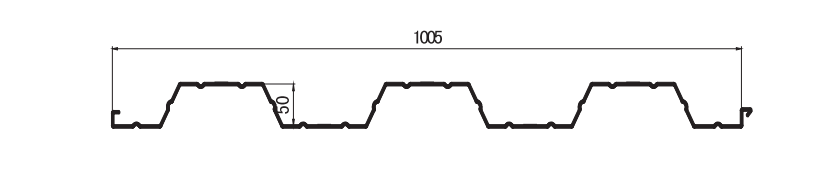

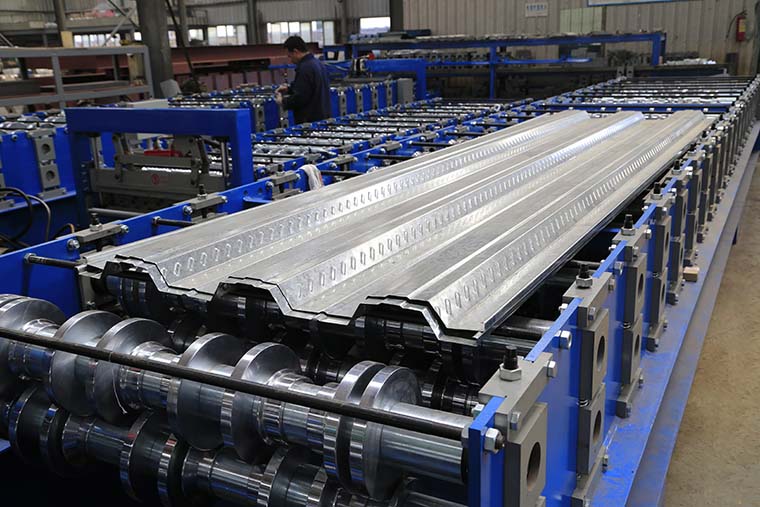

        5) YX50-1005 floor decking machine product show


Floor Decking Roll Forming Machine


        6) YX50-1005 floor decking machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





        With 6 tons hydraulic decoiler for option

Floor Decking Roll Forming Machine


        7) YX50-1005 floor decking machine exit rack

        Un-powered,one unit



Other detailes of YX50-1005 floor deck roll forming machine



Suitable for material with thickness 0.8-1.5mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 20 steps to form.

Main motor=15KW , Frequency speed control. Forming speed approx.12-15 m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of floor decking roll forming machine



1. The warranty of purlin floor decking roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
