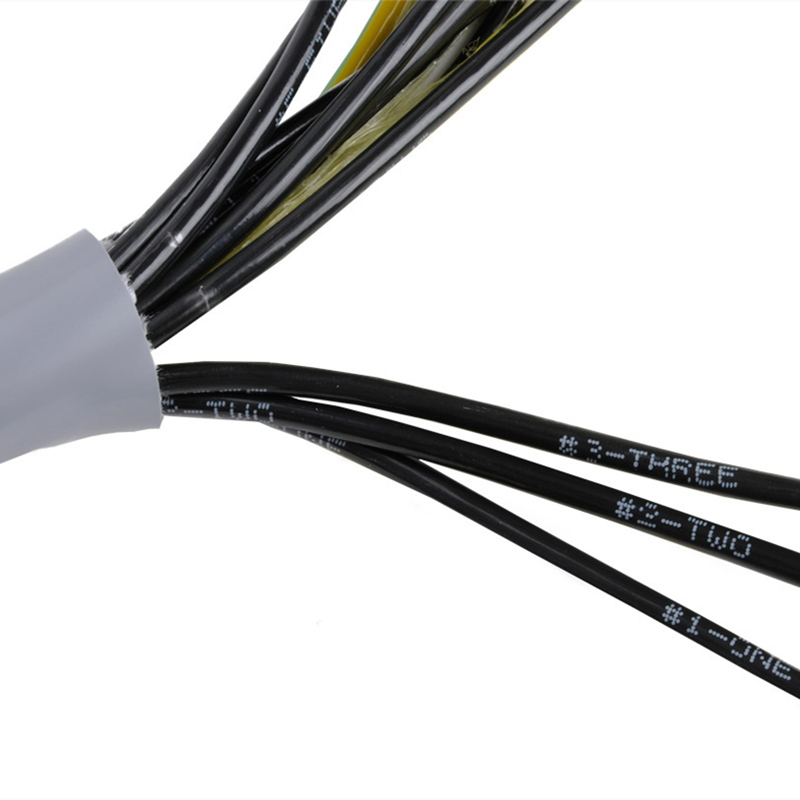

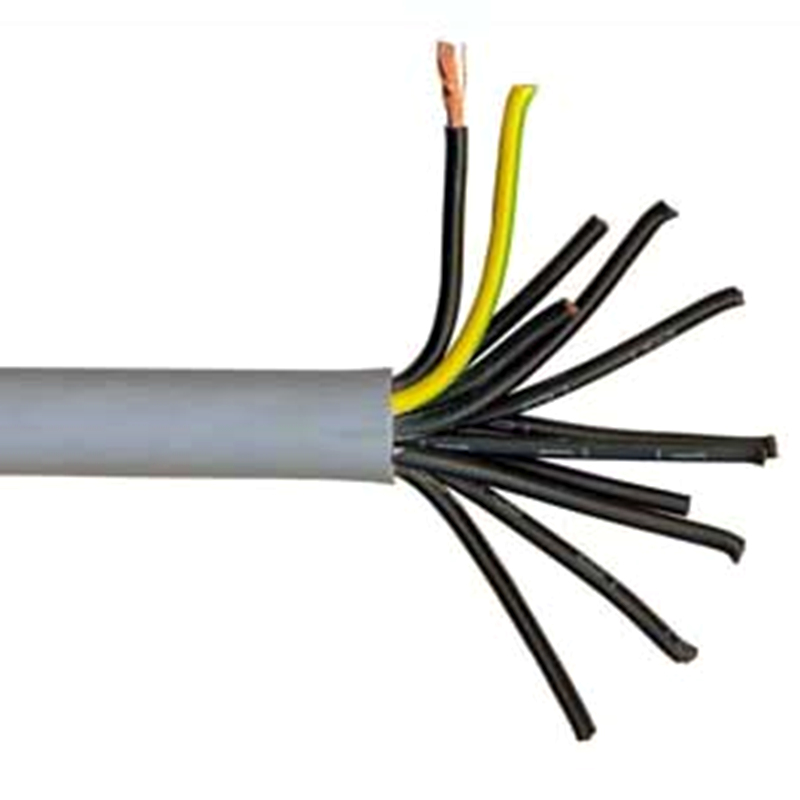

YY PVC insulated YSLY unshield KVV control cable

PRODUTS KEYWORDS

YY control cable, KVV control cable, YSLY control cable, KVV un-shielded control cable, KVV un-screened control cable, JZ-500 control cable.

PRODUCTS APPLICATION

 Hante brand YY PVC insulated YSLY unshield KVV control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire; solid or strand.

---Insulation Material

    PVC (Polyvinyl Chloride)

---Insulation Color

    Black with numbered cores & green/yellow earth wire.

---Inner Sheath Material

    PVC (Polyvinyl Chloride)

---Out Sheath Material

    PVC (Polyvinyl Chloride)

---Out Sheath Color

    Black, white, grey, transparent, or other colours.

---Core Number

    2 cores to 80 cores, 2C ～80C.

---Conductor Cross-section

    0.5～70 mm²

---Voltage Rate (U₀/U)

    300/500V, 450/750V.

---Working Temperature

    -15℃～+70℃.

---Minimum Bending Radius

    Fixed: 6 x overall diameter

    Flexed: 12.5 x overall diameter

---Production Standard

   GB/T 9330, IEC 60227, VDE 0250, VDE 0207.

---Products Packing

   Roll, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

    ---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

    ---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

    ---Hante Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

    industry.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS


RAW MATERIAL



PRODUCTION PROCESS

INSPECTION PROCESS

FAQ
1. Are you the manufacturer or trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
