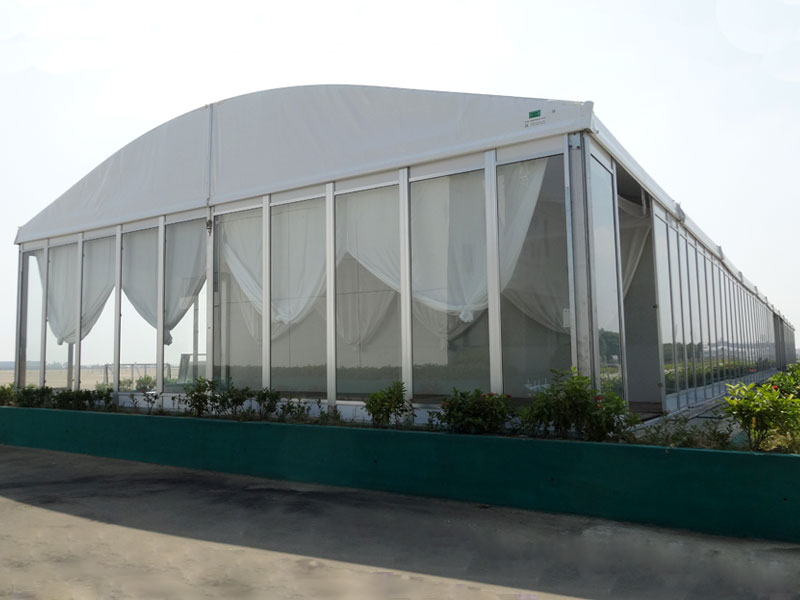

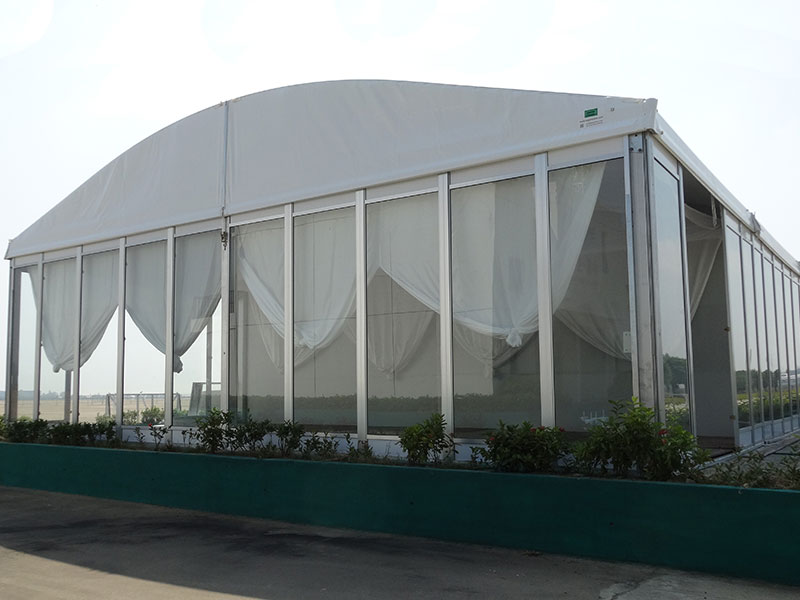

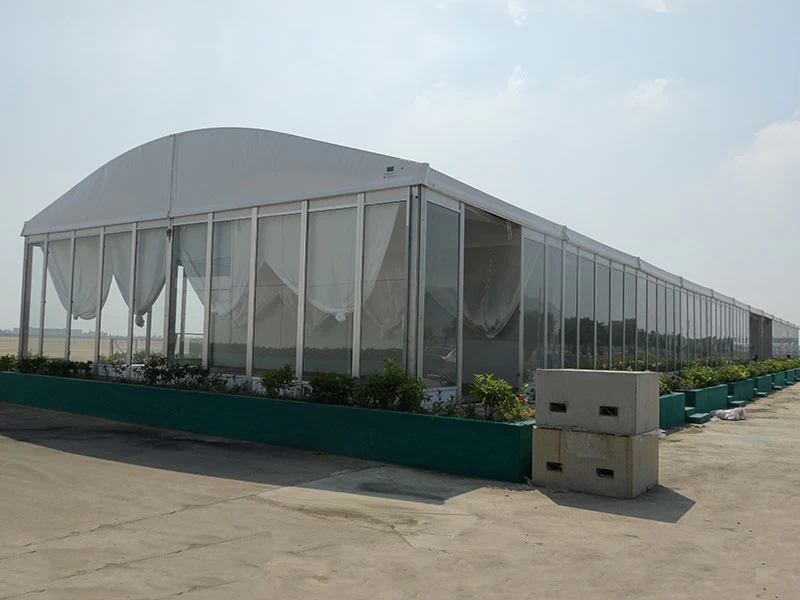

Zhuhai air show tent for sale
The structures of 40m air show tent is constructed of high quality aluminum, 100% interior space can be used, no poles inside.
It passed the safety calculation standards of Australia and United States. Its wind load up to 100-120 km/h. Not only for safety, our tent also offer a great presence and elegance appearance.
Meanwhile, PVC cover of our structures are provided by good manufacturers in China. It waterproof, uv-resistant and flame retardant etc. which gives an excellent stability and a natural tone for appearance of tent.
All above issues are making our tent more unique in the market.
Air Show Tents's Available size:
● Clear span available between 10-40m.
● Modular structure, the length is adjustable by 5m unit.
Air Show Tents's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.

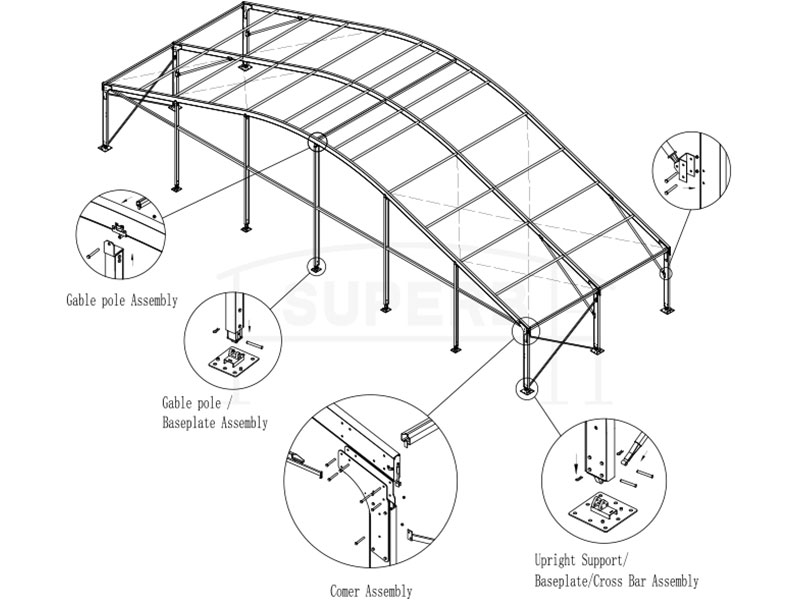

Air Show Tents's Frame:
● No maintenance requirement.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
The Specification of Zhuhai Airshow Tents For Sale:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS15/4-5AT
|
15
|
3.9
|
5.6
|
5
|
18°
|
10
|
100
|
|
LS20/4-5AT
|
20
|
3.9
|
6.3
|
5
|
18°
|
10
|
100
|
|
LS25/4-5AT
|
25
|
3.9
|
7.2
|
5
|
18°
|
10
|
100
|
|
LS30/4-5AT
|
30
|
3.9
|
7.8
|
5
|
18°
|
10
|
100
|
|
Main frame Profile
|
256x120x5mm（4-Channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum
6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile,
flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
