Product Feature
◆ 3 times peak power, excellent loading capability

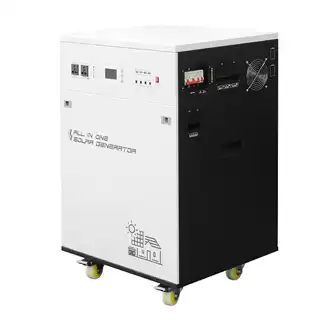

◇ Solar power generator combine inverter/solar controller/battery all in one
◆ Multiple output: 1*AC output socket, 4*DC 12V, 2*USB
◇ Working mode AC prior/ECO mode/Solar prior selectable
◆ AC charging current 0-30A selectable
◇ LVD/HVD Charging voltage adjustable, suitable for kinds of battery
◆ Adding fault code to monitor real-time work situations
◇ Continuous stable pure sine wave output with inbuilt AVR stabilizer
◆ Digital LCD and LED for visualization of operation status of the equipment
◇ Inbuilt automatic AC charger and AC mains switcher, switch time ≤ 4ms
Product Details

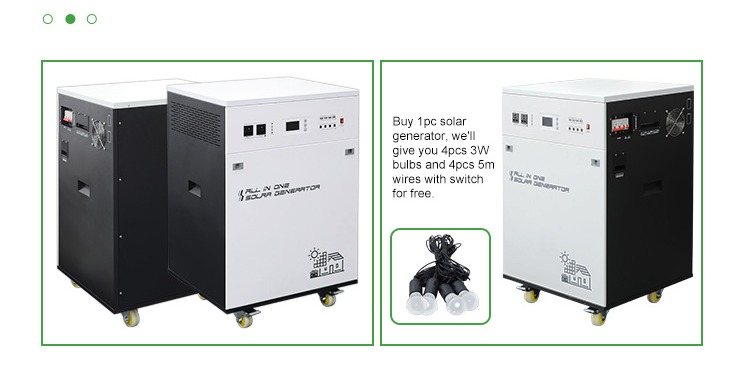

Appearance
Simple style,high-end design

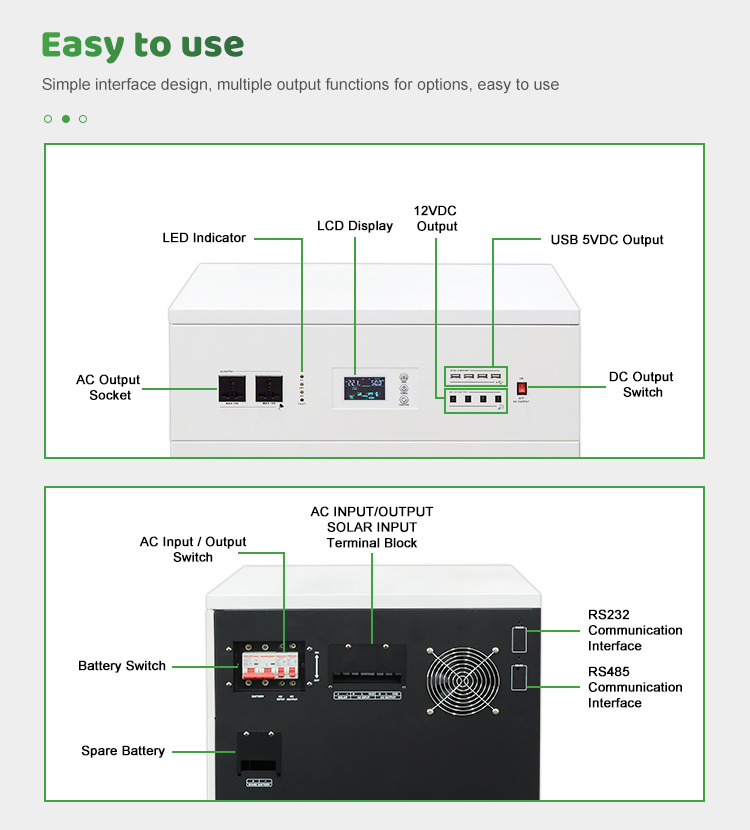

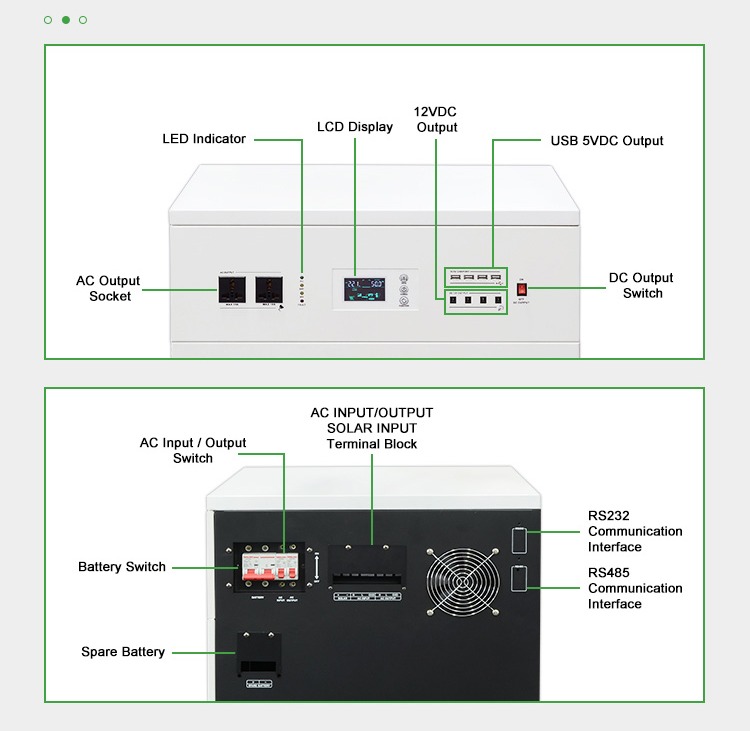

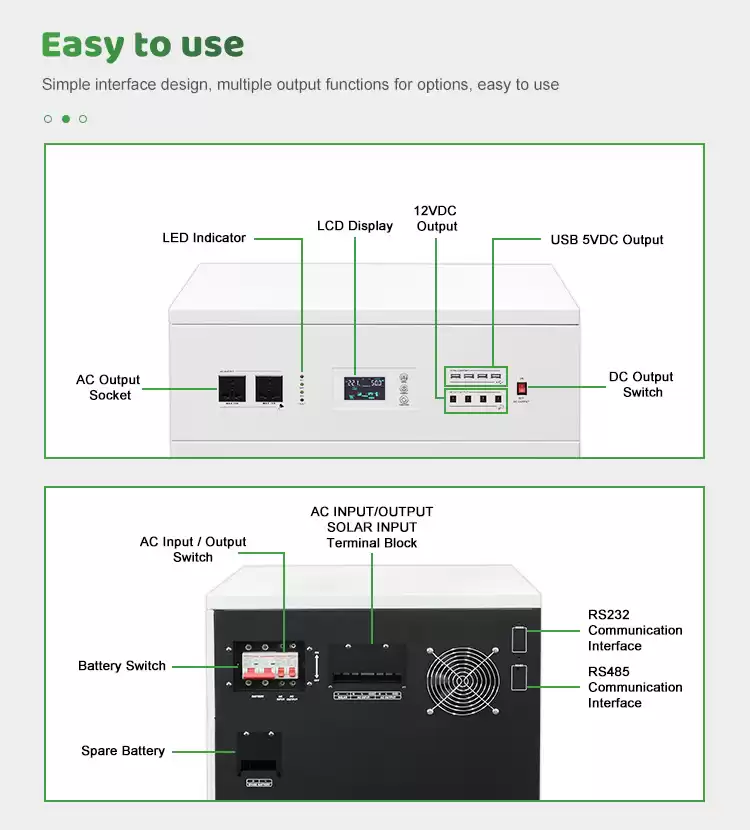

Easy to use
Simple interface design, multiple output functions for options, easy to use

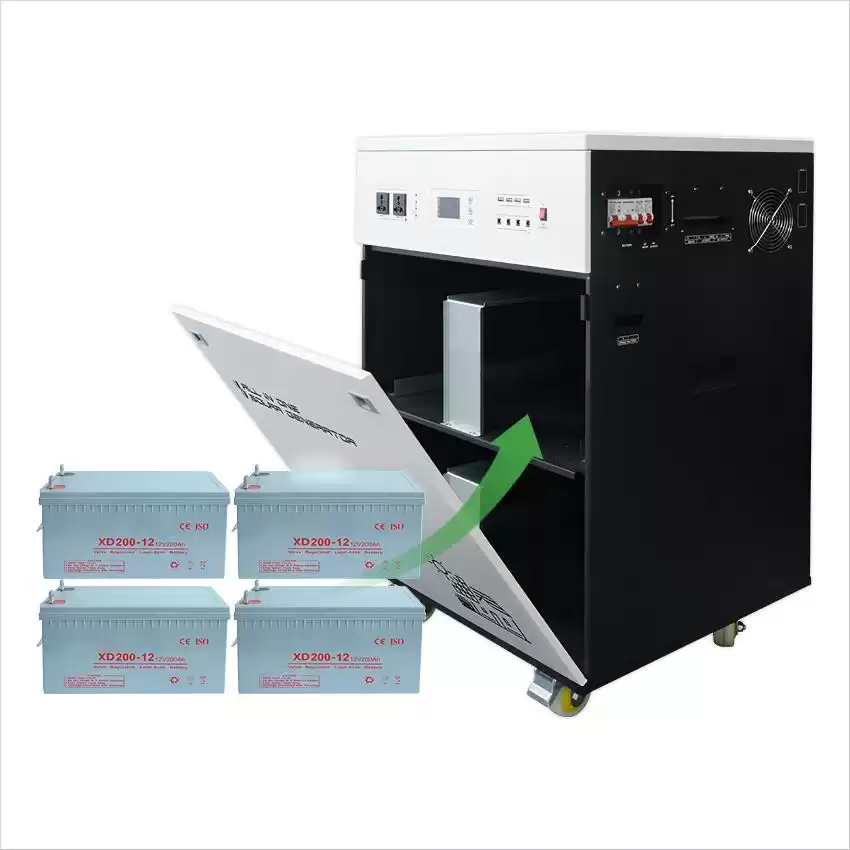

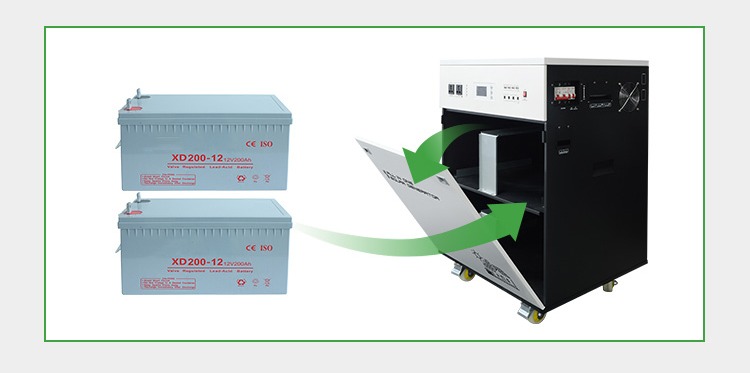

Easy Maintenance
The cover is removable for easy maintenance and battery replacement

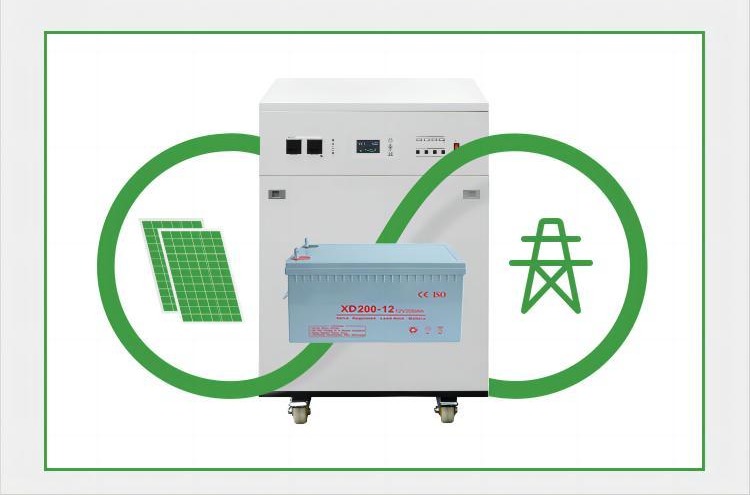

Battery Storage Solar Solution
Inbuilt maintenance-free battery for solar energy storage solution

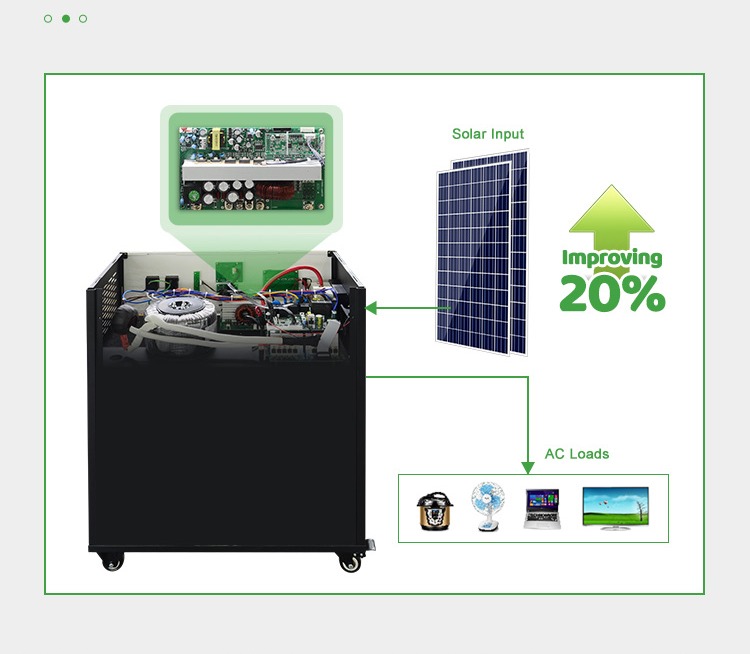

MPPT Controller
MPPT solar controller greatly improves the charging efficiency more than 20%
Product Parameters
| Specification |
| Model : ZL-ESS |
152P8/W8 |
202P8/W8 |
302P8/W8 |
402P/W |
502P/W |
602P/W |
702P/W |
| Capacity |
Rated power |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
7000W |
| Peak power(20ms) |
4500VA |
6000VA |
9000VA |
12KVA |
15KVA |
18KVA |
21KVA |
| Input |
Standard battery voltage |
48VDC |
| AC input voltage range |
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/
180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC) |
| AC input frequency range |
45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) |
| Output |
Conversion efficiency |
≥85%(Battery mode); >99%(AC mode) |
| AC Output voltage |
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode);
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) |
| AC Output frequency |
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) |
| AC Output waveform |
Pure Sine Wave |
| THD |
≤3%(Linear load) |
| DC Output voltage |
4*DC 12V; 4*USB(5V) |
| AC charger |
AC charging current |
0~30A(Depends on model) |
| AC charging method |
Three-stage(constant current, constant voltage, floating charge) |
| solar charger (Optional) |
Charging mode |
PWM/MPPT |
Max PV input voltage(Voc)
(At the lowest temperature) |
PWM: 100V; MPPT: 150V |
| PV input voltage range |
PWM: 60V-88V; MPPT: 60V-120V |
| Charge & discharge current |
60A |
| Max PV input power |
3360W |
| Inbuilt battery |
Capacity |
4*200AH |
| Battery size(L*W*H)/pcs |
522*240*218(244) |
| Other |
Transfer time |
≤4ms |
| Protection |
with over-voltage, low-voltage, overload, short circuit, high tempreature protections |
| Display |
LCD & LED |
| Cooling way |
Cooling fan in intelligent control |

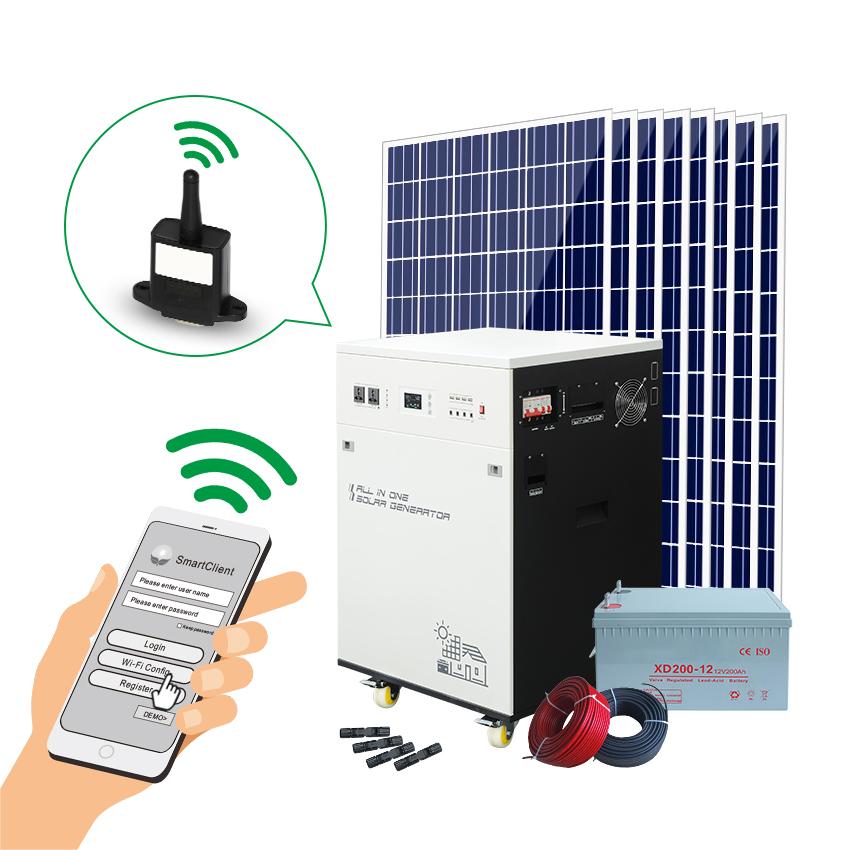

| Communication(Optional) |
RS485/APP(WIFI monitoring or GPRS monitoring) |
Working mode
(selectable) |
d1 |
AC priority mode |
| d2 |
ECO mode |
| d3 |
Solar priority mode |
Work
environment |
Operating temperature |
-10℃~40℃ |
| Storage temperature |
-15℃~60℃ |
| Elevation |
2000m(More than derating) |
| Humidity |
0%~95% ,No condensation |
| Physical |
Dimension L x W x H(mm) |
610*535*960 |
| Net weight(kg)(without battery) |
53 |
55 |
59 |
61 |
63 |
64 |
66 |
| Packing |
Dimension L x W x H(mm) |
688*612*1093 |
| Gross weight(kg)(without battery) |
68 |
70 |
74 |
76 |
78 |
79 |
81 |
| Quantity/CTN |
1pcs per wooden case |
*ZL-ESS series solar inverter power is from 300w~7000w, Please contact us to get more information.

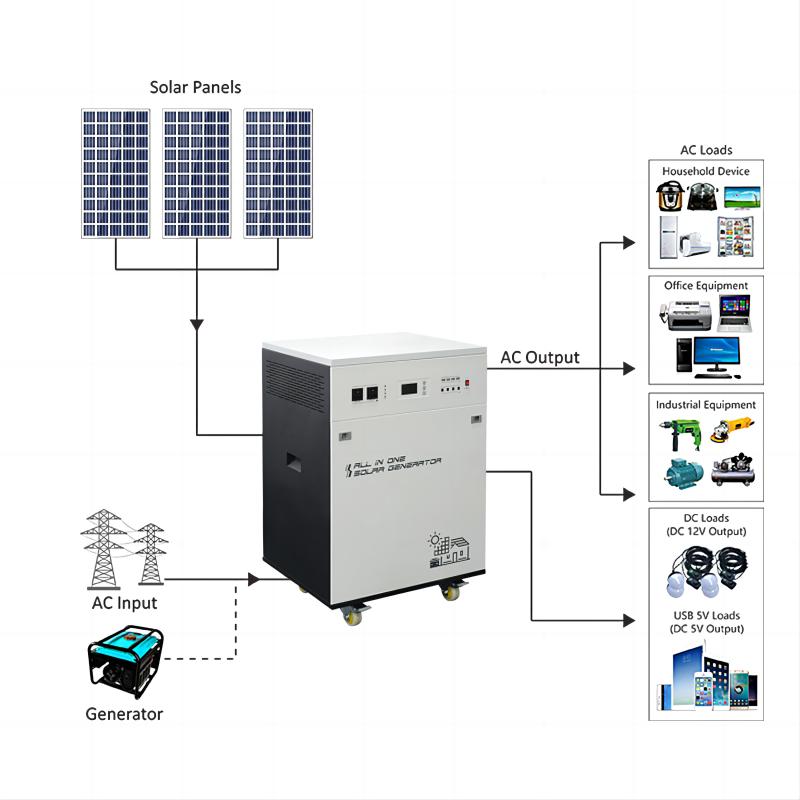

Application Diagram
Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications
-
-
-
-
Household New Energy Vehicles
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/Fedex/TNT service.Big order to be shipped by sea .
