INFORMATION
|

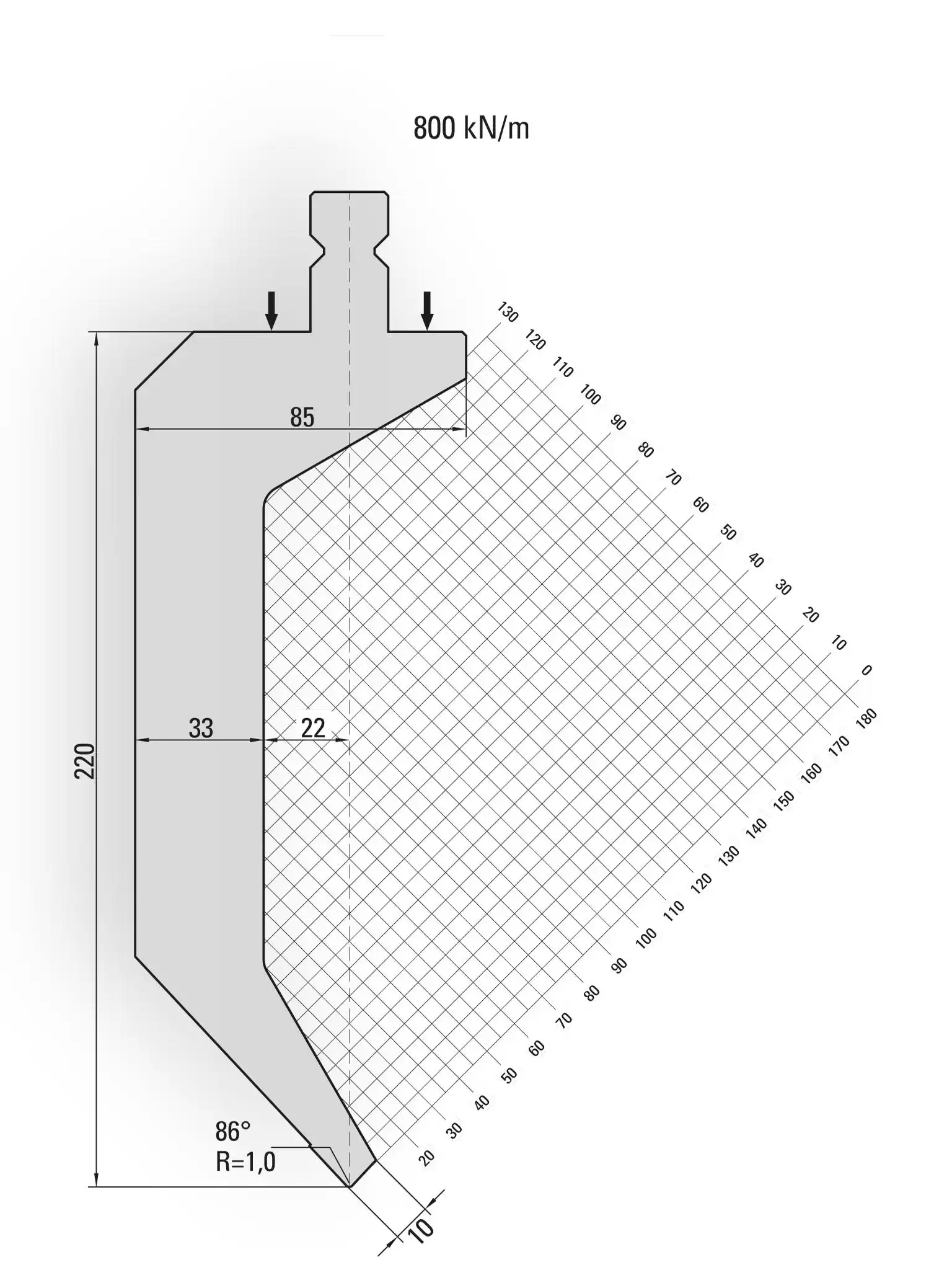

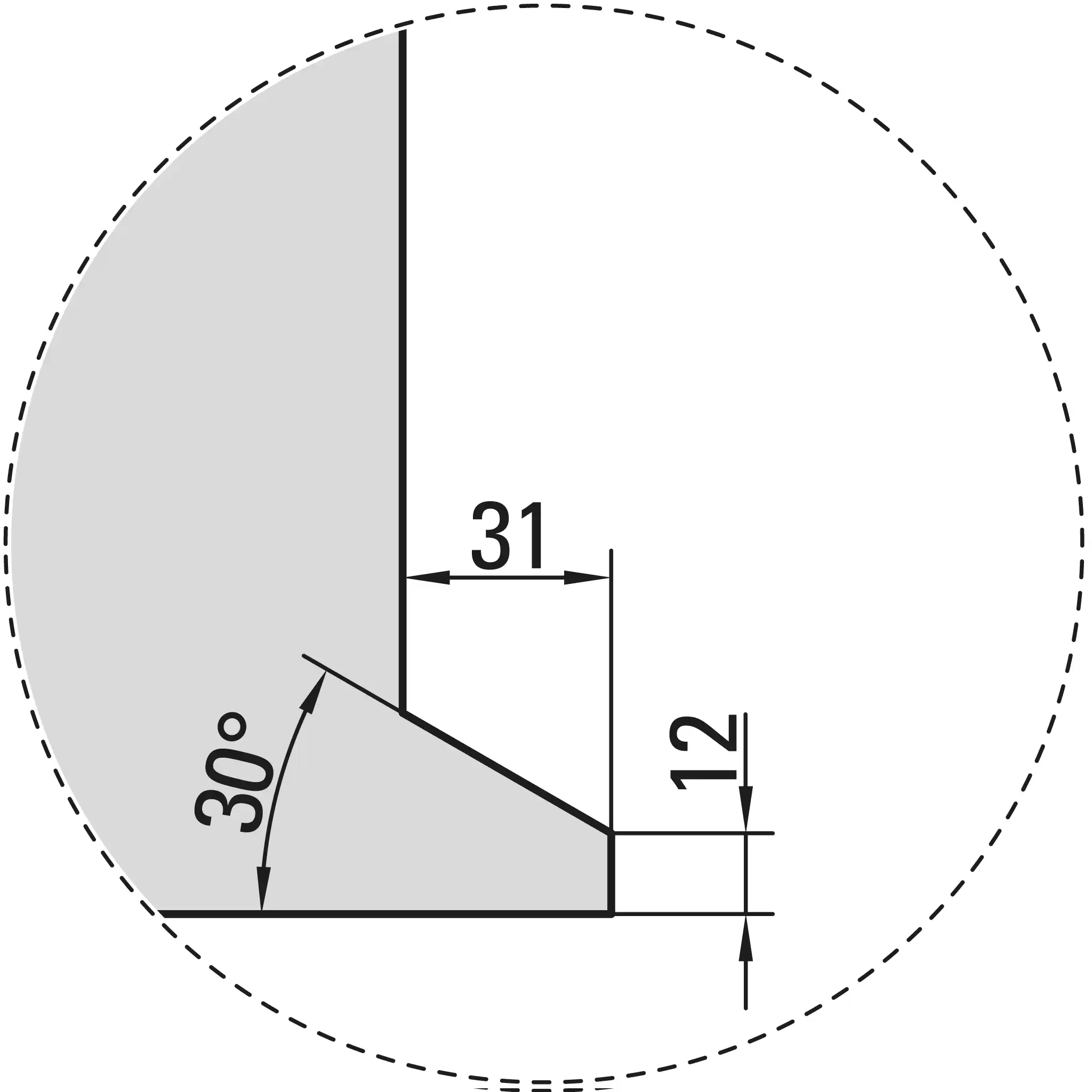

ART.NO.: JM - 15700
|
|
|
Tooling system
|
JM - System Trumpf/Wila/LVD
|
|
Angle
|
85°、88°、90°
|
|
Radius
|
0.2mm、0.6mm、0.8 mm、1.5mm、3mm
|
|
Effective Height
|
220 mm
|
|
Load
|
800 kN/m max.
|
|
Material
|
42CrMo
|
|
Length and weight
|
550mmSect-Pin/36.9kg、500mm-Pin/33.5kg
|
Quality And Precision
▶Optimum materials
▶42 CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
TOOL LENGTHS
PUNCHES/TOP-TOOLS

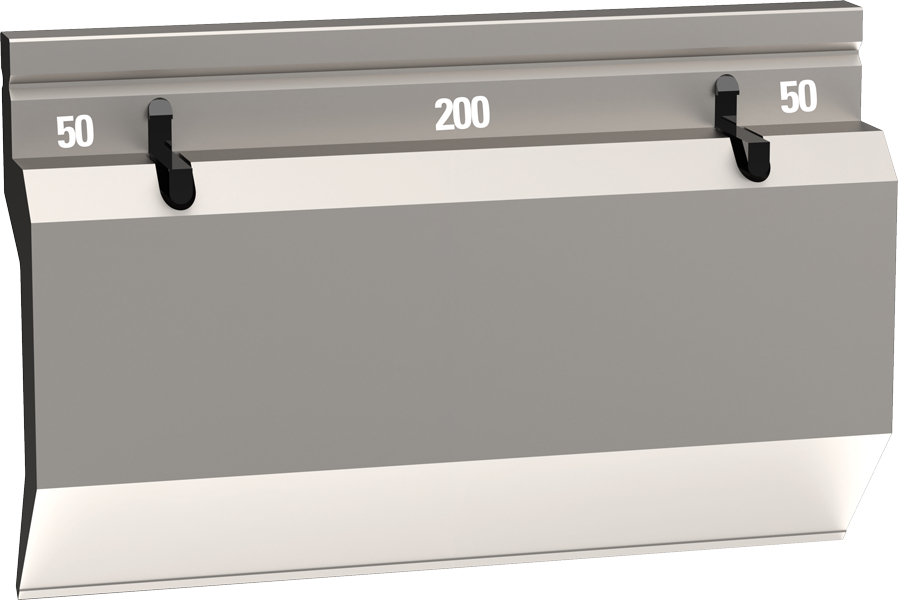

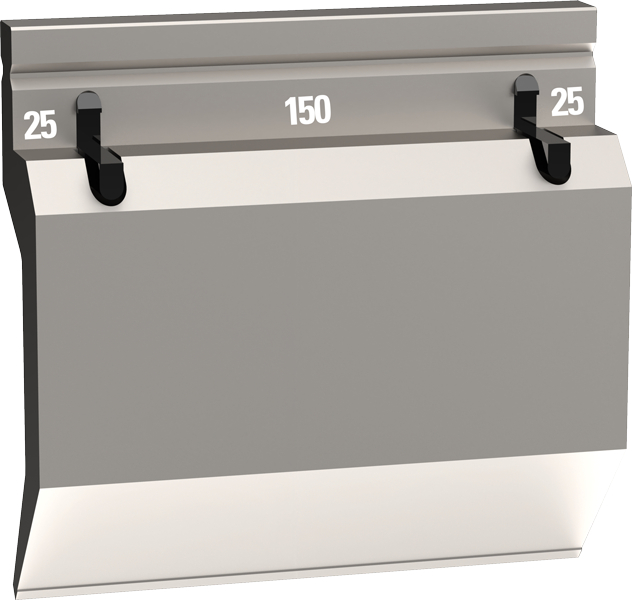

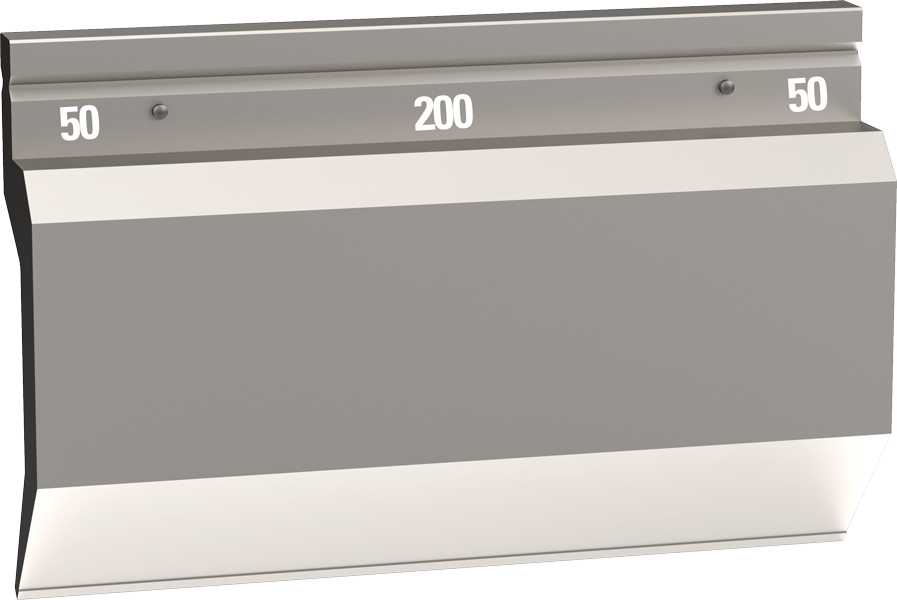

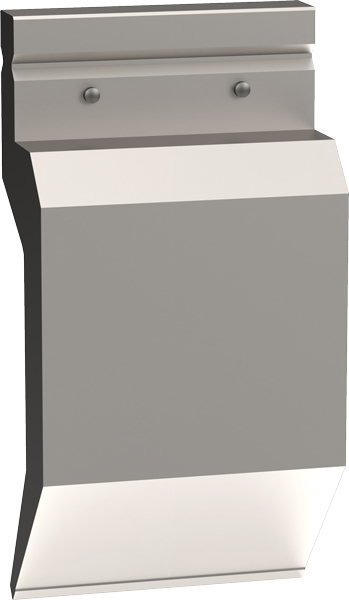

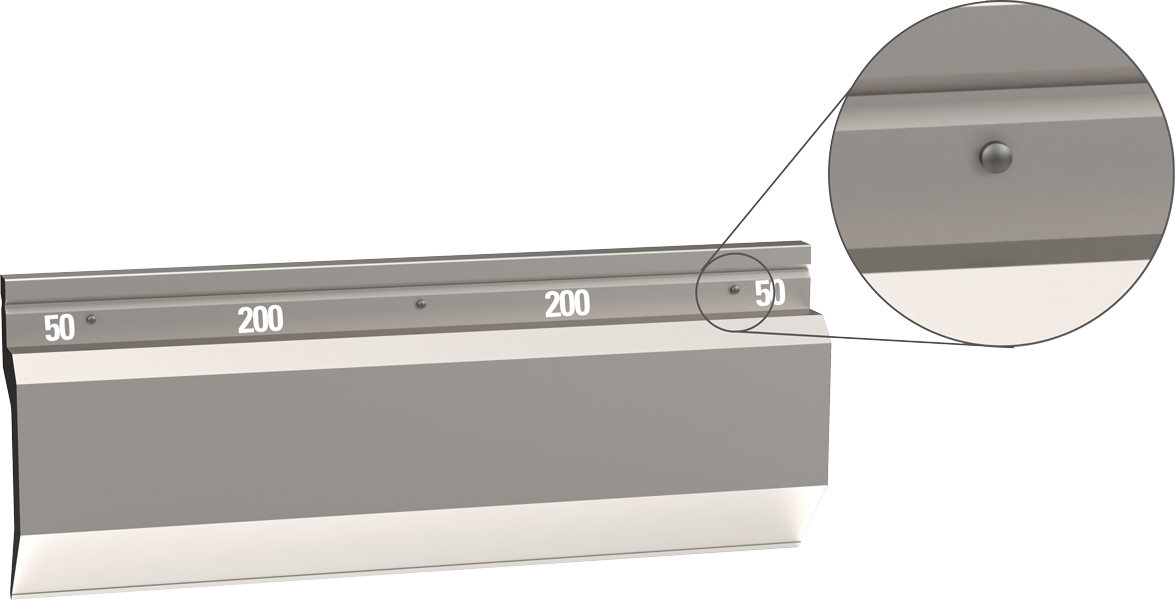

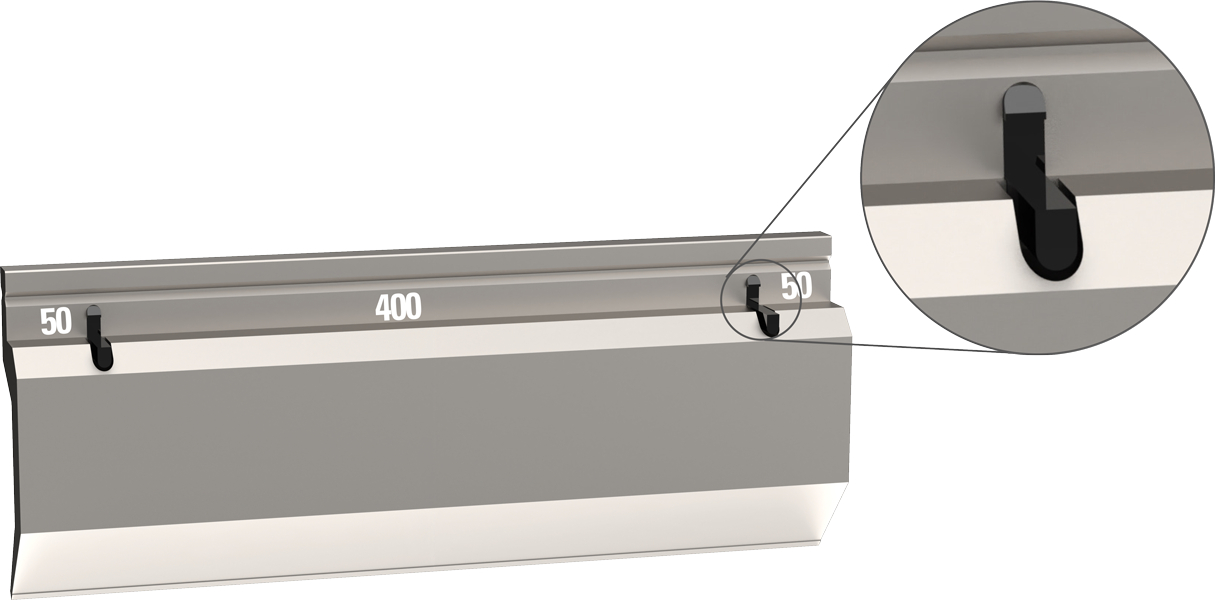

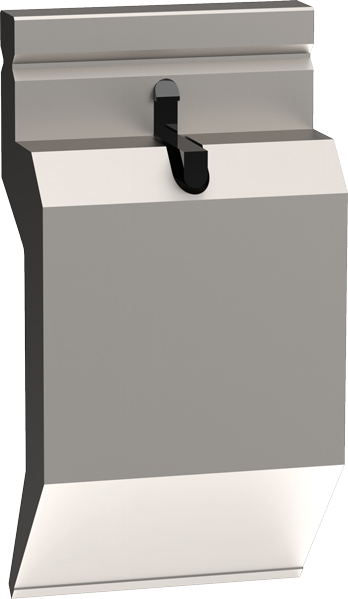

PUNCHES/TOP TOOLS WITH SIMPLE CLAMP < 12,5 kg PUNCHES/TOP TOOLS WITH SAFETY PINS> 12,5 kg
500 mm 500 mm
300 mm 300 mm
200 mm 200 mm
100 mm 100 mm

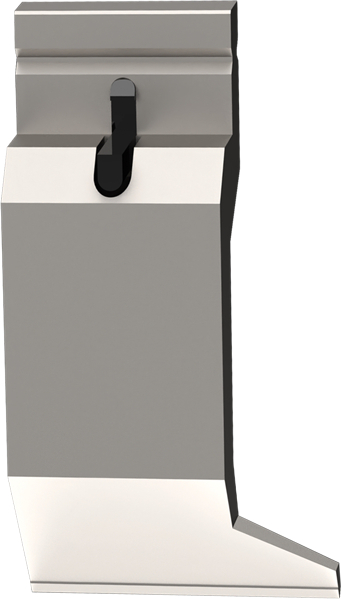

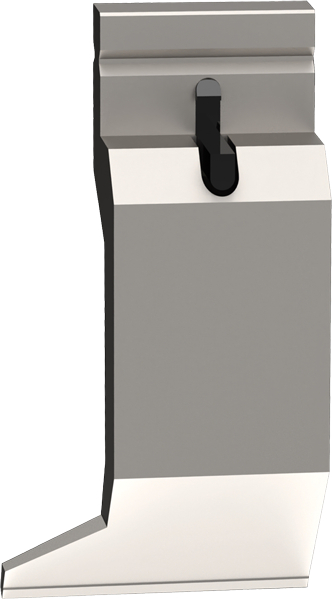

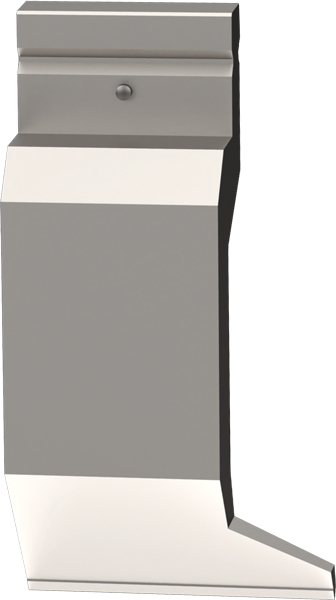

100 mm Horn extension left 100 mm Horn extension left

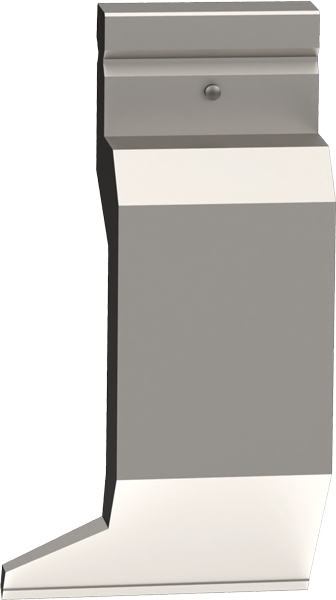

100 mm Horn extension right 100 mm Horn extension right

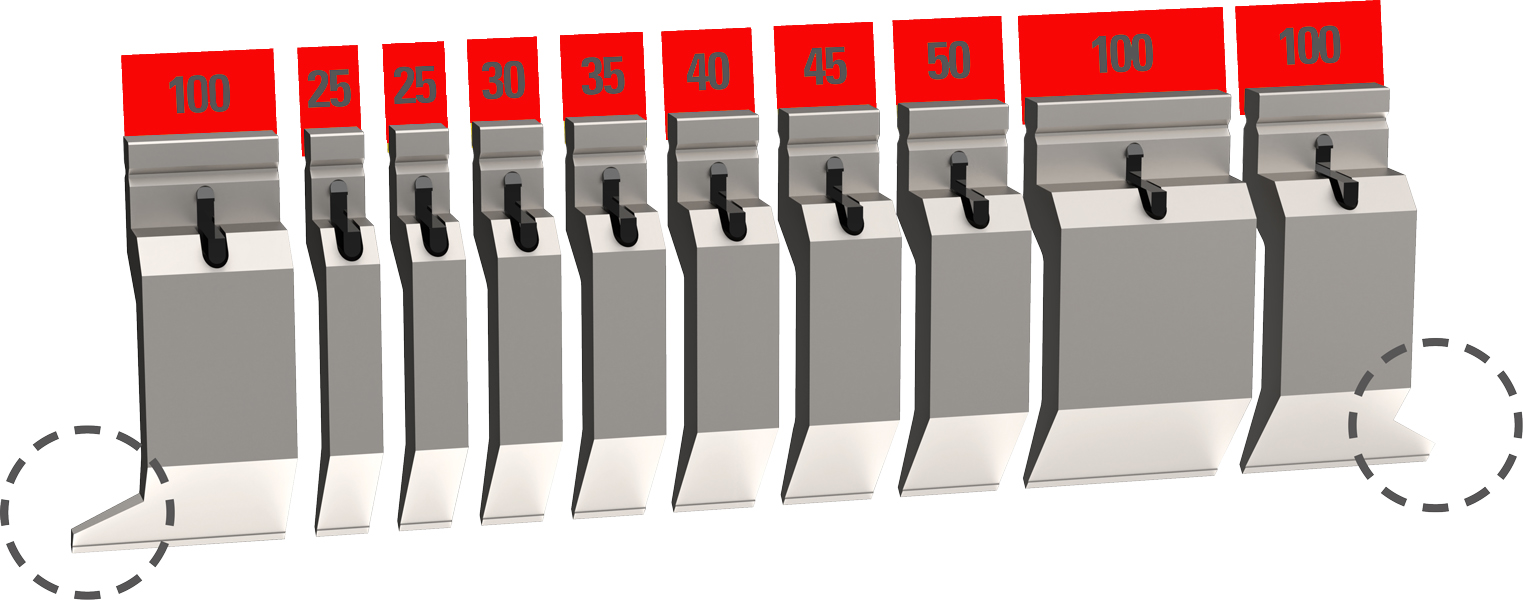

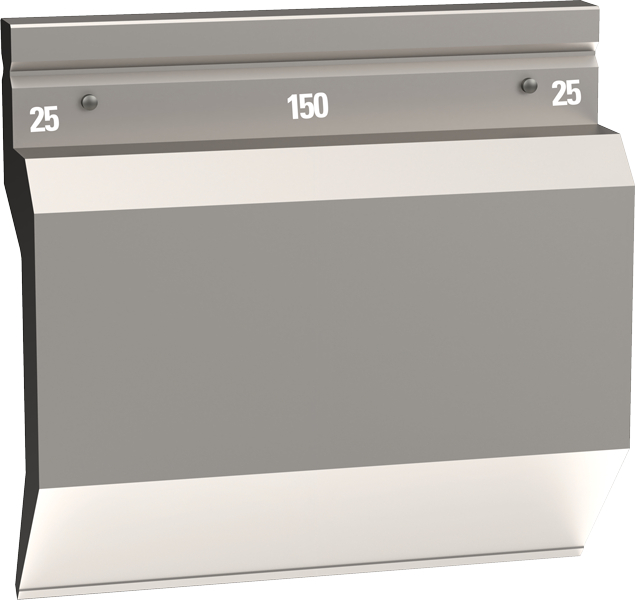

550 mm sectionalized
▶ 10 Segments with horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 100 (right horn) = 550mm (set)
2050 mm Tool Set
▶ 14 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×2,100 (right horn) = 2050mm (set)
3050 mm Tool Set
▶16 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×4,100 (right horn) = 3050mm (set)
4050 mm Tool Set
▶ 18 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×6,100 (right horn) = 4050mm (set)
■ Create your own individual tool lengths set for punches/top tools and dies!
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
