JAMINNAR is a leading bending tool manufacturer in Ma'anshan, China. Our design team focuses on innovative solutions and uses advanced equipment for production with strict quality control. Our molds undergo rigorous testing to ensure stability and durability.

All products

42CrMo4 material press brake upper tools for 125t machine

The straight blade size: 97*26*835mm,85degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 11.1kg.

Press brake half gooseneck punch with 135mm height and 85 degree

The punch size is 135*26*835mm, 85degree, the material is 42CrMo4, the weight is 17.7kg. and we can make the height is 65mm,90mm and 120mm.

Press brake half gooseneck punch with 165mm height and 85 degree

The punch size is 165*26*835mm, 85degree, the material is 42CrMo4, the weight is 22.8kg. and we can make the height is 65mm,90mm and 120mm. Welcome to explore our quality press brake tooling and contact us for professional service!

835mm 4V CNC press brake die H = 60mm

The die size is 60*60*835mm, 85degree, the material is 42CrMo4, the weight is 15.6kg. Welcome to explore our quality press brake tooling and contact us for professional service!

Press brake Multi Vee dies

The die size is 90*90*835mm, 85degree, the material is 42CrMo4, the weight is 36.2kg. Welcome to explore our quality press brake tooling and contact us for professional service!

Same core 2V rail fixed standard press brake dies

Size: 46*34.5*835mm(Can be customized according to customers' needs) Package: Multi plywood

Standard press brake gooseneck upper tools

The gooseneck punch size: 120*56*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 120mm, the weight is 21kg. Can be made according to customer's request.

Press brake gooseneck upper tools

The gooseneck punch size: 215*95*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 215mm, width 95mm, the weight is 42kg. Can be made according to customer's request.

Straight sword right-angle bending standard upper punch

This is standard press brake punch, usually the height is 120 and 125mm. The material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.

Segment Press Brake Punch With Left And Right Horn

The size: 150*27*835mm, 86degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 17.3kg. it can be segments with left and right ear according to the customer's requirements.

Standard press brake punch with 85degree and height 100mm

The straight blade size:130*26*835mm, 85degree. the material is 42CrMo4, hardness is HRC52-58,the weight is 10.5kg. it can be segments with left and right ear according to the customer's requirements.

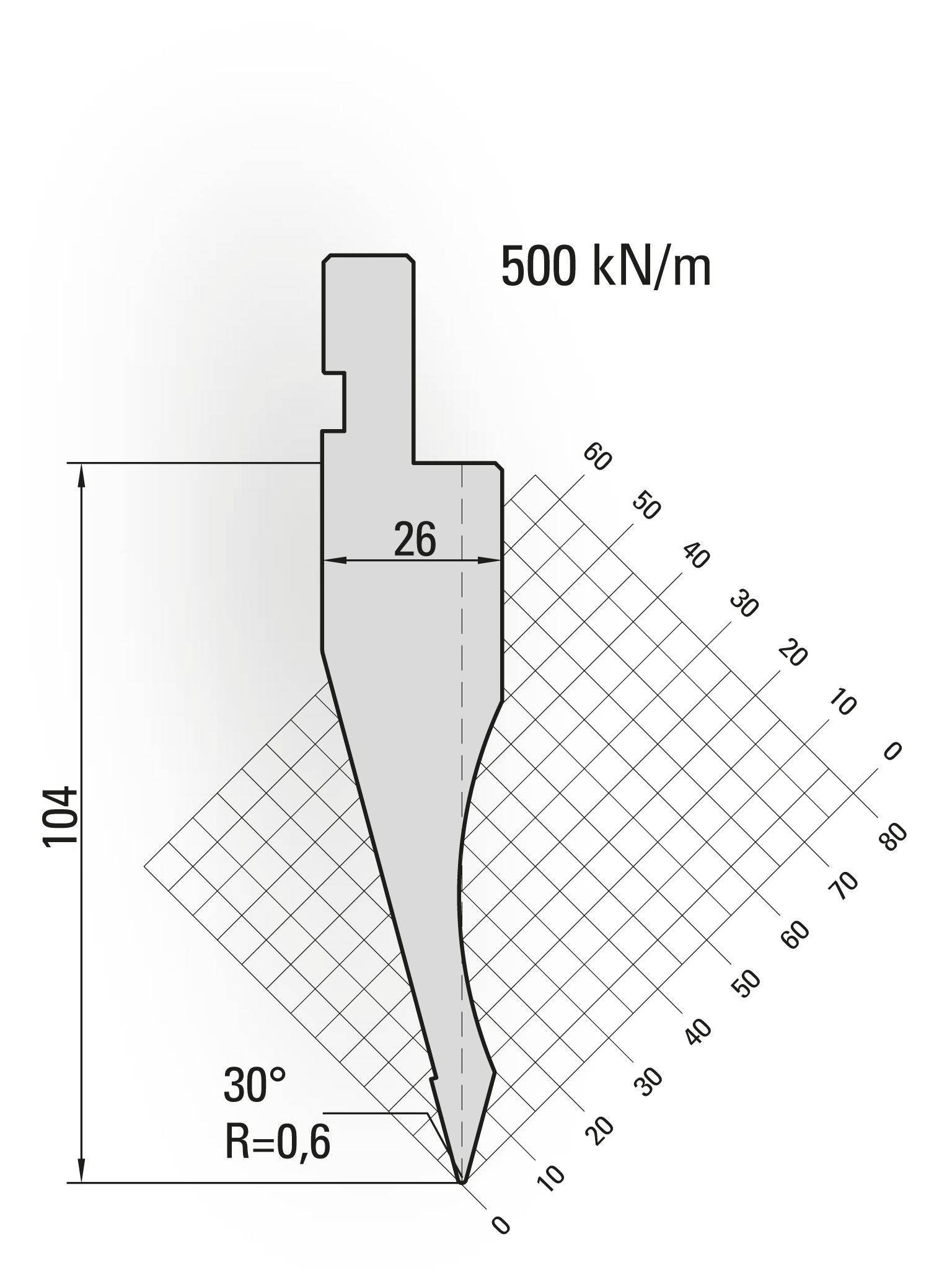

30 degree Amada style press brake punch

The punch size is 134*26*835mm, 30degree,standard sharp blade. the weight is 13.2kg/pcs and we can make 35degree,45degree or other degree according to your request.

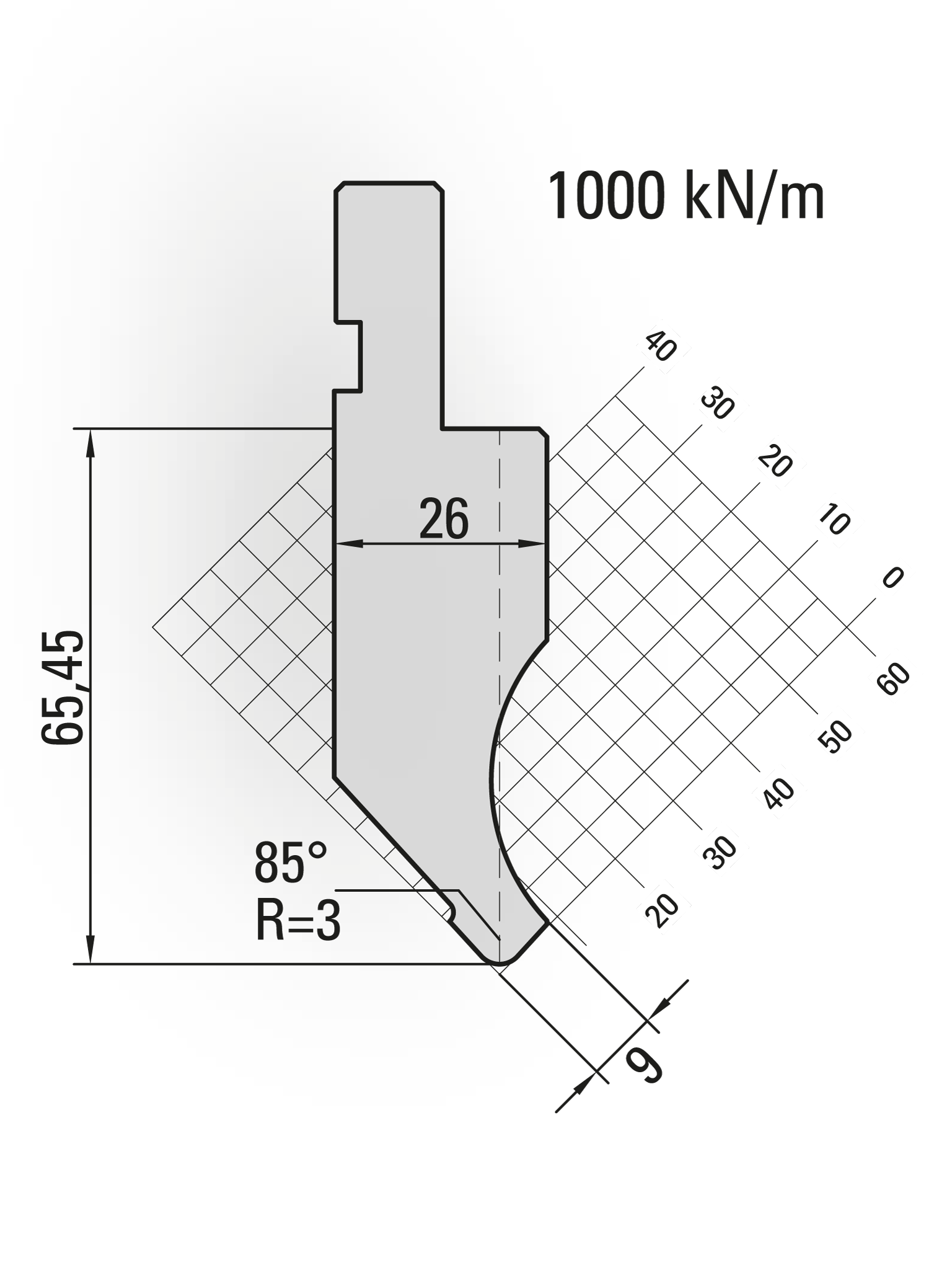

Standard 835mm Segments Press Brake Tooling

This is standard press brake punch,usually the height is 65 and 67mm.the material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you๏ผš100L,10,15,20,40,50,200,300,100R.

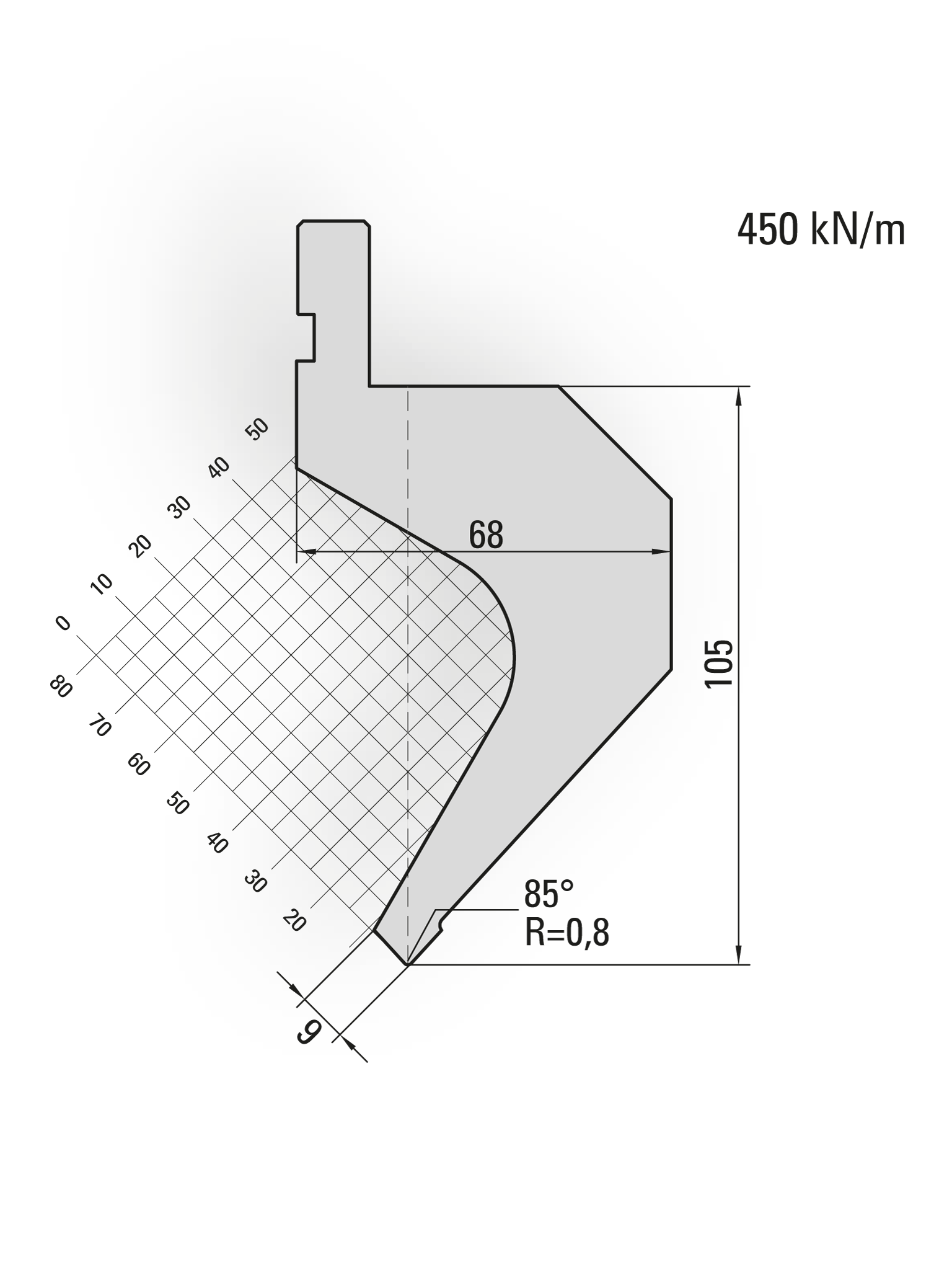

Reverse press brake gooseneck upper tool

The gooseneck punch size: 135*68*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 135mm, the weight is 23.8kg. Can be made according to customer's request.

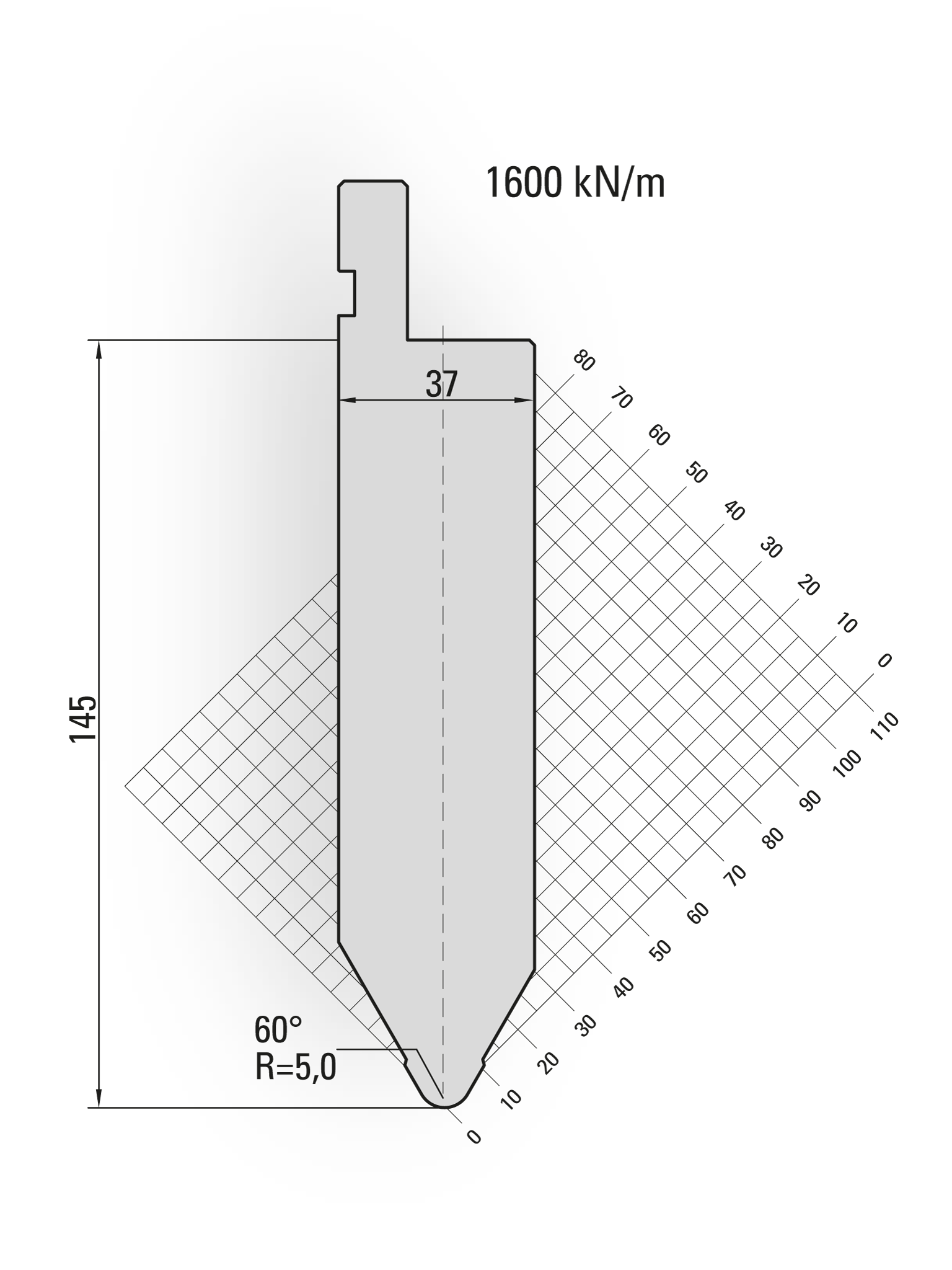

Amada Bending Thick Board Tool / metal bend tool

The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3๏ผŒthe weight is 34.5kg. We can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.

1V die V63 press brake bottom die for Europe customer

V63 bend 8mm sheet metal plate, the single v die size:75*80*835mm, V63, 85 degree. the weight is 28.5kg. the material is 42CrMo4, hardness is HRC52-58. and it will be used with the die holder together.

Press brake self centering 2v dies with standard punch

The self centering 2V dies, the size is 46*50* 835mm, 88degree, the weight is 13kg. and we can make V5-V9, V8-V12, V12-V20, V16-V25 and other V opening according the bending thickness. Package: Multi plywood

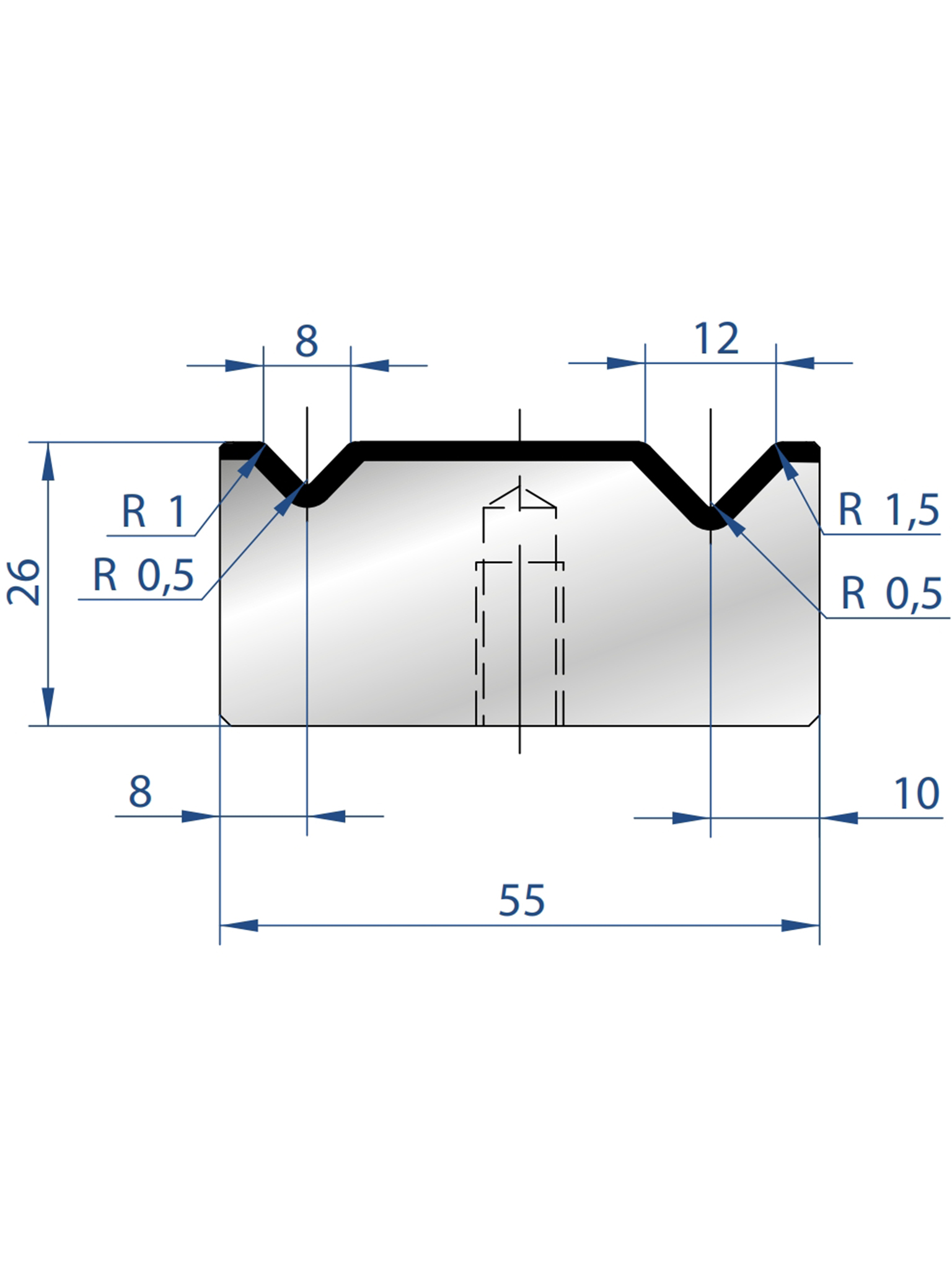

Hydraulic press brake molds standard 2V dies

Hydraulic press brake molds standard 2V dies,V8-V12 for bending 1-1.5mm plate, the die size:26*55*835mm, 88degree, the weight is 9kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle, we can make it according to your bending request. Package: Multi plywood

Press brake single V die M60-85-32 with V32 and 85degree

V32 can bend 4mm sheet metal plate, the single V die size: 60*60*835mm, V32, 85degree. the weight is 21.5kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.

Press brake single vee die 50mm 85degree H60mm M60-85-50 for sale

V50 bend 8mm sheet metal plate, the single V die size: 60*60*835mm, V50, 85degree, the weight is 19kg. the material is 42CrMo4, hardness is HRC52-58.

CNC Press Brake Bending Machine Sheet Metal Die

The V40 die for bending 6.25mm plate, the die size:60*60*835mm, 85degree. the weight is 20.4kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

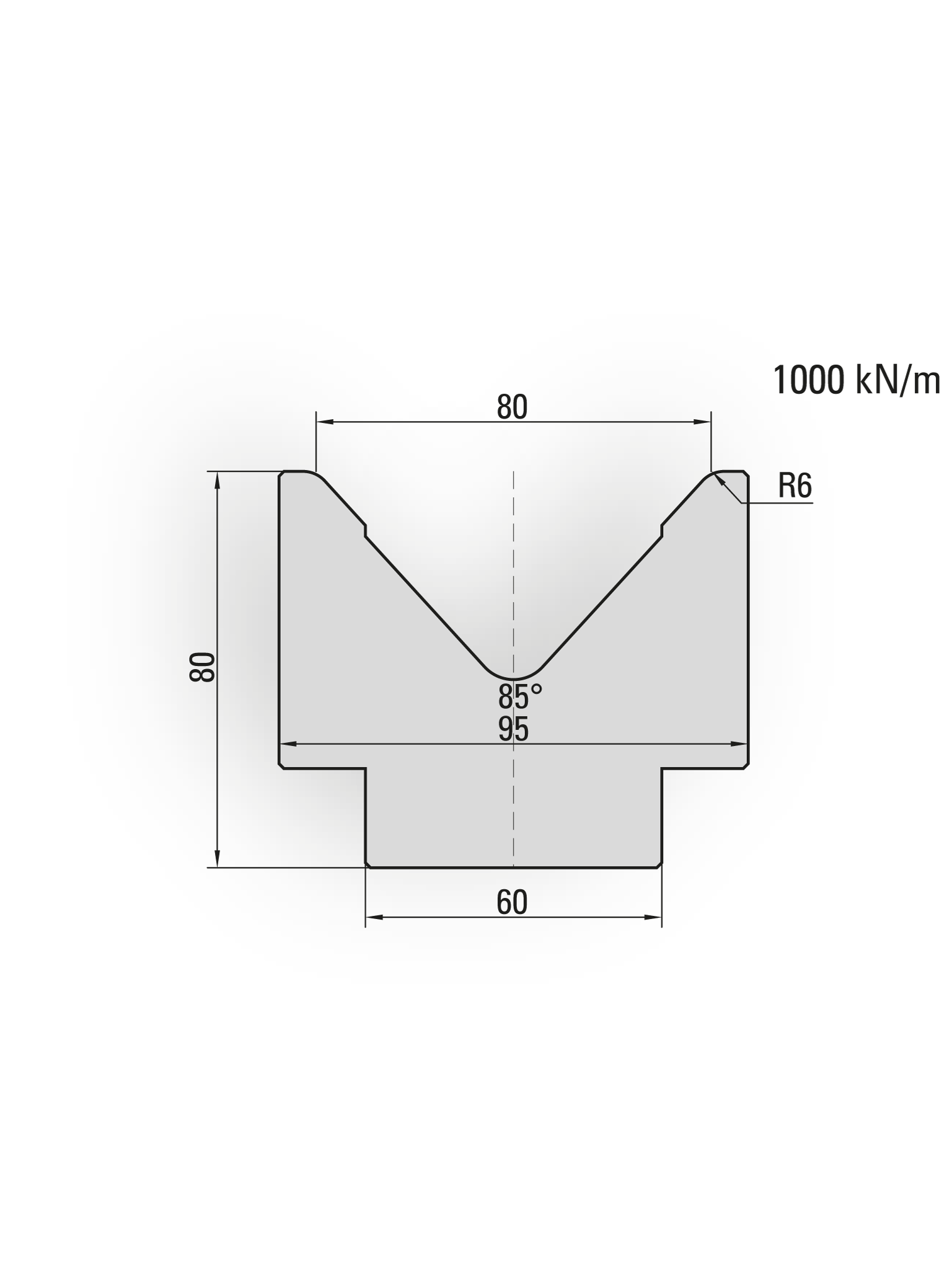

Matrix 1V die V80 press brake lower die with 85 degree

V80 for bending10mm plate, the die size:80*95*835mm, 85degree. the weight is 33.1kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

V125 Press Brake Die Tools With 80degree For Sales In Finland Market

V125 bend 16mm sheet metal plate, the die size:103*154*835mm, 80degree, R15. the weight is 61.2kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

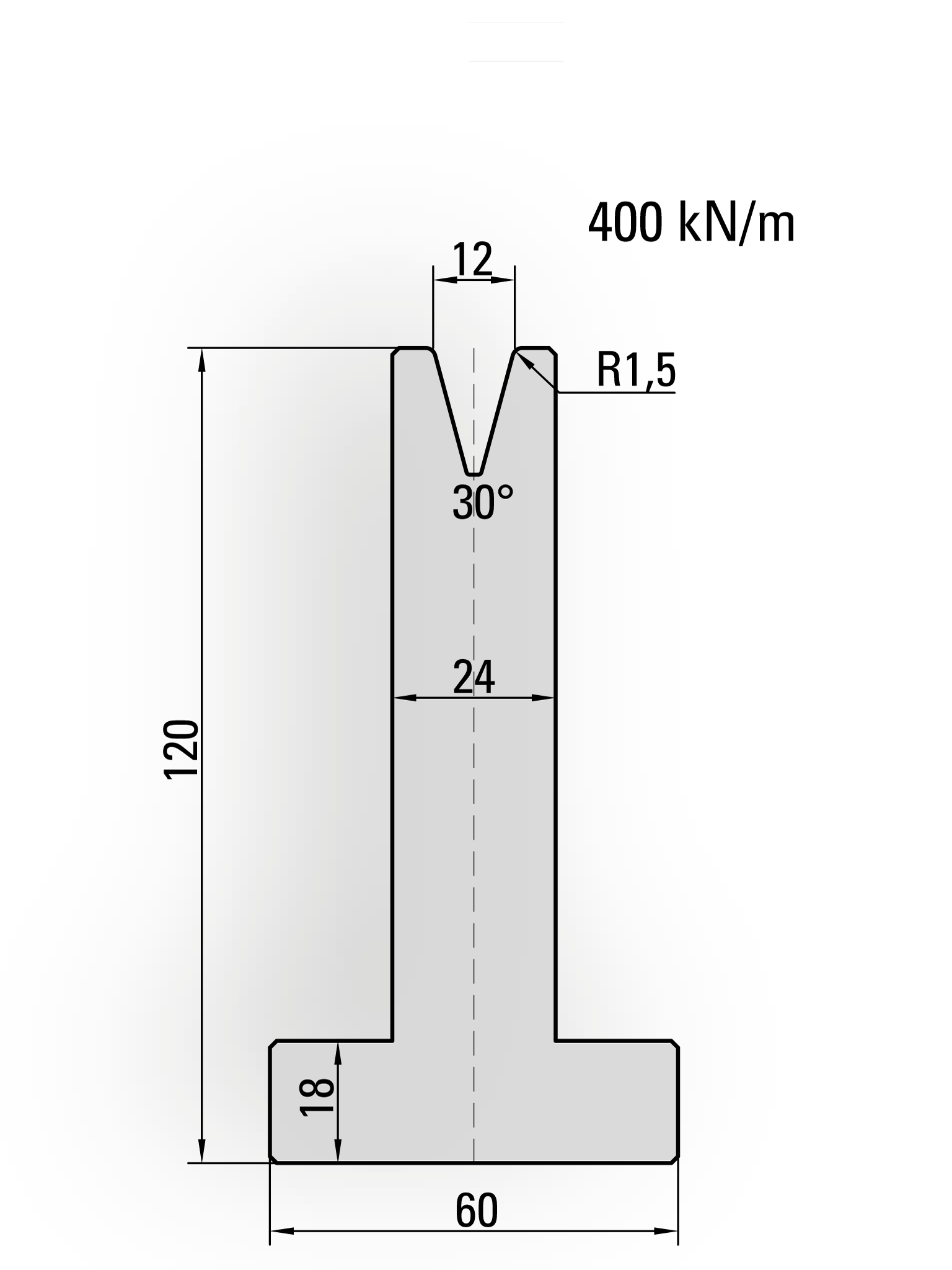

Press brake T-V die tools with 30degree

The T-V die size:120*60*835mm, V12, 30degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Press brake T-V die tools with 60degree

The T-V die size:120*60*835mm, V12, 60degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Press brake T-V die tools with 85degree

The T-V die size:120*60*835mm, V12, 85degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Standard CNC lower die section

There are many segments size , like 835mm seg(10,15,20,40,50,100,200,400), 805mm seg(100,370,10,15,20,40,50,200R), 795mm seg(100,250,20,25,30,35,40,45,50,200), 495mm seg(170,100,50,45,40,35,30,25) . If these segment size cannot meet your request, pls tell us you want. then we will make it for you. If you don't know how to choose the lower die for you workpiece, pls provide your punch size, machine model and so on. Material: 42CrMo / C45 Hardness: HRC47+/-3 Quench: Full body heat treatment Package: Multi plywood

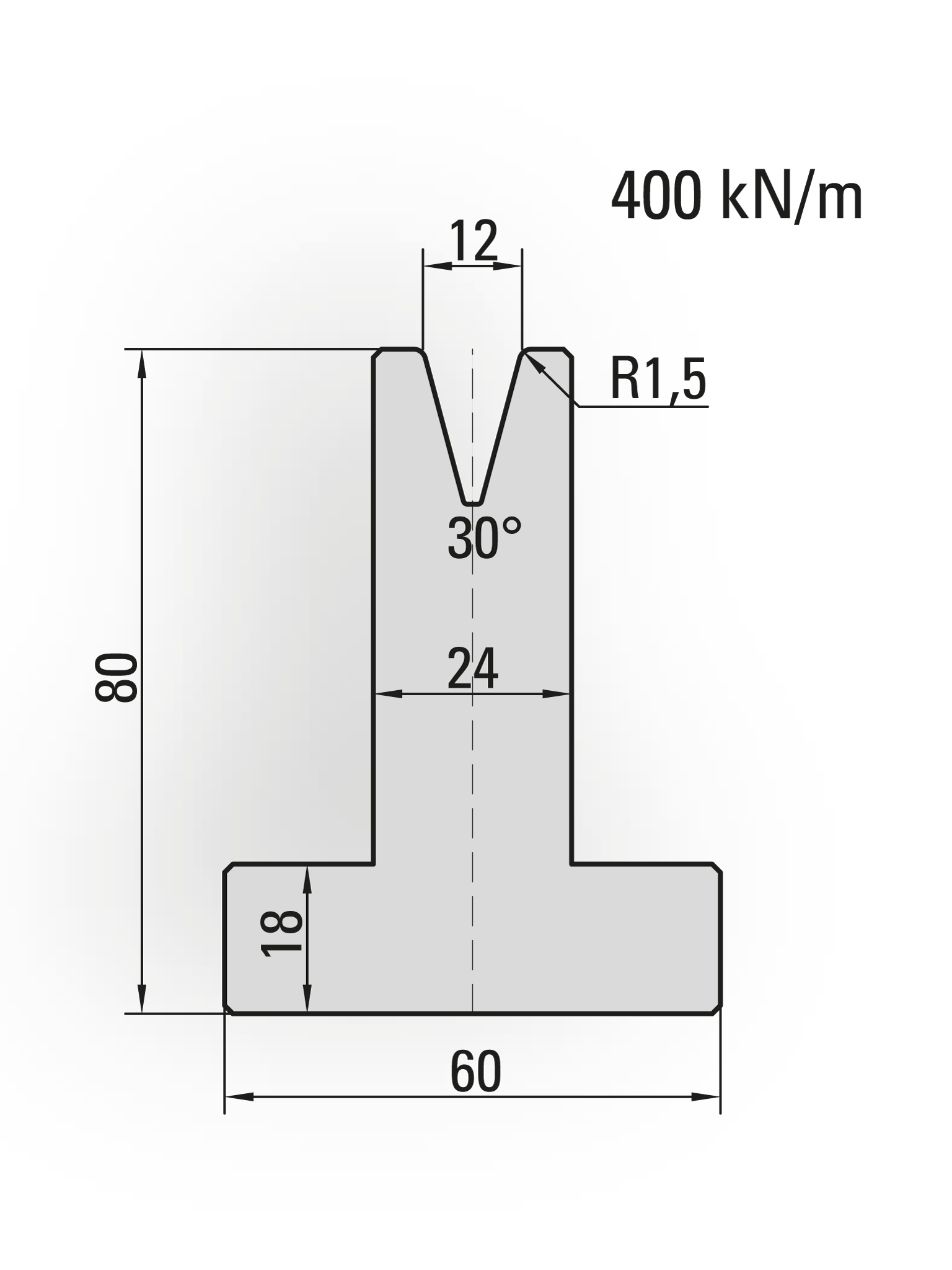

European standard single V mold series Press Brake Dies

The T-V die size:80*60*835mm, V12, 30degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 (Can be customized according to customers' needs)

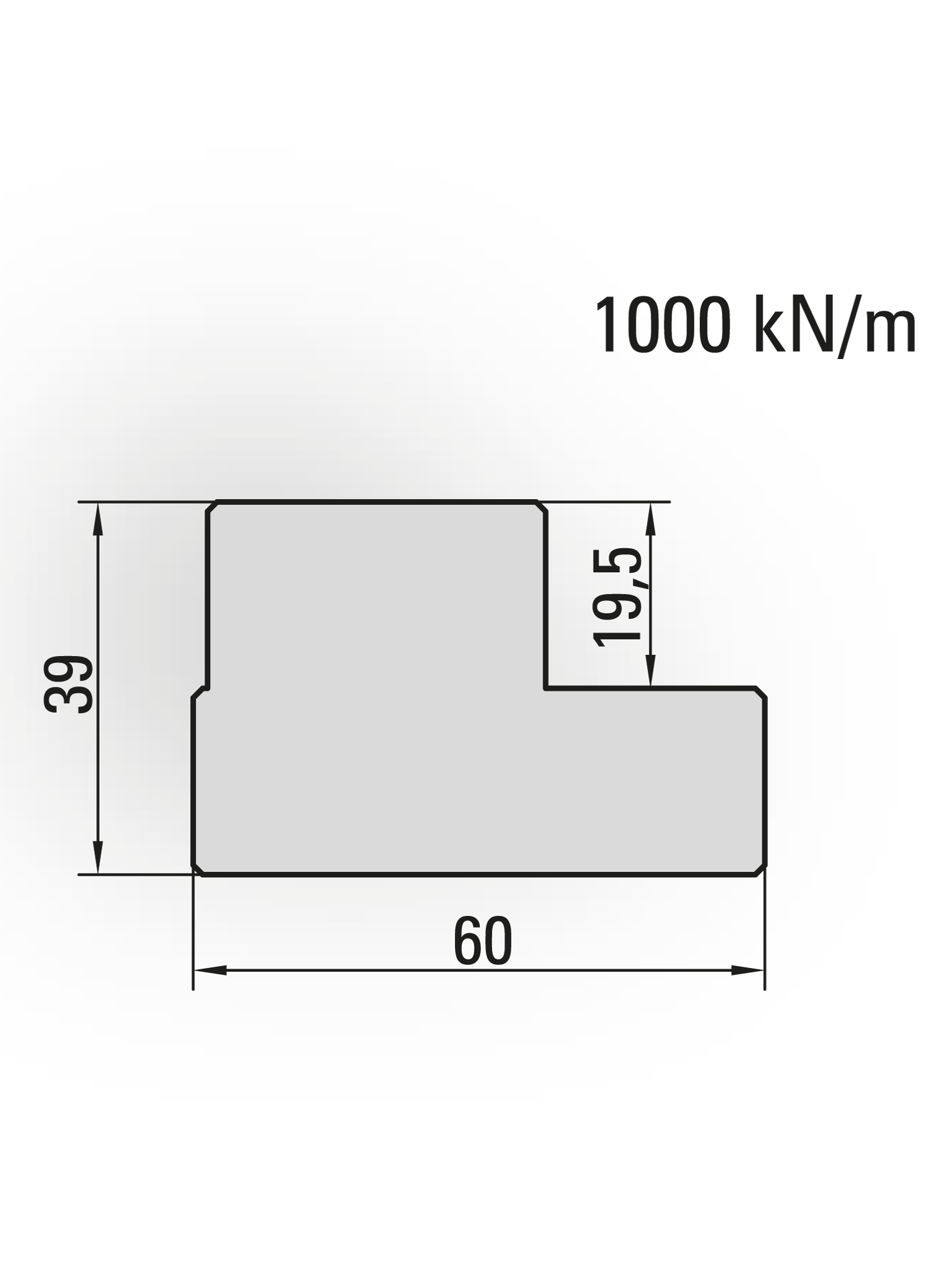

Same core 2V rail fixed standard dies, L - Die Resting Base

Size: H=39/55/75mm (Can be customized according to customers' needs) Material: 42CrMo / C45 Hardness: HRC44-50 Package: Multi plywood

Press brake 2v dies with 30degree

V8 and V12 bend 1-1.5mm sheet metal plate, the die size:46*50*835mm, V8-V12, 30degree. the weight is 13.2kg. the material is 42CrMo4, hardness is HRC47+/-3.

Press brake 2v dies M60-90-02 with 90degree

V8 and V12 bend 1-1.5mm sheet metal plate, the square die size:60*60*835mm, V8-V12, 90degree. the weight is 21kg. the material is 42CrMo4, hardness is HRC47+/-3.

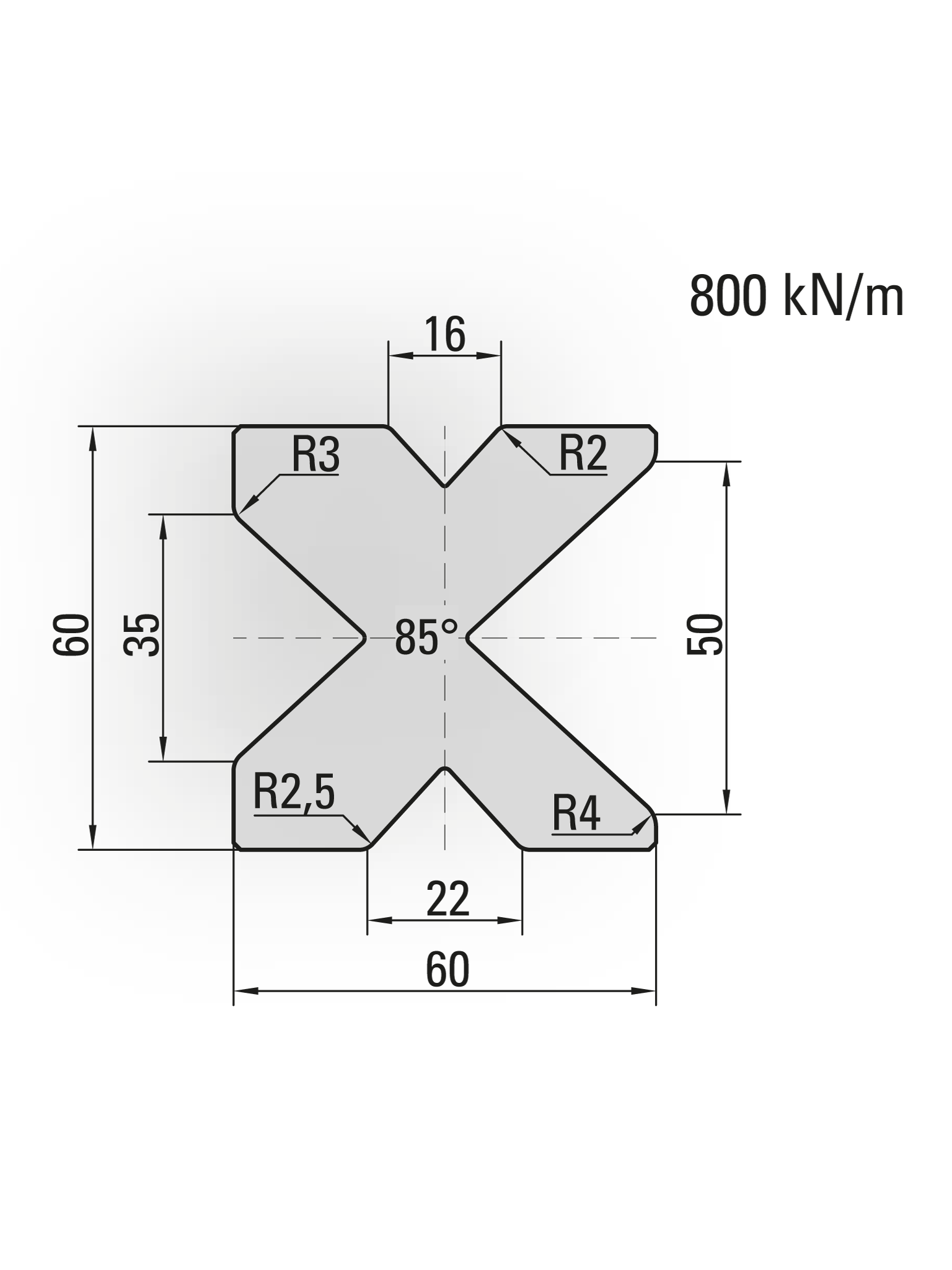

Press brake 4v dies with V16,V22,V35,V50

Standard 4v dies, V16,V22,V35,V50 with 85 degree and 88degree. the size is 60*60*835mm, material 42CrMo4 .the weight is 15.6kg. the material is 42CrMo4, hardness is HRC47+/-3.

China Good Quality Gooseneck Press Brake Dies Tooling

The gooseneck punch size: 160*56*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 22.4kg. Can be made according to customer's request.

European Amada Press Brake Gooseneck Punch 115mm Tooling with Best Price and Quality

The gooseneck punch size: 115*45*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 12.8kg. Can be made according to customer's request.

Custom Punch & Die Solutions ยท R50 Radius Polyurethane (PU) Elastomer Die Set for CNC Press Brakes.

Polyurethane (PU) elastomer die set is a composite mold system that combines a metal frame and polyurethane elastomer. It can effectively absorb the impact force during sheet metal stamping or forming, reduce the wear of metal molds, and protect the surface of sheet metal parts from scratches.. for the angle and V opening, we can make it according to your bending request.
