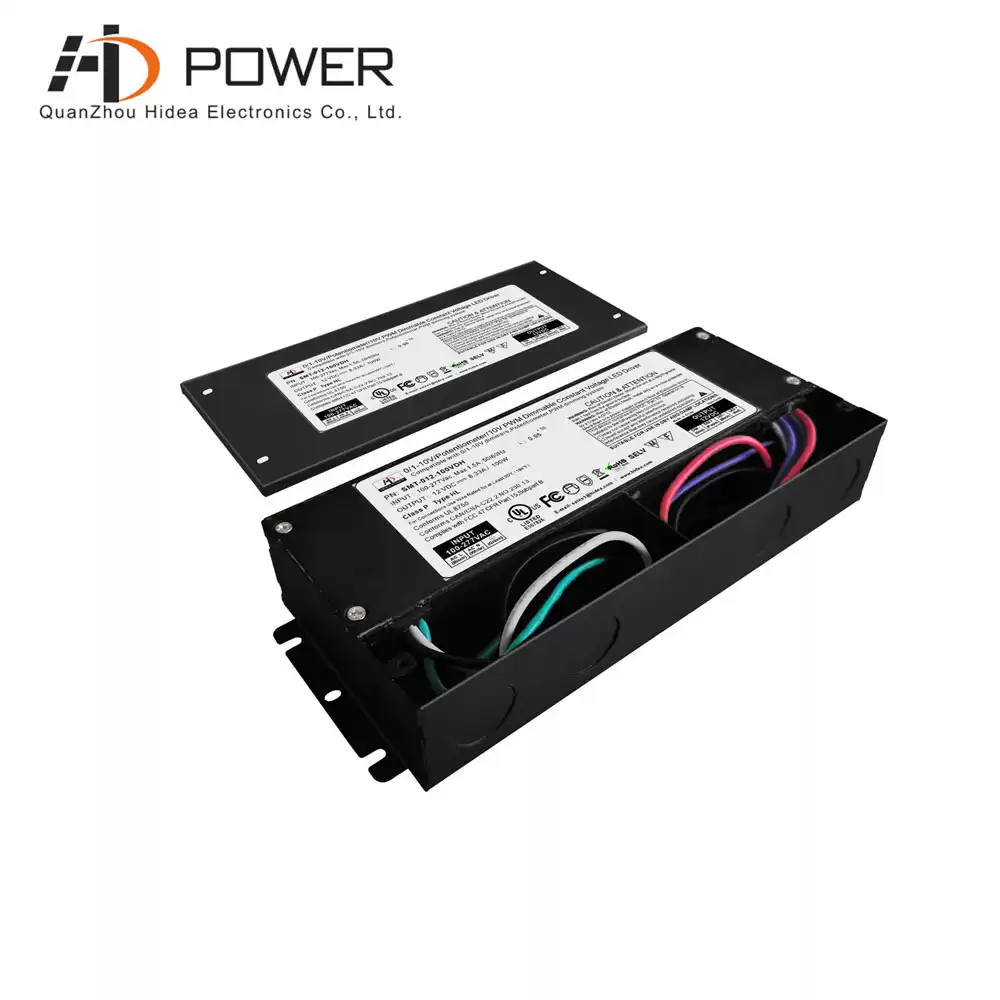

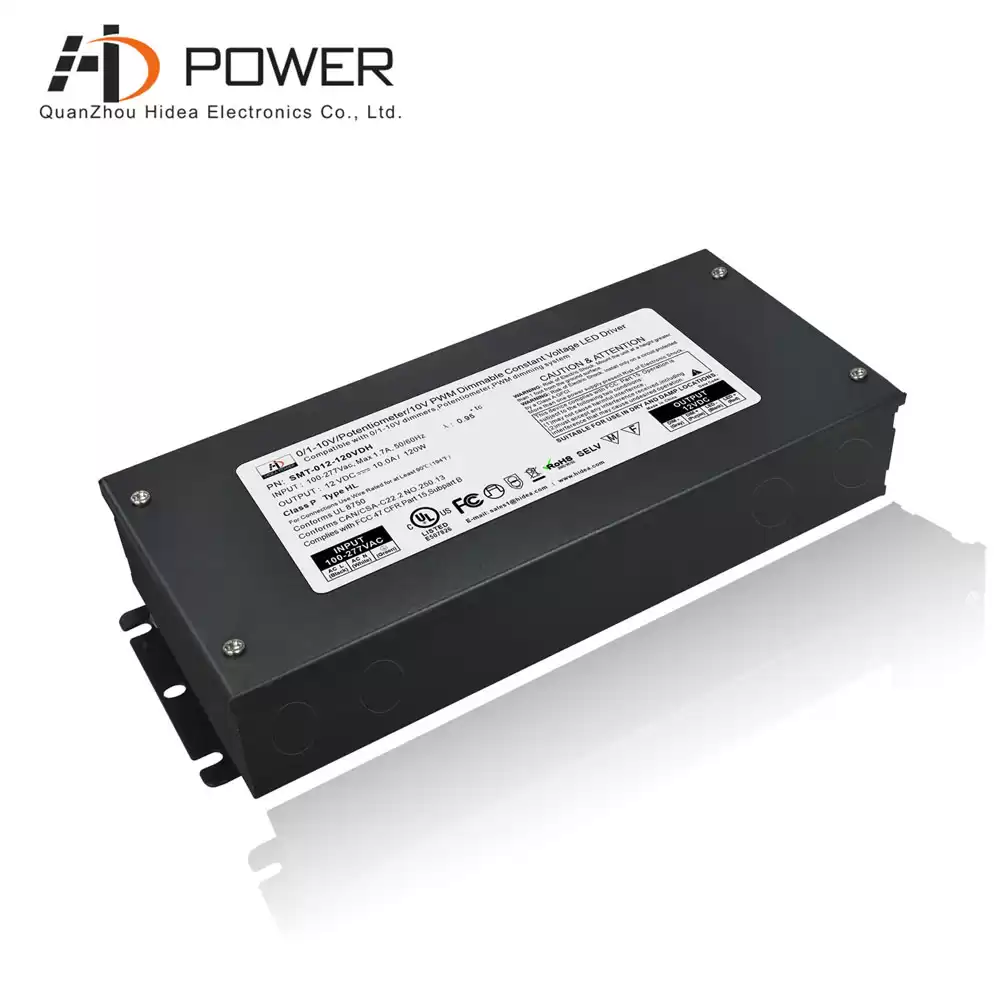

0 10v dimmable 120w 24v led driver power supply junction box
0-10V/Potentiometer/10V PWM Dimmable led driver constant voltage working mode, 100W output power, working efficiency up to 83%, with short circuit/overload/overtemperature protection, 7-year warranty
Specification
|
model
|
SMT-012-120VDH (1.0 version)
SMT-012-120VDHV2 (2.0 version)
|
SMT-024-120VDH (1.0 version)
SMT-024-120VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current(Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.37Kg (1.0 version)
|
|
Size
|
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 260*105*45mm
|
|
packing
|
10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

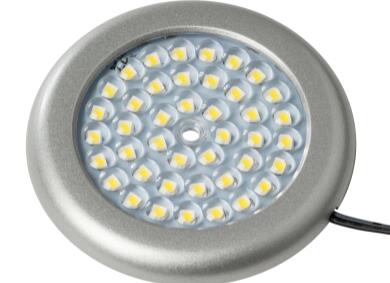

The Skinny Puck Downlight could be White, Black, Chrome, or Brushed Nickel and the Skinny Puck Downlight driver could be 12vdc and 24vdc for your project.
Related Products
|
120W TRIAC & 0 10V dimmable led driver Aluminum shell design, good heat dissipation, easy and quick installation, UL certified, very compatible with most triac/0 10v dimmers on the market
Mode：SMT-012-120VTD
Dimming Mode : triac & 0 10v Dimming
Output Power : 120W
intput voltage：100~277V AC
class 2,class P, type HL
Size：230*70*43MM （L*W*H）
|
