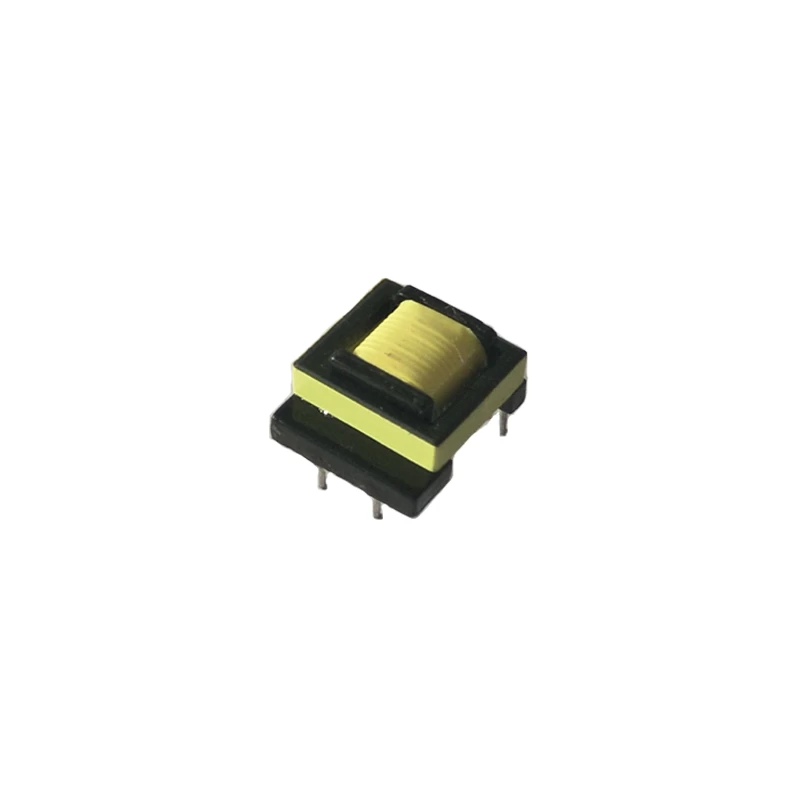

0~12W E16 High Power Flyback Transformer For Switching Power Supply

0~12W E16 flyback transformer output power range is 0-12W,used in mobile phone charger, digital cameras,auxiliary power transformer.Our series mumber is MCTE1603-MCT1613.



High frequency flyback transformers are suitable for power supplies and a variety of power adapters. However, the design difficulty of the flyback converter is the design of the transformer, because the input voltage range is wide, especially at low input voltage, full load conditions, the transformer will work in continuous current mode, and in high input voltage, light load conditions transformer will work in discontinuous current mode. 0~12W E16 high frequency flyback transformer, the circuit is simple, can provide multi-channel DC output, so suitable for multiple sets of output requirements, it's conversion efficiency is high, the loss is small.


Quick Details

Part No: 0~12 W E16 Flyback Transformer


Brand name: MCT

The operating frequency: 20kHz-500KHz


Custom made: Available

Working temperature: -40 ℃ to + 125 ℃


Logo: Can be customized

Storage temperature: -25 ℃ to + 85 ℃


Packing: Carton,can custom

Storage humidity: 30 to 95%


Certification: ISO9001,ROHS,CE

Power range: 0.5W~15W


OEM: Available

Shape type: horizontal, vertical


Shipping: Air, Ship, etc

Lead time: 25 days after payment


MOQ: Any quantity


Part Information

Product Name: 0~12W E16 High Power Flyback Transformer For Switching Power Supply

Applications: Single-phase Transformer, DC-DC converter, Driving transformer, Power transformer, Digital camera, hand-held switching mode power charger.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Details

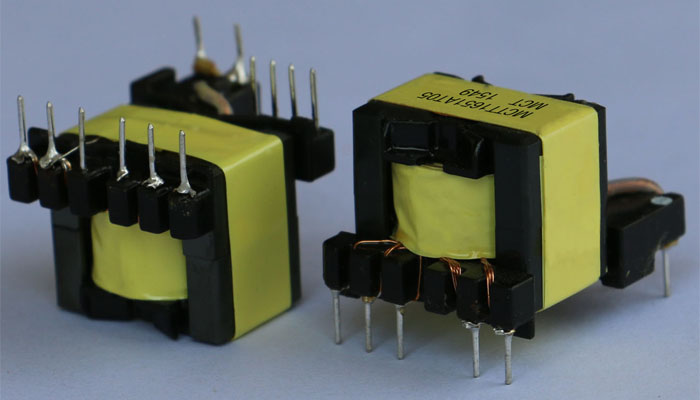

E16 type single output 5V/12V flyback transformer, our PN includes MCTE1601 and MCTE1602

SIZE E16-2 OUTPUT:5 or 12V and 3.3 or 5V-flyback transformer, our PN includes MCTE1603 and MCTE1604

SIZE E16-SINGLE OUTPUT:5 or 12v transformer for tiny switch,our PN includes MCTE1605, MCTE1606, MCTE1607, MCTE1608, MCTE1609, MCTE1610

SIZE E16-2 OUTPUTS:5 or 12v -flyback transformer, our PN includes MCTE1611, MCTE1612 and MCTE1613

EE16 Power Flyback Transformer for Electronic Devices
