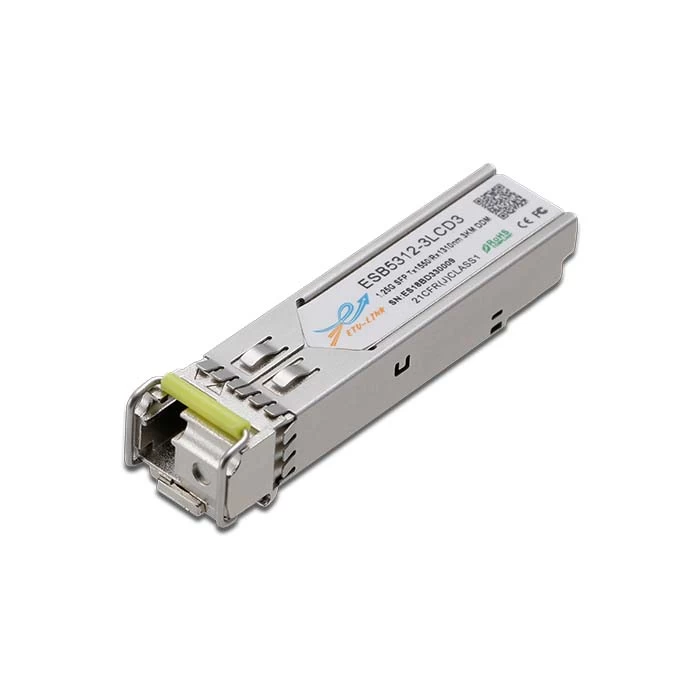

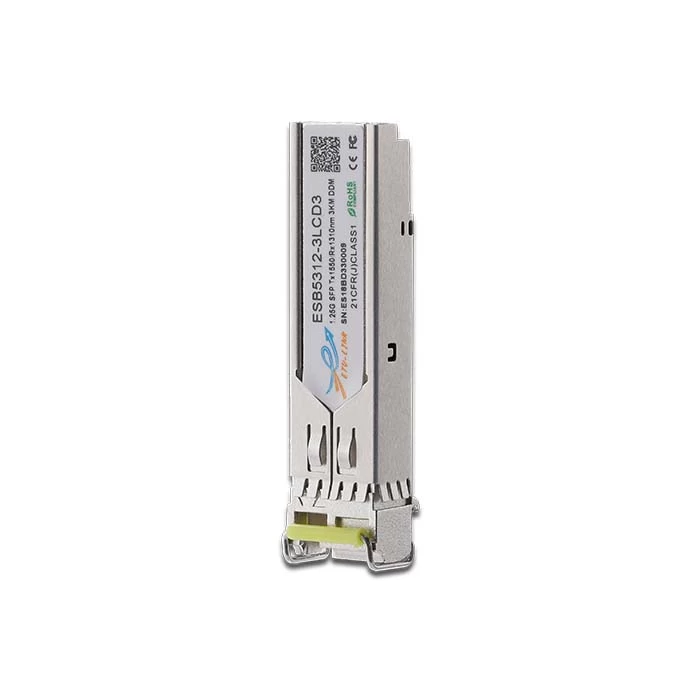

ESB5312-3LCD3

1.25Gbps SFP Bi-Directional Transceiver, 3km Reach Tx1550nm/Rx1310nm

Features

Ø Dual data-rate of 1.25Gbps/1.063Gbps operation

Ø 1550nm FP laser and PIN photodetector for 3km transmission

Ø Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Ø Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Ø Compatible with SONET OC-24-LR-1

Ø Compatible with RoHS

Ø +3.3V single power supply

Ø Operating case temperature range:

0 °C to +70 °C (Commercial)

-40 °C to +85 °C (Industrial)

Applications

Ø Gigabit Ethernet

Ø Fiber Channel

Ø Switch to Switch interface

Ø Switched backplane applications

Ø Router/Server interface

Ø Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of

1.25Gbps/1.0625Gbps and 3km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
