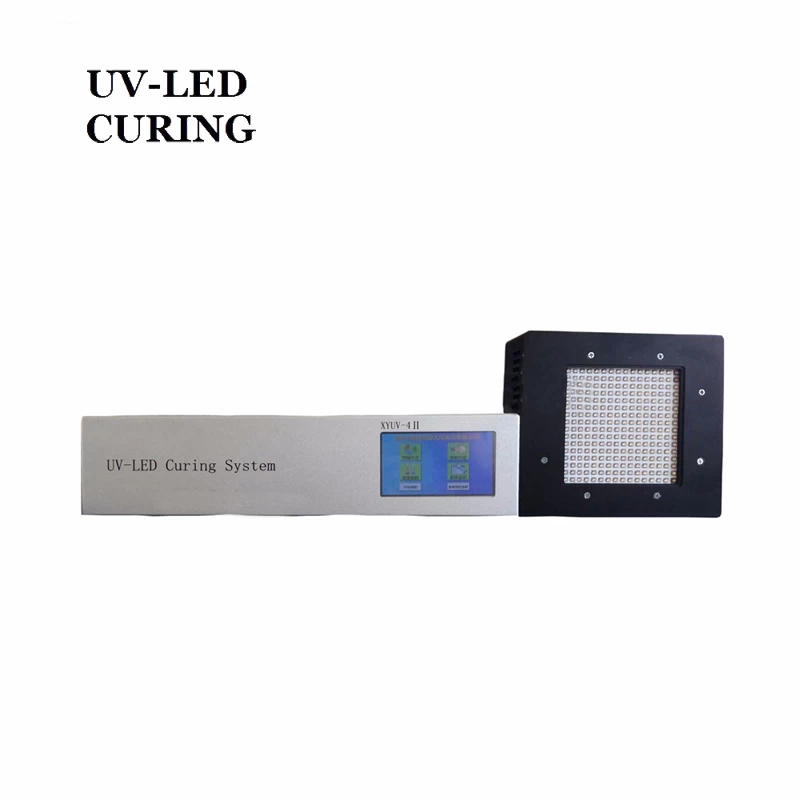

100*100mm 700W High Power UV LED Curing System 365nm 395nm

Array of High Power 700W UV LED Curing System is 100x100mm, including 365nm, 395nm. It can real-time monitor the head of the working state, from 0-100% adjustable intensity.



High Power Array 100x100mm 700W 365nm 395nm UV LED Curing System is mercury free, safer and more environmentally friendly. And its power is saving 80%, more than mercury lamp.What's more, it is not deformation of thin sheet material,  not need to be dry twice,  saving working hours and improving the yield.


Product Parameters of High Power UV LED Curing System for Bonding :

Type

High Power UV Curing Machine

Model Number

UV-LED CURING-S256

Chip Material

GaAs

Emitting Color

purple

Luminous Intensity

11W/cm2

Luminous Flux(lm)

Wavelength

Optical Attenuation(%)

0.1

Power

11W

Power Dissipation

700

Viewing Angle(°)

140

Color Rendering Index(Ra)

0.1

Color Temperature

2500K-14000k

Operating Temperature(℃)

-10 - 40

Storage Temperature(℃)

-10 - 40

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Certification

CE, RoHS

Wavelength

365nm~405nm

Cooling Method

air cooling or water cooling

Color

white

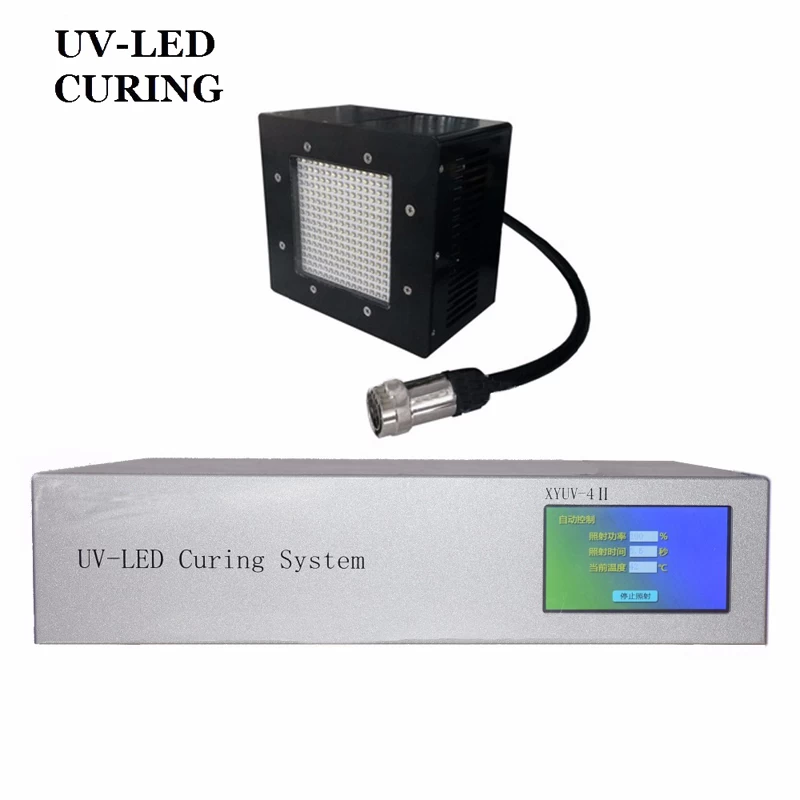

High Power 700W UV LED Curing System


Technical Data of the Controller of High Power 365nm LED UV Curing System

Type

XYUV -4

Channel

1

The size of controller

L384*W284*H90mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

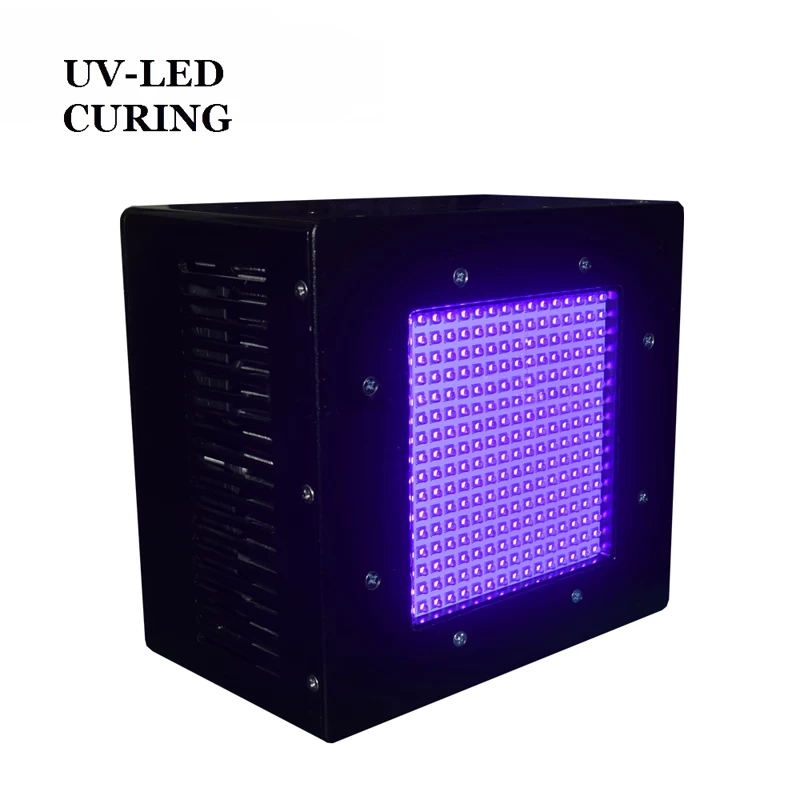

Irradiation Head Specification of 100*100mm Ciollimated UV Soloidify Machine for UV Adhesive :

Model

UV-LED CURING S256-100X100-395

Setting Specification

700mA  Constant Current

Electronic Power

700W

Electric Power

Fan Cooling

Control

XYUV-4Controller, Channel Alone Control

Curing Area

Length 100mm; Width:100mm

Irradiation Distance

10-15mm

UV LED Curing Head

Wavelength

395nm

Peak Irradiance

11W/cm2

Uniformity

±5~8%

Grade

No.1,3B Product
