Portable UV Coating Machine UV Curing Machine

Portable UV Coating Machine UV Curing Machine is easy to use. Its print speed is 10m to 30m each minute.



Portable UV Coating Curing Machine for UV Printing has fast curing speed. On the other hand, it is a portable machine, you can carry it to somewhere you need it. The product is simply curing device, so it is easy to maintain.


Product Parameters of Hand-held UV Coating UV Solidify Machine:

Condition

New

Type

UV curing machine

Automatic Grade

Automatic

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Model Number

UV-LED CURING-4

Voltage

220V

Power(W)

10w~2000w

Dimension(L*W*H)

340*240*170mm

Weight

10kg

Certification

ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Wavelength

365nm~405nm

Cooling Method

Air Cooling or Water Cooling

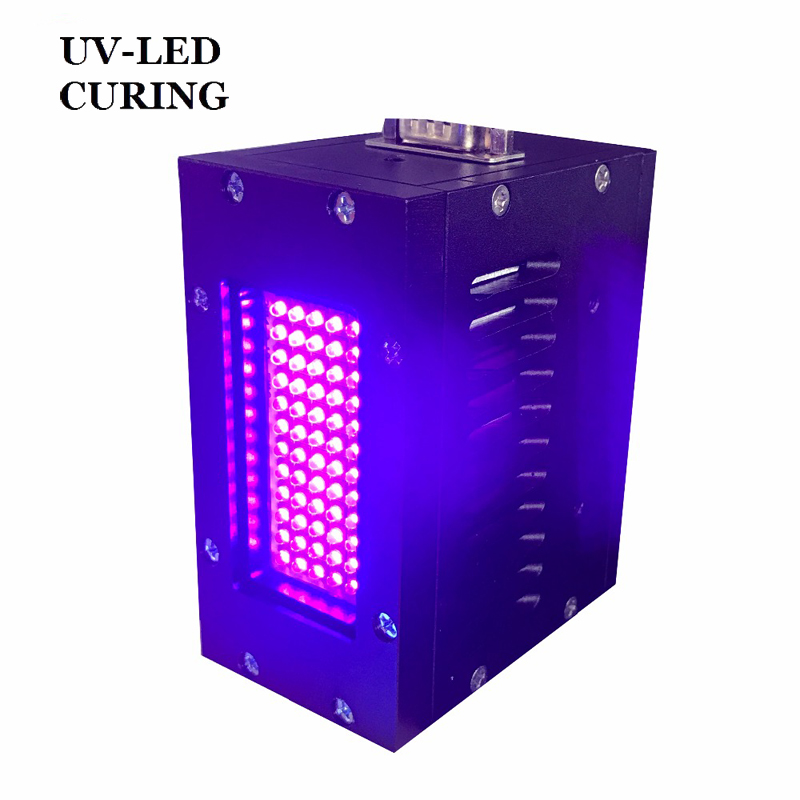

Portable UV Coating Curing Machine

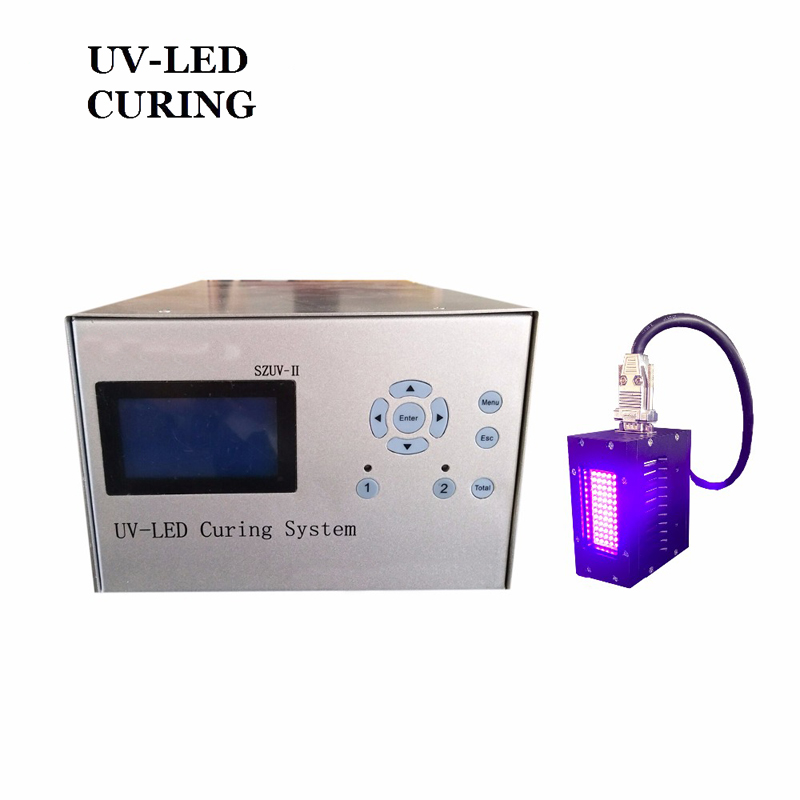

Technical Data of the Controller of Large Area LED UV Curing Coating Machine

Type

SZUV -

Channel

2

The size of controller

L200*W310*H150mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

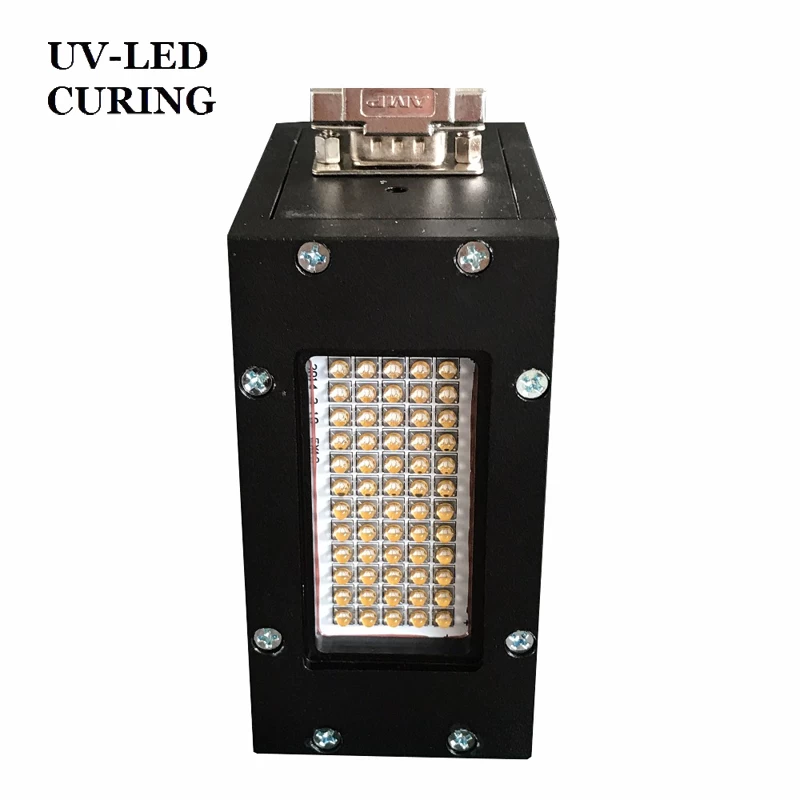

Irradiation Head Specification of High Power UV Coating Curing Equipment for Bonding :

Curing Area

Wavelength

Power Intensity

Cooled Method

Print Speed

60*25mm

395nm

12W/cm2

Air or Water Cooled

10m to 30m / min
