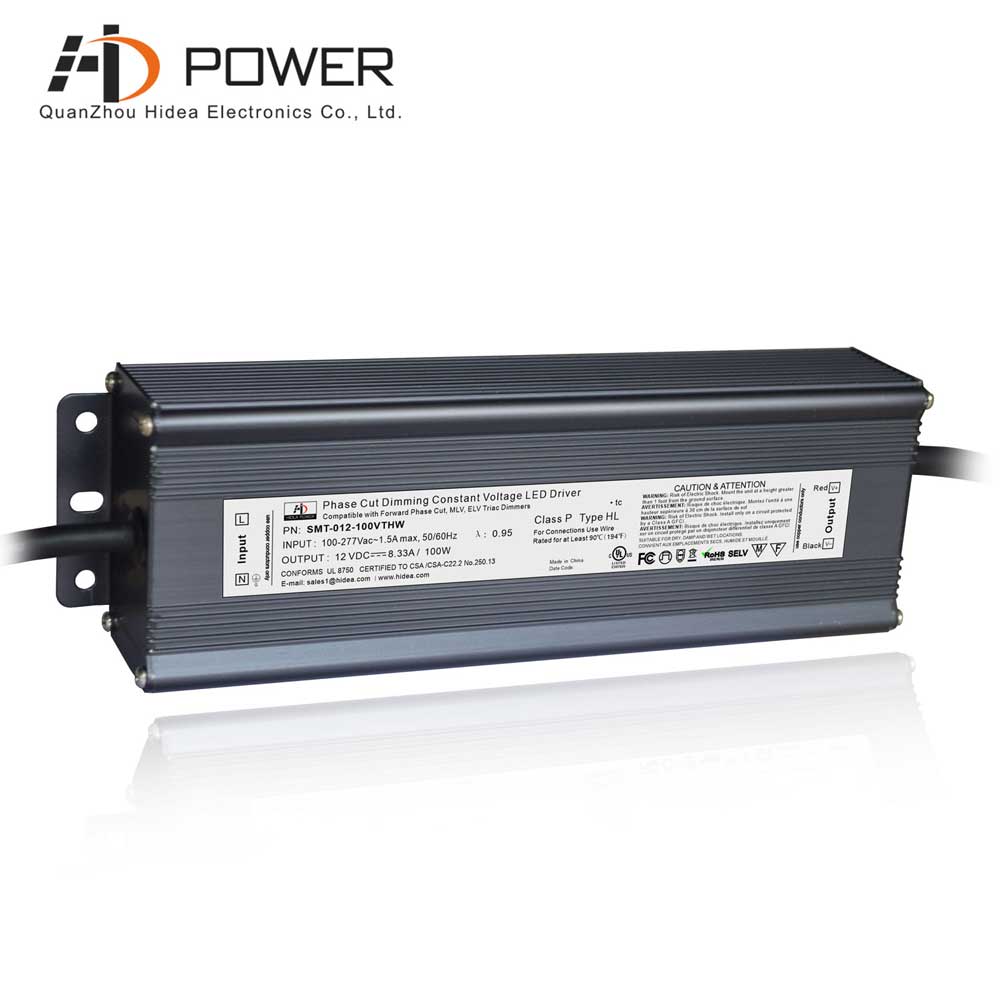

100-277V phase dimmable 100w driver led 12v dimmable
12v 100w triac dimmable led driver are high efficiency,high reliability. It's with built-in active PFC function: PF>0.90 for 86% of load or higher. It can work well with MINGER 14.6ft led stripe lights.
Specification
|
Model
|
SMT-012-100VTHW
|
SMT-024-096VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
8.33A
|
4.0A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
Full Load Efficiency(Typ.)
|
>80%
|
>83%
|
|
AC Current(Typ.)
|
1.5A/110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
≤120% constant current limiting, auto-recovery
|
|
Over Loading
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.1Kg
|
|
Size
|
230*70*46mm(L*W*H)
|
|
packing
|
Packing : 10PCS/ctn Carton: 385*335*200mm
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Dimmer Type

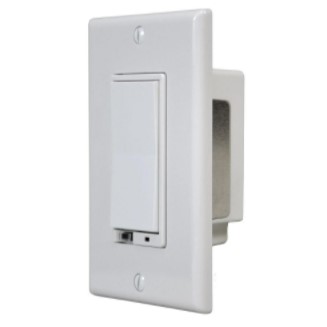

12v 100w dimmable led drivers with function of triac dimming work well with DOMUS Lighting 1 Channel Wall Mounted Dimmer
Related Products
|

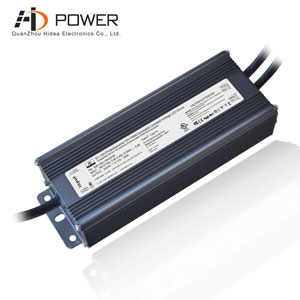

 12vdc 100w led driver 0-10v dimmable with PWM dimming has 7 years warranty.
