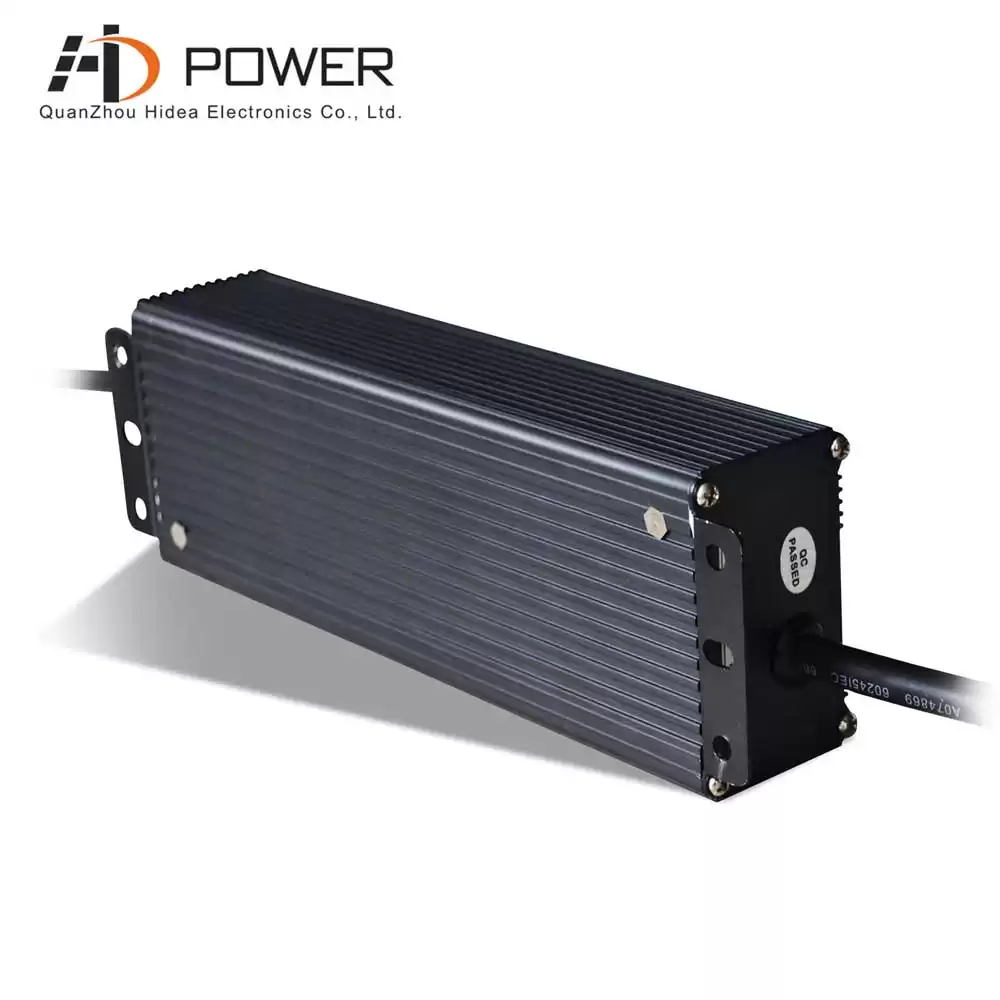

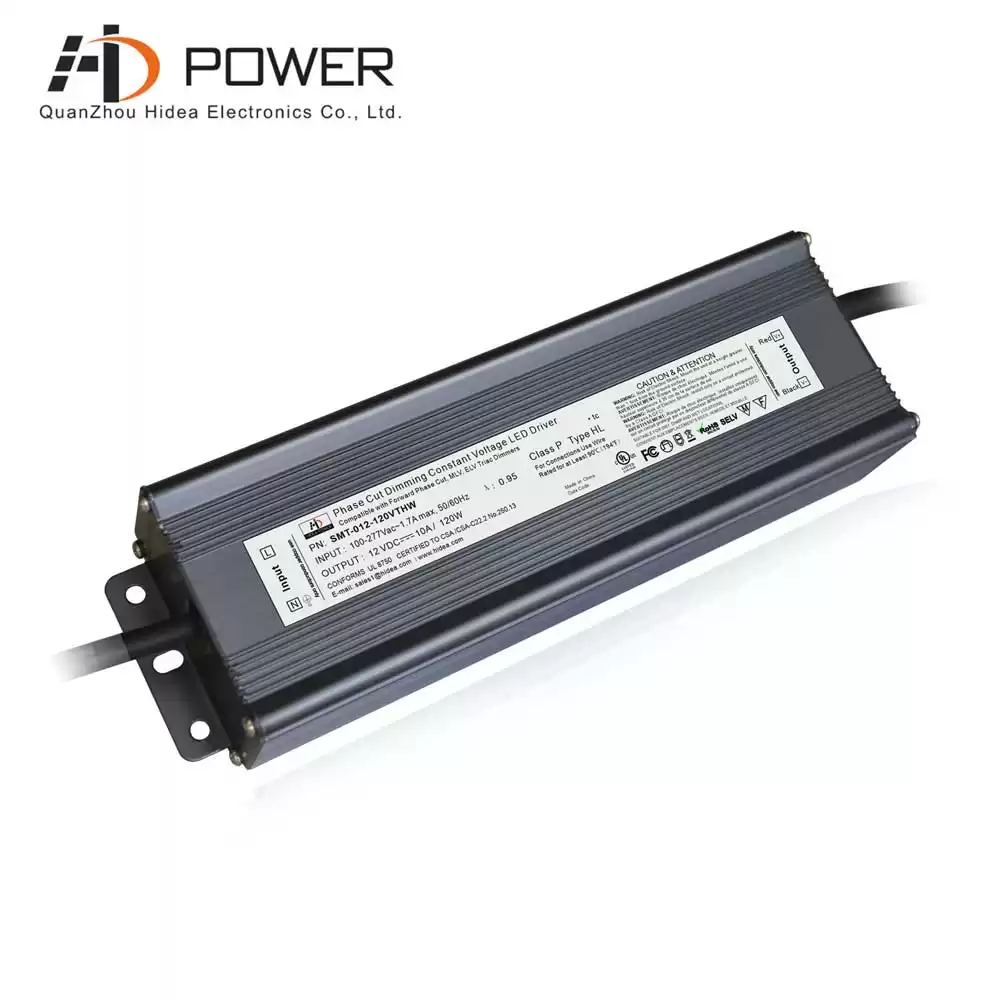

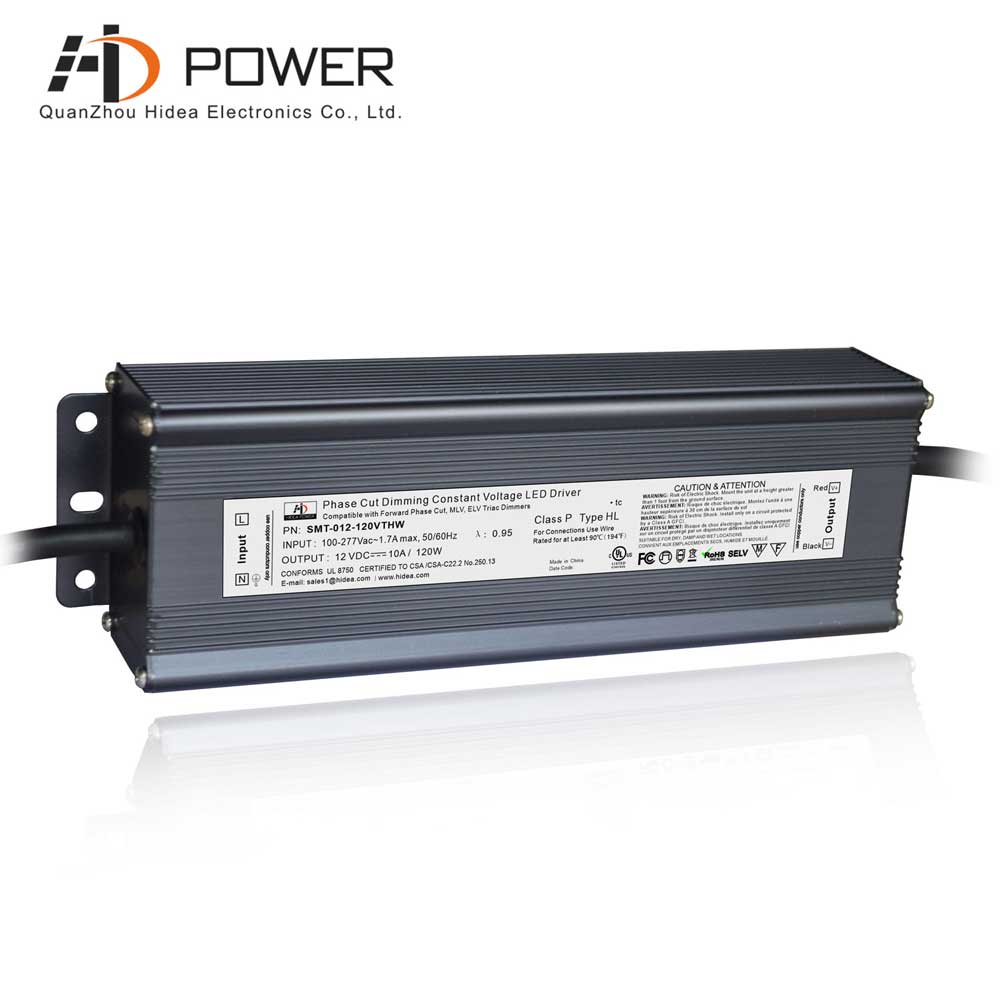

Best led driver manufacturers triac dimmable 12vac 120w class 2 led driver for led lights
UL listed 120 watts driver for led lights is UL/cUL FCC Rosh approval. It has 7 years warranty and free for replacing .GOVEE led strip lights are workable with it.
Specification
|
Model
|
SMT-012-120VTHW
|
SMT-024-120VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
10.00A
|
5.0A
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
Full Load Efficiency(Typ.)
|
>82%
|
>82%
|
|
AC Current(Typ.)
|
1.71A/110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.05Kg
|
|
Size
|
230*70*43mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
UL listed 12v 120w led drivers got Nema 4x rated for outdoor use. Its dimmable with any standard MLV TRIAC dimmer. It also operates well with LEVITON dimmer.
Related Products
|

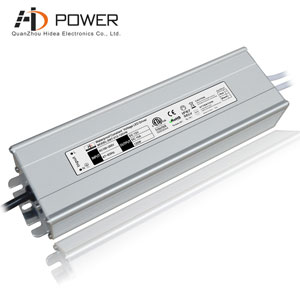

 ETL Approved AC 240v DC 12vdc 120W 10A LED Transformer
