Specialized 365nm 3D Print UV LED Curing Equipment for lens bonding. Surface Area UV LED Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Professional LED UV Curing Technology and Solution
UV LED surface light source is a semiconductor light emitting device which directly generates ultraviolet light. It is a high power LED chip with a luminous wavelength of 200nm to 450nm according to a certain proportion, forming a light source with a peak wavelength of 200nm to 450nm wavelength. UV LED surface light source has the characteristics of saving electricity, natural light, wide irradiation area, uniform spot, longer life, stronger illumination, and so on. LED type ultraviolet balanced light source is used for LCD, PCB and other exposure. It is more energy saving and environmental protection than traditional mercury lamp!

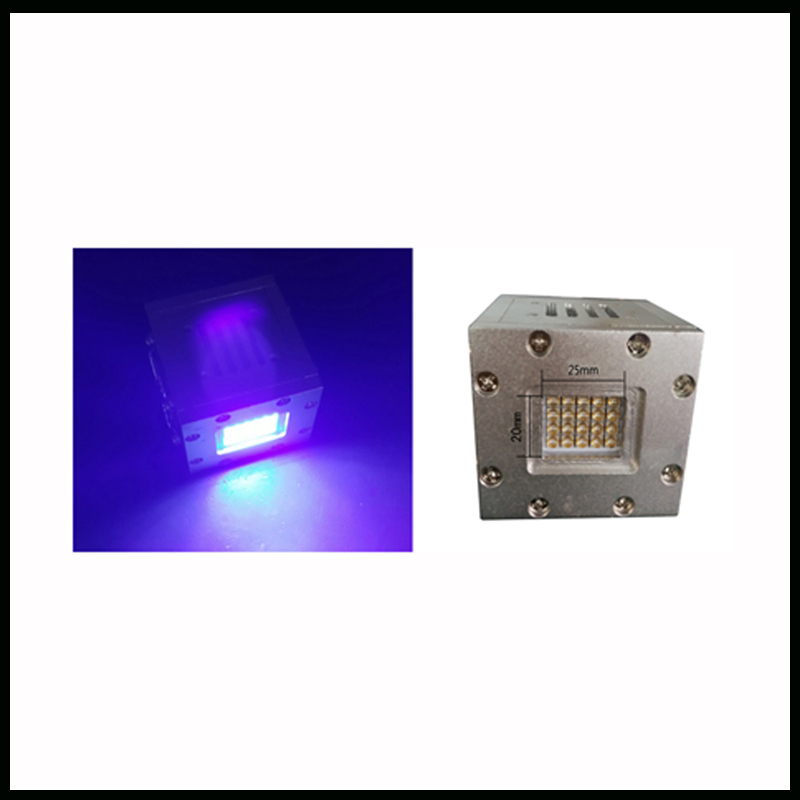

Small Area UV Glue Curing Machine for Marble Polish :
Wavelength : 365nm,385nm,395nm,405nm available.
|
Emitting window size
|
wavelength
|
irradiate distance
|
UV intensity
|
power
|
|
20x25 mm
|
365nm
|
10mm
|
6000mw/cm²
|
60w
|
|
20x25 mm
|
395nm
|
10mm
|
12000mw/cm²
|
60w
|
|

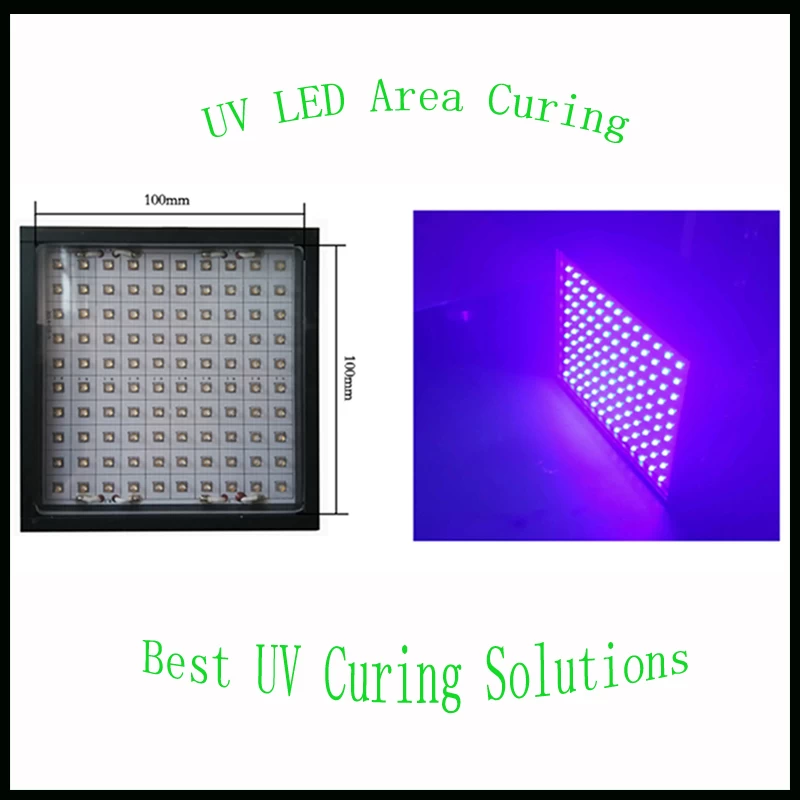

Emitting window size
|
wavelength
|
irradiate distance
|
UV intensity
|
power
|
|
100x100 mm
|
365nm
|
10mm
|
2000mw/cm²
|
300w
|
|
100x100 mm
|
395nm
|
10mm
|
4000mw/cm²
|
300w
|
|
Specifications of High Speed UV Light Curing Equipment for Lens Bonding :
|
|
Type
|
DSXUV-2
|
|
Channel
|
One
|
|
The size of controller
|
L384*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232
communication signals
|
|
Output
|
serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
Ambient temperature and
humidity
|
Ambient temperature:-10℃—50℃
Relative humidity:25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging,Manual exposure
control,Foot control or timing control
(0.1~9999S)
|
|
Setting operation
|
Using the operating switch is set,Power key parameter switch,RS-232
|
|
External Control
|
External input
|
Enter irradiation alone
Irradiation stop input,
Interlocking,All lights
illuminated input,Query
switch
|
|
External output
|
READY signal,Error
signal,Warning Output,Busy output(Various skinhead),
+5VOutput (indicator used)
|
