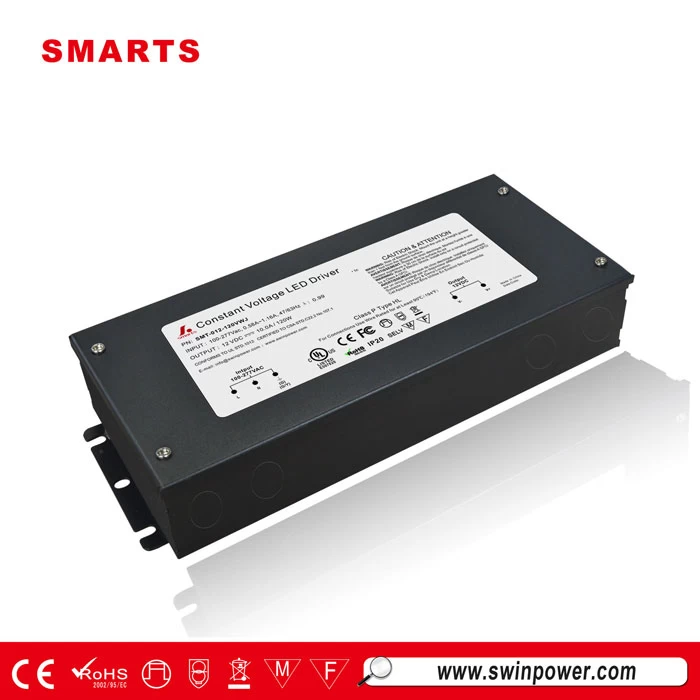

110V 277v external rgb 12v led driver 100w with surge protection
This 12v 100 watt led driver is non dimmable and non class 2 rated power supply, suitable for using in indoor application like led module, RGB LED, LED strips. etc. Junction box and led driver 2 in version make the space for LED drivers be more flexiable.
Specification
|
model
|
SMT-012-100VWJ
|
SMT-024-096VWJ
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.99@120V ;0.97@230V ;0.97@277V
|
|
Full Load Efficiency(Typ.)
|
>87%
|
>88%
>85%
>85%
|
|
AC Current（Typ.）
|
1.3A @110VAC
|
|
THD(Typ.)@ full load
|
<15% @120V <20%@230V <20% @277V
|
|
Inrush Current (Typ.)
|
20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A,50% 1.2ms@277V
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
221*93*40mm (L*W*H)
|
|
packing
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC & 277vac input , rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|
FAQ: What is the usgae of surge protection in a LED driver?
A surge is a transient overvoltage that exceeds the normal operating voltage.
Surge is usually caused by drastic changes or an increase in power demand. Any type of interference can damage an LED driver to exceeding warranty range. For example, lightning and the power company's daily pull-off and maintenance work will cause destructive surges to the power line of a lighing system. Hence we provide Withstand voltage 3.75KV for our our dimmable and dimmable led driver to prevent the drivers from a peak voltage.

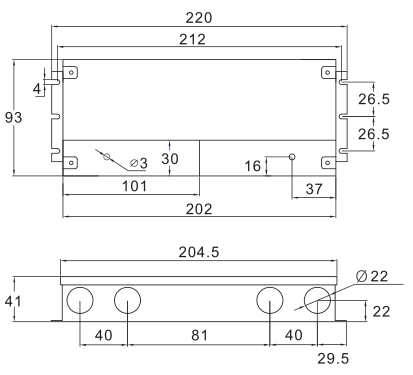

Drawing
Simple Connection Diagram
Instruction
※ This driver should be installed by qualified and professional person;
※ Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※ Ensure that wiring is correct before test in order to avoid light and power supply damage;
※ If the LED drivers do not work normally, pl. don’t maintain privately, but contact us:
