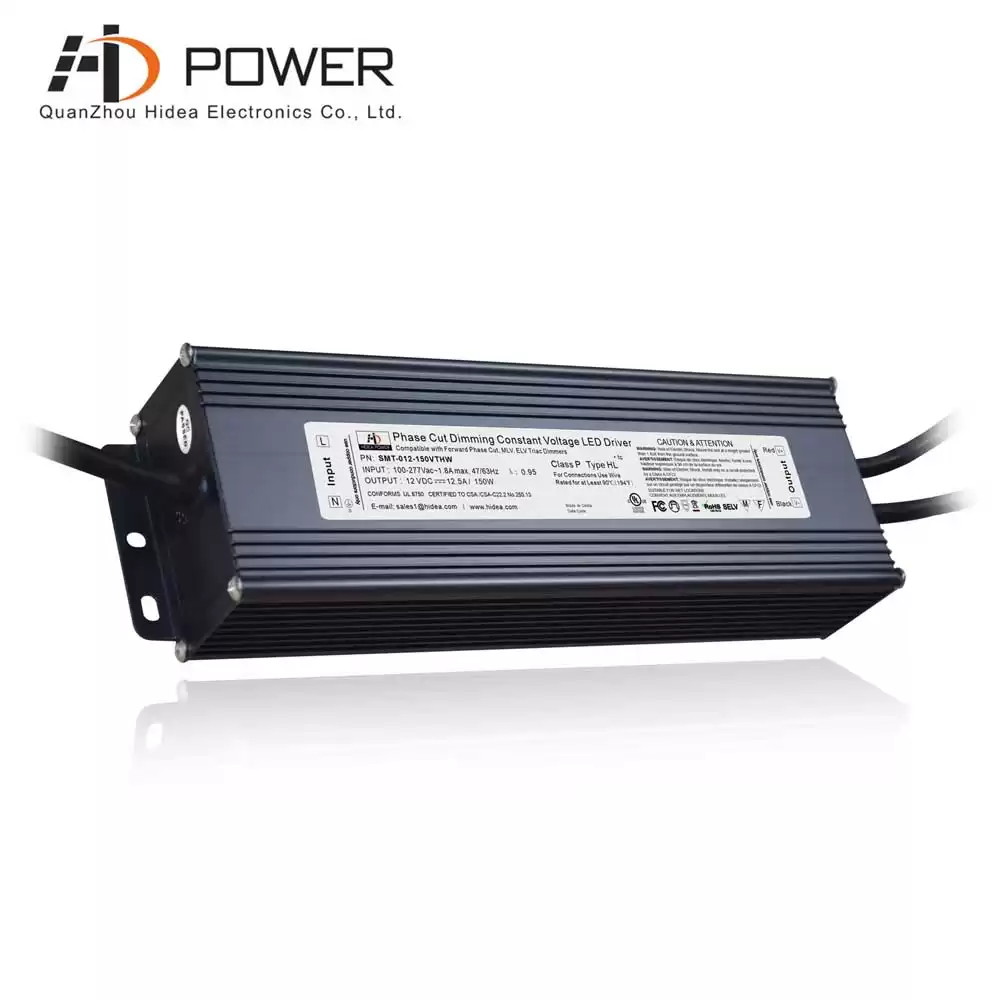

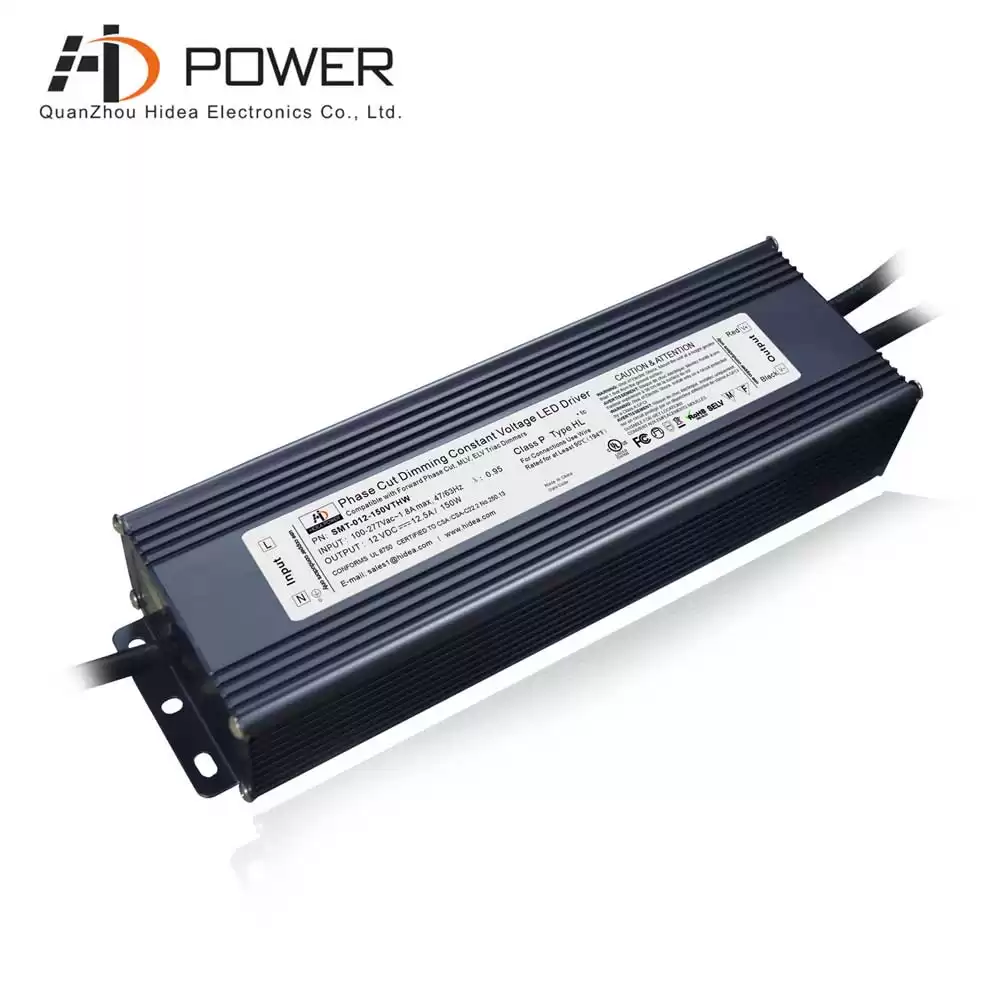

UL listed 12vdc dimmable led driver 150w
This 150w triac dimmable led driver are constant voltage design, and it got UL CE ROHS FCC approval. It can be compatible with multiple brand lamps, such as RAB Lighting's LED bar lights.
Specification
|
Model
|
SMT-012-150VTHW
|
SMT-024-150VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.97@120VAC 0.94@277VAC
|
|
Full Load Efficiency(Typ.)
|
>85%
|
>85%
|
|
AC Current(Typ.)
|
1.8A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

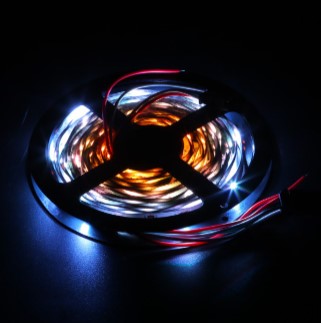

This is a 150 Watt triac dimmable led driver, which has got 7 years warranty for North American market. It is specifically designed to work with L8STAR 12vac Led strip lights.
