12v 24v 96W power supply Aluminum 100-277VAC input led driver for led lighting
UL listed triac dimmable led driver are our competitive product,they have got good reputations in North American market . All the this items are Triac dimmable Constant voltage led drivers,and all are UL CE ROHS FCC approved.
It takes about 7 years warranty,if there is any defective happen(normal using) during the warranty period,we promise to give replacement(the same item)
Specification
|
model
|
SMT-012-100VTHW/SMT-024-096VTHW
|
|
Output
|
DC Voltage
|
12/24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
8.33A/4.0A
|
|
Rated power
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.95/110V,PF≧0.97/277V
|
|
Full Load Efficiency(Typ.)
|
>82%
|
|
AC Current（Typ.）
|
1.33A/110VAC
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|

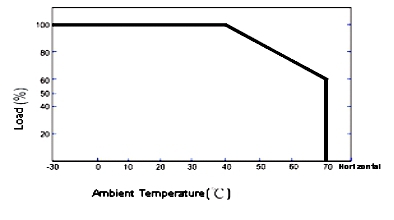

Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Net Weight
|
1.1Kg
|
|
Size
|
230*70*46mm（L*W*H）
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|
What's the series of power supply do you have?
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters

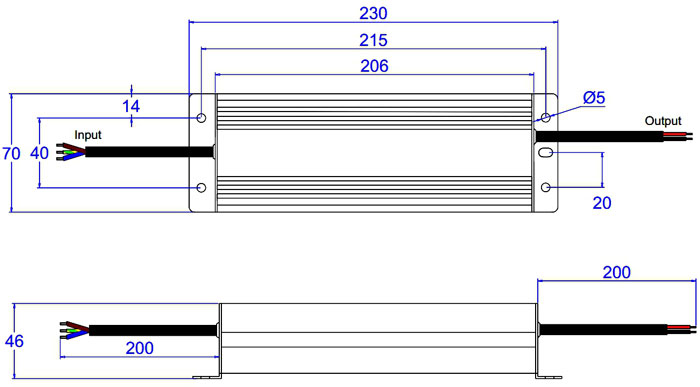

Mechanical Specification
※ Input Rubber wire 3*18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output Rubber wire, 2*16AWG Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming Operation
1) Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
2) The Pulse-Width Modulation (PWM) of output voltage can be adjusted by the input terminal of the AC phase line(L) by connection a phase/triac dimmer.
3) Compatible with Forward phase, leading edge, Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
4) please try to use the small power dimmers with power at least 1.5 times as the output power of the driver., which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.
